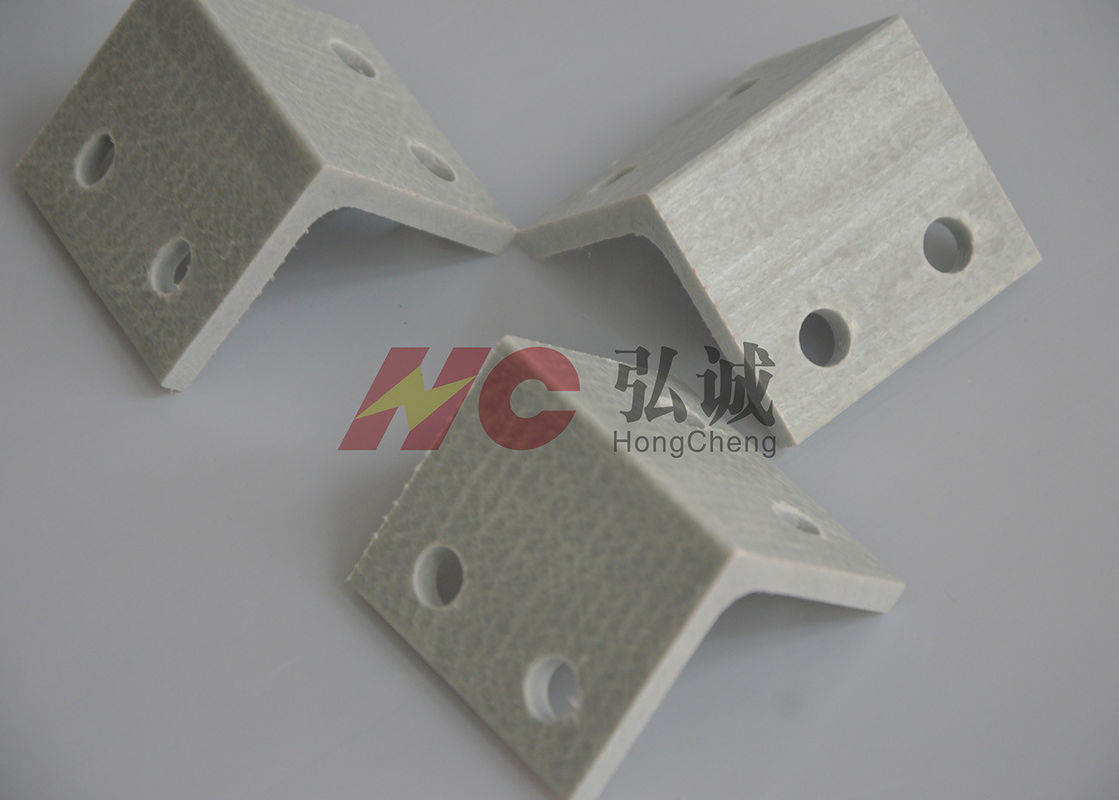

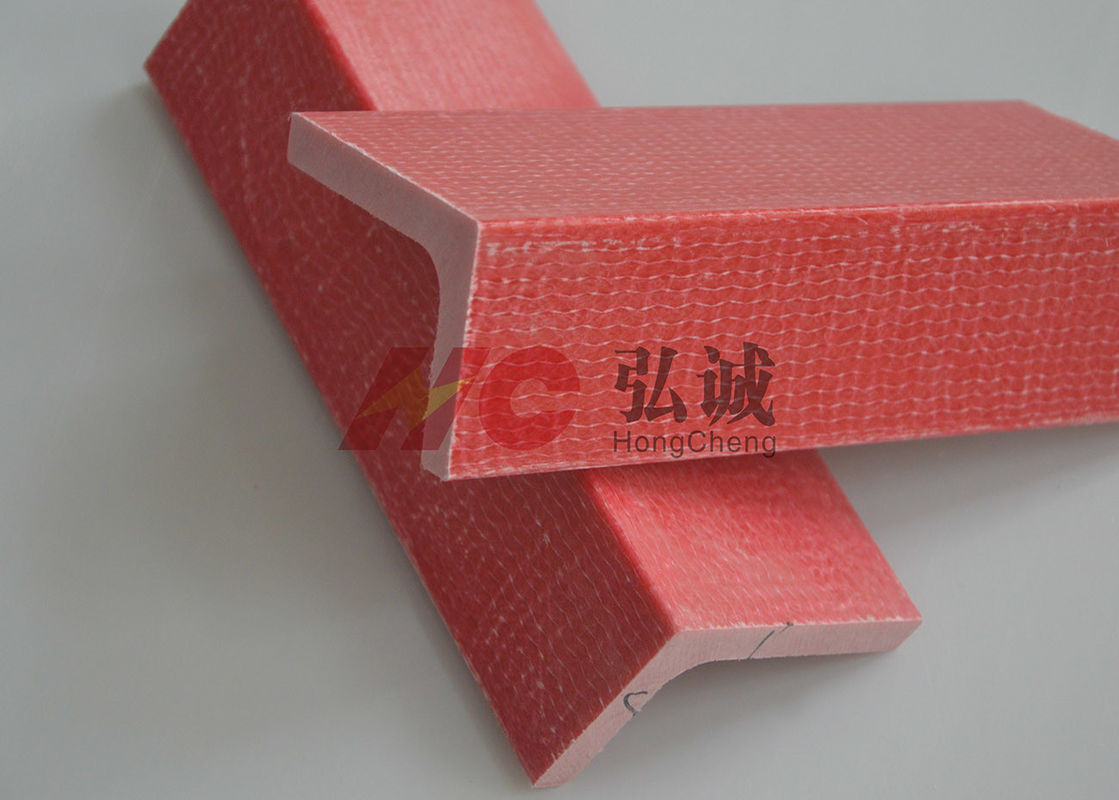

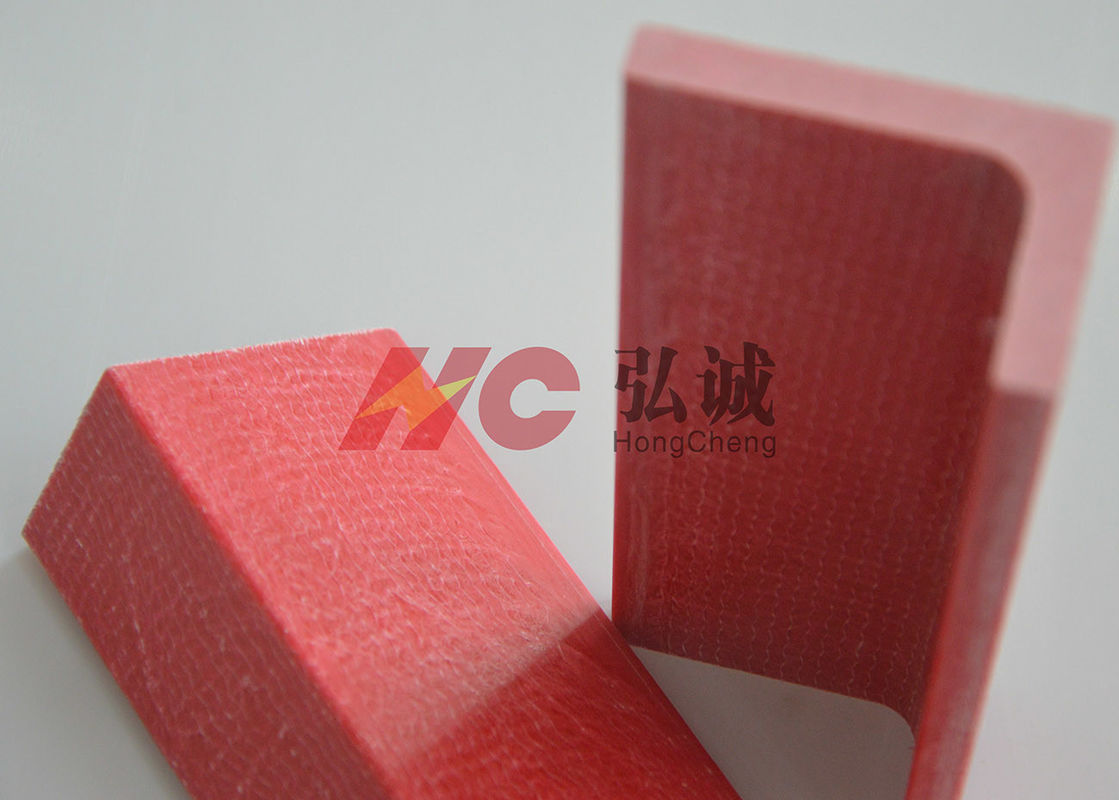

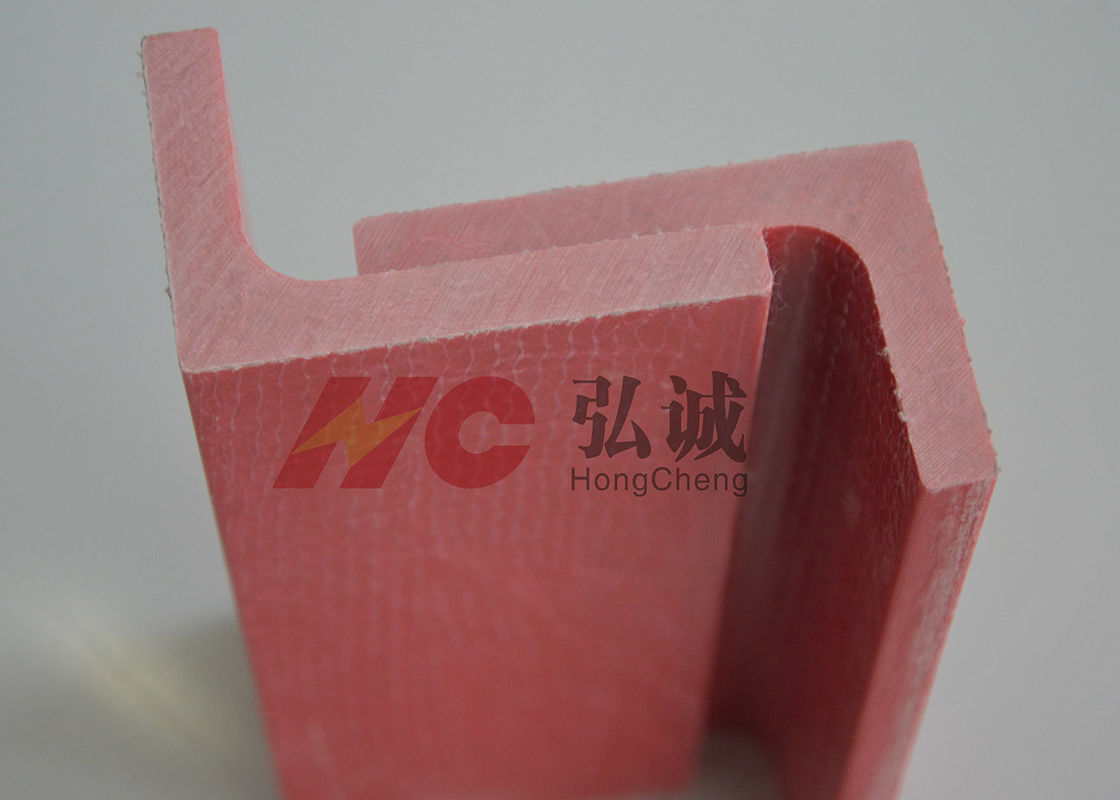

Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear

Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear

    • Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear
    • Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear
    • Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear
    • Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear
    • Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear
  • Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Volume Resistivity: ≥1.0 X 1012Ω·m Product Name: GPO-3 L Angle
    Coefficient Of Heat Conduction: ≤10.79W/(m2×K) Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Tensile Strength: ≥400Mpa
    High Light:

    custom u channel

    ,

    pultruded fiberglass structural shapes

    L angle Specified for switchgear / GPO-3 L angle specified for switchgear


    Introduction:

    We have four equipment and the dozens of pultruded profile molds can be produces :L angle,U shapes,Dog bone,square tubes,T-shape profiles.

    The L angles are a kind of e -class fiberglass and /or glass-mat reinforced unsaturated polyester & inorganic filler binder.The angles are formed continuously after being heated by high temperature.



    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:

    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter




    Diagram:

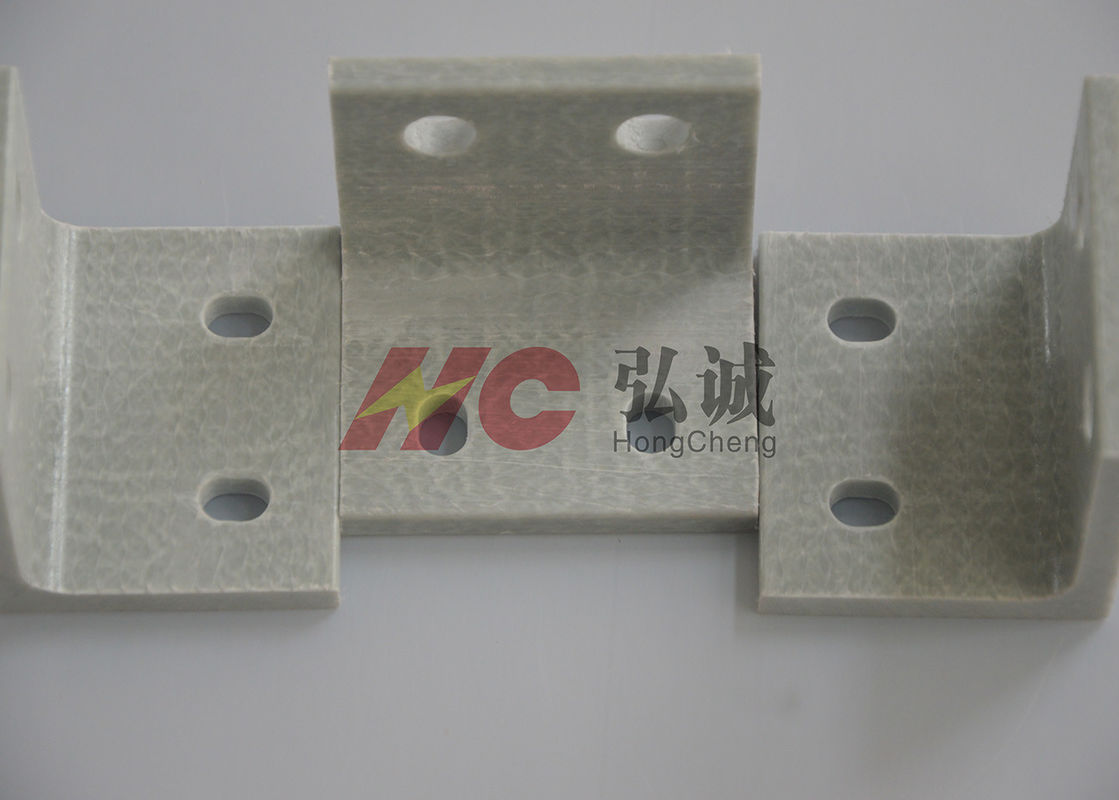

     Stable Structure GPO-3 L Shape High Arc Resistance Specified For Switchgear 0


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125
    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350



    Hong Cheng Grade HC-XC
    Item Test method Unit Values
    Physical properties color   ---- ///
    density IEC 60893-2 8.1 g/cm3 1.85-2.00
    water absorption IEC 60893-2 8.2 % ≤ 0.5
    Mechanical properties Tensile strength IEC 60893-2 5.7 Mpa ≥400
    Flexural Strength(perpendicular) IEC 60893-2 5.1 ≥650
    Compressive strength parallel IEC 60893-2 5.3 ≥ 290
    perpendicular ≥200
    Shearing strength IEC 60893-2 5.6 ≥ 89.7
    Impact strength(Charpy) IEC 60893-2 5.5 Kj/m2 ≥ 475
    Electrical properties Volume Resistivity IEC 60089 Ω·m ≥1.0 x 1012
    Surface Resistivity Ω ≥ 1.0×1014
    Electric strength
    perpendicular to lamination (90℃ in oil)
    IEC 60893-2 6.1.2 kV/mm ≥ 10.0
    Breakdown Voltage parallel to lamination KV ≥ 45
    Arc Resistance IEC 61621:1997 Sec. ≥ 180
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2×10-5
    coefficient of heat conduction GB/T 10297-1998 W/(m2×K) ≤10.79
