Home ProductsPultruded Profiles

Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter

Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter

    • Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter
    • Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter
    • Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter
    • Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter
    • Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter
  • Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 L Angle Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Density: 1.85-2.0g/cm3
    Flexural Strength(perpendicular): ≥650Mpa Impact Strength(Charpy): ≥ 475Kj/m2
    High Light:

    fiberglass l channel

    ,

    pultruded fiberglass structural shapes

    L angle Specified for converter / GPO-3 L angle specified for soft starter


    Introduction:



    GPO-3 L angle is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.
    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:



    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter




    Diagram:

     Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter 0


    Specification sheet:

    Product Name Item No. Size
    GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
    HC-XC-L-R GPO-3 Red L angle 3.0*40*40
    HC-XC-L-R GPO-3 Red L angle 4.0*30*40
    HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
    HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
    HC-XC-L-R GPO-3 Red L angle 5.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*20*34
    HC-XC-L-R GPO-3 Red L angle 6.0*25*50
    HC-XC-L-R GPO-3 Red L angle 6.0*30*50
    HC-XC-L-R GPO-3 Red L angle 6.0*50*50
    HC-XC-L-R GPO-3 Red L angle 6.0*75*100
    HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
    HC-XC-L-R GPO-3 Red L angle 8*50*50
    HC-XC-L-R GPO-3 Red L angle 8.0*50*65
    HC-XC-L-R GPO-3 Red L angle 10*50*75
    HC-XC-L-R GPO-3 Red L angle 10*50*80
    HC-XC-L-R GPO-3 Red L angle 10*50*125
    HC-XC-L-R GPO-3 Red L angle 10*63*100
    HC-XC-L-R GPO-3 Red L angle 10*75*75
    HC-XC-L-R GPO-3 Red L angle 10*80*150
    HC-XC-L-R GPO-3 Red L angle 10*90*90
    HC-XC-L-R GPO-3 Red L angle 10*125*125
    HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

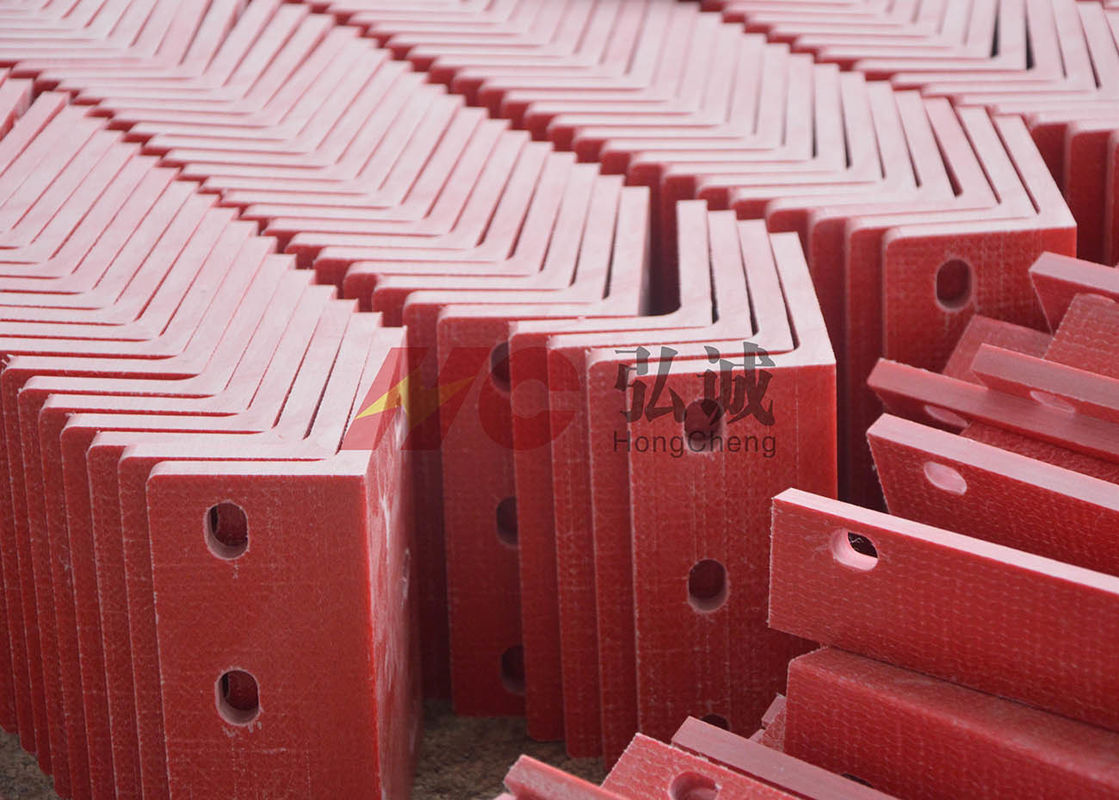

     L angle Specified for converter used in Super-Capacitor

    Converter Pultruded Profiles / Structural Fiberglass Angle For Soft Starter 1

    Super capacitor is a promising field in the energy storage system. Its energy storage principle is the physical reaction, which is similar to the use of lithium batteries, and applies to new energy vehicles, new energy buses and so on.
    Most of insulating material used in supercapacitor's fixed installation, according to the using conditions require fire report, flame retardant grade meet V-0, heat resistance at least meet F grade, firm installation ,with basic of electrical properties. The commonly materials used are HC-GPO3/HC-FR4 etc.
