Red U channel / Red GPO-3 U channel / Red cable bridge

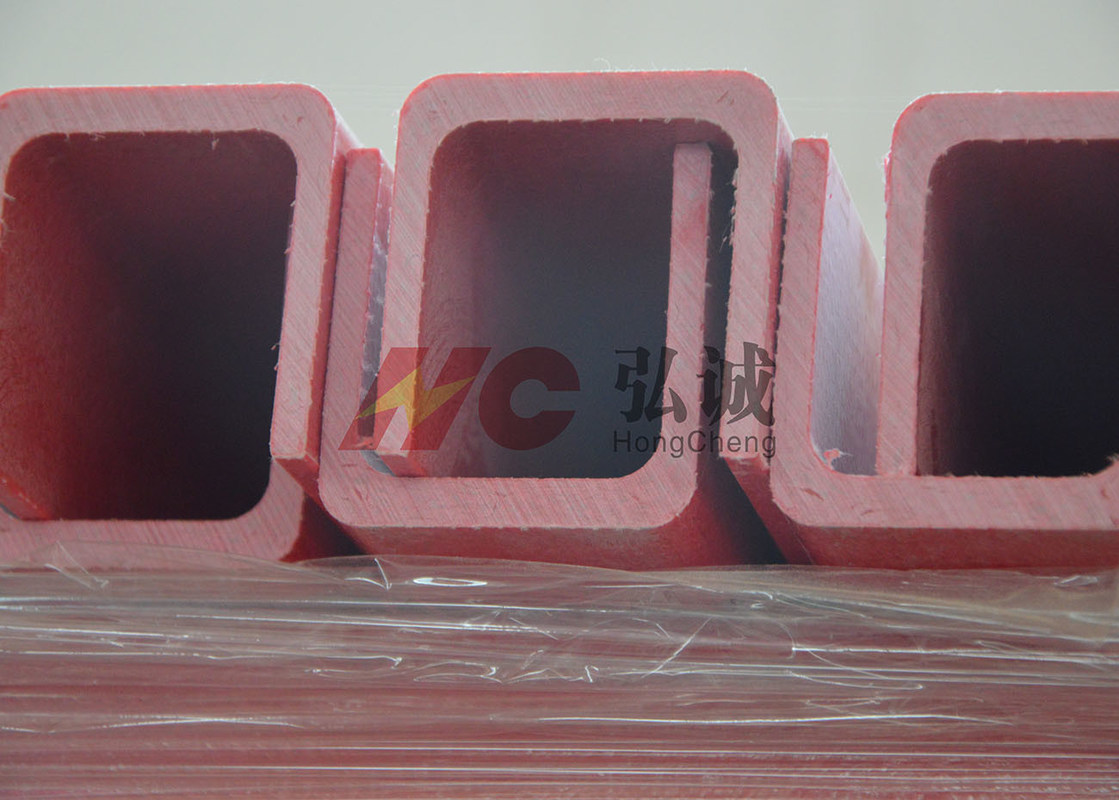

Product Description:Red U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.
Applicaiton:Red U channel is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.
Product Advantages:
Technical advantages, mold development and design capabilities, excellent supporting capacity.
Excellent size, space stability, non cracking, non Explosive Edge
Excellent Arc Resistance(Arc Resistance≥180 S)
Excellent Track Resistance(CTI≥600V)
Excellent Heat Resistance(Class F)
Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
Excellent Fire Retardant(UL 94 V-0 Grade)
Diagram:
Specification sheet:
Product Name | Item No. | Size |
GPO-3 U Channel | HC-XC-U-R | 3.175*114.3*63.5*63.5 |
HC-XC-U-R | 3.2*79*28.5*28.5 | |
HC-XC-U-R | 4*6.3*6.3*46*28*28 | |
HC-XC-U-R | 5*4*4*120*40*40 | |
HC-XC-U-R | 5*100*35*35 | |
HC-XC-U-R | 6.35*50.8*25.4*25.4 | |
HC-XC-U-R | 7*5*5*53*55*55 | |
HC-XC-U-R | 7*127*45*45 | |
HC-XC-U-R | 10*127*45*45 | |
HC-XC-U-R | 10*110*60*60 | |
HC-XC-U-R | 10*127*45*45 | |
HC-XC-U-G | 6.2*76*38*38 | |
HC-XC-U-G | 6.0*50*40*40 |
Profile processing:It is widely used in power control and distribution equipment for insulation groove angle and groove of cable insulation, as the insulation support device of inverter and counter-current electrical equipment.
Processing methods | Precision engraving |
Application of plate | machining tolerance according to the ISO 2768-M |
The advantage of processing |
1. Proficient in advanced programming software, such as: Mcam9.1, UG software programming, to meet the requirements of machining of complex surface; 2. We have a large number of senior engineers, and do the independent development of tooling and fixture to meet the production requirements of customers with high quality, high yield and low cost; 3. We have dozens of high precision CNC machining equipment, can satisfy the customer delivery requirements of shorter production; 4. We have 850 sets of CNC machining center (with a knife) mufti-step processing can complete complex parts; 5. We have many 1000*1200 large platform of Longmen CNC machining centers,can complete large panel parts with high precision production to avoid error caused by splicing processing processing. |
