Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified

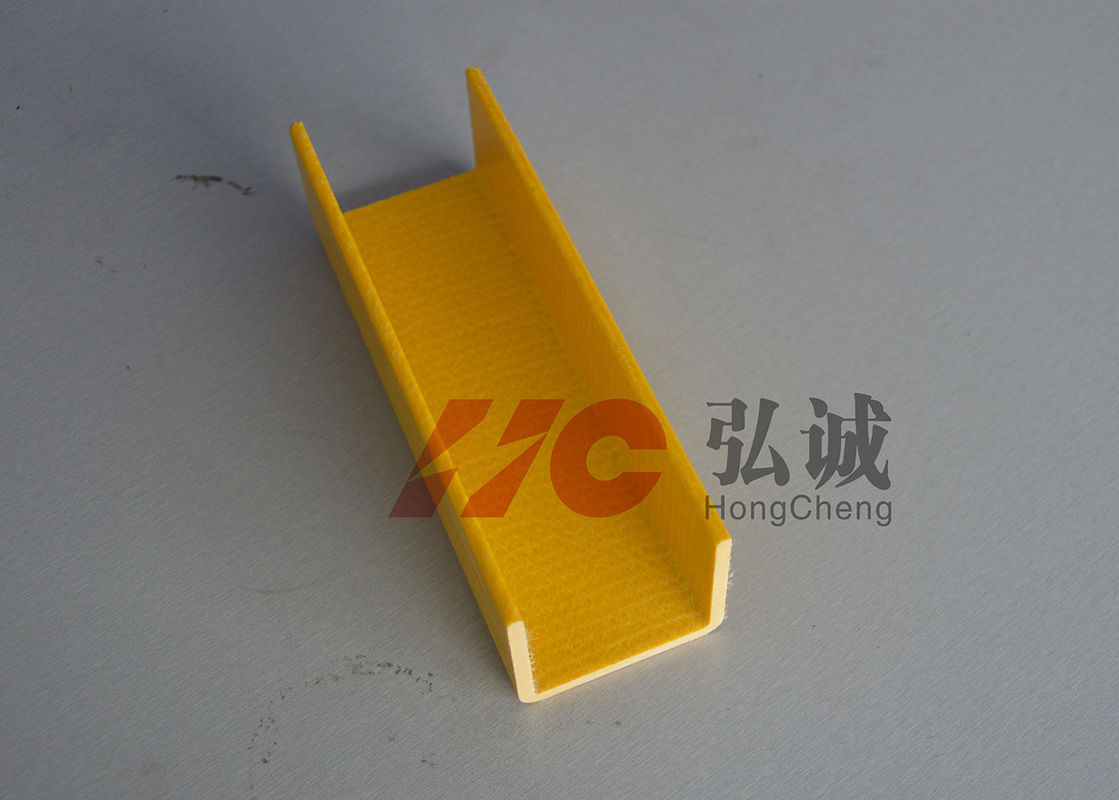

    • Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified

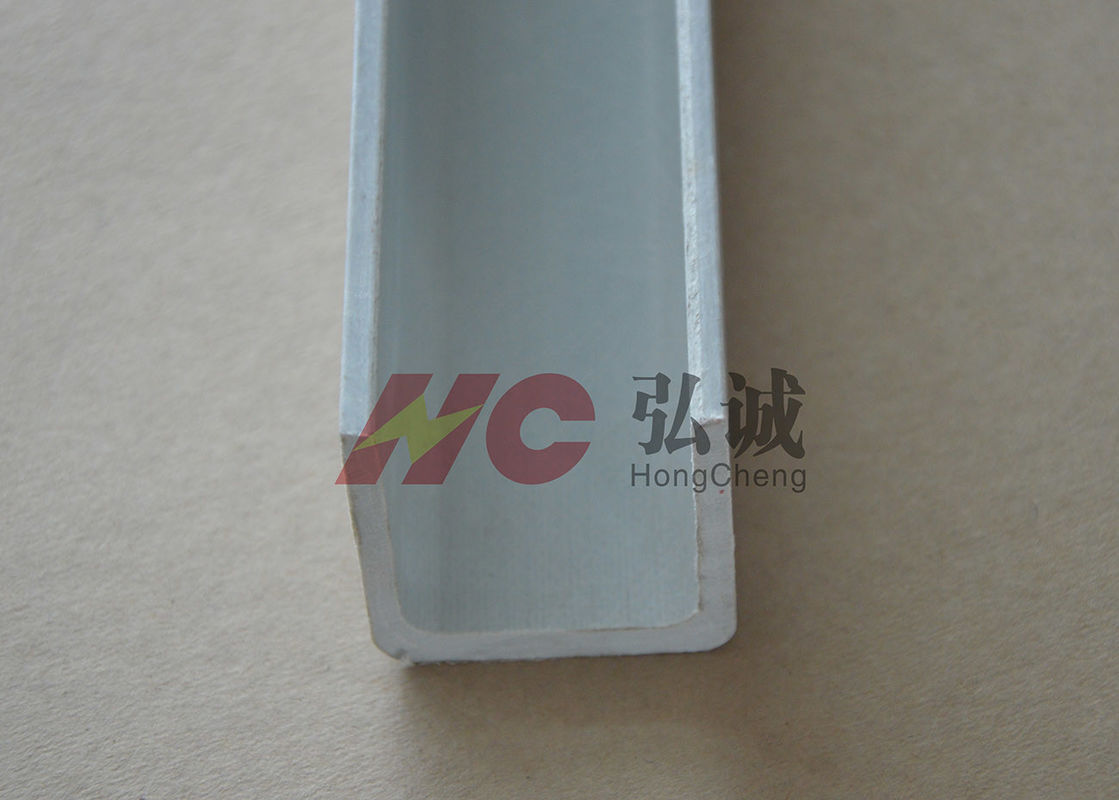

    • Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified

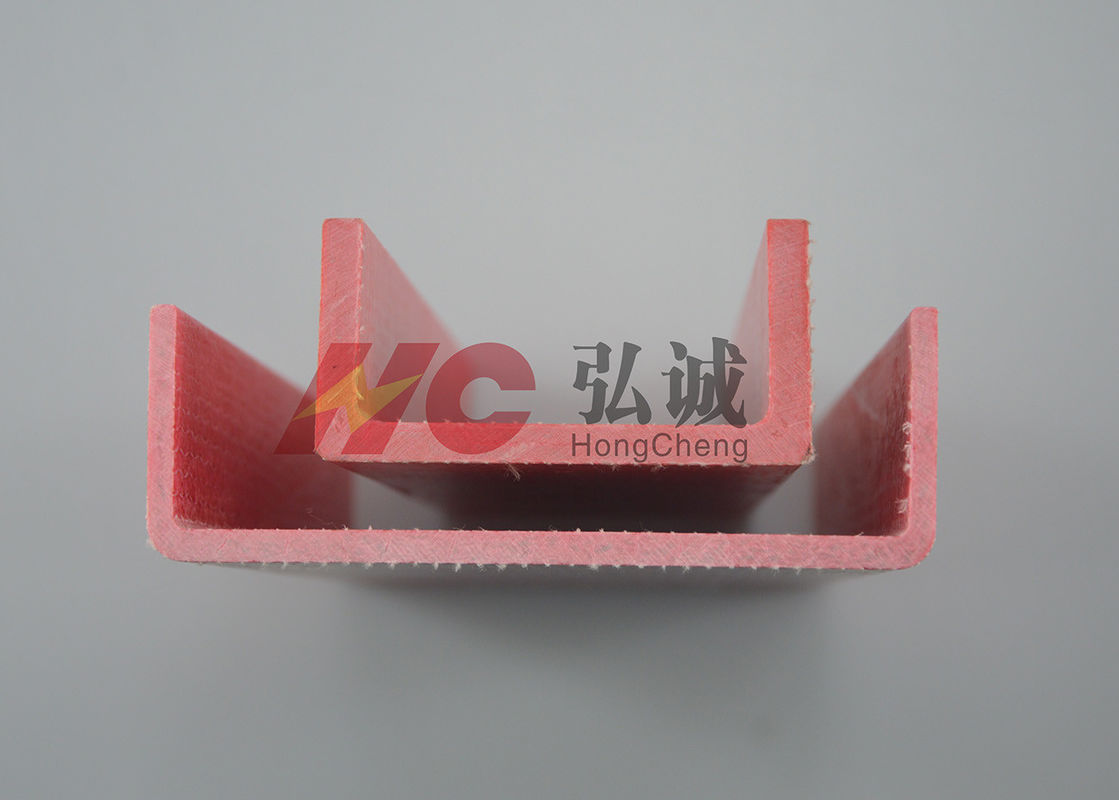

    • Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified

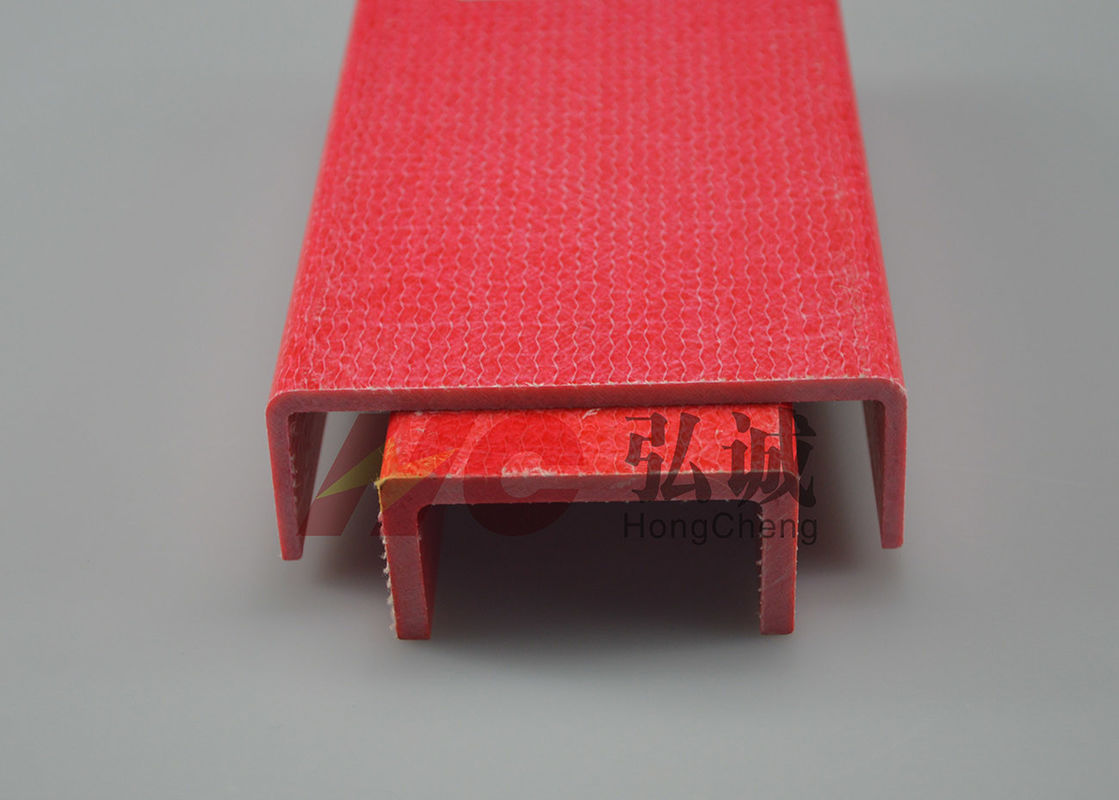

    • Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified
  • Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 U Channel Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Flexural Strength(perpendicular): ≥650Mpa
    Impact Strength: ≥ 475Kj/m2 Coefficient Of Thermal Expansion: ≤2×10-5

    Custom U channel / multi specifications GPO-3 U channel / customization cable bridge


    Product Description:

    U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.

    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:

    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter




    Diagram:

     Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified


    Specification sheet:

    Product Name Item No. Size
    GPO-3 U Channel HC-XC-U-R 3.175*114.3*63.5*63.5
    HC-XC-U-R 3.2*79*28.5*28.5
    HC-XC-U-R 4*6.3*6.3*46*28*28
    HC-XC-U-R 5*4*4*120*40*40
    HC-XC-U-R 5*100*35*35
    HC-XC-U-R 6.35*50.8*25.4*25.4
    HC-XC-U-R 7*5*5*53*55*55
    HC-XC-U-R 7*127*45*45
    HC-XC-U-R 10*127*45*45
    HC-XC-U-R 10*110*60*60
    HC-XC-U-R 10*127*45*45
    HC-XC-U-G 6.2*76*38*38
    HC-XC-U-G 6.0*50*40*40

    Custom U channel with Rohs and Reach certified used in Photovoltaic system

    Multi Specifications Fiberglass Structural Beams , U Shape Rohs And Reach Certified

    Photovoltaic system consists of main parts of photovoltaic modules, combiner box , inverter cabinets, distribution cabinets, transformers, power grid ,which in addition to transformer and power transmission and distribution are introduced. for the convergence of inverter cabinet/power distribution cabinet/combiner box are very close to the requirement of switch cabinet,HC-GPO3/HC-FR4/HC-GPO3 shapes are used to support,bearing,isolation.The insulation material can be used in the photovoltaic module for pv backboard, and has a strong weather resistance requirement for the backplane ,our research and development team have done a lot of research on it.
    Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.
    Main famous cooperative enterprises:Sungrow power supply Co.,Ltd,ABB,TBEA Co.,Ltd.
