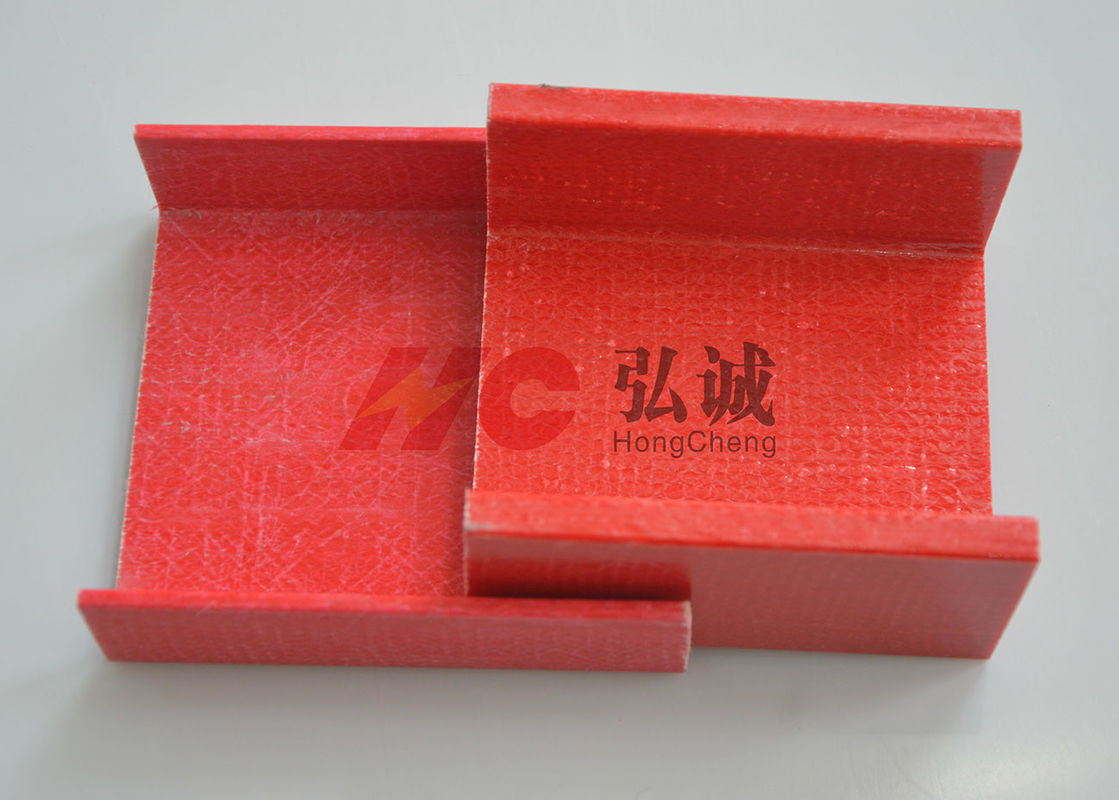

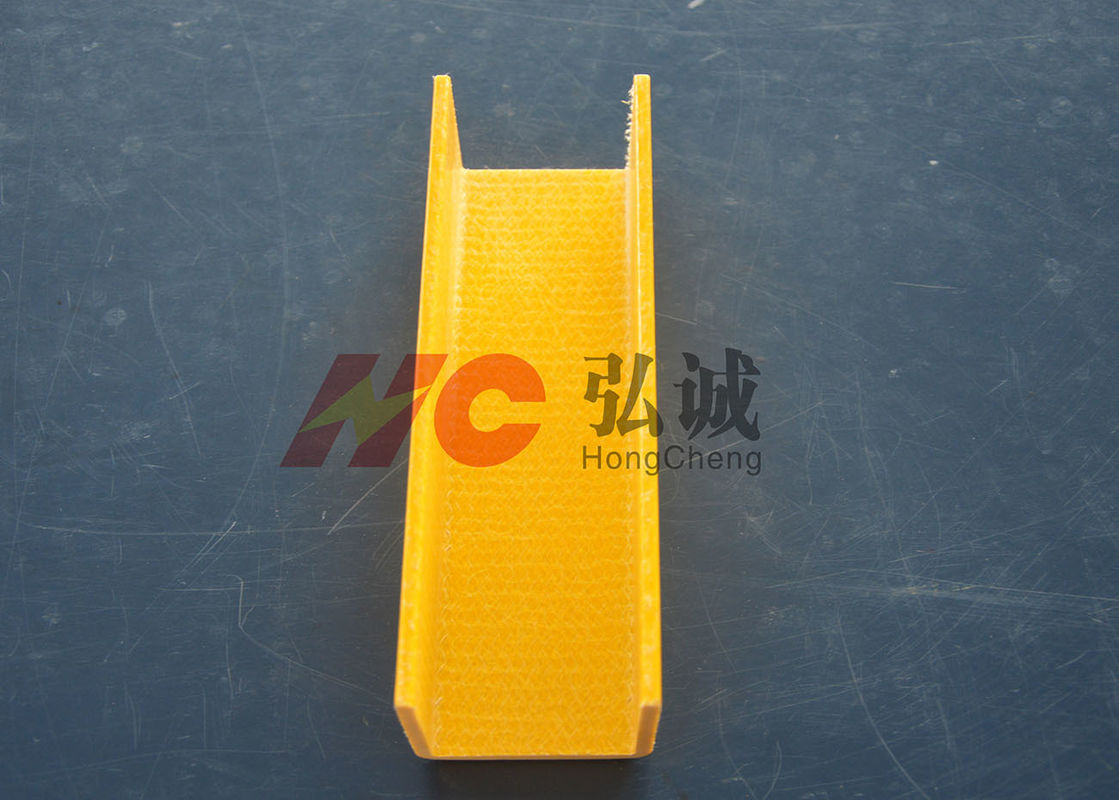

IEC testing center certified U channel / IEC testing center certified GPO-3 U channel
Product Description:
U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.
Product Advantages:
Technical advantages, mold development and design capabilities, excellent supporting capacity.
Excellent size, space stability, non cracking, non Explosive Edge
Excellent Arc Resistance(Arc Resistance≥180 S)
Excellent Track Resistance(CTI≥600V)
Excellent Heat Resistance(Class F)
Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
Excellent Fire Retardant(UL 94 V-0 Grade)
Application:
U channel is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.
Diagram:
Specification sheet:
Product Name | Item No. | Size |
GPO-3 U Channel | HC-XC-U-R | 3.175*114.3*63.5*63.5 |
HC-XC-U-R | 3.2*79*28.5*28.5 | |
HC-XC-U-R | 4*6.3*6.3*46*28*28 | |
HC-XC-U-R | 5*4*4*120*40*40 | |
HC-XC-U-R | 5*100*35*35 | |
HC-XC-U-R | 6.35*50.8*25.4*25.4 | |
HC-XC-U-R | 7*5*5*53*55*55 | |
HC-XC-U-R | 7*127*45*45 | |
HC-XC-U-R | 10*127*45*45 | |
HC-XC-U-R | 10*110*60*60 | |
HC-XC-U-R | 10*127*45*45 | |
HC-XC-U-G | 6.2*76*38*38 | |
HC-XC-U-G | 6.0*50*40*40 |
IEC testing center certified U channel used in Industrial Equipment
The industrial equipments refer to machinery manufacturing equipment, electromechanical integrated equipment, medical equipment, household appliance, central air conditioning compressor etc. The application of insulation material in industrial equipment is different, the emphasis is excellent mechanical performance ,easy to install, environmental protection and seal etc. The commonly materials used in it are HC-GPO3/HC-FR4
