High Tensile Strength Custom U Channel With Excellent Track Resistance

High Tensile Strength Custom U Channel With Excellent Track Resistance

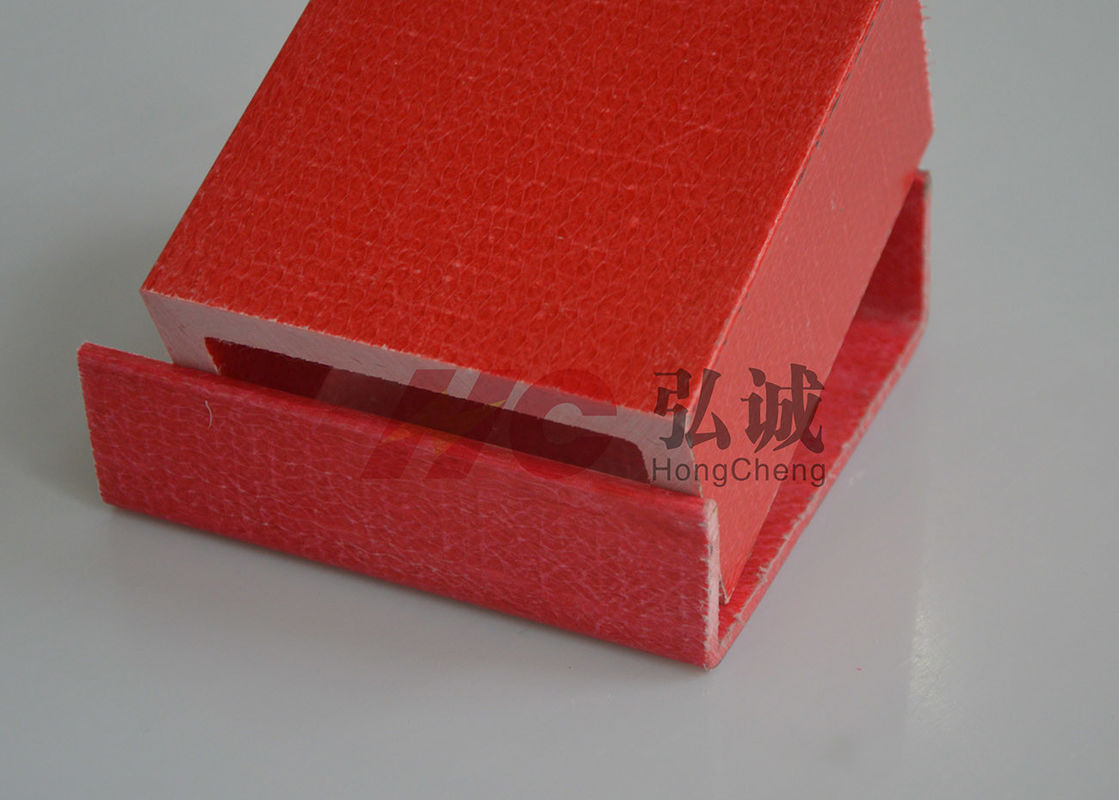

    • High Tensile Strength Custom U Channel With Excellent Track Resistance

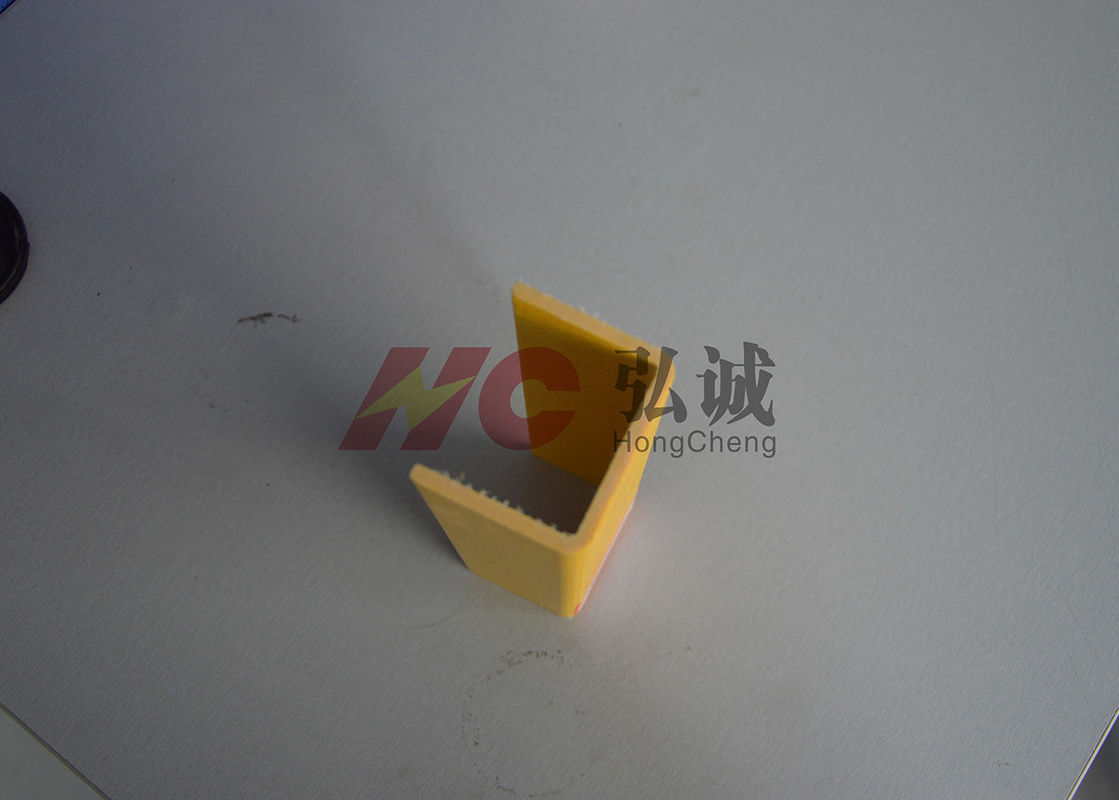

    • High Tensile Strength Custom U Channel With Excellent Track Resistance

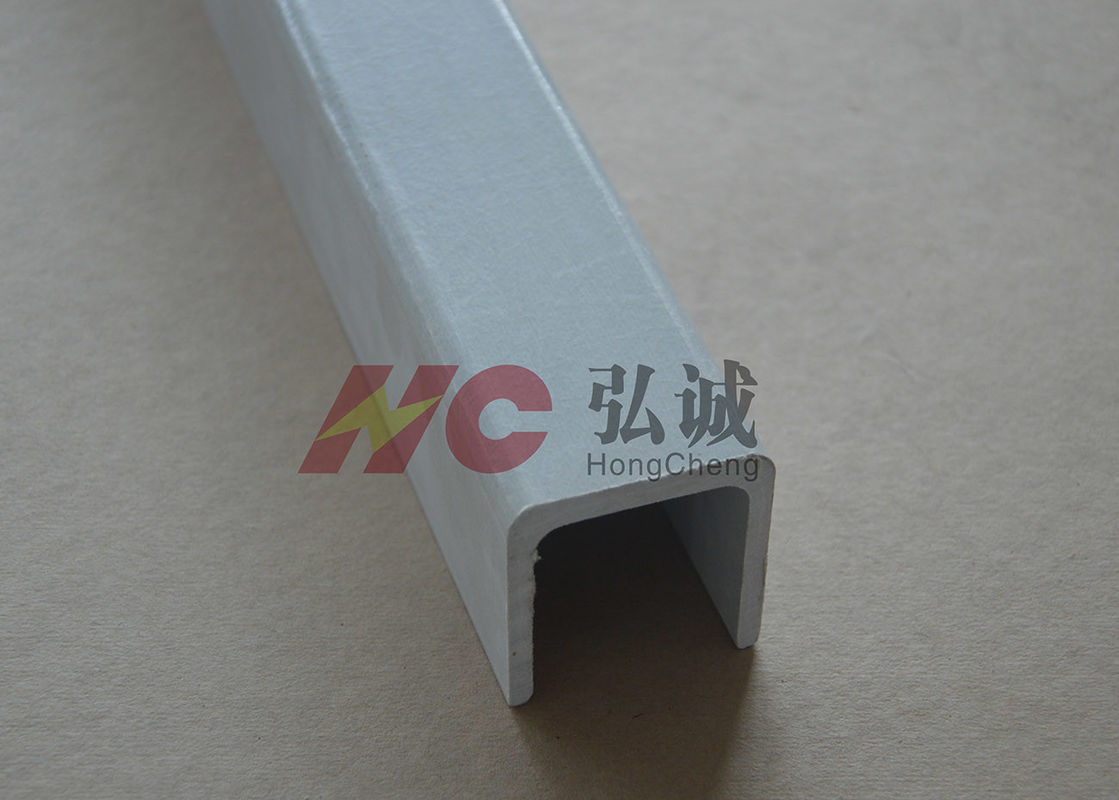

    • High Tensile Strength Custom U Channel With Excellent Track Resistance
    • High Tensile Strength Custom U Channel With Excellent Track Resistance
  • High Tensile Strength Custom U Channel With Excellent Track Resistance

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 U Channel Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Water Absorption: ≤ 0.5%
    Flexural Strength: ≥650Mpa Compressive Strength: ≥ 290Mpa
    High Light:

    fiberglass l channel

    ,

    pultruded fiberglass structural shapes



    High tensile strength U channel up to 400mpa with high track resistance


    Product Description:

    U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.

    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:

    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter


    Diagram:

     High Tensile Strength Custom U Channel With Excellent Track Resistance 0

    Specification sheet:

    Product Name Item No. Size
    GPO-3 U Channel HC-XC-U-R 3.175*114.3*63.5*63.5
    HC-XC-U-R 3.2*79*28.5*28.5
    HC-XC-U-R 4*6.3*6.3*46*28*28
    HC-XC-U-R 5*4*4*120*40*40
    HC-XC-U-R 5*100*35*35
    HC-XC-U-R 6.35*50.8*25.4*25.4
    HC-XC-U-R 7*5*5*53*55*55
    HC-XC-U-R 7*127*45*45
    HC-XC-U-R 10*127*45*45
    HC-XC-U-R 10*110*60*60
    HC-XC-U-R 10*127*45*45
    HC-XC-U-G 6.2*76*38*38
    HC-XC-U-G 6.0*50*40*40

    Hong Cheng Grade HC-XC
    Item Test method Unit Values
    Physical properties color   ---- ///
    density IEC 60893-2 8.1 g/cm3 1.85-2.00
    water absorption IEC 60893-2 8.2 % ≤ 0.5
    Mechanical properties Tensile strength IEC 60893-2 5.7 Mpa ≥400
    Flexural Strength(perpendicular) IEC 60893-2 5.1 ≥650
    Compressive strength parallel IEC 60893-2 5.3 ≥ 290
    perpendicular ≥200
    Shearing strength IEC 60893-2 5.6 ≥ 89.7
    Impact strength(Charpy) IEC 60893-2 5.5 Kj/m2 ≥ 475
    Electrical properties Volume Resistivity IEC 60089 Ω·m ≥1.0 x 1012
    Surface Resistivity Ω ≥ 1.0×1014
    Electric strength
    perpendicular to lamination (90℃ in oil)
    IEC 60893-2 6.1.2 kV/mm ≥ 10.0
    Breakdown Voltage parallel to lamination KV ≥ 45
    Arc Resistance IEC 61621:1997 Sec. ≥ 180
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2×10-5
    coefficient of heat conduction GB/T 10297-1998 W/(m2×K) ≤10.79



    High tensile strength U channel used in power rigid

    High Tensile Strength Custom U Channel With Excellent Track Resistance 1

    power rigid also known as is used extensilvely in power rigid,Transmission and distribution includes two concepts, they are transmission and distribution .Transmission refers to the transmission of large amounts of electricity from power plants or power generation centers to the consumption area of electricity, or the transmission of power for each other between different power channels;
    Power distribution is the distribution method which distribution to users in the consumption power area ,it was serviced for user service directly.
    In the transmission and distribution which including the reactor, transformer, switch cabinet, circuit breaker, UPS uninterruptible power supply, laminated bus, etc.;Our upgm203 sheet are widely used in this field,we have accumulated rich experiences of material application and R&D.
