21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact

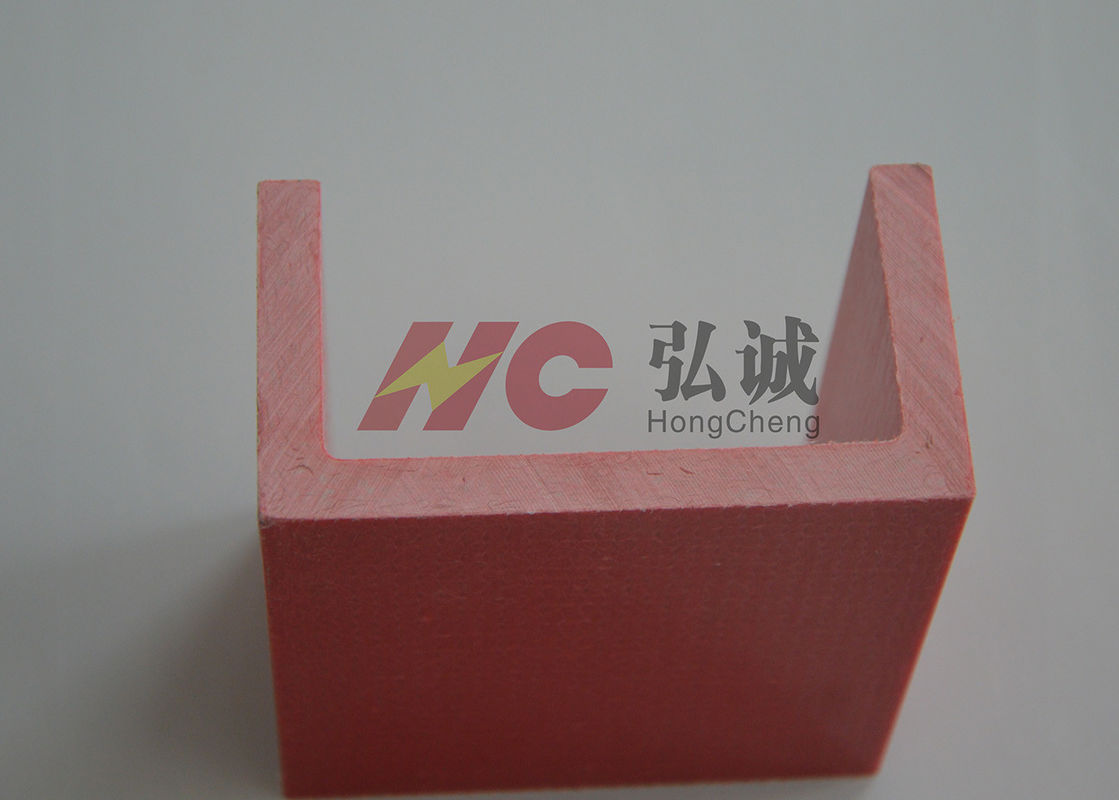

    • 21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact

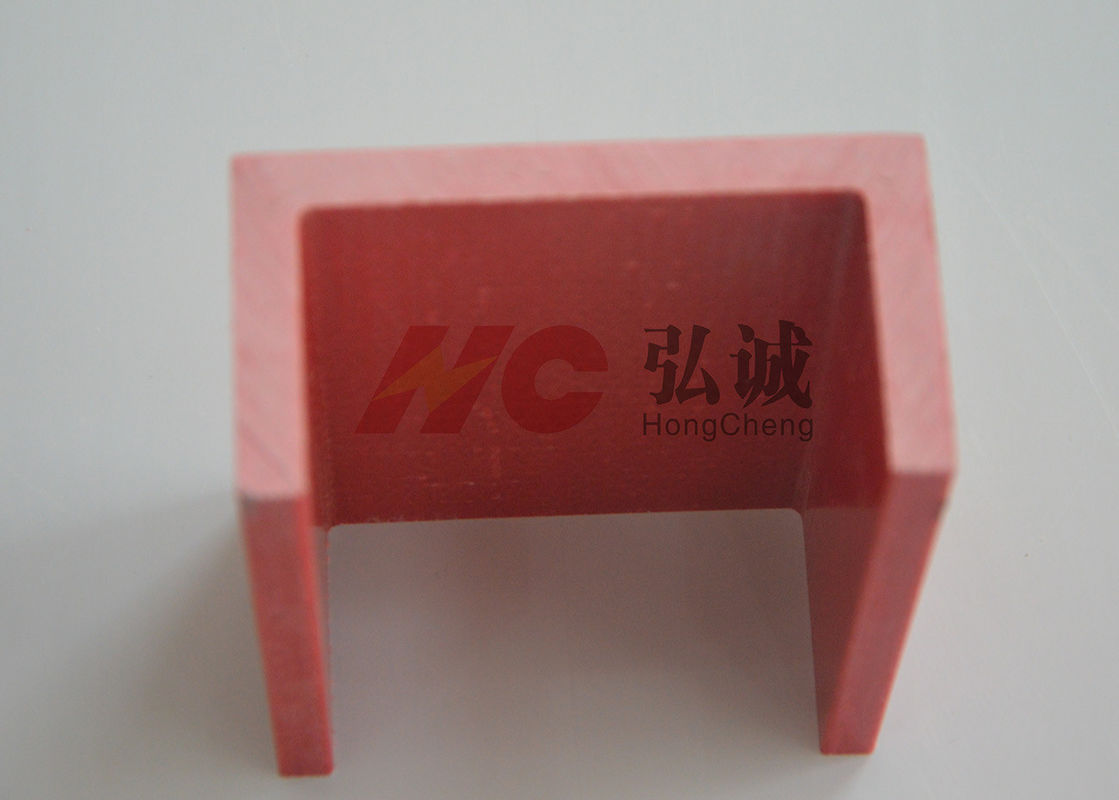

    • 21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact

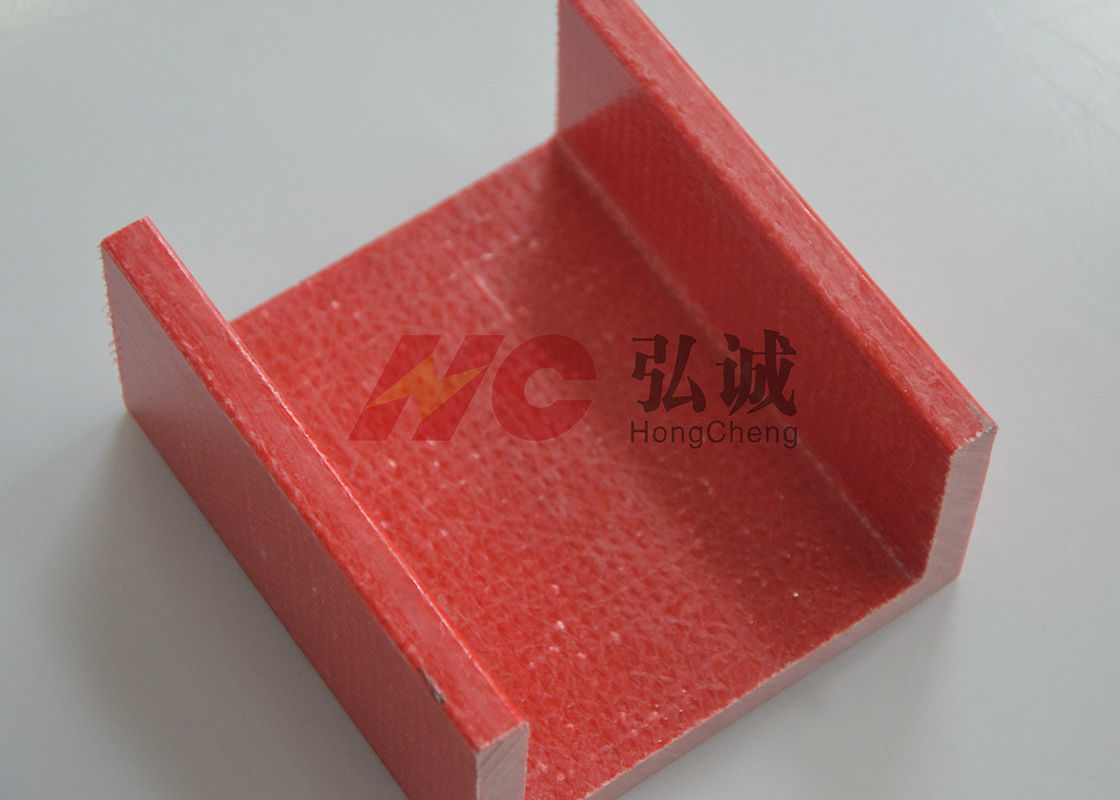

    • 21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact

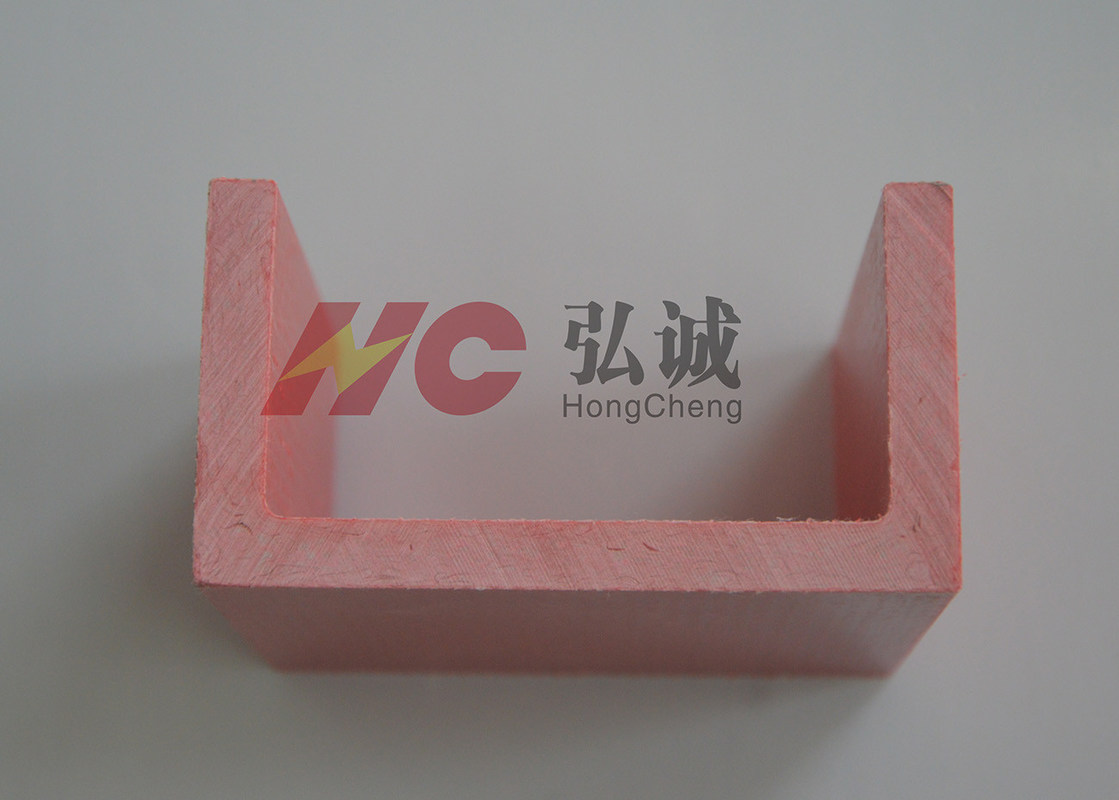

    • 21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact
  • 21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 U Channel Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Density: 1.85-3.0g/cm3
    Flexural Strength: ≥650Mpa Volume Resistivity: ≥1.0 X 1012Ω·m

    Inverter cabinet special-purpose U channel / Inverter cabinet special-purpose GPO-3 U channel


    Product Description:Red U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Applicaiton:Red U channel is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.



    Product Advantages:

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    Excellent size, space stability, non cracking, non Explosive Edge

    Excellent Arc Resistance(Arc Resistance≥180 S)

    Excellent Track Resistance(CTI≥600V)

    Excellent Heat Resistance(Class F)

    Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

    Excellent Fire Retardant(UL 94 V-0 Grade)


    Diagram:

     21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact


    Specification sheet:

    Product Name Item No. Size
    GPO-3 U Channel HC-XC-U-R 3.175*114.3*63.5*63.5
    HC-XC-U-R 3.2*79*28.5*28.5
    HC-XC-U-R 4*6.3*6.3*46*28*28
    HC-XC-U-R 5*4*4*120*40*40
    HC-XC-U-R 5*100*35*35
    HC-XC-U-R 6.35*50.8*25.4*25.4
    HC-XC-U-R 7*5*5*53*55*55
    HC-XC-U-R 7*127*45*45
    HC-XC-U-R 10*127*45*45
    HC-XC-U-R 10*110*60*60
    HC-XC-U-R 10*127*45*45
    HC-XC-U-G 6.2*76*38*38
    HC-XC-U-G 6.0*50*40*40

    Pultrusion Technique

    21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact

    Custom Your Own Mould
    Mould trade Process
    1. Quote According to the sample & Sample

    2. Comfirm Color,Material,Price,Payment,MOQ,

    3. Advance Pay the Mould cost 100% by T/T

    4. Mould Design/Processing Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation

    5. Balance settlement 100% by T/T after the customer approved the samples and decide to start the production

    6. Delivery Delivery by sea or air under EXW/FCA

    Inverter cabinet special-purpose U channel used in rail traffic

    21 Kinds Specifications Pultruded Profiles Red U Channel Excellent Thermal Impact

    U channel is used extensively in rail traffic,There are many modules for the use of insulation materials in rail transit, modules of motor and traction motor, module equipment and interior decoration.On safety performance for this kind of civil transport have quite high demand, need fire report, flame retardant grade should be V0, heat resistance grade should be above F, even C grade requirement of heat resistance, besides the material itself needs certain mechanical strength and electrical strength. The commonly used materials in rail traffic are HC-GPO3
