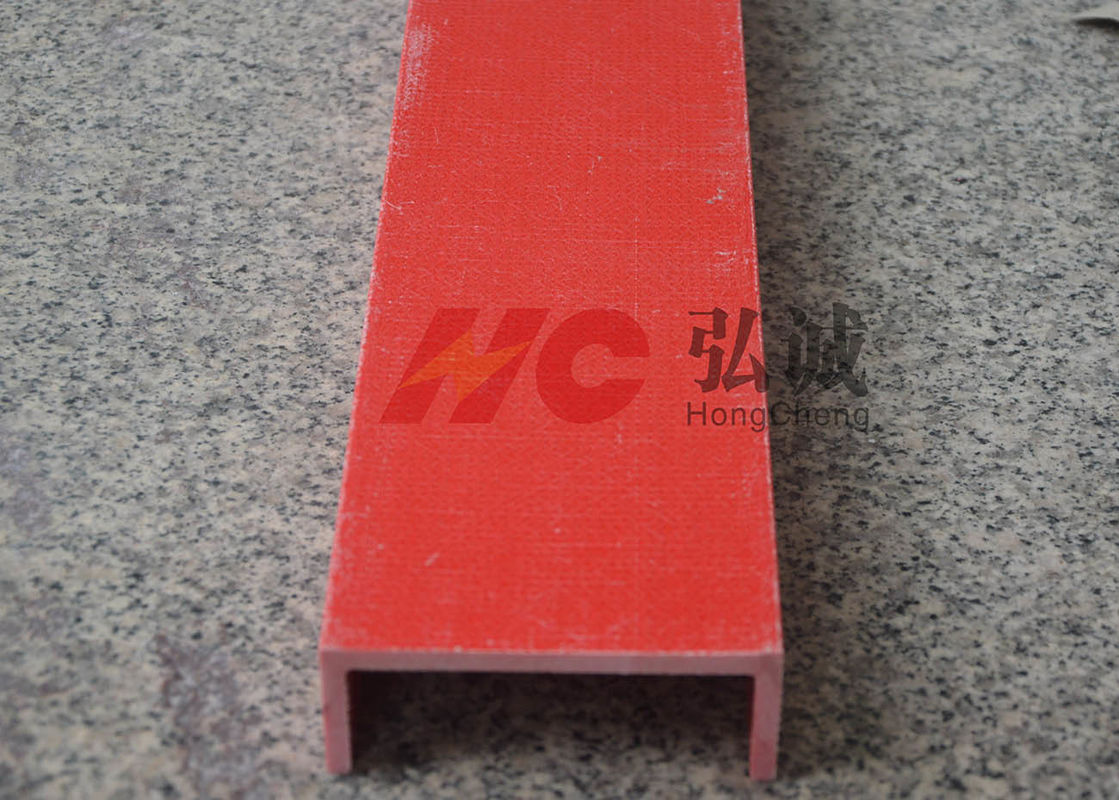

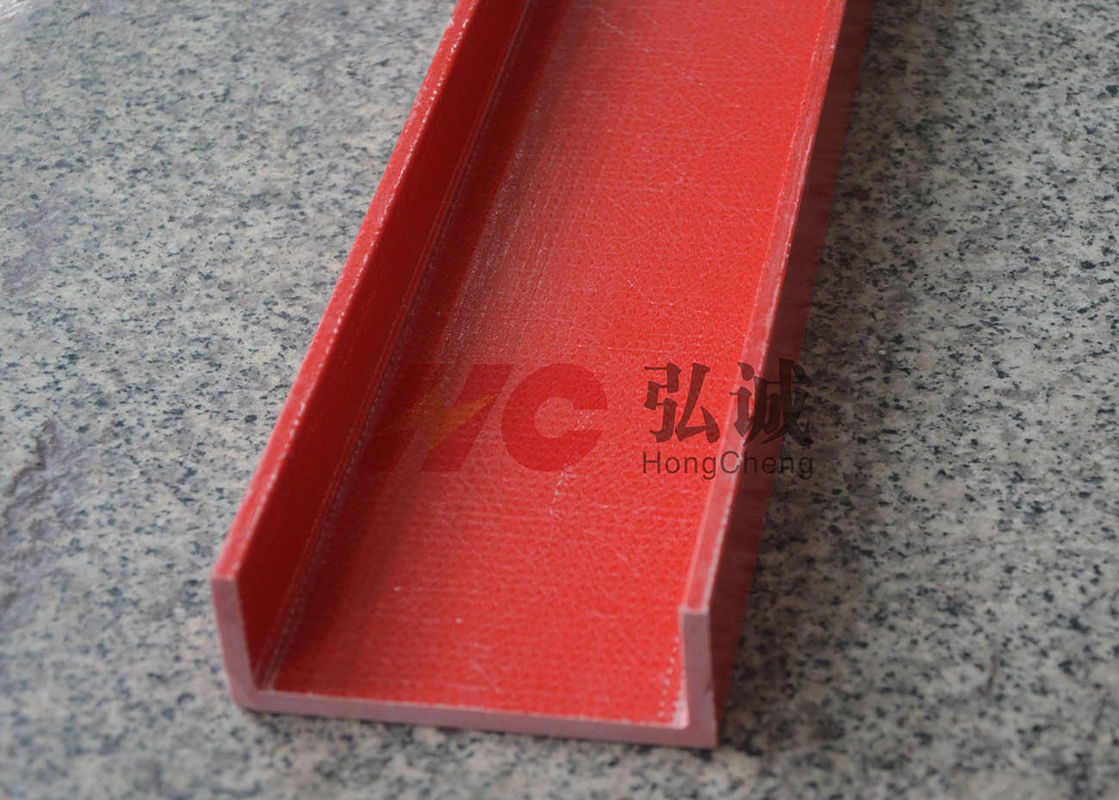

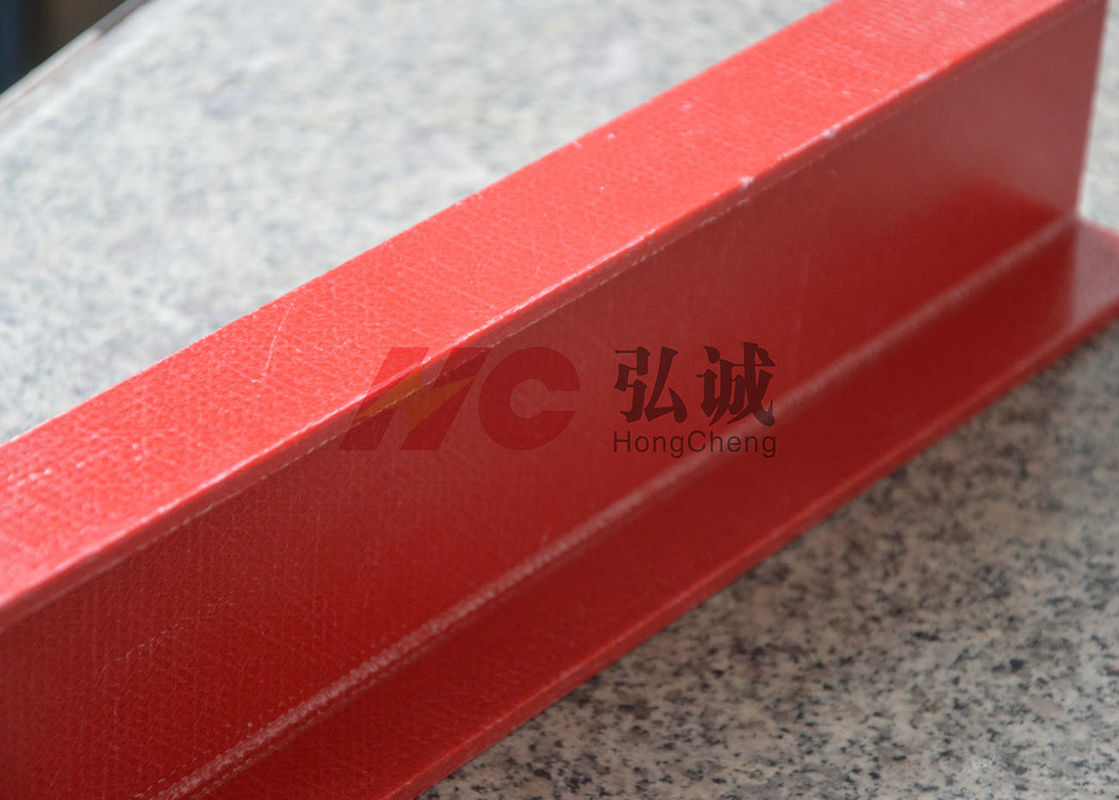

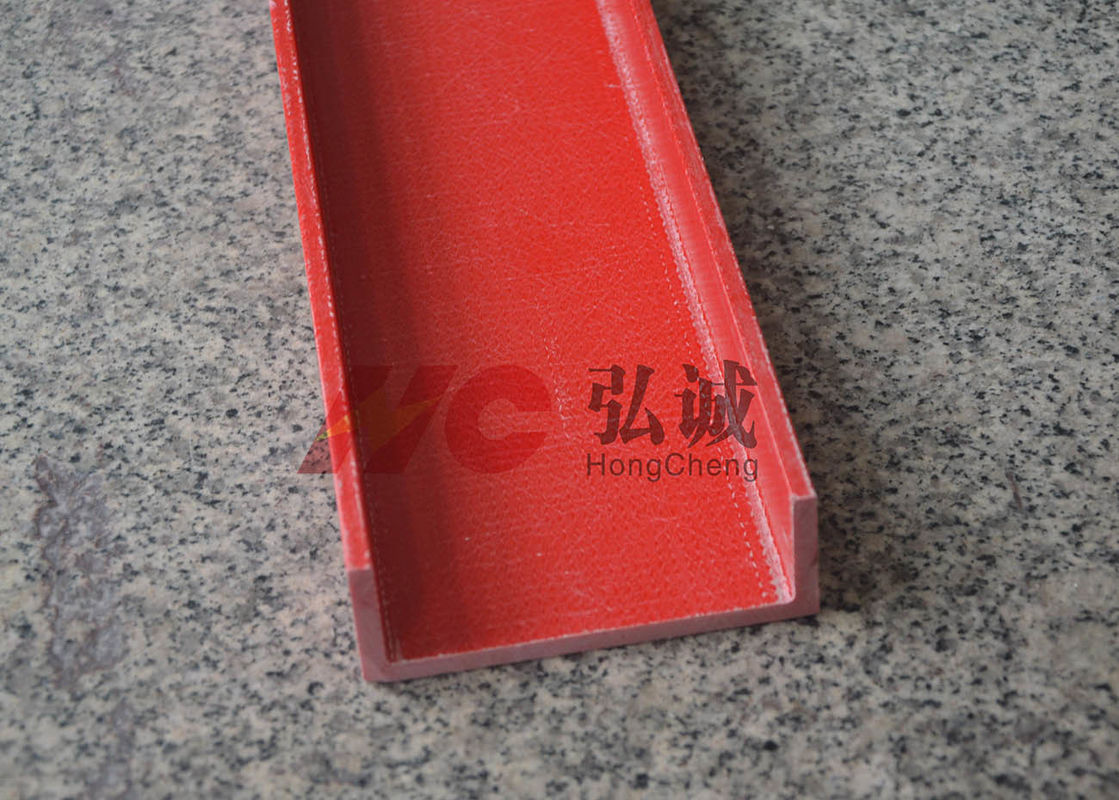

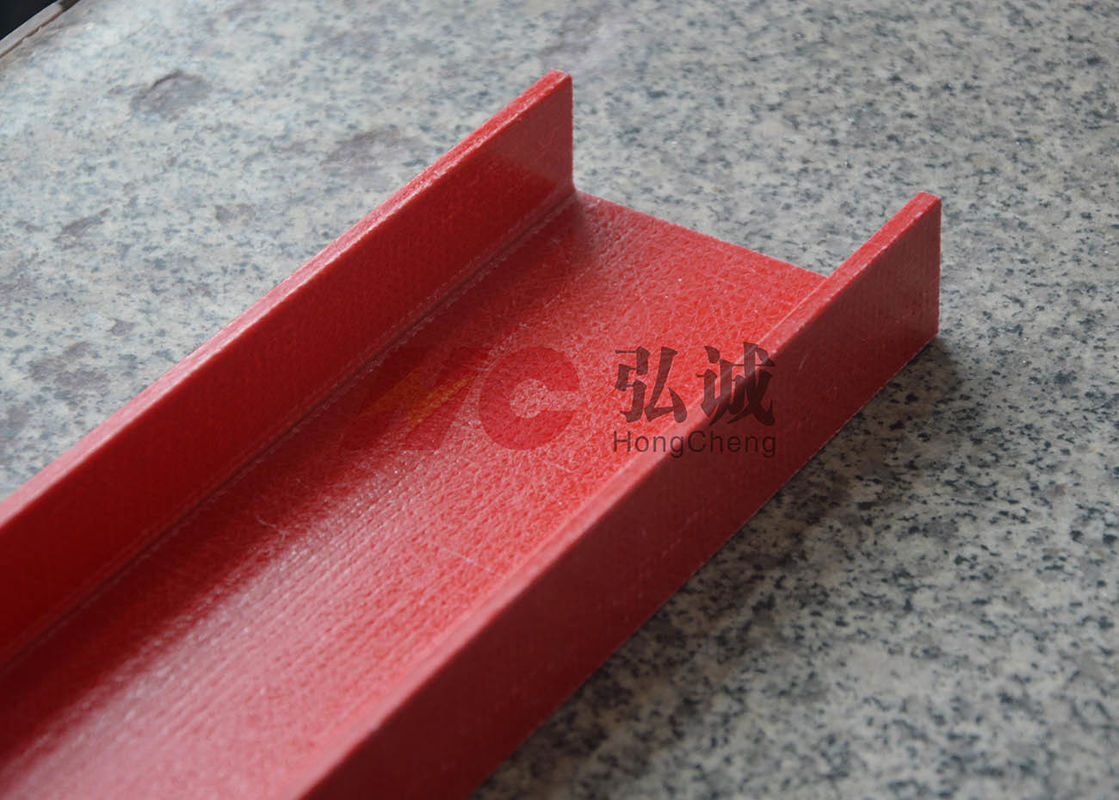

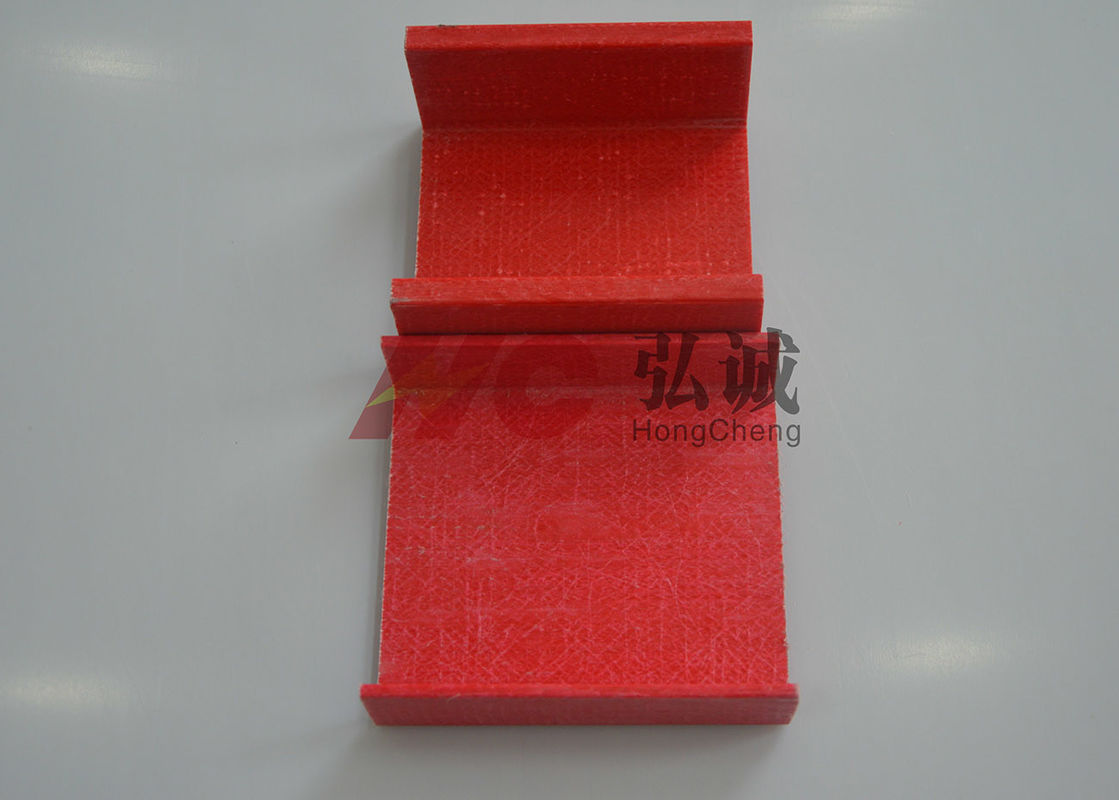

Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose

    • Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose
    • Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose
    • Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose
    • Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose
    • Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose
    • Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose
  • Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 U Channel Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications Density: 1.85-2.0g/cm3
    Water Absorption: ≤ 0.5% Arc Resistance: ≥ 180Sec

    switchgear special-purpose U channel / switchgear special-purpose GPO-3 U channel


    Product Description:

    U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Advantages:

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    Excellent size, space stability, non cracking, non Explosive Edge

    Excellent Arc Resistance(Arc Resistance≥180 S)

    Excellent Track Resistance(CTI≥600V)

    Excellent Heat Resistance(Class F)

    Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

    Excellent Fire Retardant(UL 94 V-0 Grade)



    Application:

    U channel is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.




    Diagram:

     Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose


    Specification sheet:

    Product Name Item No. Size
    GPO-3 U Channel HC-XC-U-R 3.175*114.3*63.5*63.5
    HC-XC-U-R 3.2*79*28.5*28.5
    HC-XC-U-R 4*6.3*6.3*46*28*28
    HC-XC-U-R 5*4*4*120*40*40
    HC-XC-U-R 5*100*35*35
    HC-XC-U-R 6.35*50.8*25.4*25.4
    HC-XC-U-R 7*5*5*53*55*55
    HC-XC-U-R 7*127*45*45
    HC-XC-U-R 10*127*45*45
    HC-XC-U-R 10*110*60*60
    HC-XC-U-R 10*127*45*45
    HC-XC-U-G 6.2*76*38*38
    HC-XC-U-G 6.0*50*40*40



    Pultruded Fiberglass Structural Shapes , U Shape Switchgear Special - Purpose

    MNS,VD4 Switch cabinet
    switchgear special-purpose U channel
    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
