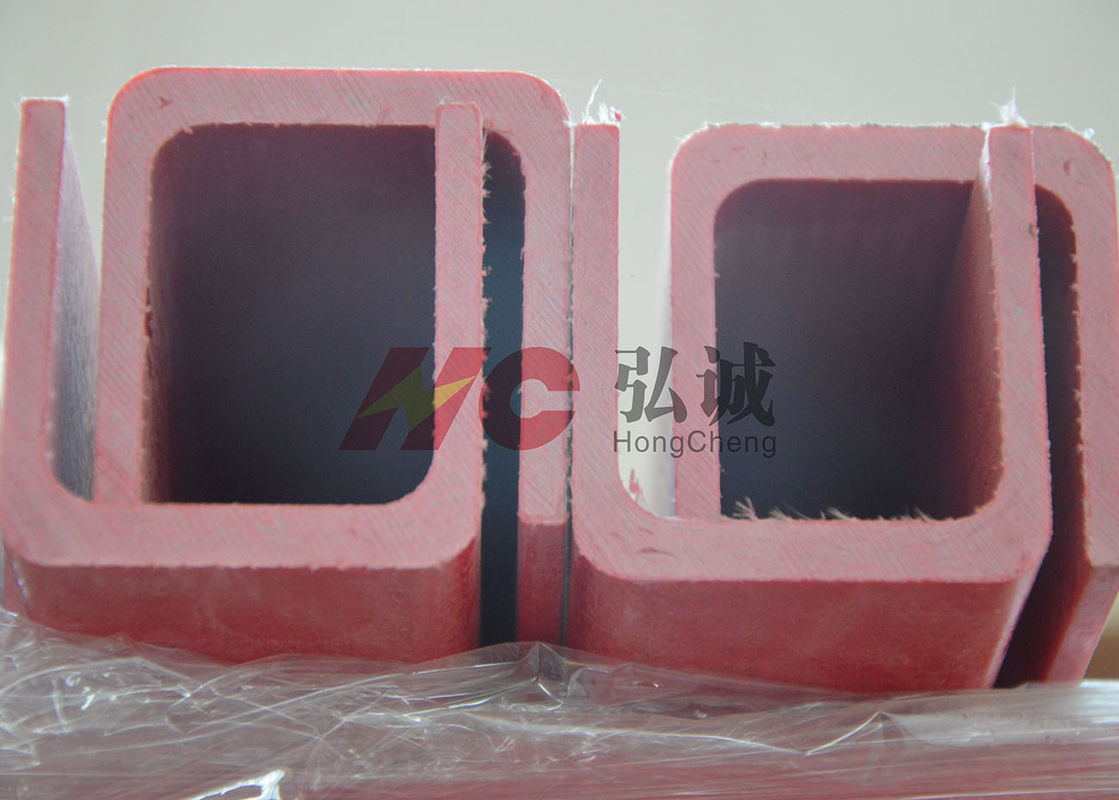

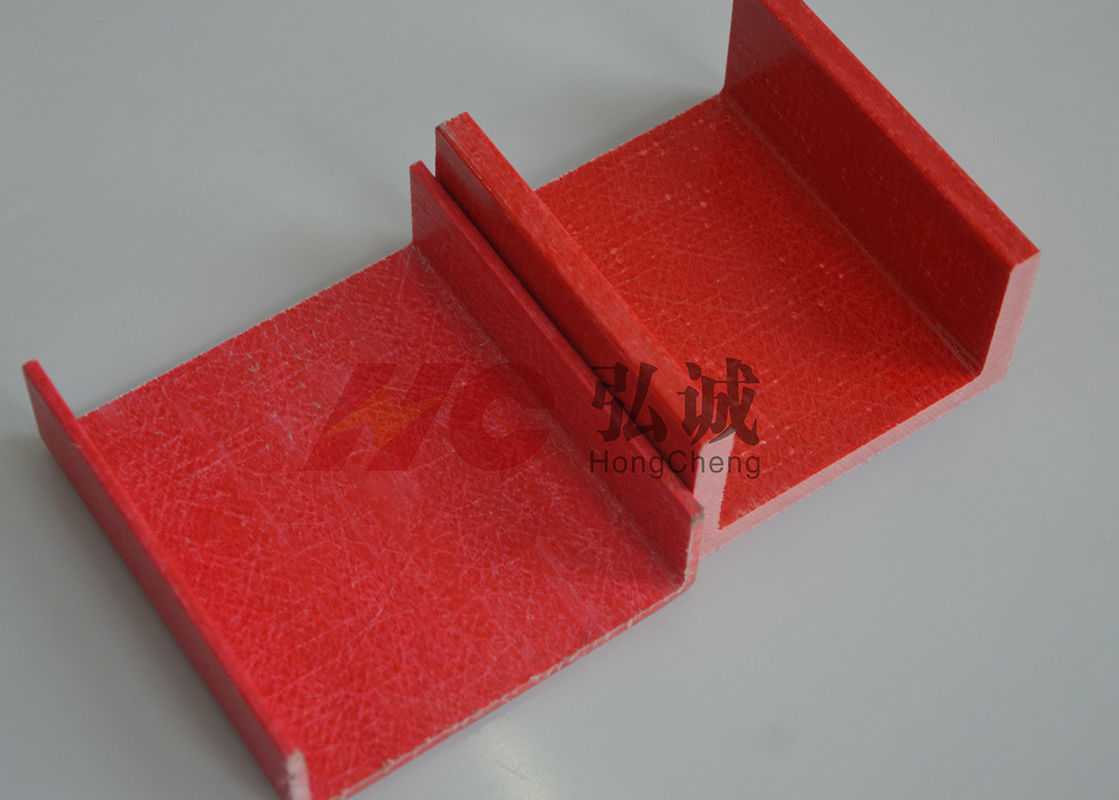

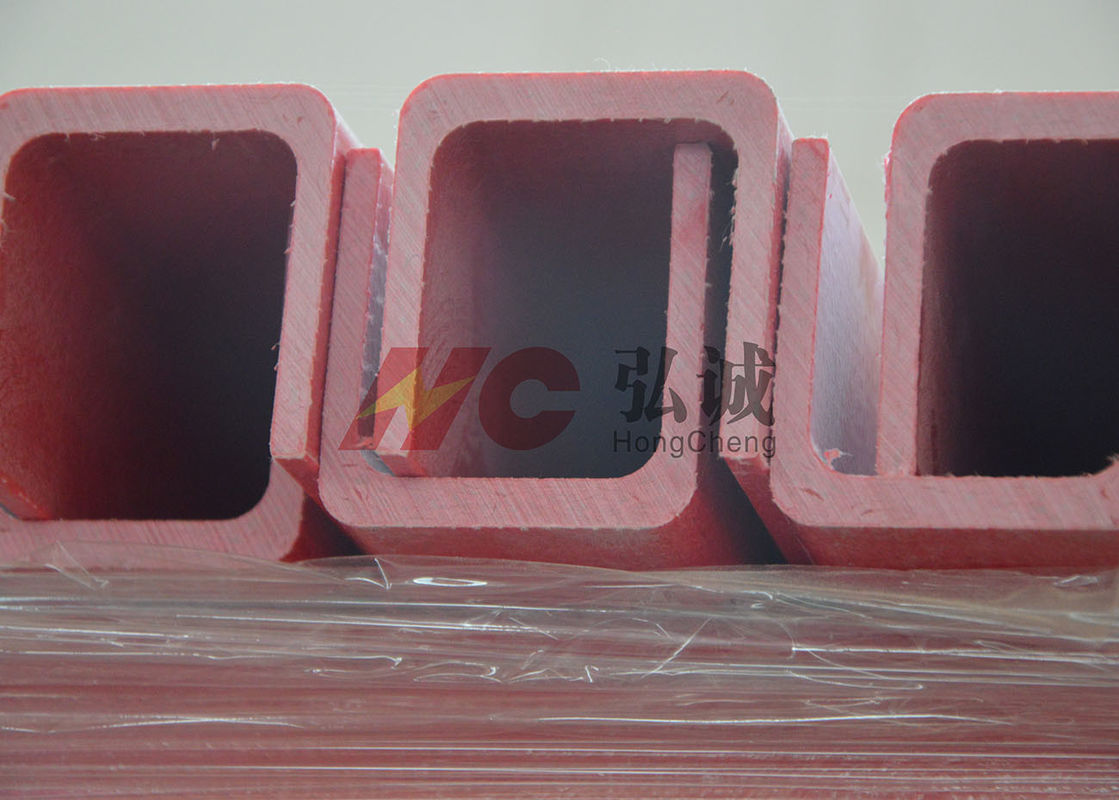

Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel

    • Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel
    • Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel
    • Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel
    • Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel
  • Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 U Channel Product Color: Red/Gray/White
    Product Size: 21 Kinds Of Specifications

    Converter special-purpose U channel / Converter special-purpose GPO-3 U channel


    Introduction:

    We have four equipment and the dozens of pultruded profile molds can be produces :L angle,U shapes,Dog bone,square tubes,T-shape profiles.

    U channel a kind of e -class fiberglass and /or glass-mat reinforced unsaturated polyester & inorganic filler binder.The angles are formed continuously after being heated by high temperature.



    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:

    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter


    Diagram:

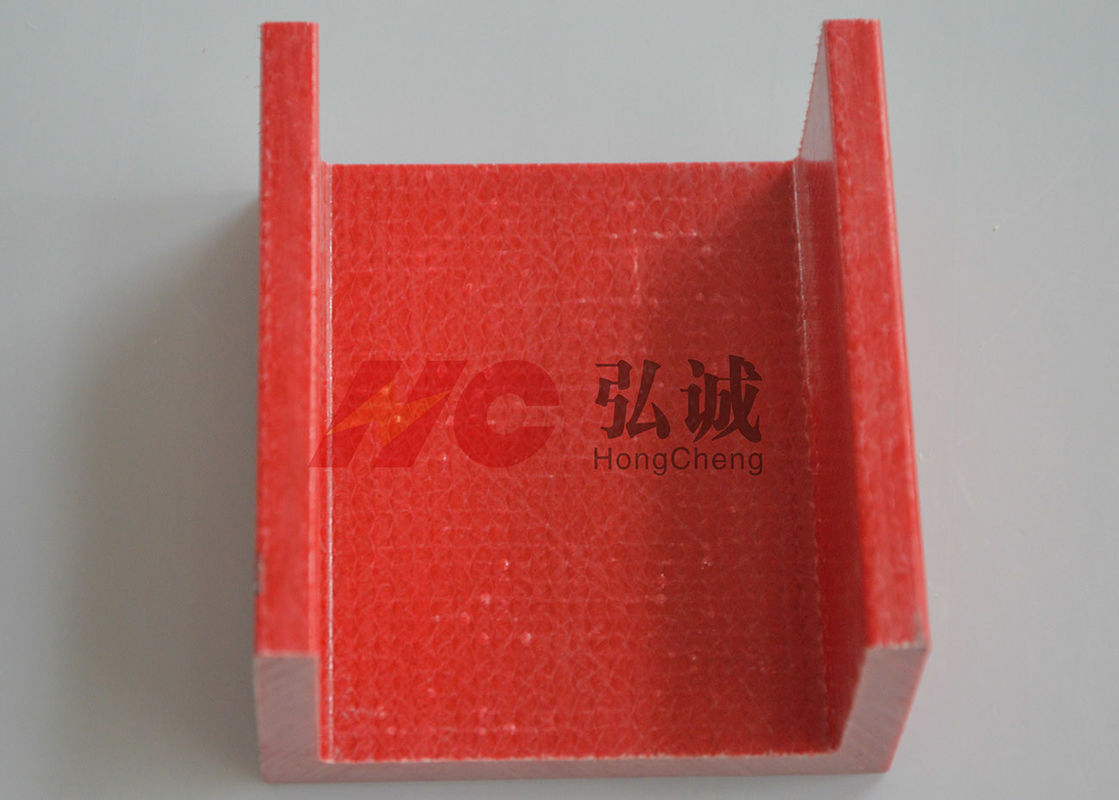

     Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel


    Specification sheet:

    Product Name Item No. Size
    GPO-3 U Channel HC-XC-U-R 3.175*114.3*63.5*63.5
    HC-XC-U-R 3.2*79*28.5*28.5
    HC-XC-U-R 4*6.3*6.3*46*28*28
    HC-XC-U-R 5*4*4*120*40*40
    HC-XC-U-R 5*100*35*35
    HC-XC-U-R 6.35*50.8*25.4*25.4
    HC-XC-U-R 7*5*5*53*55*55
    HC-XC-U-R 7*127*45*45
    HC-XC-U-R 10*127*45*45
    HC-XC-U-R 10*110*60*60
    HC-XC-U-R 10*127*45*45
    HC-XC-U-G 6.2*76*38*38
    HC-XC-U-G 6.0*50*40*40

    Hong Cheng Grade HC-XC
    Item Test method Unit Values
    Physical properties color   ---- ///
    density IEC 60893-2 8.1 g/cm3 1.85-2.00
    water absorption IEC 60893-2 8.2 % ≤ 0.5
    Mechanical properties Tensile strength IEC 60893-2 5.7 Mpa ≥400
    Flexural Strength(perpendicular) IEC 60893-2 5.1 ≥650
    Compressive strength parallel IEC 60893-2 5.3 ≥ 290
    perpendicular ≥200
    Shearing strength IEC 60893-2 5.6 ≥ 89.7
    Impact strength(Charpy) IEC 60893-2 5.5 Kj/m2 ≥ 475
    Electrical properties Volume Resistivity IEC 60089 Ω·m ≥1.0 x 1012
    Surface Resistivity Ω ≥ 1.0×1014
    Electric strength
    perpendicular to lamination (90℃ in oil)
    IEC 60893-2 6.1.2 kV/mm ≥ 10.0
    Breakdown Voltage parallel to lamination KV ≥ 45
    Arc Resistance IEC 61621:1997 Sec. ≥ 180
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2×10-5
    coefficient of heat conduction GB/T 10297-1998 W/(m2×K) ≤10.79



    Pultrusion Technique

    Converter Pultruded Profiles High Arc Resistance Soft Starter GPO-3 U Channel

    Custom Your Own Mould
    Mould trade Process
    1. Quote According to the sample & Sample

    2. Comfirm Color,Material,Price,Payment,MOQ,

    3. Advance Pay the Mould cost 100% by T/T

    4. Mould Design/Processing Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation

    5. Balance settlement 100% by T/T after the customer approved the samples and decide to start the production

    6. Delivery Delivery by sea or air under EXW/FCA
