High Flexural Strength U channel up to 650 mpa / Excellent perpendicular Flexural Strength U channel
Introduction:
|

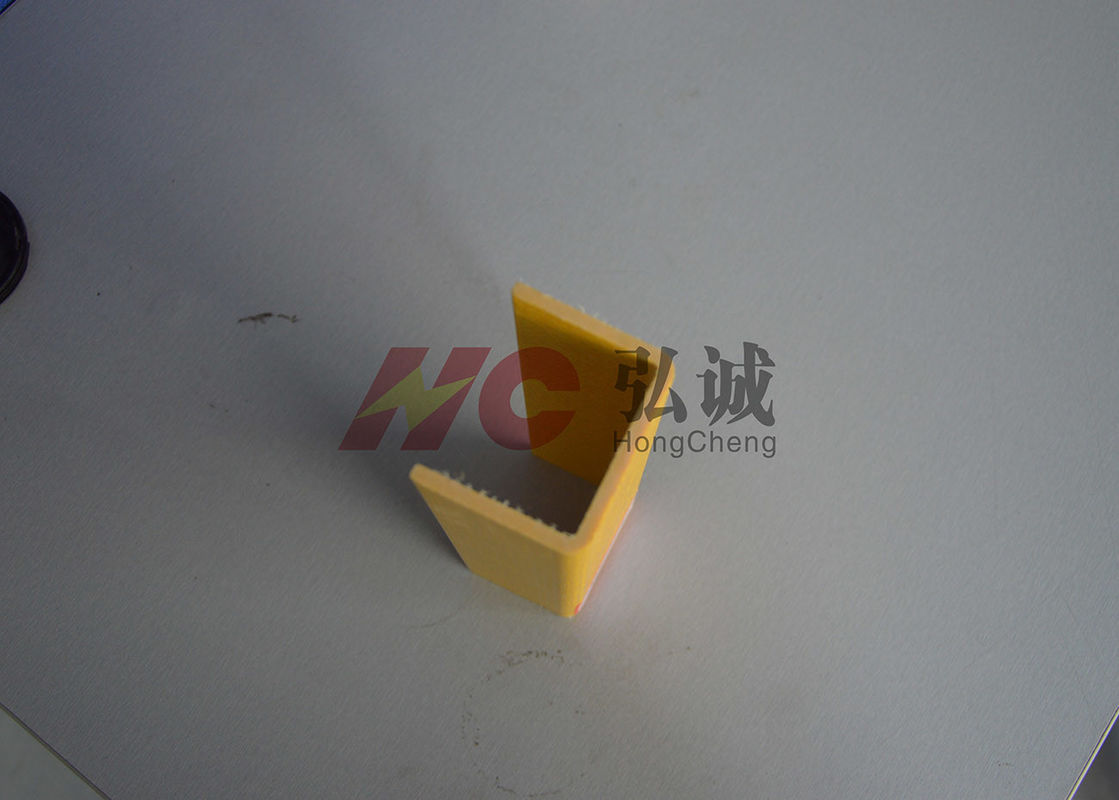

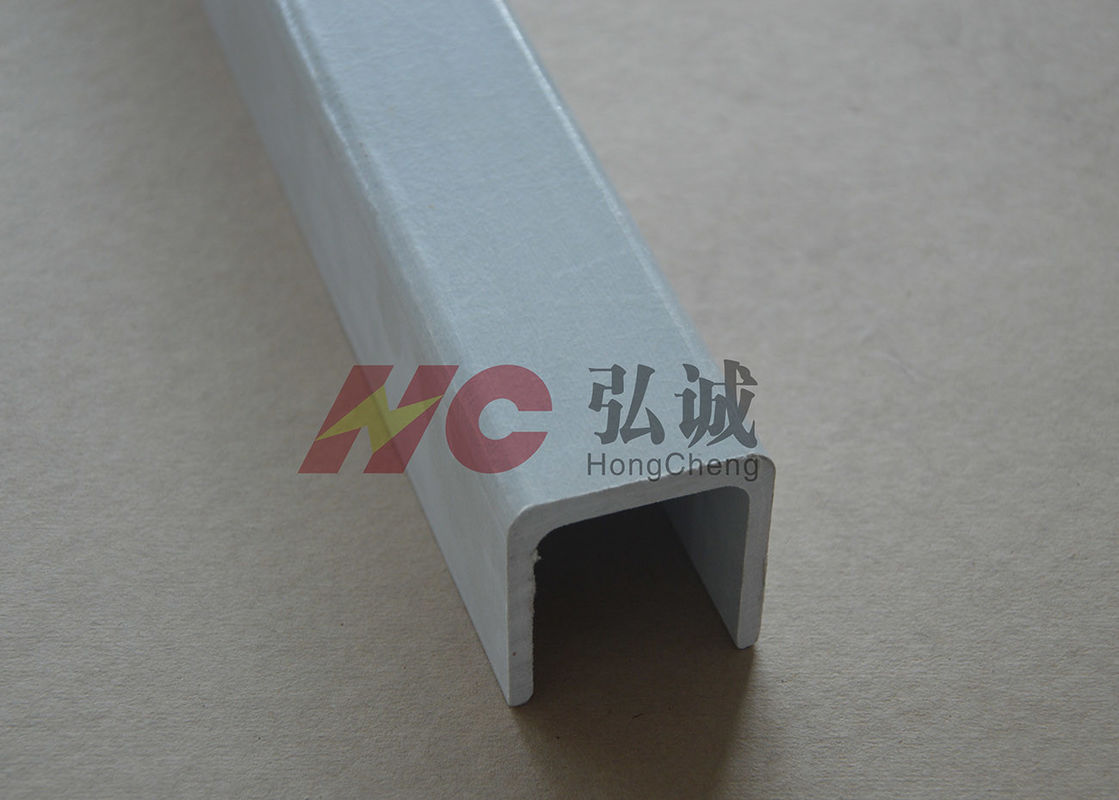

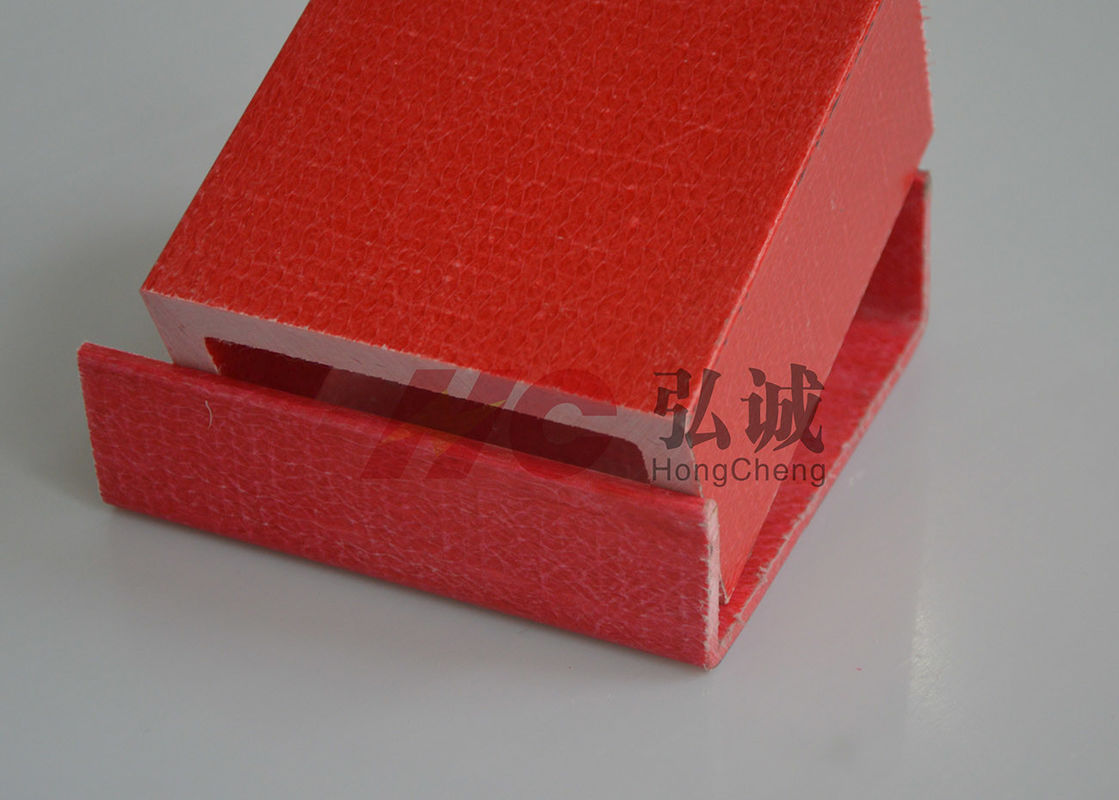

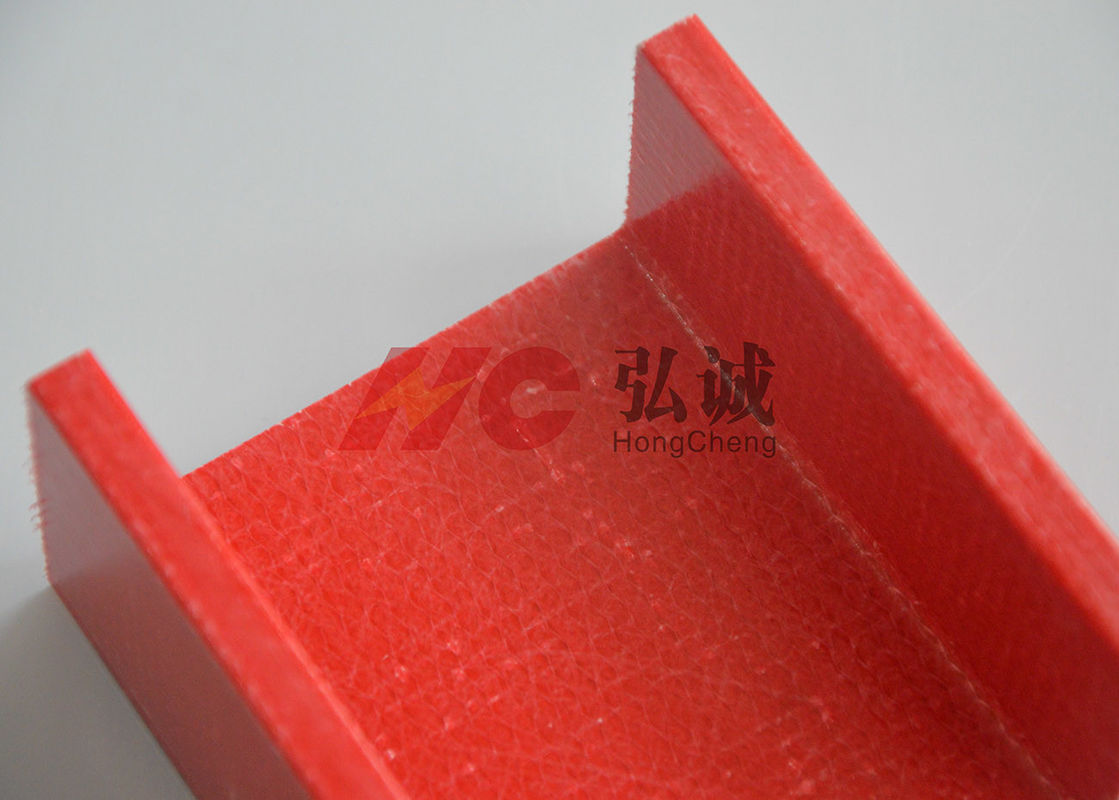

U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder. |
Feature: |
Stable structure,non cracking, non Explosive Edge Technical advantages, mold development and design capabilities, excellent supporting capacity. High Arc Resistance:≥180 Seconds Track Resistance:CTI≥600V Heat Resistance:Class F,up to 130℃ Thermal Impact:Temp. Index: -273℃ to +155℃ Fire Retardant:UL 94 V-0 Grade
|
Application:
|
Power control & Power transmits:Cable bridge & angle insulation; Insulation channel of bus duct & fuse; Insulating support of inverter,converter |
Diagram:
Specification sheet:
Product Name | Item No. | Size |
GPO-3 U Channel | HC-XC-U-R | 3.175*114.3*63.5*63.5 |
HC-XC-U-R | 3.2*79*28.5*28.5 | |
HC-XC-U-R | 4*6.3*6.3*46*28*28 | |
HC-XC-U-R | 5*4*4*120*40*40 | |
HC-XC-U-R | 5*100*35*35 | |
HC-XC-U-R | 6.35*50.8*25.4*25.4 | |
HC-XC-U-R | 7*5*5*53*55*55 | |
HC-XC-U-R | 7*127*45*45 | |
HC-XC-U-R | 10*127*45*45 | |
HC-XC-U-R | 10*110*60*60 | |
HC-XC-U-R | 10*127*45*45 | |
HC-XC-U-G | 6.2*76*38*38 | |
HC-XC-U-G | 6.0*50*40*40 |
High Flexural Strength U channel up to 650 mpa used in Subway cabinet,Power Distribution Cabinet,Traction motor,motor car.
There are many modules for the use of insulation materials in rail transit, modules of motor and traction motor, module equipment and interior decoration.On safety performance for this kind of civil transport have quite high demand, need fire report, flame retardant grade should be V0, heat resistance grade should be above F, even C grade requirement of heat resistance, besides the material itself needs certain mechanical strength and electrical strength. The commonly used materials in rail traffic are HC-GPO3/HC-FR4/HC-FR5 etc.
Epoxy pultruded tube has high mechanical strength and automatic machining, has high electrical property,excellent Fire Retardant,is widely used as insulating bracket, insulatingspacer, left bracket , right bracket,baseboard,connection rod,lead fixation column in the field of rail transportation.
Main famous cooperative enterprises:CRRC ZhuZhou Electric Co.,Ltd, Alstom Equipment Co. Ltd
