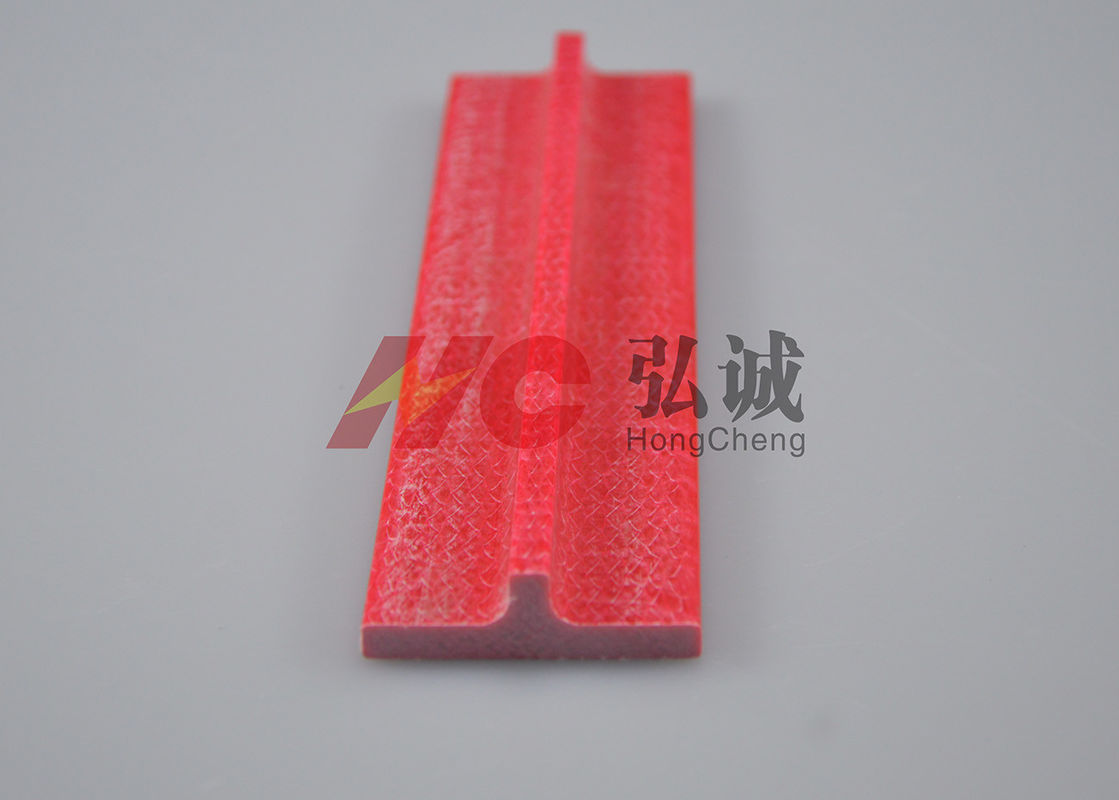

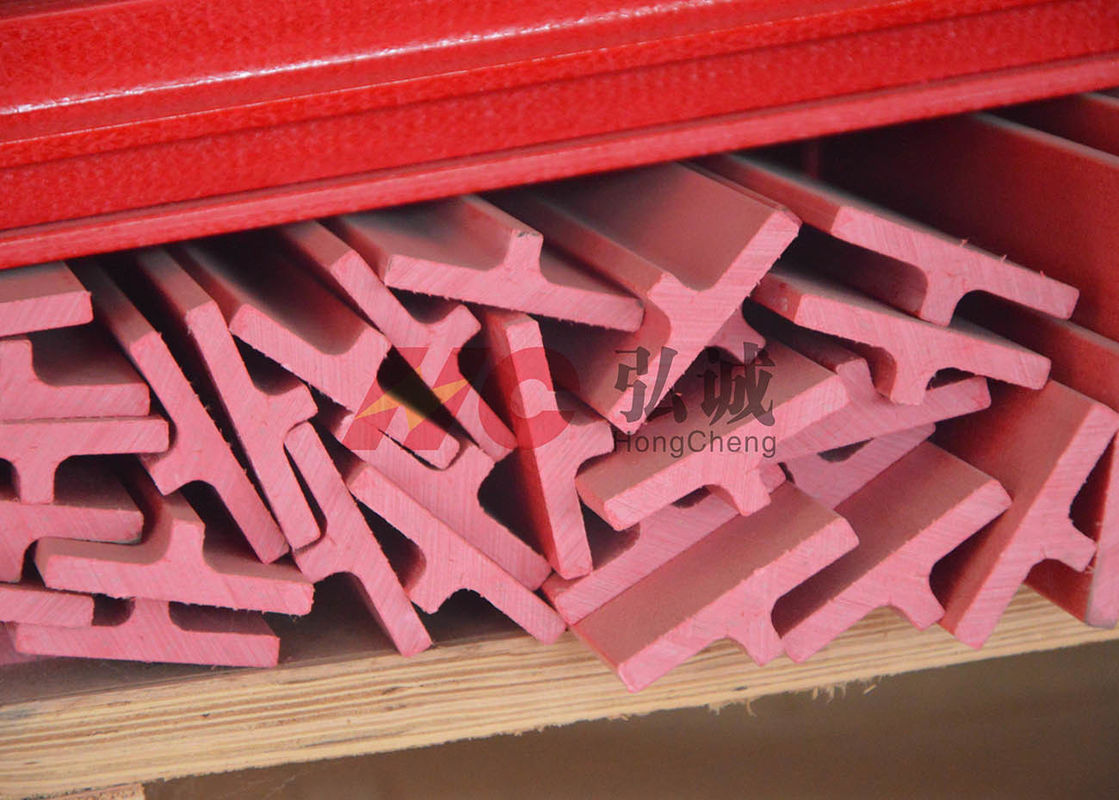

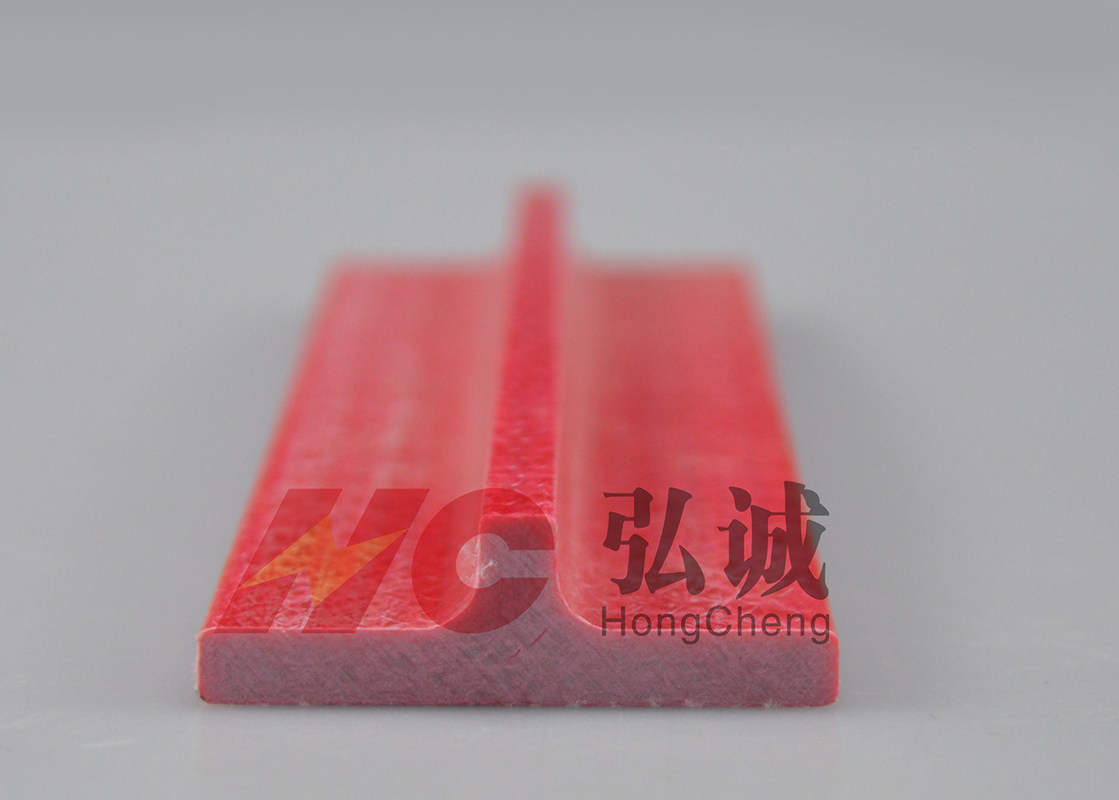

Inverter Cabinet Guide Rails T Shape / Rails Guides Special - Purpose T Profile

    • Inverter Cabinet Guide Rails T Shape / Rails Guides Special - Purpose T Profile
    • Inverter Cabinet Guide Rails T Shape / Rails Guides Special - Purpose T Profile
    • Inverter Cabinet Guide Rails T Shape / Rails Guides Special - Purpose T Profile
  • Inverter Cabinet Guide Rails T Shape / Rails Guides Special - Purpose T Profile

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Packaging Details: crate packing/ pallet/ carton
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 T Shape Product Color: Red
    Density: 1.85-2.0g/cm3 Water Absorption: ≤ 0.5%
    Tensile Strength: ≥400Mpa Breakdown Voltage Parallel To Lamination: ≥ 45KV

    Inverter cabinet guide rails T shape / Guide rails special-purpose T profile

    Product Description:

    Inverter cabinet guide rails T shape is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Application:

    Inverter cabinet guide rails T shape is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.

    Product Advantages:

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    Excellent size, space stability, non cracking, non Explosive Edge

    Excellent Arc Resistance(Arc Resistance≥180 S)

    Excellent Track Resistance(CTI≥600V)

    Excellent Heat Resistance(Class F)

    Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

    Excellent Fire Retardant(UL 94 V-0 Grade)


    Diagram:

     Inverter Cabinet Guide Rails T Shape / Rails Guides Special - Purpose T Profile

    Specification sheet:

    Product Name Item No. Size
    T Profile HC-XC-T-R GPO-3 Red T Profiles 6*15*50

     Inverter cabinet guide rails T shape used  in inverter cabinet

    Inverter Cabinet Guide Rails T Shape / Rails Guides Special - Purpose T Profile

    products: Inverter Cabinet
    Description: Inverter cabinet are used to convert DC power(Battery,Storage bottle)to AD power( Generally 50Hz 220V sinusoids or square wave),it consist of Inverter bridge,logic control parts,filter circuit.

    Inverter Cabinet are divided into:Centralized inverter and String Inverter according to the applicable situation.

    Centralized inverter technology is made of couples of parallel PV string connected to DC input of centralized inverter,the larger power use the three phase IGBT power module,the smaller power use the tield effect transistor and DSP conversion controller to improve the quality of electric.make the power output close to the Sine wave current.generally used for large photovoltaic power station (>10kW) system.

    String Inverter is base on modularization.each photovoltaic group (1-5Kw) equiped with 1 Inverter,
    Has maximum power peak tracking at DC side,Parallel connected at AC side.String Inverter has become the most popular inverter in the international market.

    Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.

    Main famous cooperative enterprises:Sungrow power supply Co.,Ltd,ABB,TBEA Co.,Ltd.
