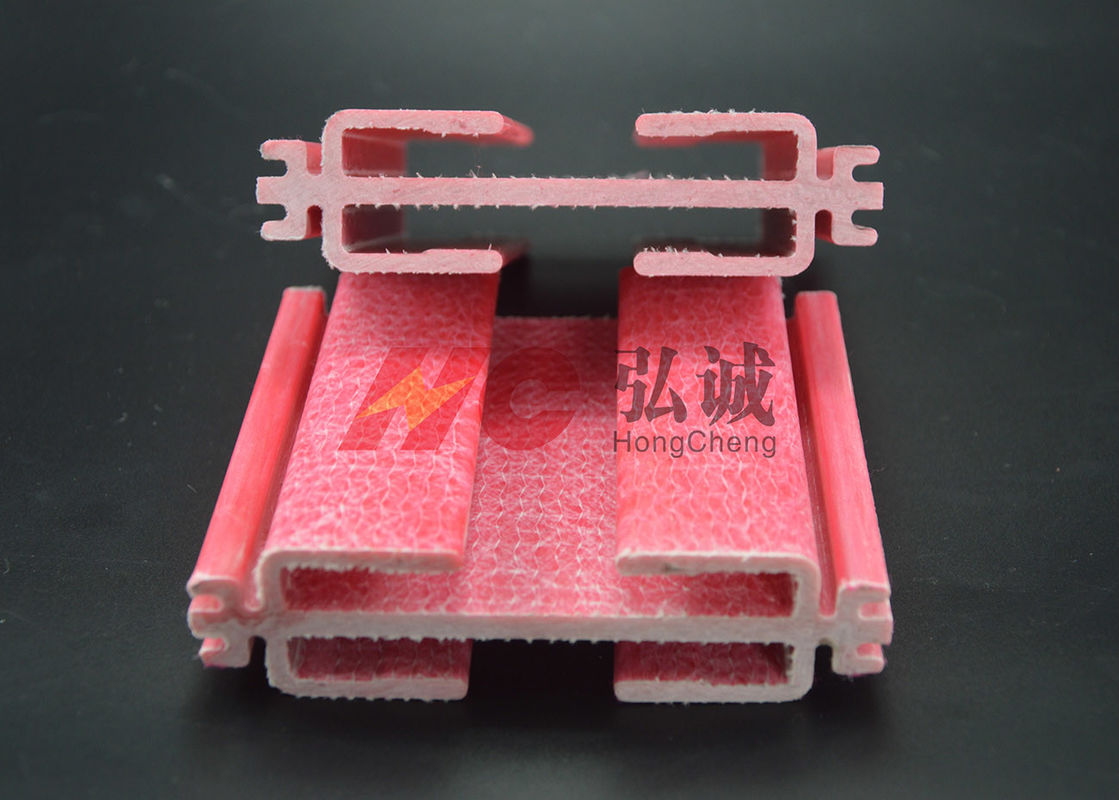

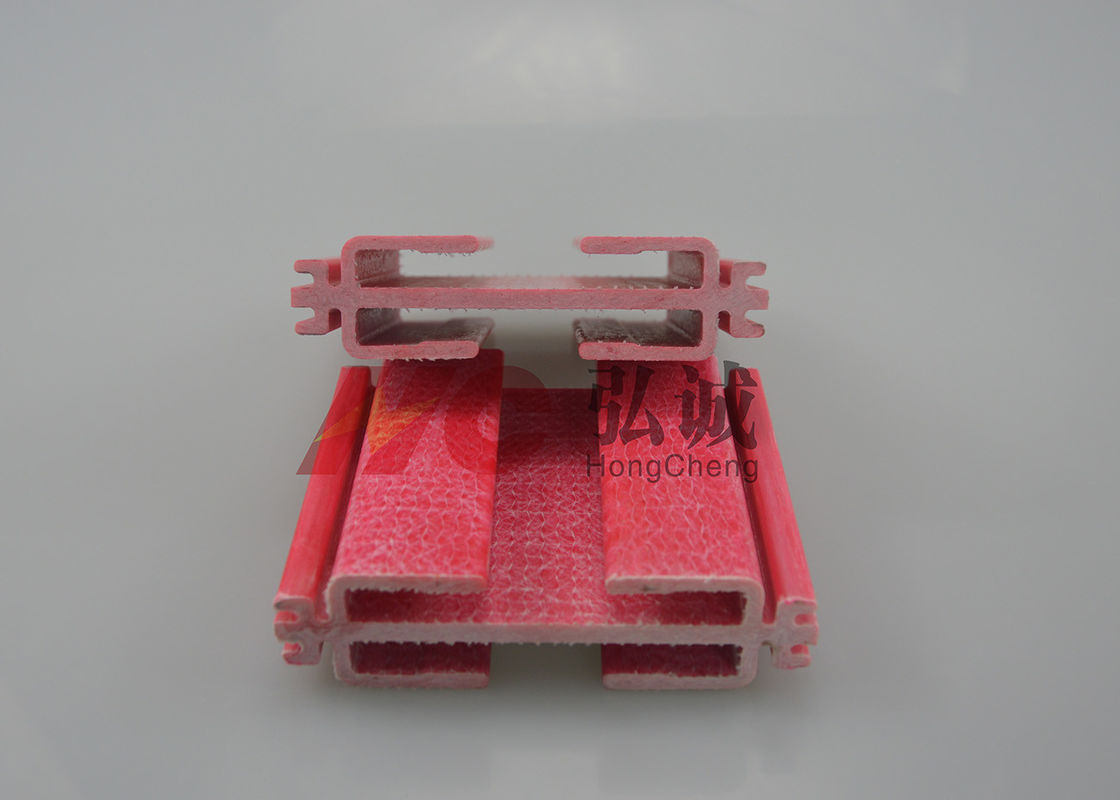

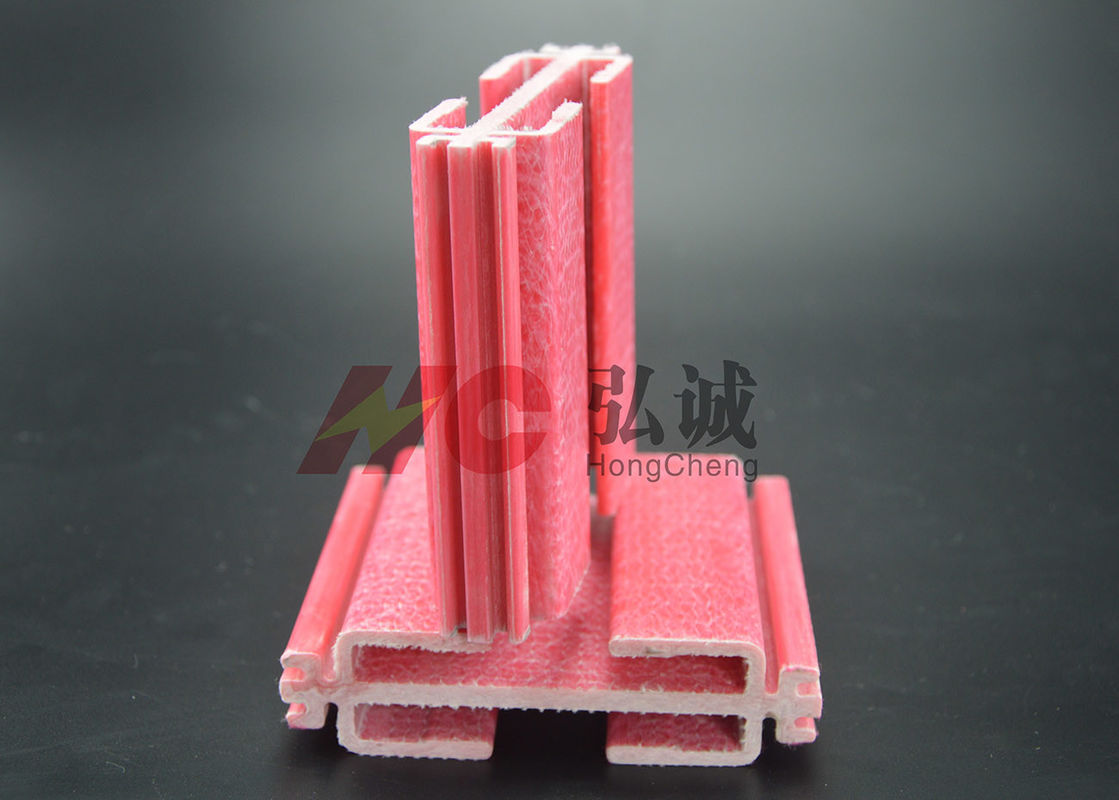

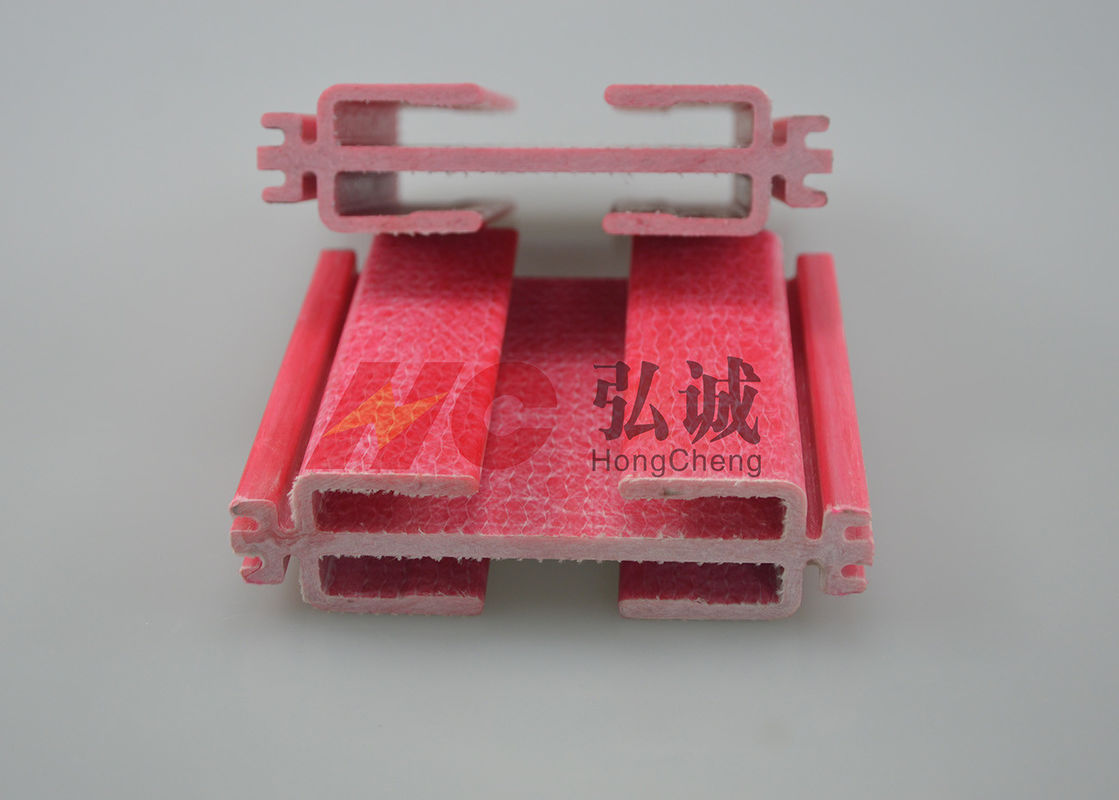

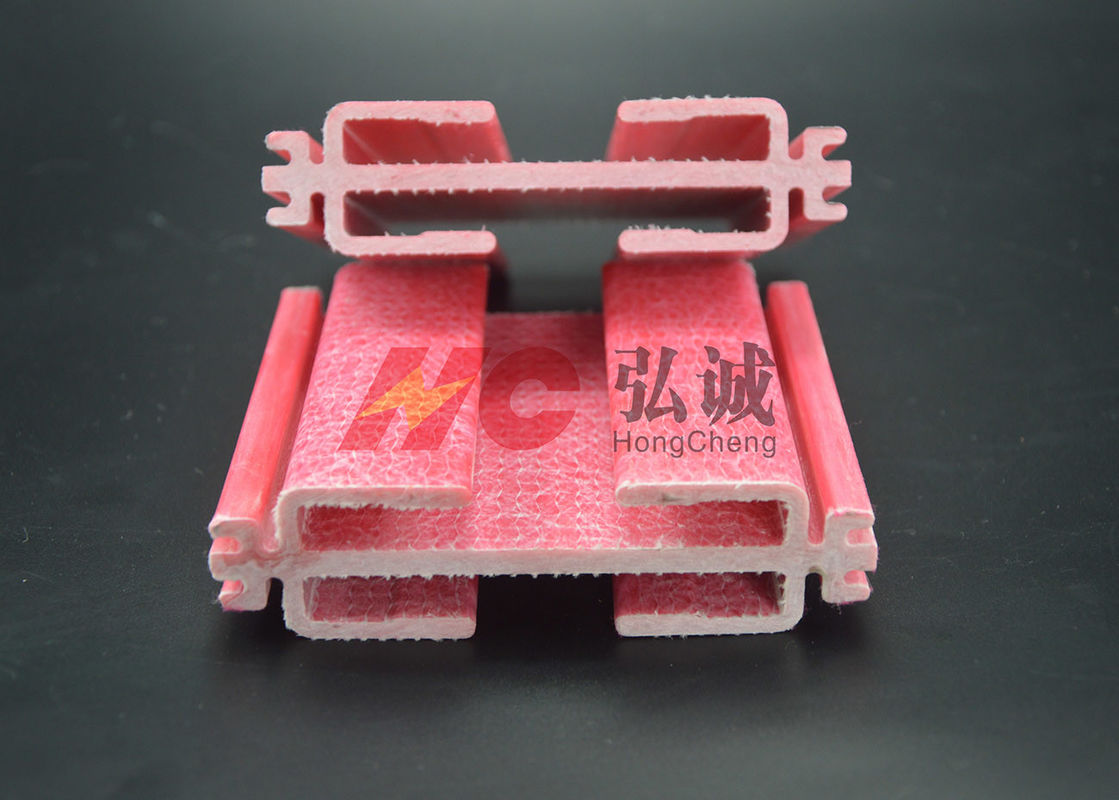

GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure

    • GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure
    • GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure
    • GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure
    • GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure
    • GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure
  • GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: GPO-3 Special U Channel Product Color: White
    Density: 1.85-2.0g/cm3 Tensile Strength: ≥400Mpa
    Flexural Strength: ≥650Mpa Arc Resistance: ≥ 180Sec

    GPO-3 Shaped groove / multi specifications GPO-3 shapes / Custom GPO-3 shapes


    Product Introduction:



    GPO-3 Shaped groove is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Feature:

    Stable structure,non cracking, non Explosive Edge

    Technical advantages, mold development and design capabilities, excellent supporting capacity.

    High Arc Resistance:≥180 Seconds

    Track Resistance:CTI≥600V

    Heat Resistance:Class F,up to 130℃

    Thermal Impact:Temp. Index: -273℃ to +155℃

    Fire Retardant:UL 94 V-0 Grade



    Application:

    Power control & Power transmits:Cable bridge & angle insulation;

    Insulation channel of bus duct & fuse;

    Insulating support of inverter,converter


    Diagram:

     GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure


    Specification sheet:

    Product Name Item No. Size
    Special Shaped HC-XC-SD 28.57*111.02*1300

    Hong Cheng Grade HC-XC
    Item Test method Unit Values
    Physical properties color   ---- ///
    density IEC 60893-2 8.1 g/cm3 1.85-2.00
    water absorption IEC 60893-2 8.2 % ≤ 0.5
    Mechanical properties Tensile strength IEC 60893-2 5.7 Mpa ≥400
    Flexural Strength(perpendicular) IEC 60893-2 5.1 ≥650
    Compressive strength parallel IEC 60893-2 5.3 ≥ 290
    perpendicular ≥200
    Shearing strength IEC 60893-2 5.6 ≥ 89.7
    Impact strength(Charpy) IEC 60893-2 5.5 Kj/m2 ≥ 475
    Electrical properties Volume Resistivity IEC 60089 Ω·m ≥1.0 x 1012
    Surface Resistivity Ω ≥ 1.0×1014
    Electric strength
    perpendicular to lamination (90℃ in oil)
    IEC 60893-2 6.1.2 kV/mm ≥ 10.0
    Breakdown Voltage parallel to lamination KV ≥ 45
    Arc Resistance IEC 61621:1997 Sec. ≥ 180
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2×10-5
    coefficient of heat conduction GB/T 10297-1998 W/(m2×K) ≤10.79



    GPO-3 Shaped groove used in new energy

    GPO-3 Special Custom U Channel , Fiberglass U Channel Shaped Groove Stable Structure

    New energy in the energy field is a trend that the world has been advocating for development, it has been developing from traditional oil and coal to cleaner and more environmentally friendly energy sources such as solar power and wind power etc..
    At the same time, clean energy has been using to develop energy storage areas such as lithium batteries, supercapacitors and energy-saving components.With the development of the industry, the insulation materials of our company have expanded more market and R&D direction
    Our GPO-3sheet are widely used in new energy field,including Wind power,photovoltaic,power battery etc.
