Fire Retardant Fr4 Epoxy Glass Sheet / Pcb Material Fr4 For Electrical Equipments
-
High Light
fr4 epoxy glass sheet
,g10 fr4 sheet
-
Product Name：Black FR4 Epoxy Sheet
-
IEC StandardEPGC202
-
German Standard：Hgw2372.1
-
Product Thickness：0.2mm-120.0mm
-
Product Size：1020*1220；1220*2040；1220*2440
-
Place of OriginChina
-
Brand NameHongcheng
-
CertificationSGS/UL/RoHS 2.0/Reach
-
Model NumberFR 4 / EPGC202 / Hgw2372.1
-
Minimum Order QuantityNogociation accepted
-
Packaging Detailscrate packing ，pallet，carton
-
Delivery Time5-8 work days
-
Payment TermsT/T

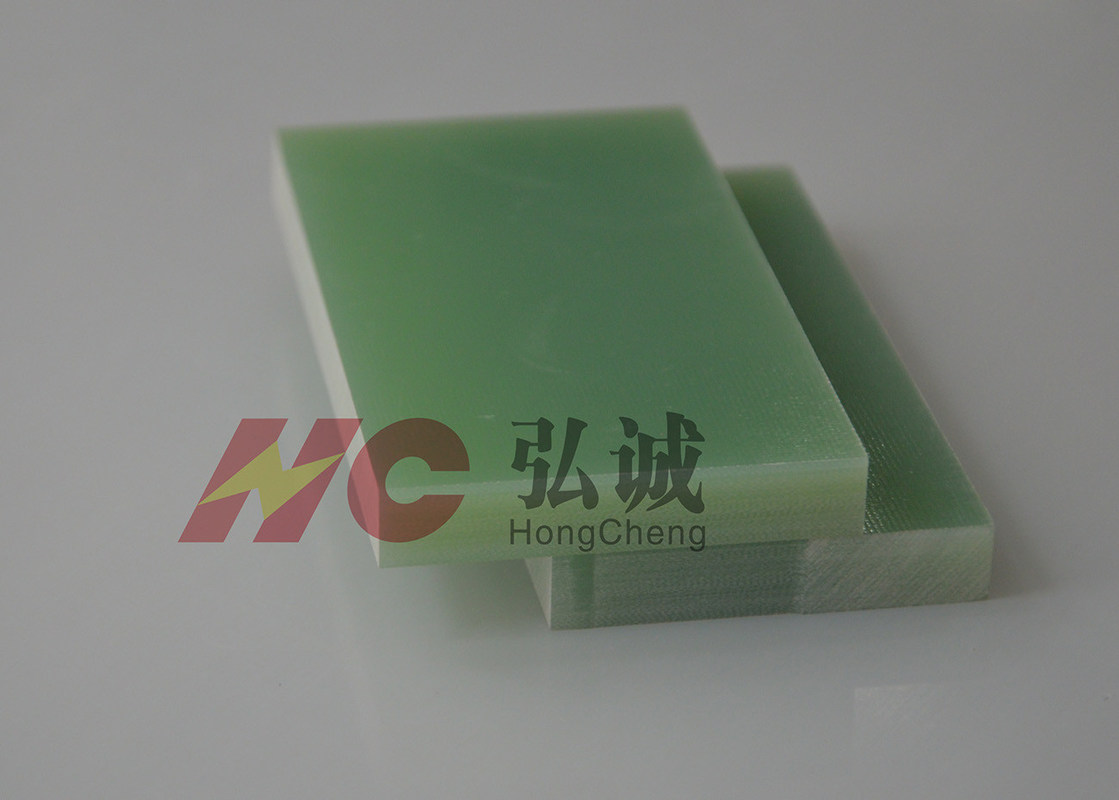

Fire Retardant Fr4 Epoxy Glass Sheet / Pcb Material Fr4 For Electrical Equipments
FR4 epoxy sheet with fire retardant / UL certified EPGC202
Product Introduction:
FR4 epoxy sheet with fire retardant are made of woven glass cloth impregnated with epoxy thermosetting resin,laminated under high temperature and high pressure ,the woven glass cloth shall be alkali-free and treated by silane couple.
Feature:
High precision for the tolerance
Excellent Fire Retardant(UL 94 V-0 Grade)
Excellent Voltage Resistance(electric strength ≥16KV/mm)
Excellent Water Resistance(Water absorption ≤0.2%)
Excellent Heat Resistance(Class F)
Excellent thermal impact resistance(Temp.Index:-273℃ to +155℃)
Excellent mechanical processability & high degree of automation processing
RoHS,Reach Certified products
Application:
FR4 epoxy sheet with fire retardant used as the insulating structure parts in class B-h electric motors,electric equipments,which has flame resistance requirements or not,or other applications.
Thickness:0.2mm-120mm
Sheeet Size:1020*1220;1220*2040
UL certification:E344098
| Hong Cheng Grade | HC-FR-4 | |||
| IEC 893/EN 60893 Grade | EPGC 202 | |||
| ANSI (NEMA) Grade NEMA LI-1 | FR-4 | |||
| DIN 7735 | Hgw2372.1 | |||
| JIS GRADE | EL-GEF | |||
| Item | Test method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | － | Light green / yellow |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.90 - 2.15 | |
| Water absorption | ISO 62:2008 | % | ＜0.3 | |
| Electrical Properties | Electric strength ┴ | IEC 60893-2:2003 | KV/mm | ≥ 14(3.0mm) |
| Breakdown Voltage // | IEC 60893-2:2003 | KV | ≥ 60 | |
| Volume Resistivity | IEC 60093:1980 | Ω.m | ≥ 1.0×1012 | |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0×1014 | |
| (1 MHZ) Dielectric constant | IEC 60893-2:2003 | ﹍ | 4.0-5.5 | |
| (1MHZ)Dissipation Factor | IEC 60893-2:2003 | ﹍ | 0.04-0.05 | |
| Proof Tracking Index PTI | IEC 60893-2:2003 | V | ≥ 200 | |
| Insulation resistance after immersion 24Hrs in Water | IEC 60893-2:2003 | Ω | ≥ 5×1010 | |
| Mechanical Properties | Flexural Strength ┴ | IEC 60893-2:2003 | MPa | ≥ 340 |
| Charpy Impact strength // | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| TensileStrength | IEC 60893-2:2003 | MPa | ≥300 | |
| //Bond Strength // | IEC 60893-3-4:2003 | N | ≥8000 | |
| Compressive Strength┴ | IEC 60893-2:2003 | MPa | ≥ 350 | |
| Flame Resistance Properties | Flame resistance | IEC 60893-2:2003 | ﹍ | V-0 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Toxicant Content | E662 | ﹍ | Low | |
| Others | Acetone Resistance | boiled | Min | 30(OK) |
FR4 epoxy sheet with fire retardant used in Switch cabinet
Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
