Home ProductsFr 4 Epoxy Sheet

Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties

Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties

    • Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties
    • Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties
    • Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties
    • Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties
    • Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties
  • Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: SGS/UL/RoHS 2.0/Reach
    Model Number: FR 4 / EPGC202 / Hgw2372.1

    Payment & Shipping Terms:

    Minimum Order Quantity: Nogociation accepted
    Packaging Details: crate packing ,pallet,carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: FR4 Epoxy Sheet IEC Standard:: EPGC202
    German Standard:: Hgw2372.1 Product Thickness:: 0.2mm-120.0mm
    Product Size:: 1020*1220;1220*2040;1220*2440

    Excellent Flexural Strength FR4 epoxy sheet / EPGC202 sheet with high performance mechanical properties


    Product Introduction:

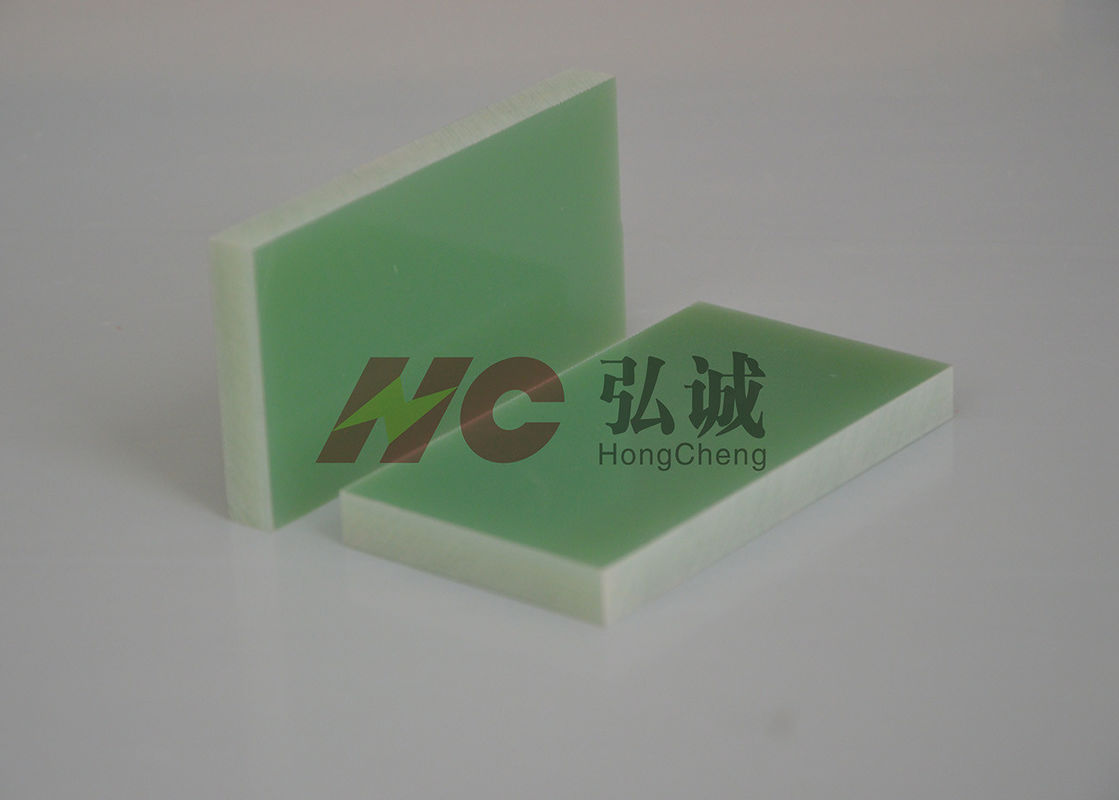

    Excellent Flexural Strength FR4 epoxy sheet is a rigid insulating lamination sheet made of composed imported alkali-free glass fiber cloth ,impregnated with imported high quality epoxy resin,added the imported fire retardant and cementing compound,it is a rigid plate-like insulating material under high temperature and high pressure.

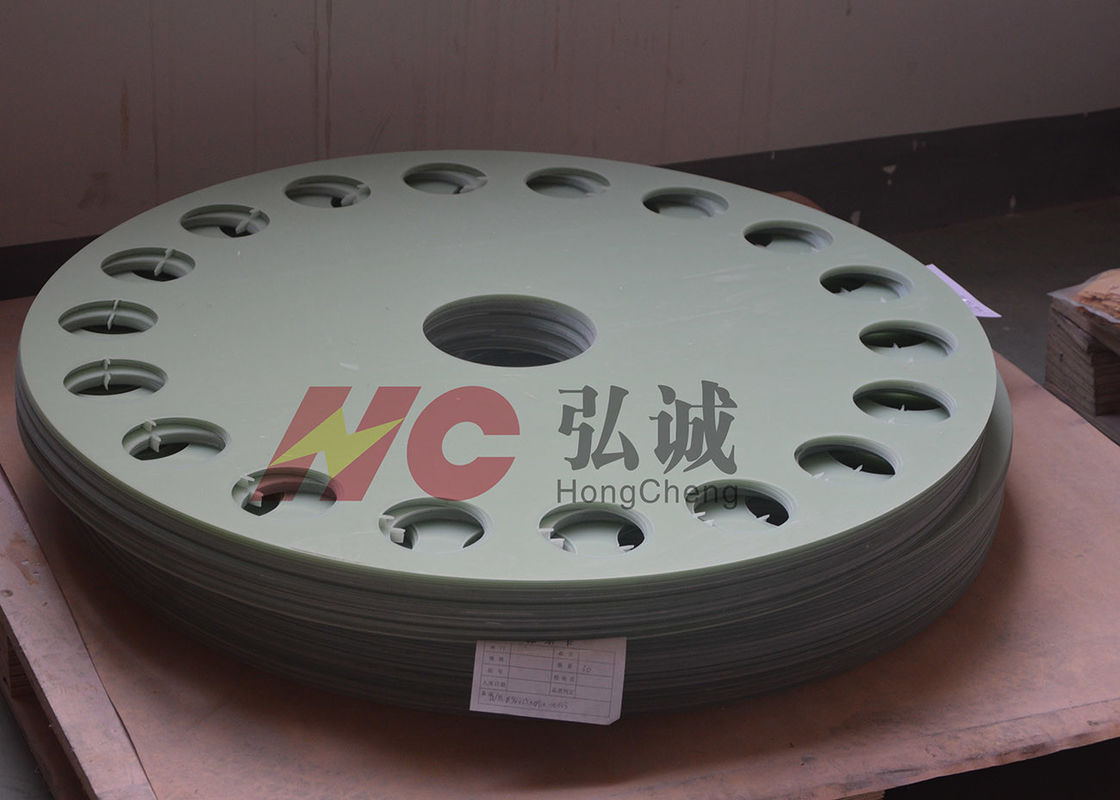

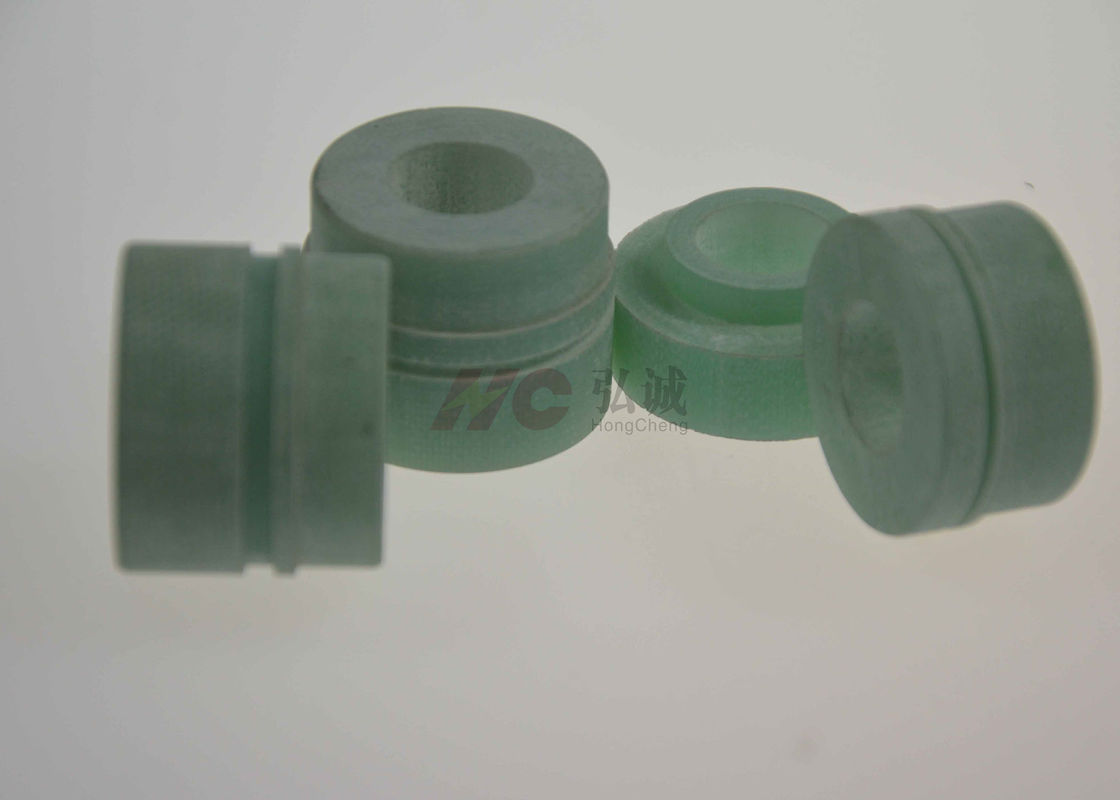

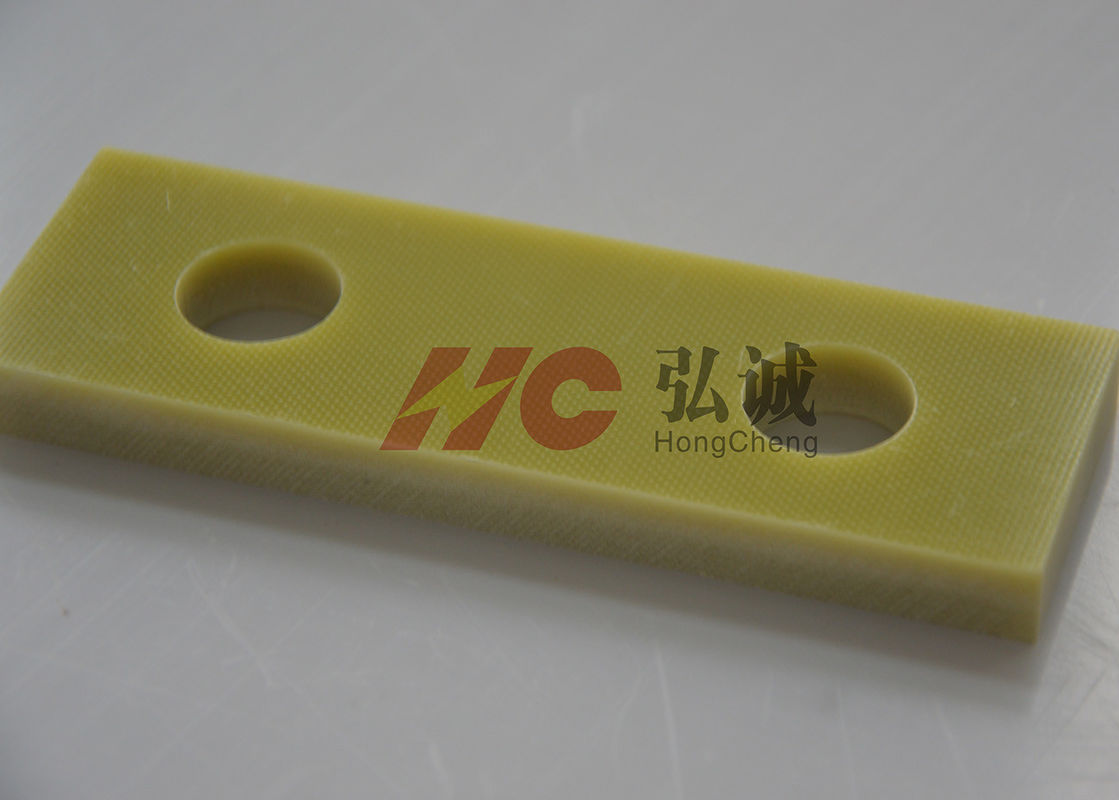

    Excellent Flexural Strength FR4 epoxy sheet are widely used in every kinds of switch cubicle such as burshing disk,arc extinguishing chamber ,arcing cylinger,arcing piece,flash barrier,wiring board,terminal plate insulating support;stru parts and bus-bar supports in switchear & transformer, the armature parts of electrical machine such as cover plate,slote wedge,stator ,gasket,shims,carbon brush etc,the epoxy glass laminated sheet series are used much more extensively in consumer electronics.panels display and photovotaic in recent years.


    Product Advantage:



    High precision for the tolerance

    Excellent Fire Retardant(UL 94 V-0 Grade)

    Excellent Voltage Resistance(electric strength ≥16KV/mm)

    Excellent Water Resistance(Water absorption ≤0.2%)

    Excellent Heat Resistance(Class F)

    Excellent thermal impact resistance(Temp.Index:-273℃ to +155℃)

    Excellent mechanical processability & high degree of automation processing

    RoHS,Reach Certified products

    Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties


    Hong Cheng Grade HC-FR-4
    IEC 893/EN 60893 Grade EPGC 202
    ANSI (NEMA) Grade NEMA LI-1 FR-4
    DIN 7735 Hgw2372.1
    JIS GRADE EL-GEF

    Item Test method Unit Typical Values
    Physical Properties Color Visual inspection Light green / yellow
    Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
    Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
    Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
    Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
    Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
    TensileStrength IEC 60893-2:2003 MPa ≥300
    //Bond Strength // IEC 60893-3-4:2003 N ≥8000
    Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
    Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
    Temperature Index IEC 60085:2004 155
    Toxicant Content E662 Low
    Others Acetone Resistance boiled Min 30(OK)




    Excellent Flexural Strength FR4 epoxy sheet  used in Photovoltaic system

    Excellent Flexural Strength Epoxy Resin Sheet High Performance Mechanical Properties

    Photovoltaic system consists of main parts of photovoltaic modules, combiner box , inverter cabinets, distribution cabinets, transformers, power grid ,which in addition to transformer and power transmission and distribution are introduced. for the convergence of inverter cabinet/power distribution cabinet/combiner box are very close to the requirement of switch cabinet,HC-GPO3/HC-FR4/HC-GPO3 shapes are used to support,bearing,isolation.The insulation material can be used in the photovoltaic module for pv backboard, and has a strong weather resistance requirement for the backplane ,our research and development team have done a lot of research on it.
    Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.
    Main famous cooperative enterprises:Sungrow power supply Co.,Ltd,ABB,TBEA Co.,Ltd.
