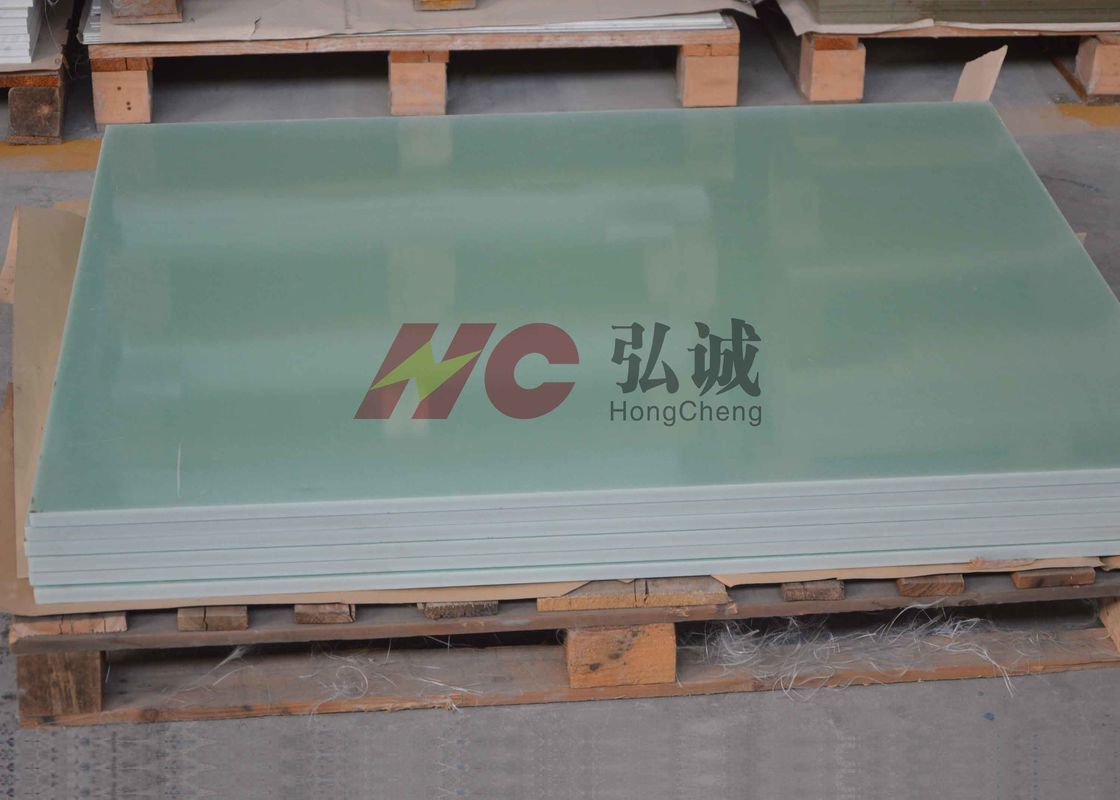

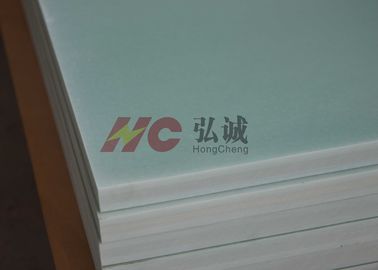

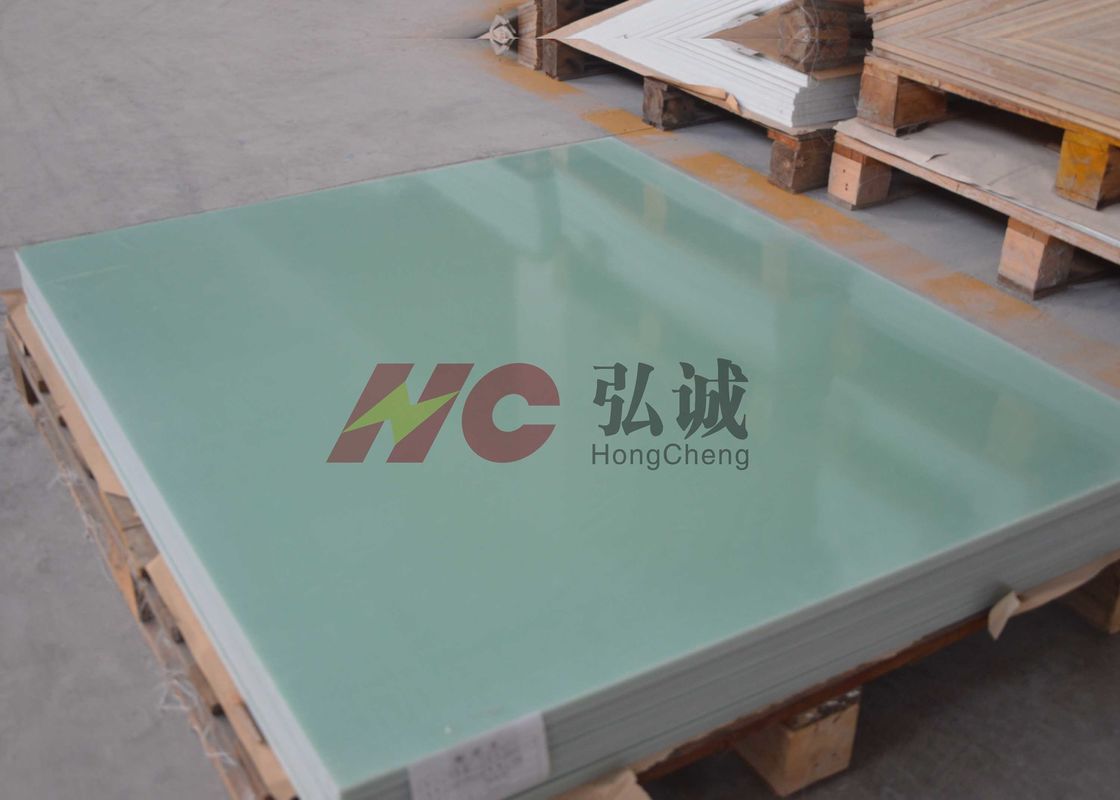

FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204

    • FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204
    • FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204
    • FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204
    • FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204
  • FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: SGS/UL/RoHS 2.0/Reach
    Model Number: FR 5 / EPGC204 / Hgw2372.4

    Payment & Shipping Terms:

    Minimum Order Quantity: Nogociation accepted
    Packaging Details: crate packing ,pallet,carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: FR5 H-class Epoxy Fiber Glass Sheet IEC Standard:: EPGC204
    German Standard:: Hgw2372.4 Product Thickness:: 1.0mm-40mm
    Product Size:: 1020*1220

    High mechanical strength FR5 H-class epoxy sheet specified for CRRC / EPGC204 with excelletnt heat resistance


    Product Introduction:

    High mechanical strength FR5 H-class epoxy sheet specified for CRRC are the high temperature resistant rigid plate insulating materials joint developed by ISOLA Taiwan and our company.



    High mechanical strength FR5 H-class epoxy sheet specified for CRRC are widely used in high voltage motor and electrical equipment as insulating structures,such as high-tension switch cubicle,transformer,frequency changer,converter,DC motor,AC contactor .automobile industry field.all kinds of switch cubicle such as bursting disk,lining pate,arc extinguishing chamber,arcing cylinder,arcing piece,flash barrier,wiring board,terminal plate insulating supports;strut member and bus bar supports in switchgear & transformer;the armature parts of electrical machine such as cover plate,slot wedge,stator,gasket,shims,carbon brush etc.


    Product Advantage:

    1.  High temperature resistance more than 180℃
    2.  Excellent Fire Retardant(UL 94 V-0 Grade)
    3.  Excellent Voltage Resistance(electric strength ≥16KV/mm)
    4.  Excellent Water Resistance(Water absorption ≤0.2%)
    5.  Excellent Heat Resistance(Class F)
    6.  Excellent thermal impact resistance(Temp.Index:-273℃ to +180℃)
    7.  Excellent mechanical processability &high degree of automation processing
    8.  RoHS,Reach Certified products

    FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204


    Hong Cheng Grade HC-FR-5
    IEC 893/EN 60893 Grade EPGC 204
    ANSI (NEMA) Grade NEMA LI-1 FR-5
    DIN 7735 Hgw2372.4
    JIS GRADE EL-GEHF

    Item Test method Unit Typical values
    Physical properties color Visual inspection White
    Specific gravity IEC 60893-2:2003 g/cmP3P 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical properties Electric strength⊥ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    breakdown voltage∥ IEC 60893-2:2003 KV ≥ 60
    Volume resistivity IEC 60093:1980 Ω.m ≥ 1.0×10P12
    Surface resistivity IEC 60093:1980 Ω ≥ 1.0×10P14
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation factor IEC 60893-2:2003 0.04-0.05
    PTI Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    24H IEC 60893-2:2003 Ω ≥ 5×10P10P
    Insulation resistance after immersion 24Hre in water
    Mechanical properties Flexural strength⊥ IEC 60893-3-4:2003 MPa ≥ 340
    Charpy Impact strength∥ IEC 60893-2:2003 KJ/mP2P ≥60
    Tensile Strength IEC 6089-2:2003 MPa ≥300
    Bond strength IEC 60893-3-4:2003 N ≥8000
    Compressive strength ⊥ IEC 60893-2:2003 MPa ≥ 350
    Flame resistance properties Flame resistance IEC 60893-2:2003 V-0
    Temperature index IEC 60085:2004 180
    Toxicant content E662 Low
    Other Acetone resistance Boiled Min 30(OK)

    High mechanical strength FR5 H-class epoxy sheet specified for CRRC

    FR5 H - Class Epoxy Fiberglass Sheet , Epoxy Resin Sheet For CRRC / EPGC204

    FR5 H-class epoxy sheet  is used extensively in rail traffic,There are many modules for the use of insulation materials in rail transit, modules of motor and traction motor, module equipment and interior decoration.On safety performance for this kind of civil transport have quite high demand, need fire report, flame retardant grade should be V0, heat resistance grade should be above F, even C grade requirement of heat resistance, besides the material itself needs certain mechanical strength and electrical strength. The commonly used materials in rail traffic are HC-FR5
