UL Certified Pultruded Profiles / Glass Reinforced Plastic Structure GPO-3 L Angle

Price : EXW , FCA , FOB Packaging Details : crate packing,plywood pallet , plastic pallet ,carton
Delivery Time : 5-7 working days Payment Terms : T/T
Place of Origin: China Brand Name: Hongcheng
Certification: UL(E344098)/RoHS 2.0 /Reach

Detail Information

Product Name: GPO-3 L Angle Product Color: Red/Gray/White
Product Size: 21 Kinds Of Specifications Water Absorption: 0.5%
Tensile Strength: ≥400Mpa Flexural Strength(perpendicular): ≥650Mpa
High Light:

fiberglass l channel

,

custom u channel

Product Description

UL certified L angle / UL certified GPO-3 L angle


Introduction:

We have four equipment and the dozens of pultruded profile molds can be produces :L angle,U shapes,Dog bone,square tubes,T-shape profiles.

The L angles are a kind of e -class fiberglass and /or glass-mat reinforced unsaturated polyester & inorganic filler binder.The angles are formed continuously after being heated by high temperature.



Feature:

Stable structure,non cracking, non Explosive Edge

Technical advantages, mold development and design capabilities, excellent supporting capacity.

High Arc Resistance:≥180 Seconds

Track Resistance:CTI≥600V

Heat Resistance:Class F,up to 130℃

Thermal Impact:Temp. Index: -273℃ to +155℃

Fire Retardant:UL 94 V-0 Grade



Application:

Power control & Power transmits:Cable bridge & angle insulation;

Insulation channel of bus duct & fuse;

Insulating support of inverter,converter


Diagram:

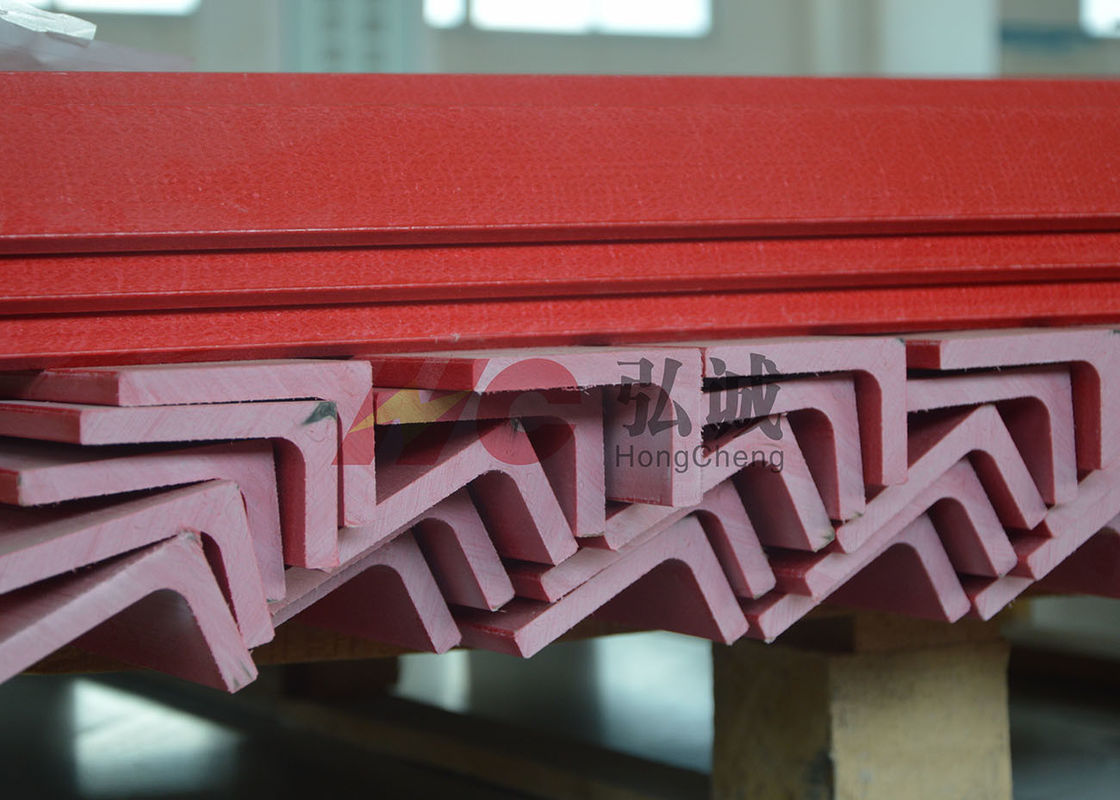

 UL Certified Pultruded Profiles / Glass Reinforced Plastic Structure GPO-3 L Angle 0


Specification sheet:

Product Name Item No. Size
GPO-3 L angle HC-XC-L-W GPO-3 White L angle 2.5*14*14
HC-XC-L-R GPO-3 Red L angle 3.0*40*40
HC-XC-L-R GPO-3 Red L angle 4.0*30*40
HC-XC-L-R GPO-3 Red L angle 4.0*40*88.5
HC-XC-L-R GPO-3 Red L angle 4.8*31.8*44.45
HC-XC-L-R GPO-3 Red L angle 5.0*50*50
HC-XC-L-R GPO-3 Red L angle 6.0*20*34
HC-XC-L-R GPO-3 Red L angle 6.0*25*50
HC-XC-L-R GPO-3 Red L angle 6.0*30*50
HC-XC-L-R GPO-3 Red L angle 6.0*50*50
HC-XC-L-R GPO-3 Red L angle 6.0*75*100
HC-XC-L-R GPO-3 Red L angle 6.35*50.8*50.8
HC-XC-L-R GPO-3 Red L angle 8*50*50
HC-XC-L-R GPO-3 Red L angle 8.0*50*65
HC-XC-L-R GPO-3 Red L angle 10*50*75
HC-XC-L-R GPO-3 Red L angle 10*50*80
HC-XC-L-R GPO-3 Red L angle 10*50*125
HC-XC-L-R GPO-3 Red L angle 10*63*100
HC-XC-L-R GPO-3 Red L angle 10*75*75
HC-XC-L-R GPO-3 Red L angle 10*80*150
HC-XC-L-R GPO-3 Red L angle 10*90*90
HC-XC-L-R GPO-3 Red L angle 10*125*125
HC-XC-L-G GPO-3 Grey L angle 6*50*50*1350

Pultrusion Technique

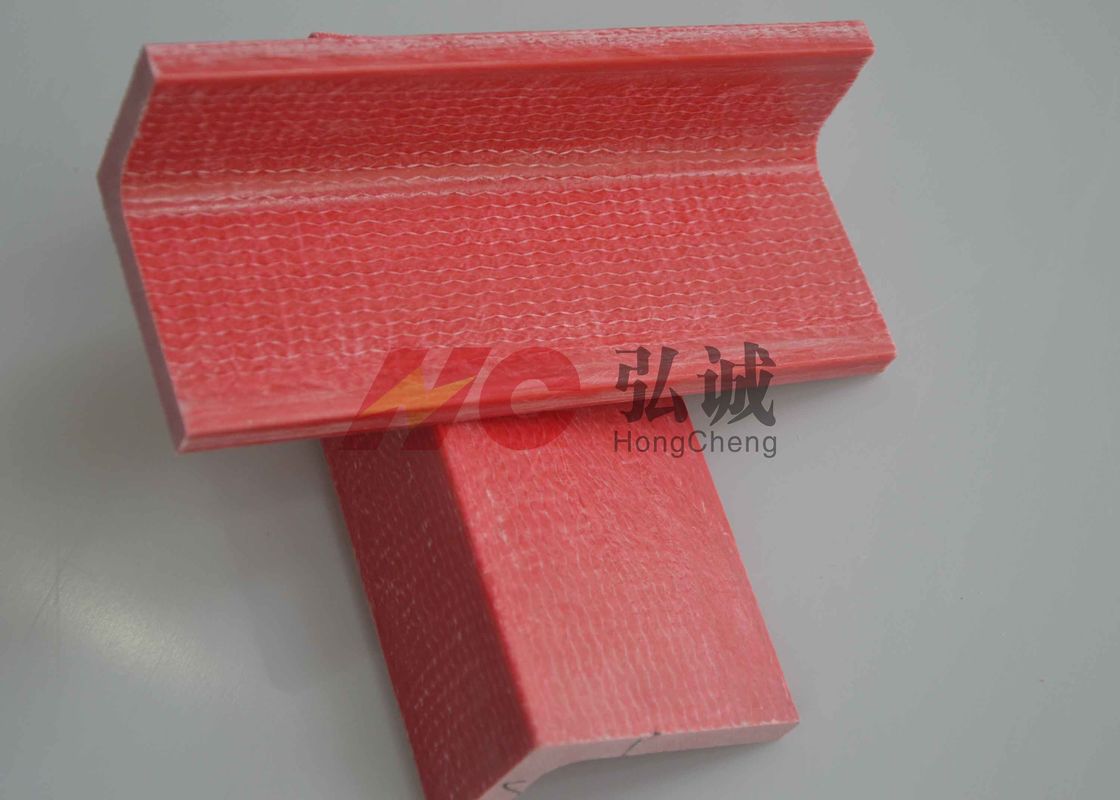

UL Certified Pultruded Profiles / Glass Reinforced Plastic Structure GPO-3 L Angle 1

Custom Your Own Mould
Mould trade Process
1. Quote According to the sample & Sample

2. Comfirm Color,Material,Price,Payment,MOQ,

3. Advance Pay the Mould cost 100% by T/T

4. Mould Design/Processing Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation

5. Balance settlement 100% by T/T after the customer approved the samples and decide to start the production

6.Delivery Delivery by sea or air under EXW/FCA
