UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength

UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength

Products - UPGM 203 Insulation Sheet
  • High Light

    high pressure laminate sheet

    ,

    red fiberglass sheet

  • Product Name
    UPGM205 Sheet
  • IEC Standard
    UPGM205
  • Product Color
    White
  • Thickness
    0.5mm-80.0mm
  • Product Size
    1000*1200
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL（E344098）/RoHS 2.0 /Reach
  • Model Number
    UPGM205
  • Payment Terms
    T/T

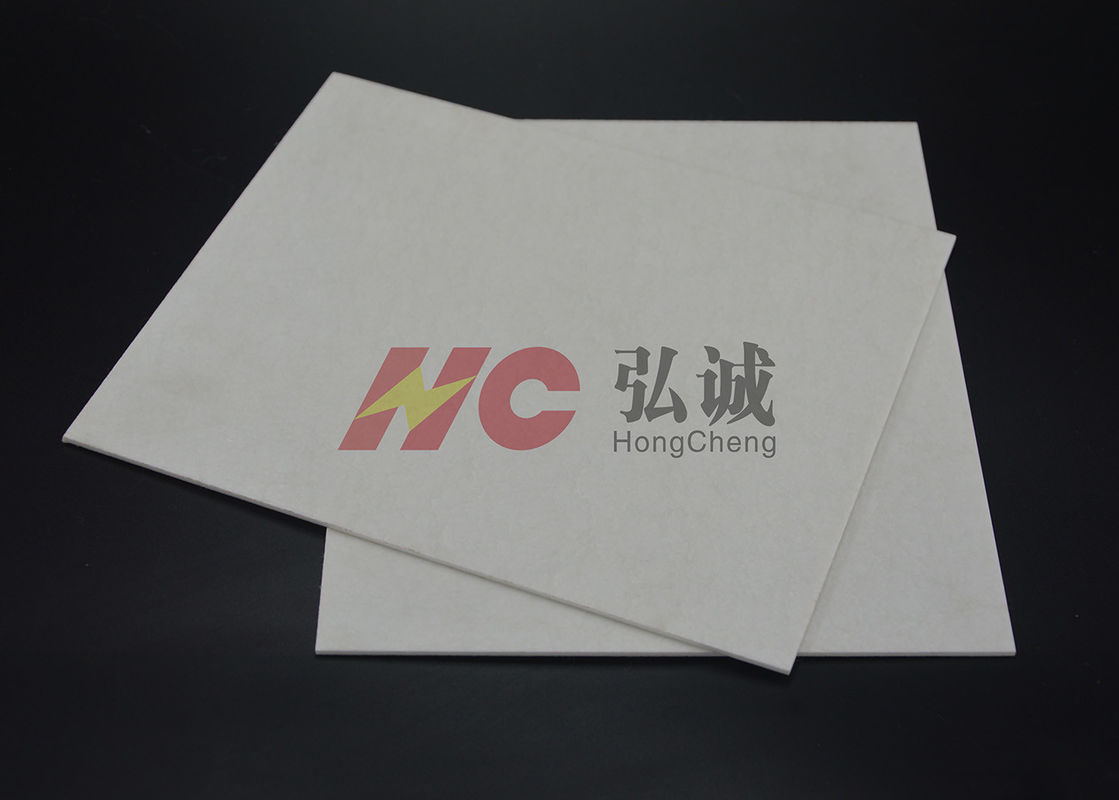

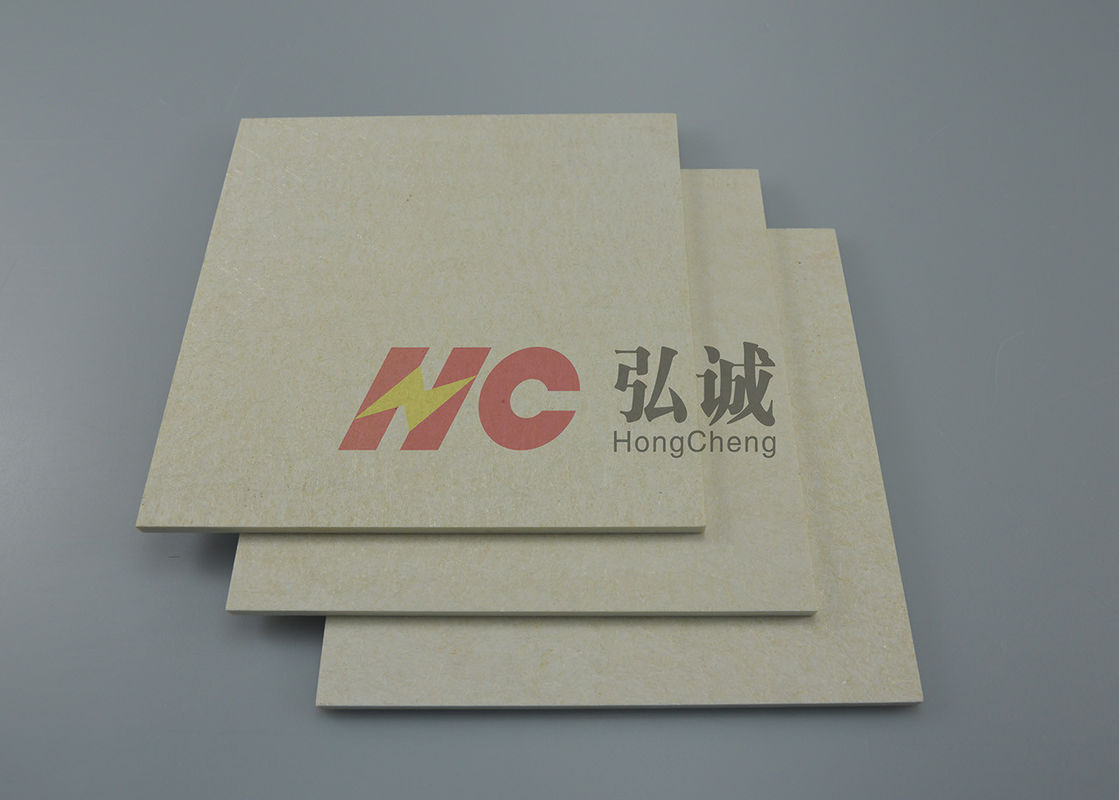

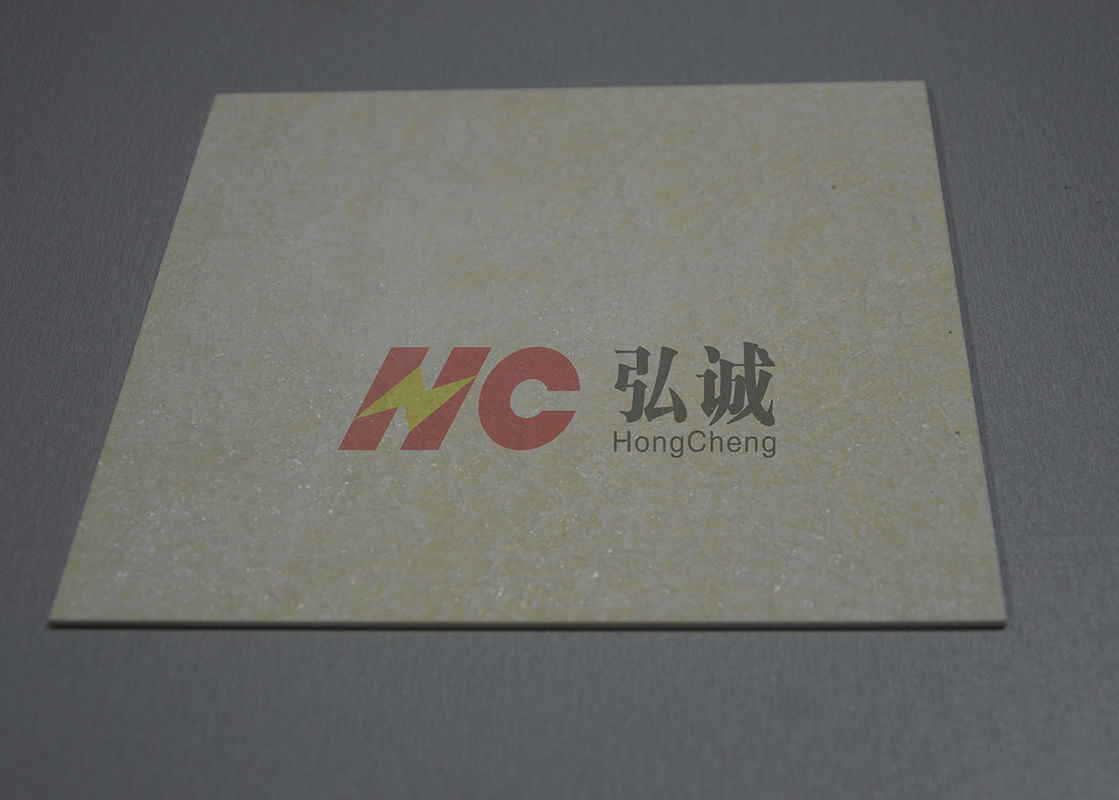

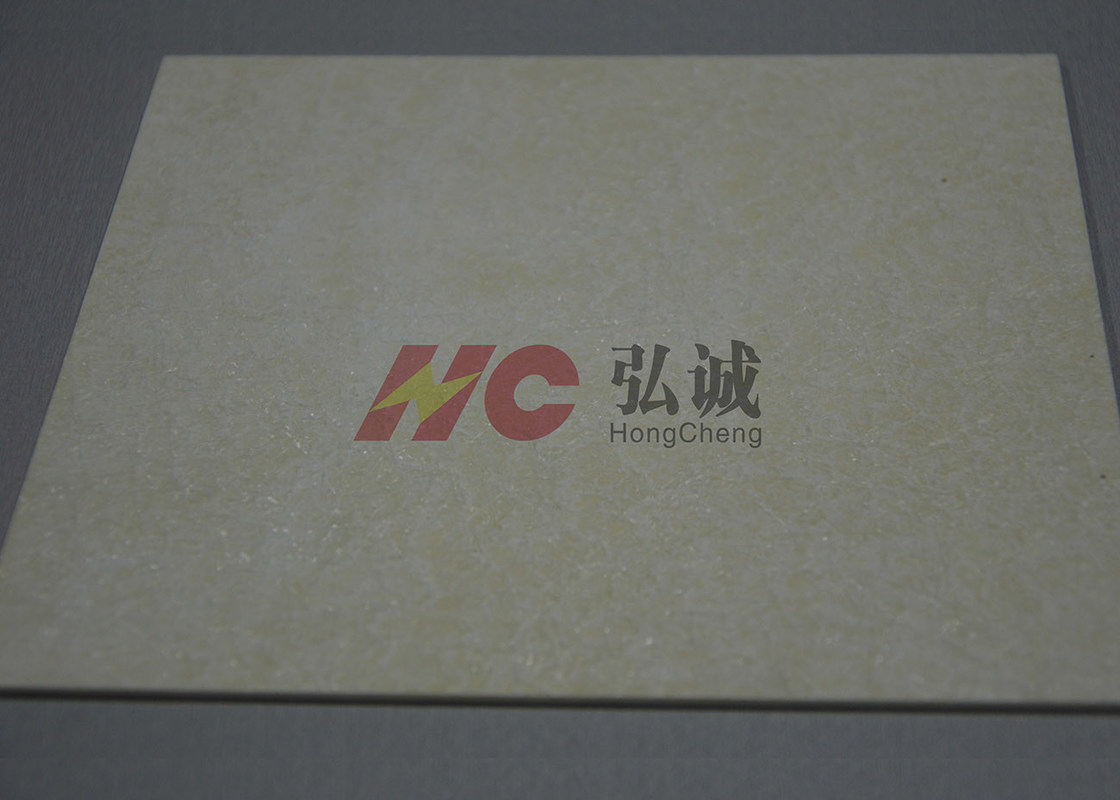

UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength

  • UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength
  • UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength
  • UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength
  • UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength
Get Price Contact Now

UPGM205 with high peformance tensile / upgm205 with high performance flexural strength

Product Introduction:

UPGM205 with high peformance tensile made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.Compared with GPO-3 in the tensile strength and the full strength to do the corresponding upgrade .



Product Advantages:

  1. More Excellent Mechanical Strength than GPO-3 Sheet(Under high temperature, the tensile strength and bending strength are better.)
  2. Excellent Arc Resistance(Arc Resistance≥180 S)
  3. Excellent Track Resistance(CTI≥600V)
  4. Excellent Heat Resistance(Class F)
  5. Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
  6. Excellent Fire Retardant(UL 94 V-0 Grade)
  7. Low Smoke,Halogen Free Products(NF-F16-101/102)
  8. RoHS,Reach Certified products



UPGM205 with high peformance tensile is used extensively in low & middle voltage electrical epuipment as insulating structures ,such as circuit breaker ,switchear,transformer,converter,inverter & explosion-proof apparatus etc.in electrical apparatus:making of phase & end barriers,contact terminal supports,terminal plate,insulating supports,bus bar supports and mounting panels in switchgear;and signal panels in other types of electrical apparatus；and electric melting furnace insulations.

Hong Cheng Grade HC-UPGM205
IEC 893 / EN 60893 Grade UP GM 205
Items Test method Unit Typical Values
Physical Properties Color Visual inspection ---- White
Specific Gravity IEC 60893-2:2003 g/cm3 1.90-2.10
Water absorption ISO62:2008 % ≤0.5
Mechanical Tensile Strength IEC 60893-2:2003 Mpa ≥180
Properties Compressive Strength IEC 60893-2:2003 ≥400
  Flexural Strength IEC 60893-2:2003 ≥250
  Modulus of Elasticity IEC 60893-2:2003 ≥15000
  Impact Strength IEC 60893-2:2003 KJ/m2 ≥70
Electrical Insulation resistanceImmersion in water after 24 hrs IEC 60893-2:2003 Ω ≥1.0 x 109
Properties Electric Strength - ┴ IEC 60893-2:2003 kV/mm ≥ 12
  Breakdown Voltage- // IEC 60893-2:2003 kV/25mm ≥ 80
  Arc resistance IEC 61621:1997 sec ≥180
  PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
  CTIComparative Tracking Index IEC 60893-2:2003 --- ≥600
  Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
  tgδ Dielectric Factor IEC 60893-2:2003 --- ≤0.05
Thermal Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Properties Temp. Index IEC 60085:2004 ℃ 155
Flame Resistance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Properties Flame Resistance IEC 60893-2:2003 --- V-0(≥3.2mm)
  Toxicant (Emission halogen etc.) E662 --- Low
  Smoke index NF F 16-101 --- F1
Other Halogen(Cl,Br) BS EN 14582:2007 mg/kg N.D.
The anti microbial properties of bacteria G21-G22   Good

UPGM205 with high peformance tensile used in Transformer

UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength 0UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength 1UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength 2UPGM205 Tensile White Laminate Sheets High Performance Flexural Strength 3.

The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
