RoHS Certified  Pultruded Profiles GPO-3 U Channel Environment - Friendly Cable Bridge

RoHS Certified Pultruded Profiles GPO-3 U Channel Environment - Friendly Cable Bridge

  • High Light

    fiberglass l channel

    ,

    pultruded fiberglass structural shapes

  • Product Name
    GPO-3 U Channel
  • Product Color
    Red/Gray/White
  • Product Size
    21 Kinds Of Specifications
  • Density
    1.85-2.0g/cm3
  • Water Absorption
    ≤ 0.5%
  • Arc Resistance
    ≥ 180Sec
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Delivery Time
    5-7 working days
  • Payment Terms
    T/T

RoHS Certified Pultruded Profiles GPO-3 U Channel Environment - Friendly Cable Bridge

RoHS Certified U channel / RoHS Certified GPO-3 U channel / Environment-friendly cable bridge

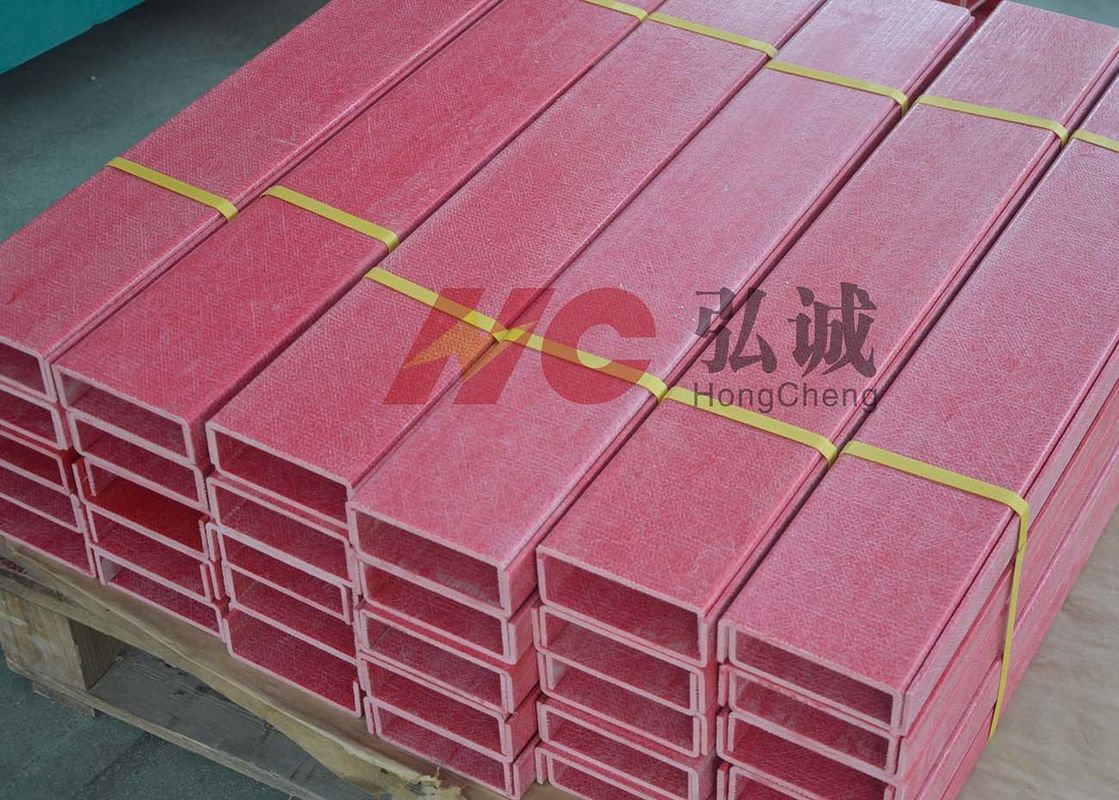

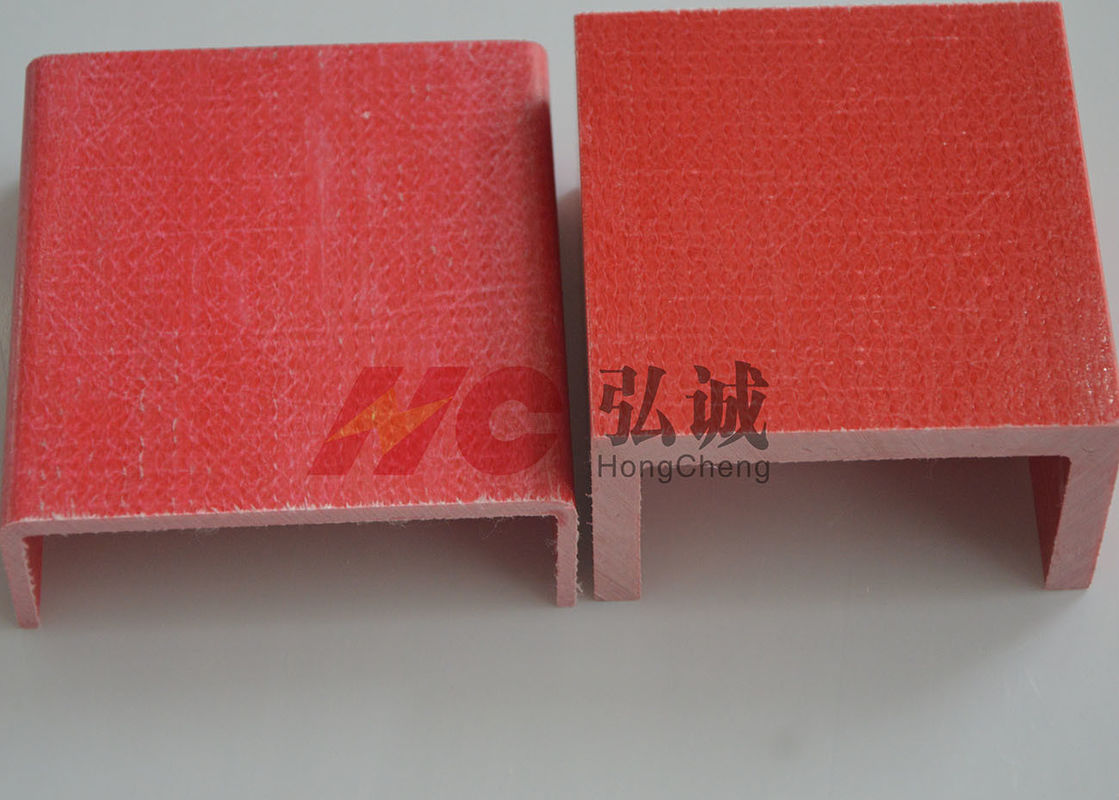

Product Description:Red U channel is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



Applicaiton:Red U channel is used extensively in equipmnents of Power controller & Power transmits as cable bridge & angle insulation; insulating channel of Bus duct & fuse;insulating support of Inverter,converter etc.



Product Advantages:

Technical advantages, mold development and design capabilities, excellent supporting capacity.

Excellent size, space stability, non cracking, non Explosive Edge

Excellent Arc Resistance(Arc Resistance≥180 S)

Excellent Track Resistance(CTI≥600V)

Excellent Heat Resistance(Class F)

Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

Excellent Fire Retardant(UL 94 V-0 Grade)




Diagram:

 RoHS Certified  Pultruded Profiles GPO-3 U Channel Environment - Friendly Cable Bridge 0


Specification sheet:

Product Name Item No. Size
GPO-3 U Channel HC-XC-U-R 3.175*114.3*63.5*63.5
HC-XC-U-R 3.2*79*28.5*28.5
HC-XC-U-R 4*6.3*6.3*46*28*28
HC-XC-U-R 5*4*4*120*40*40
HC-XC-U-R 5*100*35*35
HC-XC-U-R 6.35*50.8*25.4*25.4
HC-XC-U-R 7*5*5*53*55*55
HC-XC-U-R 7*127*45*45
HC-XC-U-R 10*127*45*45
HC-XC-U-R 10*110*60*60
HC-XC-U-R 10*127*45*45
HC-XC-U-G 6.2*76*38*38
HC-XC-U-G 6.0*50*40*40

Pultrusion Technique

RoHS Certified  Pultruded Profiles GPO-3 U Channel Environment - Friendly Cable Bridge 1

Custom Your Own Mould
Mould trade Process
1. Quote According to the sample & Sample

2. Comfirm Color,Material,Price,Payment,MOQ,

3. Advance Pay the Mould cost 100% by T/T

4. Mould Design/Processing Start to make mold after mould design cofirm,and send try-out report or trial samples to customer for comfirmation

5. Balance settlement 100% by T/T after the customer approved the samples and decide to start the production

6. Delivery Delivery by sea or air under EXW/FCA
