Reach Certified GPO-3 Dogbone Space Stability And High Flexural Strength
-
High Light
fiberglass dog bone
,pultruded dog bone
-
Product NameInsulation Dog Bone
-
Product ColorRed/Gray/White
-
Product Size12 Kinds Of Specifications
-
Density1.85-2.00 G/cm3
-
Tensile Strength≥400Mpa
-
Flexural Strength＞650Mpa
-
Place of OriginChina
-
Brand NameHongcheng
-
CertificationUL（E344098）/RoHS 2.0 /Reach
-
PriceEXW , FCA , FOB
-
Packaging Detailscrate packing,plywood pallet , plastic pallet ，carton
-
Delivery Time5-7 working days
-
Payment TermsT/T
Reach Certified GPO-3 Dogbone Space Stability And High Flexural Strength
Environment-friendly Dog bone with Reach certified / REACH Certified I-Brace
| Introduction: |

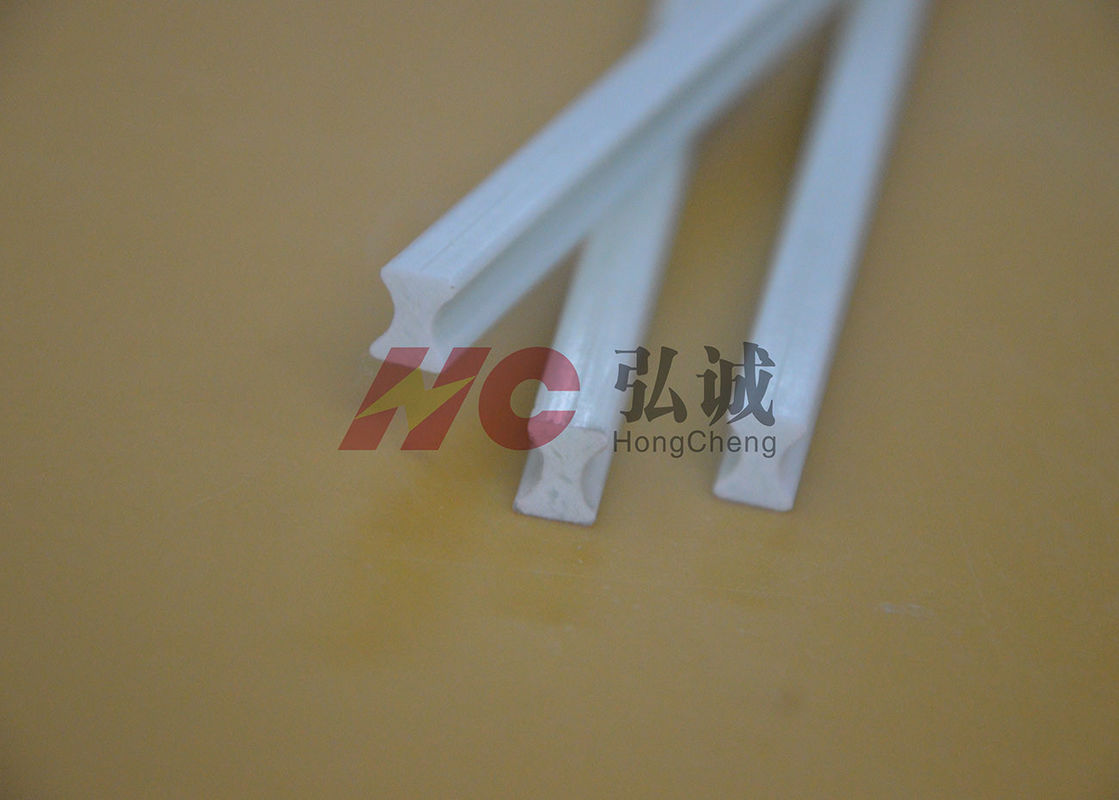

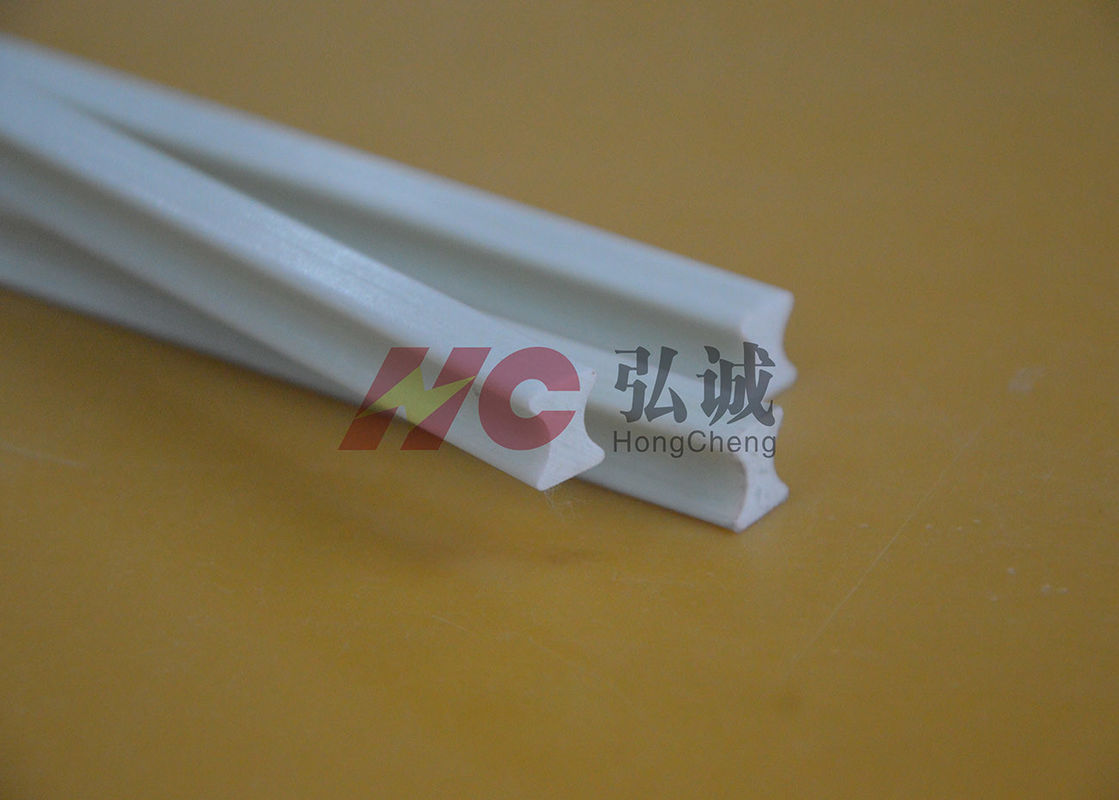

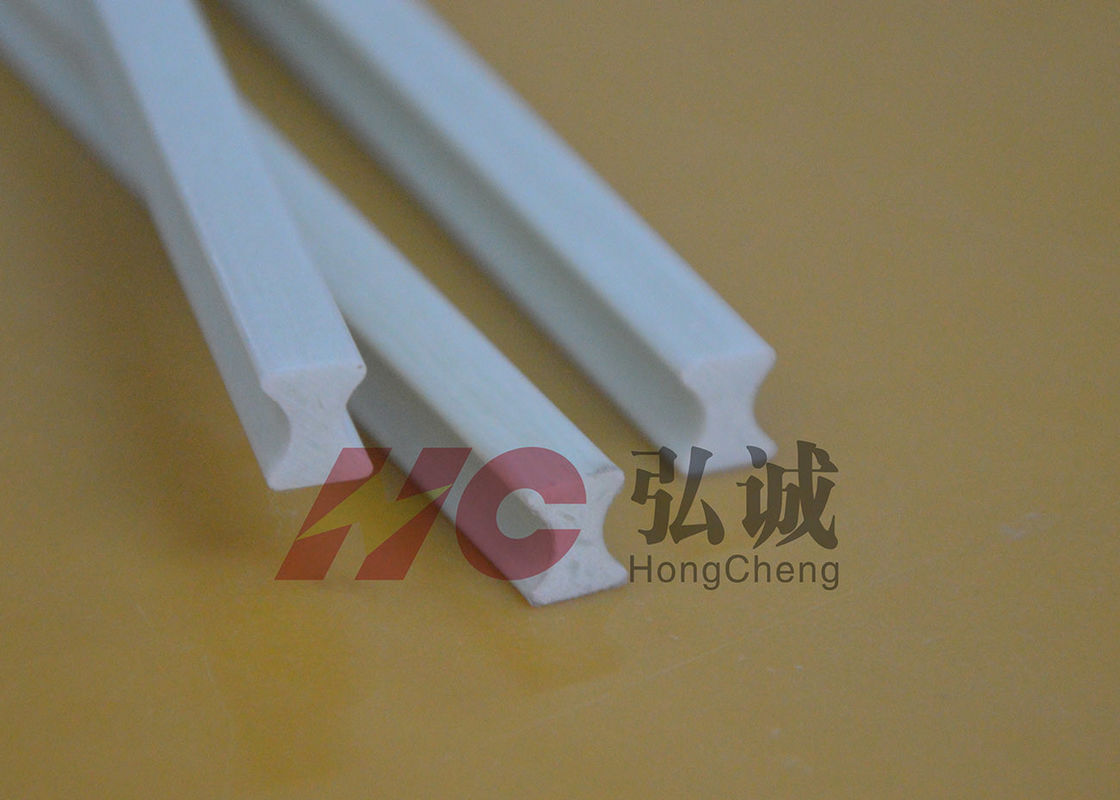

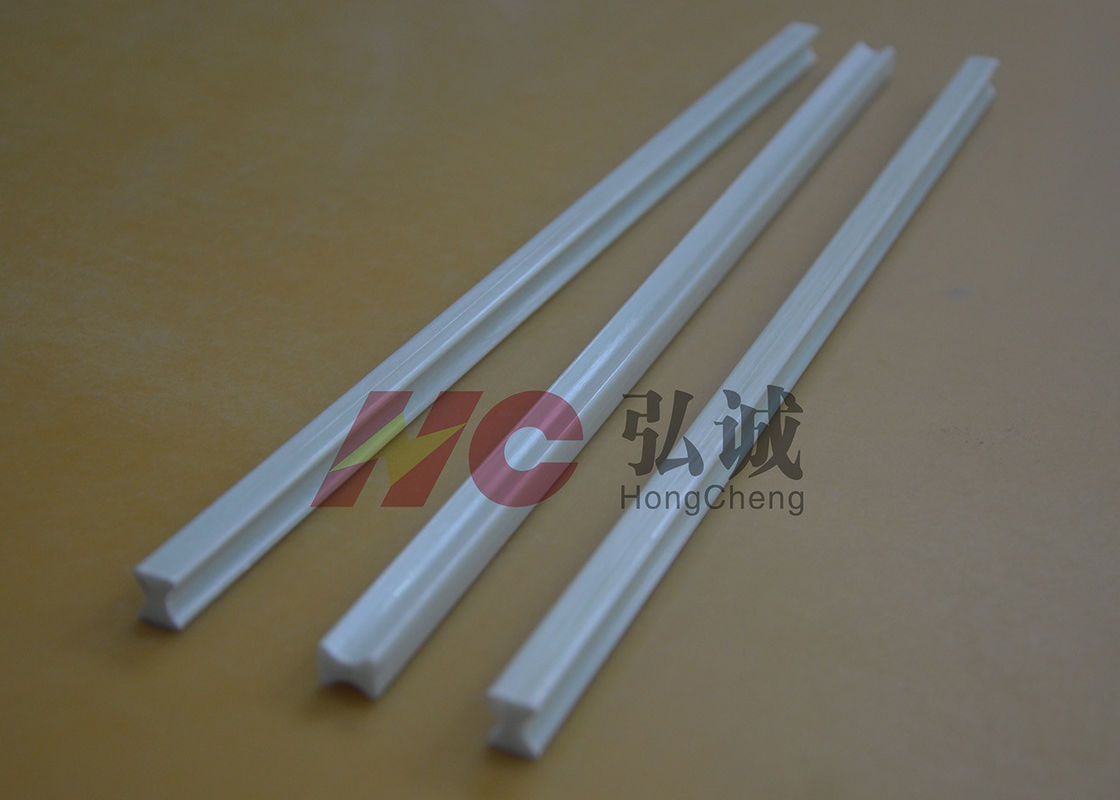

GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.
|
|
Advantages:
|
Products with high strength, better than foreign products, not cracking, non Explosive Edge Excellent size, space stability Heat resistant H class(TI ≥ 180°C) Heat resistant C class(TI ≥ 200°C) Excellent compressive strength(Cross ≥ 80MPa) Excellent bending strength(≥ 380MPa) Excellent bonding strength (non cracking in foil and wire wound) |
| Applicaton: | GPO-3 Profile Shapes & Bracing Series has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking |
Diagram:
Specification sheet:
| Product Name | Item No. | Size |
| Dogbone | HC-XC-D-W | 6*8 |
| HC-XC-D-W | 8*8 | |
| HC-XC-D-W | 8*10 | |
| HC-XC-D-W | 8*12 | |
| HC-XC-D-W | 10*10 | |
| HC-XC-D-W | 10*12 | |
| HC-XC-D-W | 10*13 | |
| HC-XC-D-W | 10*16 | |
| HC-XC-D-W | 10*19 | |
| HC-XC-D-W | 10*20 | |
| HC-XC-D-W | 13*16 | |
| HC-XC-D-W | 16*24 |
Environment-friendly Dog bone with Reach certified used in Reactive Power Compensator Cabinet
| Reactive power compensation cabinet can improve the power factor of power grid in power supply system, reduce the loss of power supply transformer and transmission line, improve power supply efficiency and improve power supply environment.Therefore, reactive power compensation device is a very important position in power supply system.The insulation material can support, carry heavy, insulate function,it has requirements of certain mechanical strength and electrical performance. Main famous cooperative enterprises:ABB Xiamen |
