Stable Structure Insulation Dog Bone 1.85-2.00 G/Cm3 Density For Reactor

Stable Structure Insulation Dog Bone 1.85-2.00 G/Cm3 Density For Reactor

  • High Light

    glass fiber dog bone

    ,

    pultruded dog bone

  • Product Name
    Insulation Dog Bone
  • Product Color
    Red/Gray/White
  • Product Size
    12 Kinds Of Specifications
  • Density
    1.85-2.00 G/cm3
  • Water Absorption
    ≤0.5%
  • Tensile Strength
    ≥400Mpa
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    UL(E344098)/RoHS 2.0 /Reach
  • Price
    EXW , FCA , FOB
  • Packaging Details
    crate packing,plywood pallet , plastic pallet ,carton
  • Delivery Time
    5-7 working days
  • Payment Terms
    T/T

Stable Structure Insulation Dog Bone 1.85-2.00 G/Cm3 Density For Reactor

Reactor special-purpose Dog bone / Insulation dog bone special for Reactor with stable structure


Product Description:

GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



Product Feature:

Non-cracking,space stability

Heat resistant:H class,heat resisitance up to 180℃

Compressive strength:Cross ≥ 80MPa which is higher than most other manufacturer

bending strength: which is up to 380 Mpa

bonding strength:non cracking in foil and wire wound



Application:

transformer ,reactor,large dry transformer

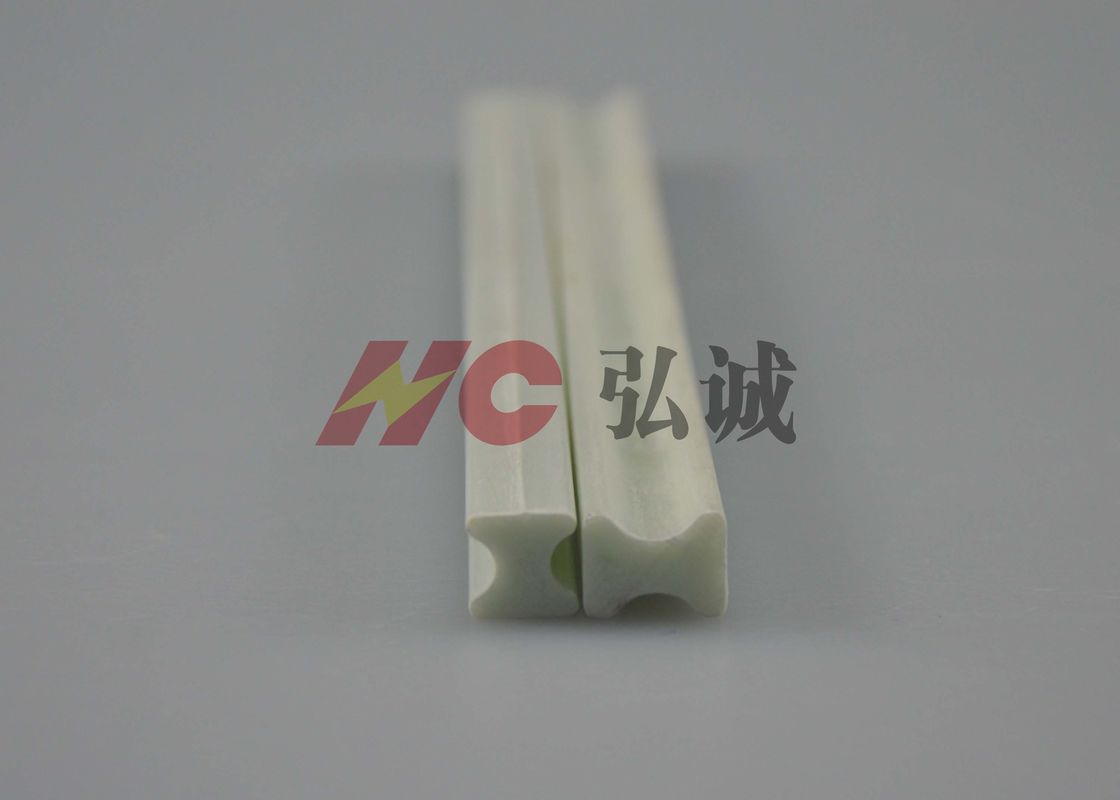

Stable Structure Insulation Dog Bone 1.85-2.00 G/Cm3 Density For Reactor 0


Diagram:

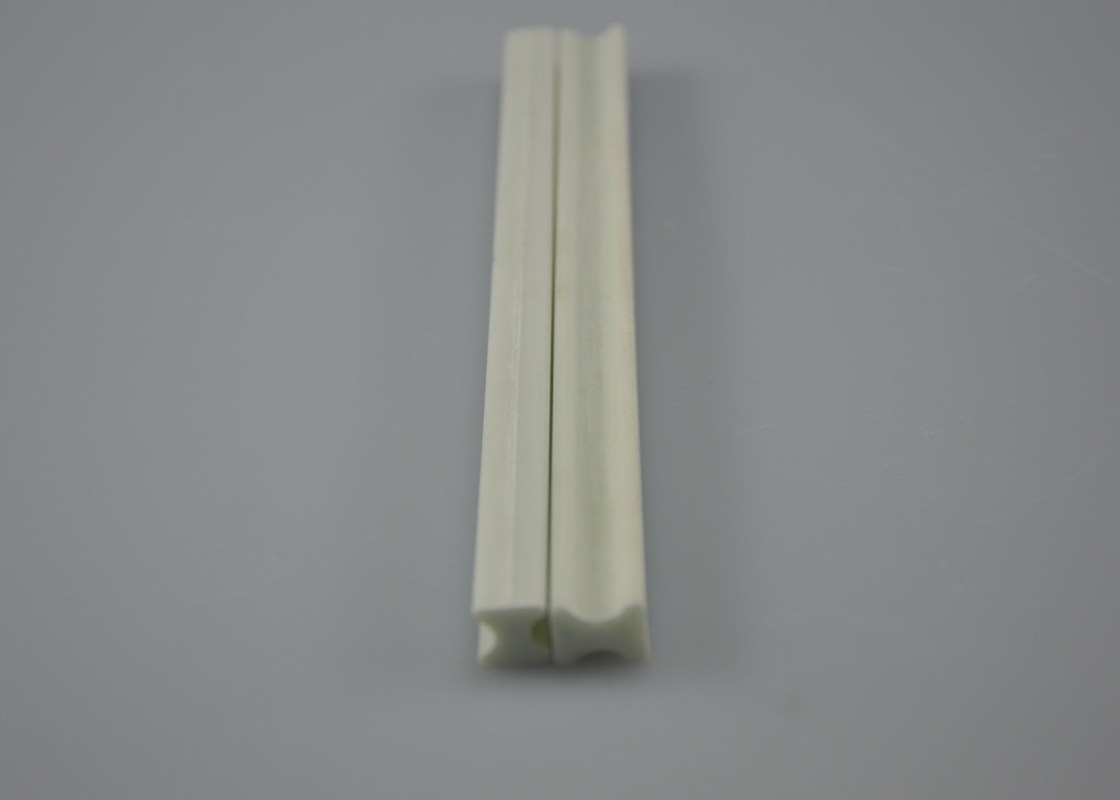

 Stable Structure Insulation Dog Bone 1.85-2.00 G/Cm3 Density For Reactor 1

Specification sheet:

Product Name Item No. Size
Dogbone HC-XC-D-W 6*8
HC-XC-D-W 8*8
HC-XC-D-W 8*10
HC-XC-D-W 8*12
HC-XC-D-W 10*10
HC-XC-D-W 10*12
HC-XC-D-W 10*13
HC-XC-D-W 10*16
HC-XC-D-W 10*19
HC-XC-D-W 10*20
HC-XC-D-W 13*16
HC-XC-D-W 16*24

Reactor special-purpose Dog bone

Stable Structure Insulation Dog Bone 1.85-2.00 G/Cm3 Density For Reactor 2
The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
