Low smoke EPGC201 / No-hologen G10 epoxy sheet / F880 Green product
Product Introduction:

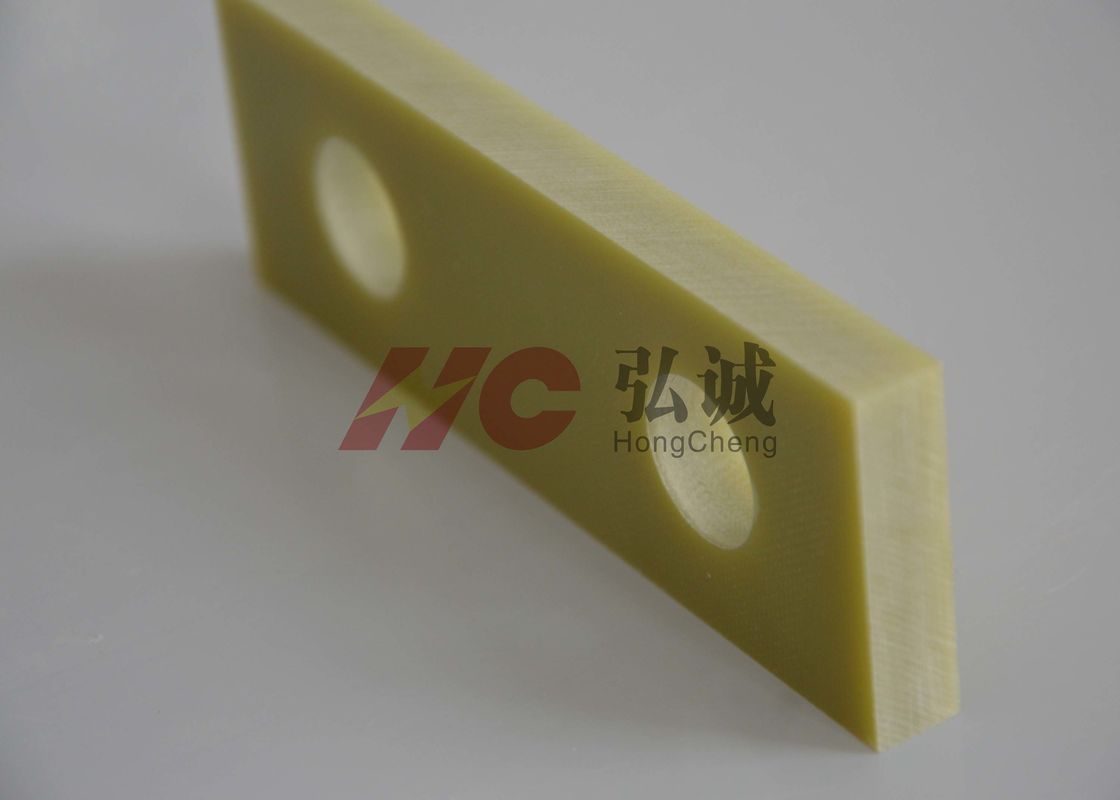

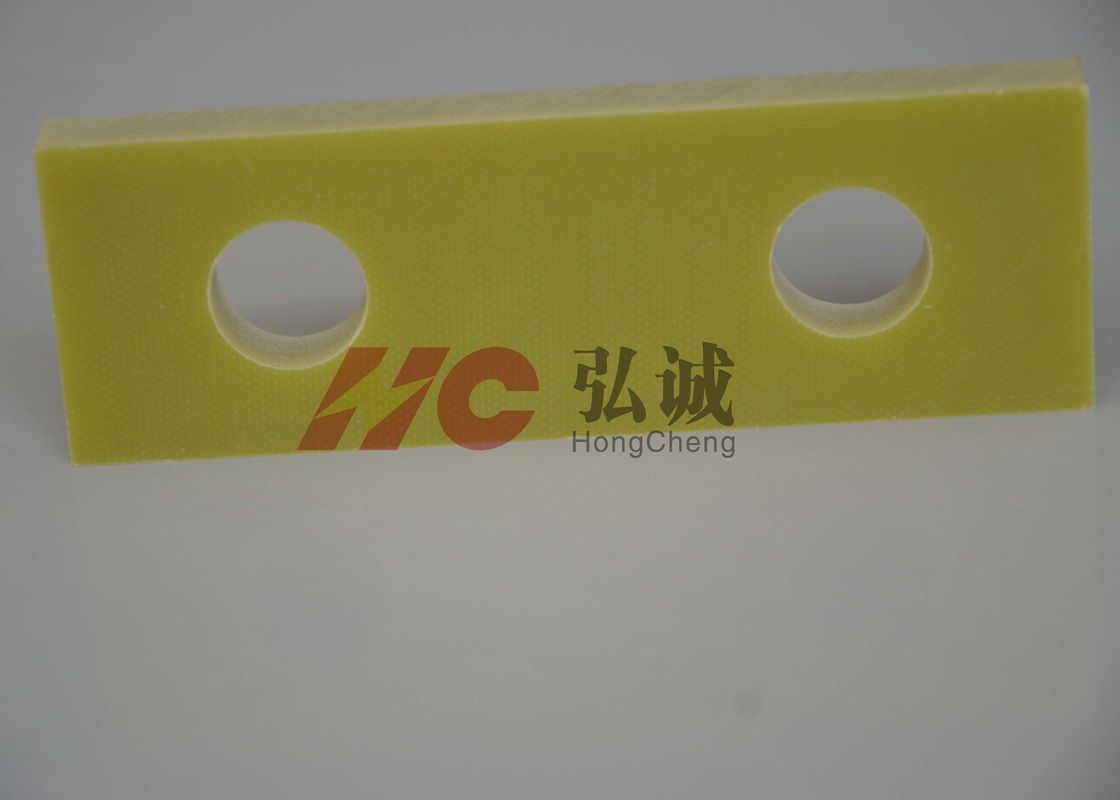

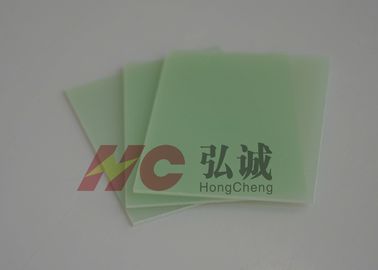

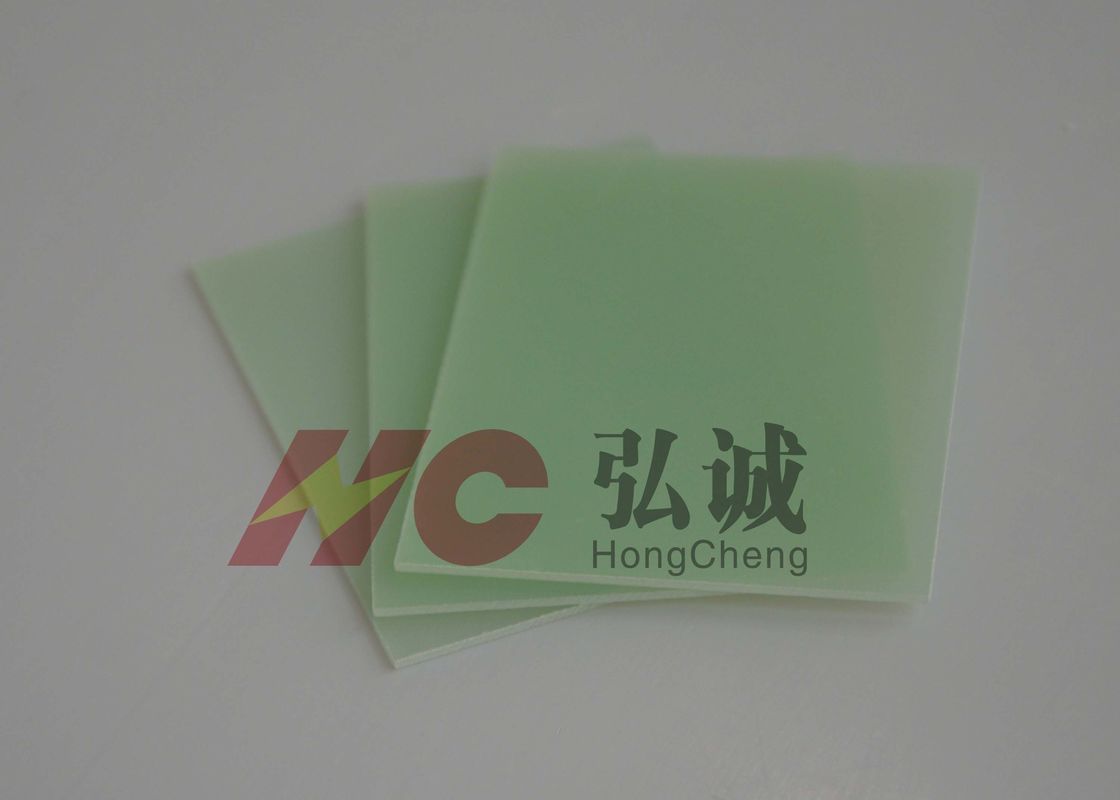

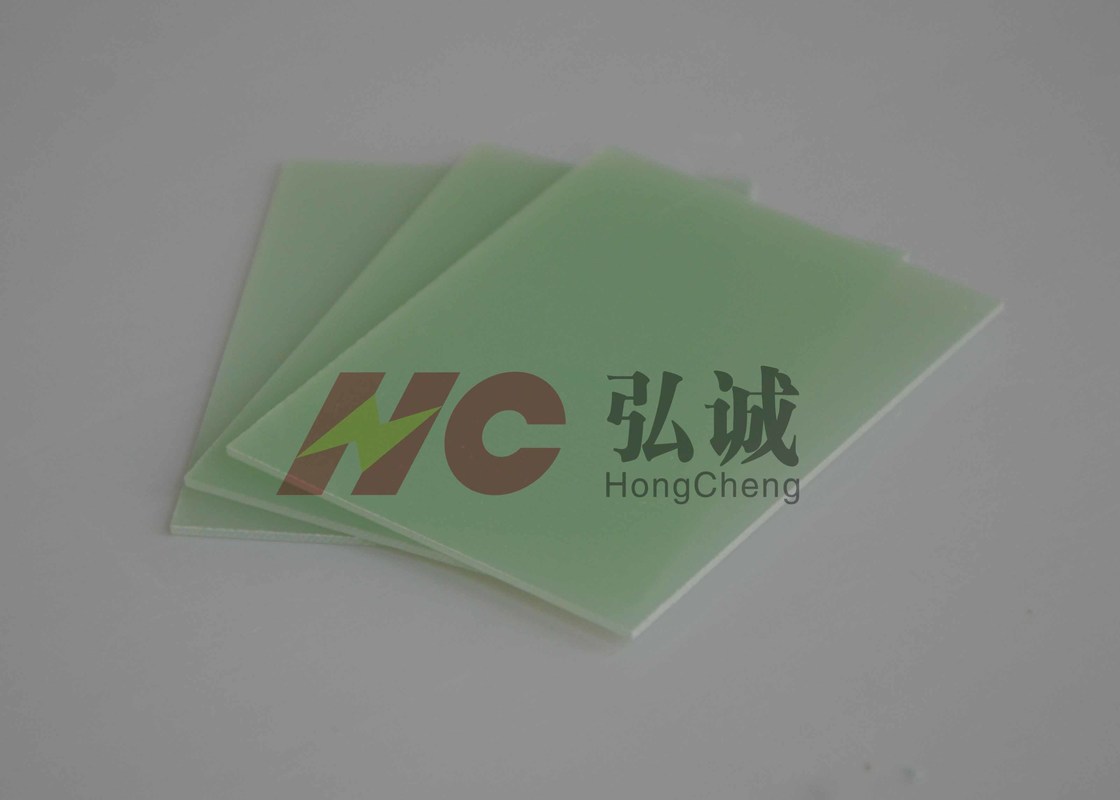

Low smoke EPGC201 is a rigid plate-like insulating material which is made of composed imported alkali-free glass fiber cloth ,impregnated with imported unmixed epoxy resin ,added the imported fire retardant and cementing compound under high temperature and high pressure.
Application:
insulating structure:circuit breakers,switchgear,transformer,DC motor,AC contactor,converter,inverter & explosion-proof apparatus etc
consumer electronics :panel display and photovoltaic
Product Advantage:
Halogen free,low smoke&green product
Excellent Voltage Resistance(electric strength ≥16KV/mm)
Excellent Heat Resistance(Class F)
Excellent thermal impact resistance(Temp.Index:-273℃ to +155℃)
Excellent mechanical process-ability &high degree of automation processing
RoHS,Reach Certified products
Hong Cheng Grade | HC-FR-4 | |||
IEC 893/EN 60893 Grade | EPGC 202 | |||
ANSI (NEMA) Grade NEMA LI-1 | FR-4 | |||
DIN 7735 | Hgw2372.1 | |||
JIS GRADE | EL-GEF | |||
Item | Test method | Unit | Typical Values | |
Physical Properties | Color | Visual inspection | - | Light green / yellow |
Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.90 - 2.15 | |
Water absorption | ISO 62:2008 | % | <0.3 | |
Electrical Properties | Electric strength ┴ | IEC 60893-2:2003 | KV/mm | ≥ 14(3.0mm) |
Breakdown Voltage // | IEC 60893-2:2003 | KV | ≥ 60 | |
Volume Resistivity | IEC 60093:1980 | Ω.m | ≥ 1.0×1012 | |
Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0×1014 | |
(1 MHZ) Dielectric constant | IEC 60893-2:2003 | ﹍ | 4.0-5.5 | |
(1MHZ)Dissipation Factor | IEC 60893-2:2003 | ﹍ | 0.04-0.05 | |
Proof Tracking Index PTI | IEC 60893-2:2003 | V | ≥ 200 | |
Insulation resistance after immersion 24Hrs in Water | IEC 60893-2:2003 | Ω | ≥ 5×1010 | |
Mechanical Properties | Flexural Strength ┴ | IEC 60893-2:2003 | MPa | ≥ 340 |
Charpy Impact strength // | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
TensileStrength | IEC 60893-2:2003 | MPa | ≥300 | |
//Bond Strength // | IEC 60893-3-4:2003 | N | ≥8000 | |
Compressive Strength┴ | IEC 60893-2:2003 | MPa | ≥ 350 | |
Flame Resistance Properties | Flame resistance | IEC 60893-2:2003 | ﹍ | V-0 |
Temperature Index | IEC 60085:2004 | ℃ | 155 | |
Toxicant Content | E662 | ﹍ | Low | |
Others | Acetone Resistance | boiled | Min | 30(OK) |
Low smoke EPGC201 used in electrical reactor/Transformer
The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
delivery detail: 5-7 working days
