EPGC202 epoxy resin composite glass fiber insulation laminated sheet

EPGC202 epoxy resin composite glass fiber insulation laminated sheet

  • High Light

    EPGC202 sheet

    ,

    EPGC202 laminated sheet

  • Color
    Light Green And Yellow
  • Size
    1020*1220mm/1220*2040mm
  • Raw Material
    Epoxy Resin And Glass Fiber Cloth
  • Place of Origin
    XIAMEN CHINA
  • Brand Name
    HC
  • Certification
    UL/ROHS/REACH/EN45545
  • Model Number
    EPGC202
  • Minimum Order Quantity
    100KG
  • Price
    3-4 USD
  • Packaging Details
    carton and pallet
  • Delivery Time
    3-5 DAYS
  • Payment Terms
    L/C, T/T, Western Union
  • Supply Ability
    3600 TONS PER YEAR

EPGC202 epoxy resin composite glass fiber insulation laminated sheet

Product Introduction:

Epoxy resin sheet is a composite material composed of alkali-free woven fiberglass cloth with epoxy resin binder that is flame resistant (self-extinguishing).It has characteristics of high strength, excellent electrical properties and chemical resistance.
The material is known to retain its high mechanical values and electrical insulating qualities in both dry and humid conditions. These attributes, along with good Processing characteristics, lend utility to this grade for a wide variety of electrical and mechanical applications.

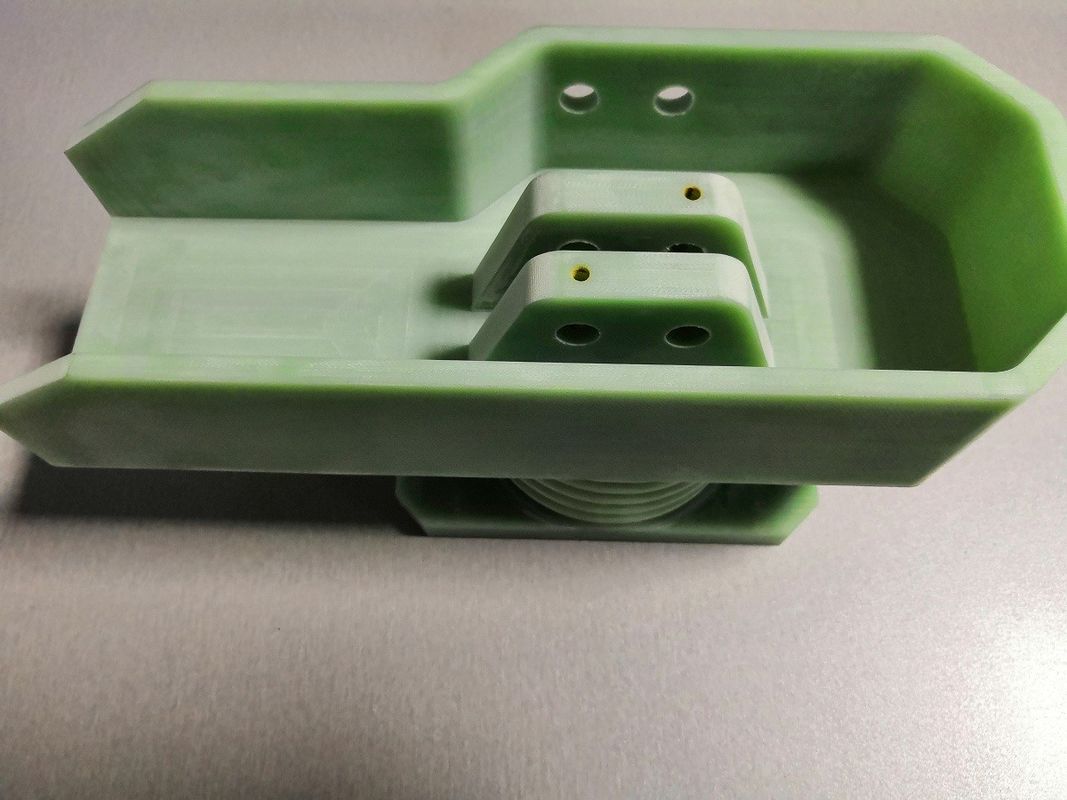

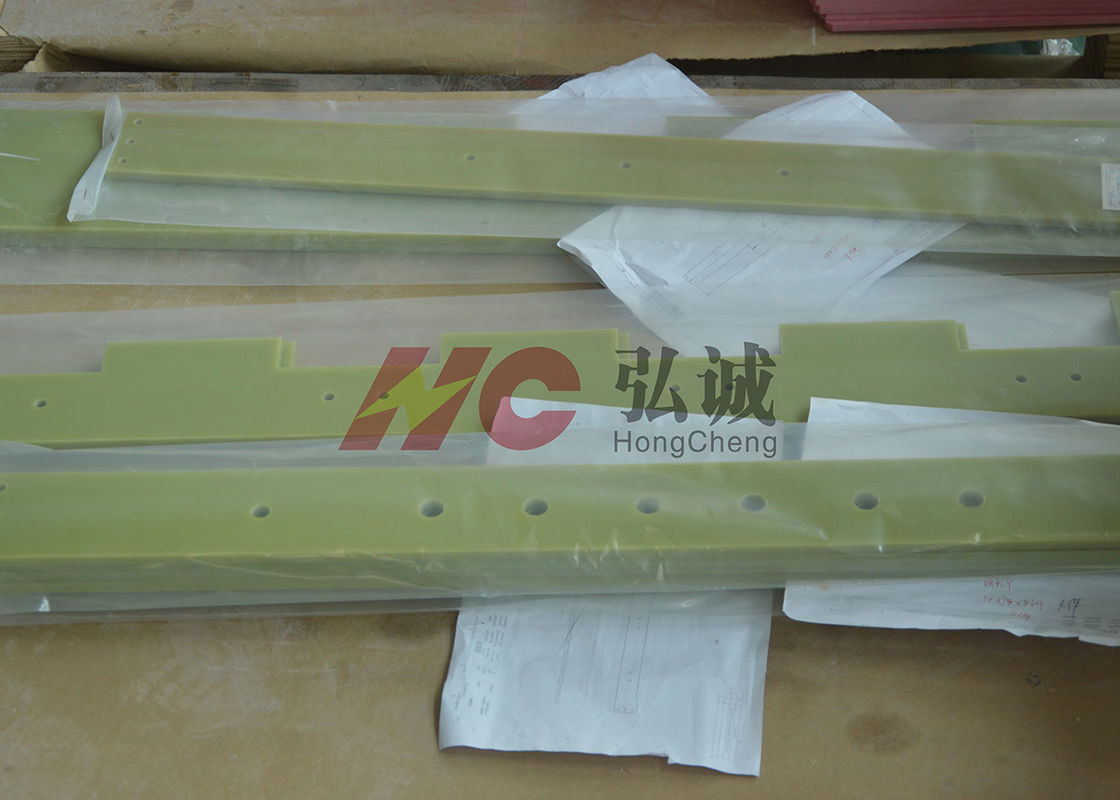

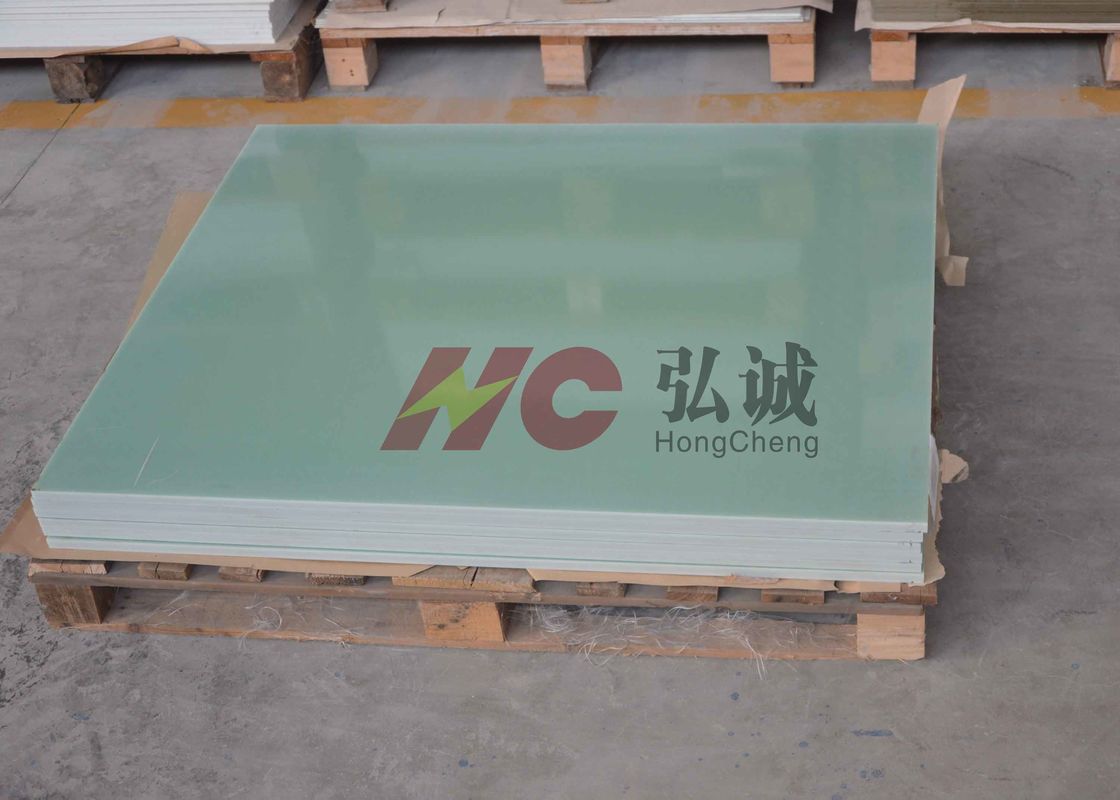

EPGC202 epoxy resin composite glass fiber insulation laminated sheet 0EPGC202 epoxy resin composite glass fiber insulation laminated sheet 1

Feature of this material as below :

a. Good flatness, smooth surface, no pits, standard thickness tolerances.
b. Low water absorption, good moisture resistance and good dielectric properties .
c. Stable electrical insulating properties, good electrical performance in dry or wet conditions.

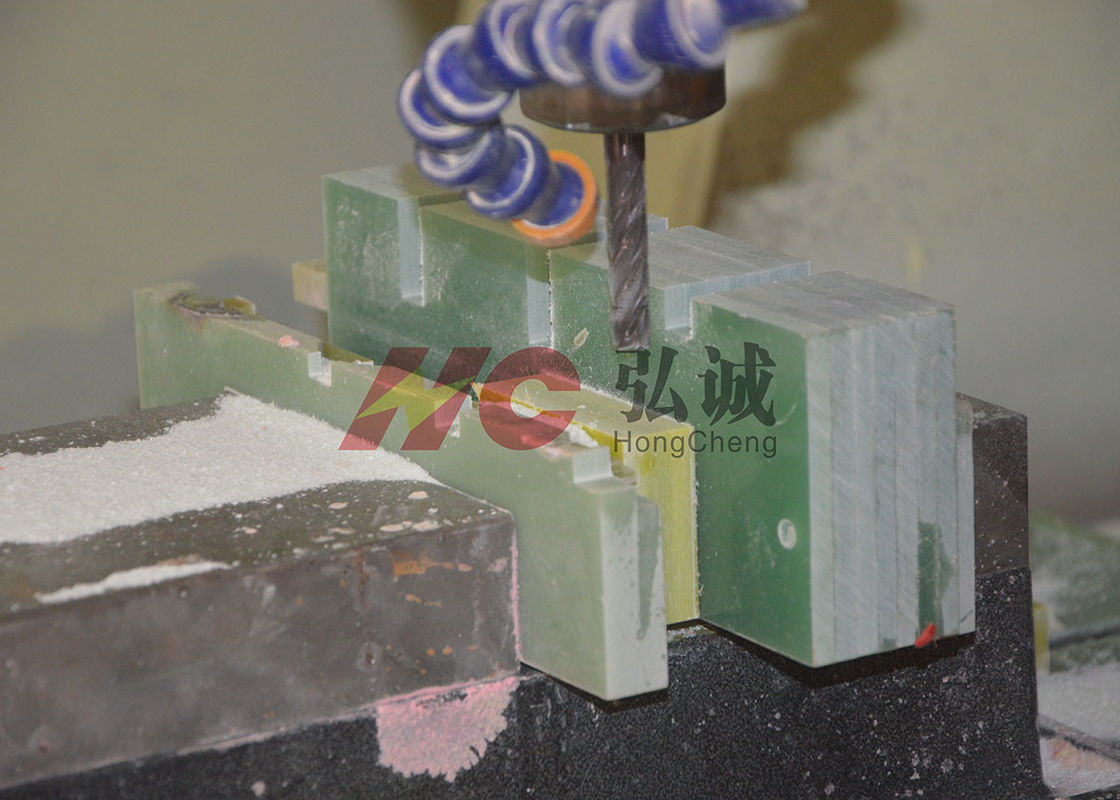

d. High mechanical strength, good processability Punching, Drilling, Machining and Cutting is available.
e. Good mechanical workability.
f. In high temperature electric performance is stable.
g. High mechanical properties and dielectric properties.



Hong Cheng Grade HC-FR-4
IEC 893/EN 60893 Grade EPGC 202
ANSI (NEMA) Grade NEMA LI-1 FR-4
DIN 7735 Hgw2372.1
JIS GRADE EL-GEF

Item Test method Unit Typical Values
Physical Properties Color Visual inspection Light green / yellow
Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
Water absorption ISO 62:2008 % <0.3
Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
(1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
(1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
TensileStrength IEC 60893-2:2003 MPa ≥300
//Bond Strength // IEC 60893-3-4:2003 N ≥8000
Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
Temperature Index IEC 60085:2004 155
Toxicant Content E662 Low
Others Acetone Resistance boiled Min 30(OK)



Application of EPGC202 material

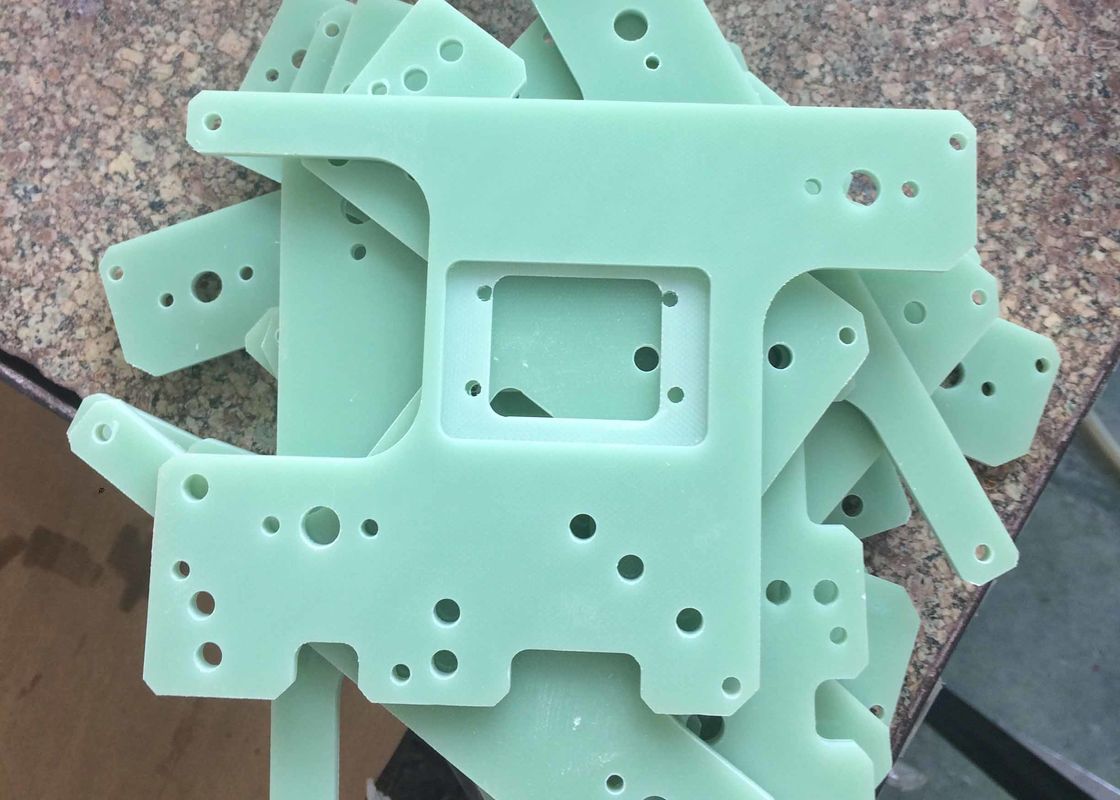

Used in mechanical, electrical and electronic insulation structure parts.

Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.

Due to low water absorption , it has widely used in outdoor equipment .

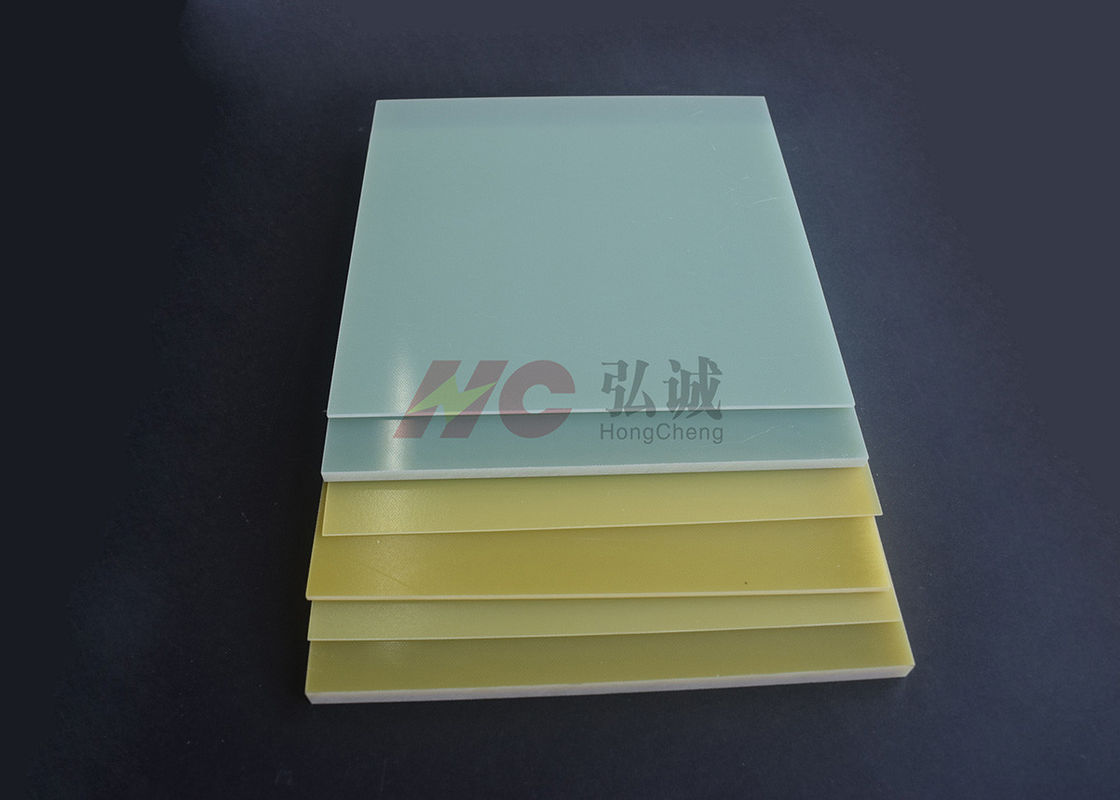

EPGC202 epoxy resin composite glass fiber insulation laminated sheet 2
