Heat Resistance Customization Mould Product High Temperature Deflection Mould Parts
-
High Light
smc mould parts
,bmc mould parts
-
Product NameMould Parts With Low Molding Shrinkage
-
Product ColorRed/White/Gray
-
Mould Life500 Thousand-1 Million
-
ShipmentBy Sea,air Or Express
-
Molding Shrinkage≤0.1%
-
Temperature Of Deflection Under Load≥240℃
-
Place of OriginChina
-
Brand NameHongcheng
-
Model NumberDMC / BMC / SMC
-
Minimum Order Quantity1 thousand
-
Packaging Detailsplywood crate packing,plywood pallet，cartons
-
Delivery Time25-35 working days
-
Payment TermsT/T
Heat Resistance Customization Mould Product High Temperature Deflection Mould Parts
High Temperature of deflection Mould parts / Customization BMC / DMC mould parts with heat resistance
Product Name:High Temperature of deflection Mould parts
Product Description:
SMC/DMC/BMC molded partsis made of glass fibre which is Immersion in unsaturated polyester and Vinyl resin,It is a thermosetting material which is made by heat pressing.
Product Advantages:
1. Compared to similar methods, SMC benefits from a very high volume production ability, excellent part reproducibility, it is cost effective as low labor requirements per production level is very good and industry scrap is reduced substantially.
2. Weight reduction, due to lower dimensional requirements and because of the ability to consolidate many parts into one, is also advantageous.
3. The level of flexibility also exceeds many counterpart processes.
| Hong Cheng Grade | HC-DMC/BMC | |||
| Item | Test method | Unit | Values | |
| Physical Properties | Density | ASTM D792 | g/cm3 | 1.80 - 1.95 |
| Water absorption | ASTM D570 | % | ≤0.3 | |
| Molding shrinkage | ASTM D955 | % | ≤0.1 | |
| Temperature of deflection under load | ASTM D648 | ℃ | ≥240 | |
| Mechanical Properties | Izod impact strength(notched) | ASTM D256 | Jcm | ≥7.8 |
| Flexural Strength | ASTM D790 | MPa | ≥160 | |
| Tensile Strength | ASTM D638 | MPa | ≥60 | |
| Compressive Strength | ASTM D695 | MPa | ≥100 | |
| Electrical Properties | Electric strength ( in transformer oil 90℃) | ASTM D149 | MV/m | ≥13 |
| Arc resistance | ASTM D495 | s | ≥180 | |
| Flammability | Flammability | UL94 | class | V-0 |

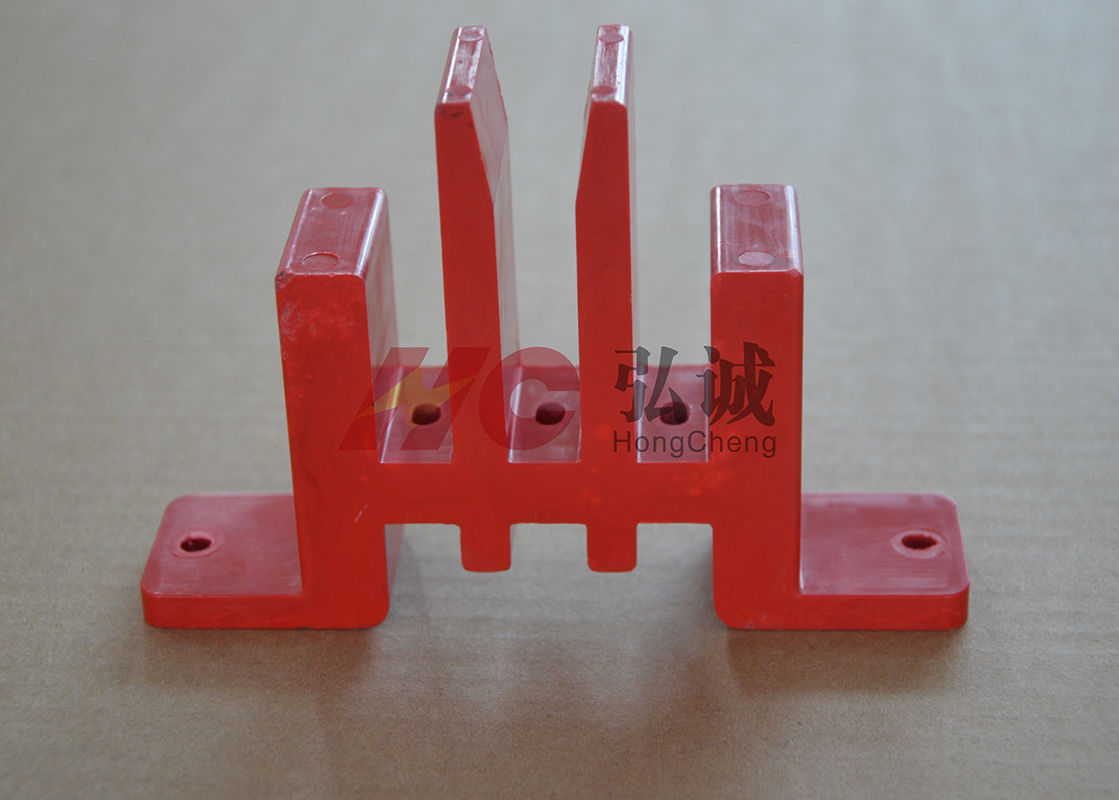

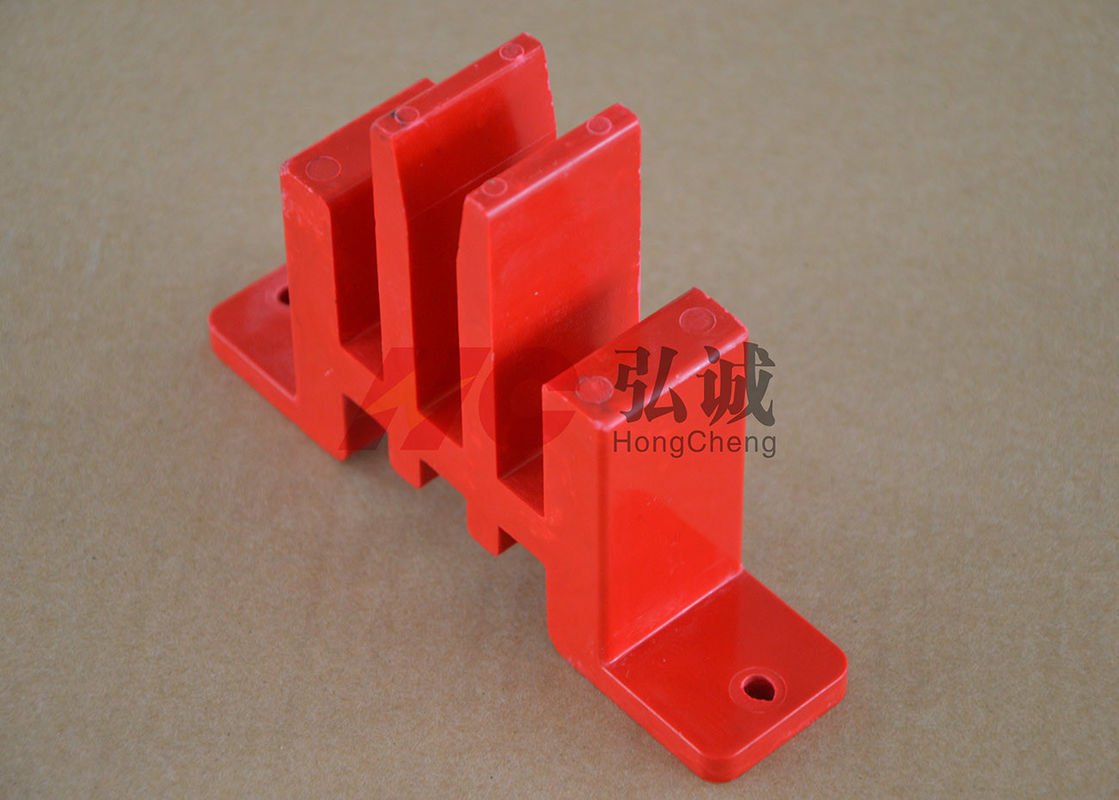

High Temperature of deflection Mould parts used in Reactive Power Compensator Cabinet
Reactive power compensation cabinet can improve the power factor of power grid in power supply system, reduce the loss of power supply transformer and transmission line, improve power supply efficiency and improve power supply environment.Therefore, reactive power compensation device is a very important position in power supply system.The insulation material can support, carry heavy, insulate function,it has requirements of certain mechanical strength and electrical performance.
Main famous cooperative enterprises:ABB Xiamen
Our services cover all industries and reach all parts of the world.
