High Light
Halogen Free GPO3 Insulation Sheet
,ABB GPO3 Insulation Sheet
,Halogen Free UPGM 203 Insulation Sheet
-
Thickness0.5mm-80.0mm
-
Product Size1000*1200
-
Oxygen Index≥ 30%O2
-
Flame ResistanceV-0
-
Coefficient Of Thermal Expansion≤2x10-5 1/K
-
Temperature Index155℃
-
Place of OriginChina Xiamen
-
Brand NameHongcheng
-
CertificationUL（E344098）/RoHS 2.0 /Reach
-
Model NumberUPGM203
-
Minimum Order Quantity100kg
-
Packaging DetailsCarton/Pallet/wooden box
-
Delivery Time5-15 work days
-
Payment TermsT/T, D/P, L/C, Western Union
-
Supply Ability2000kg pr day

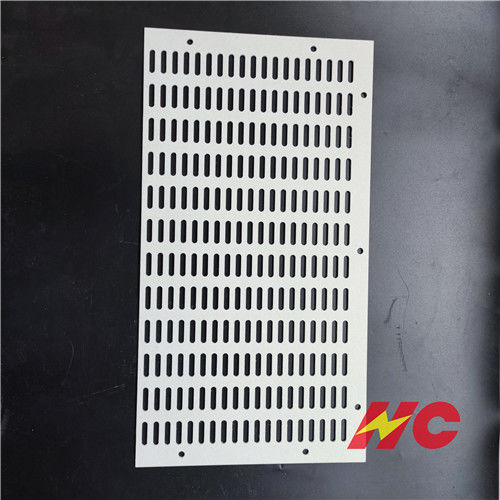

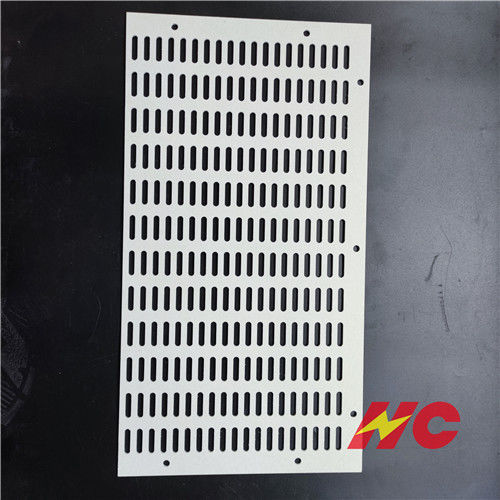

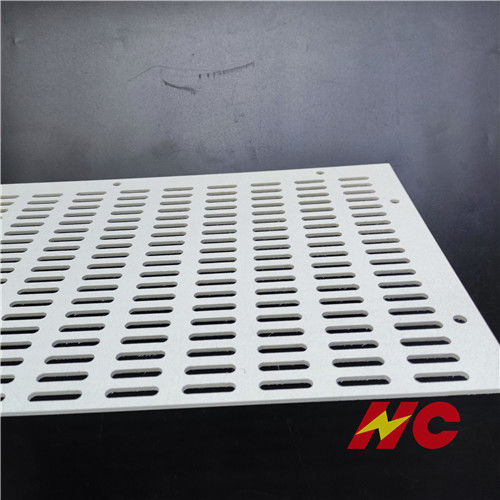

Halogen Free UPGM 203 GPO3 Insulation Sheet For ABB
Halogen Free UPGM 203/ GPO3 Insulation Sheet Environmental Friendly specal for ABB
|
Product Introduction: GPO3 is also called UPGM203 plate according to IEC standard (GPO3 is the name under NEMA Standard and Chinese National standard). It is kind of rigid plate insulating material, made of alkali-free fiberglass mat impregnated with unsaturated polyester resin, adding relevant chemical agents in heating and pressing to cure into rigid plate. |
|
Product Advantages: More Excellent Mechanical Strength than GPO-3 Sheet(Under high temperature, the tensile strength and bending strength are better.) Excellent Arc Resistance(Arc Resistance≥180 S) Excellent Track Resistance(CTI≥600V) Excellent Heat Resistance(Class F) Excellent Thermal Impact(Temp. Index: -273℃ to +155℃) Excellent Fire Retardant(UL 94 V-0 Grade) Low Smoke,Halogen Free Products(NF-F16-101/102) RoHS,Reach Certified products |
|
Application: Widely used in the low voltage electrical industries such as rail transportation, power generation, wind energy, power transmission and distribution, metallurgy, mining, petrochemical, public transportation and other fields. It always made into insulating structural parts as follow products: 1. phase and end barriers, 2. insulating supports, 3. bus bar supports, 4. mounting panels in switch-gear, 5. switch cabinet, 6. motor, 7. frame breaker, 8. safety plate, 9. arcing plate, 10. slot wedge, 11. shifting cover spacer, 12. gasket, 13. cable clamp, |
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |
| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
|
Electrical properties |
Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | ≥180 | ||
| Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- | Low | |
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
Processing Advantages:
| Advantages: | 1.Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface; 2.We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost. 3.To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time . 4.The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time. 5.The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining. |
Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
Our services cover all industries and reach all parts of the world.
