Low Smoke GPO3 Fiberglass Sheet Heat Resistance For Bus Bar Supports

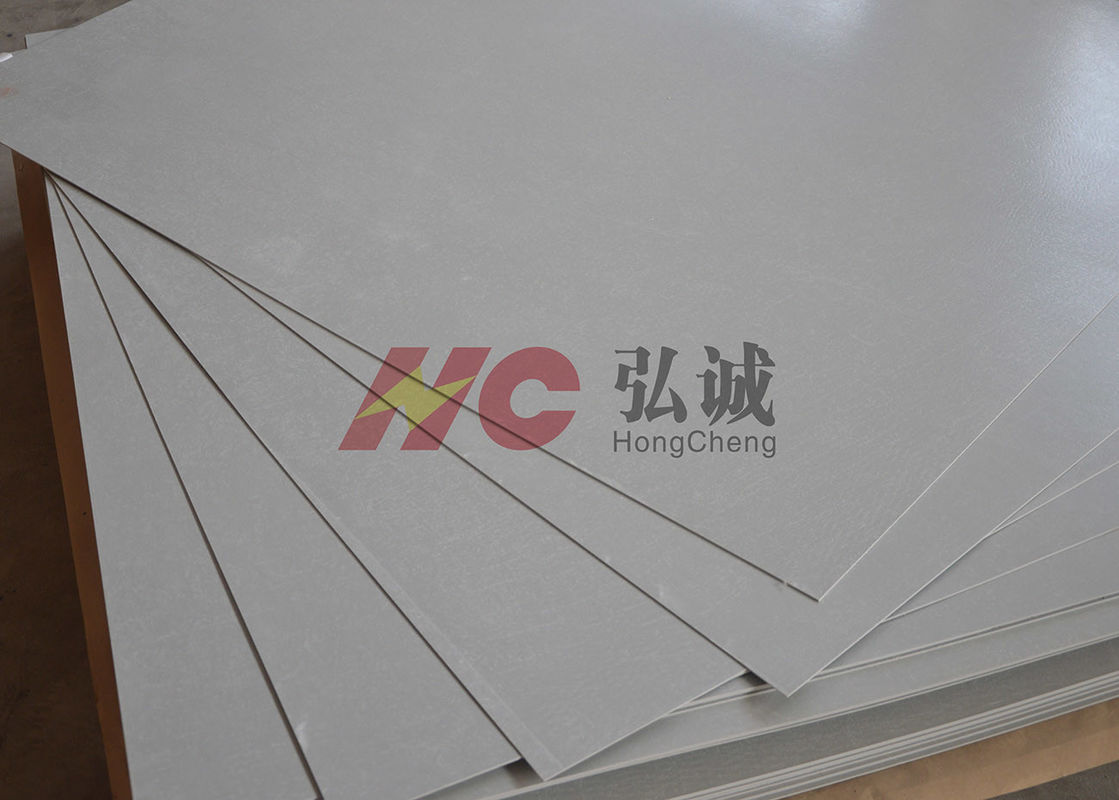

    • Low Smoke GPO3 Fiberglass Sheet Heat Resistance For Bus Bar Supports

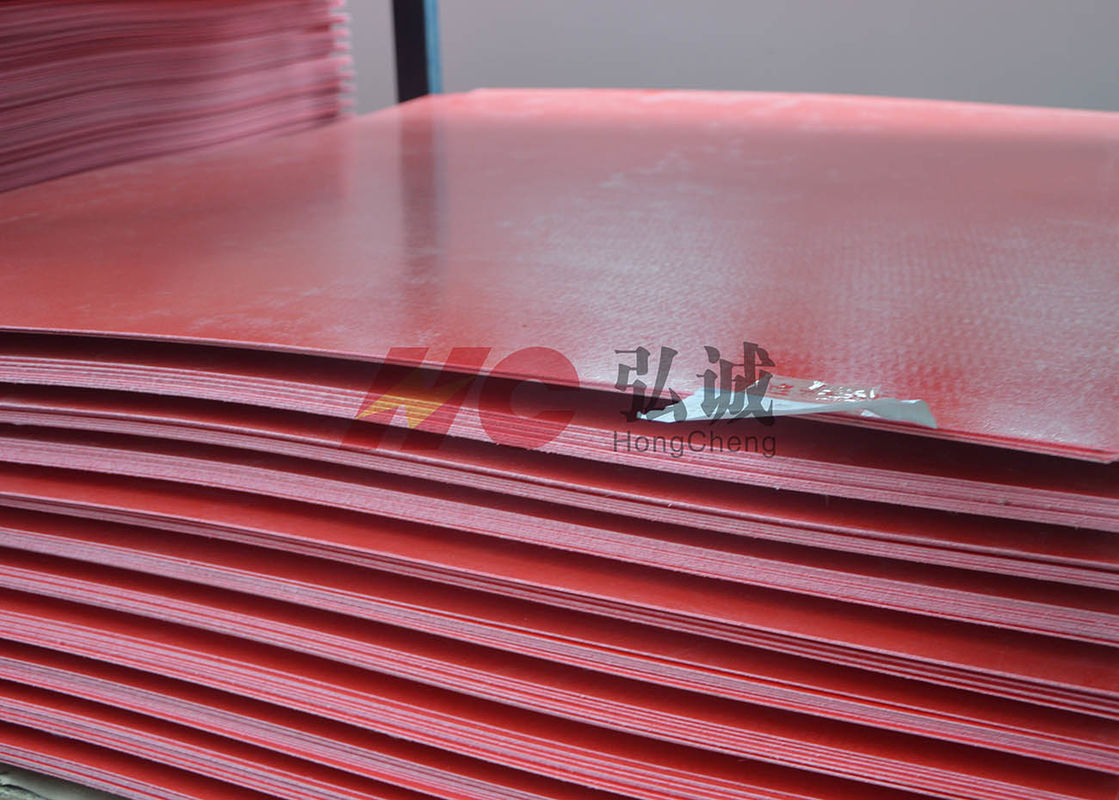

    • Low Smoke GPO3 Fiberglass Sheet Heat Resistance For Bus Bar Supports

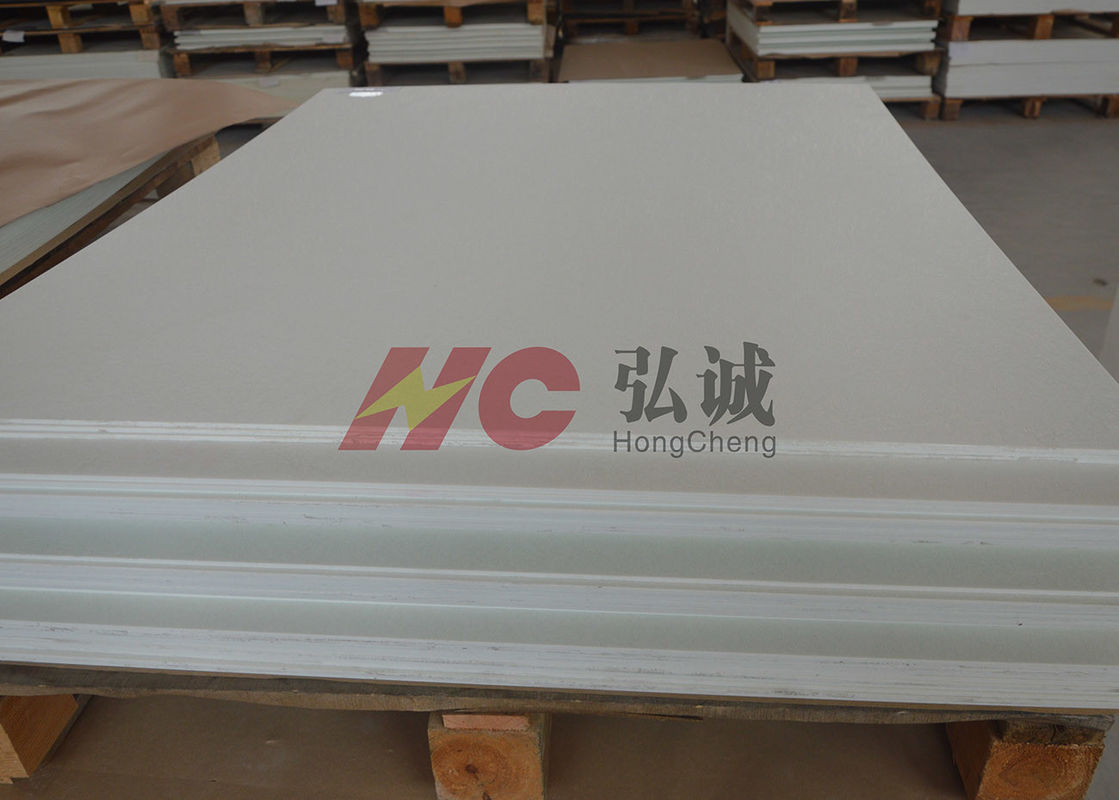

    • Low Smoke GPO3 Fiberglass Sheet Heat Resistance For Bus Bar Supports
  • Low Smoke GPO3 Fiberglass Sheet Heat Resistance For Bus Bar Supports

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: GPO-3

    Payment & Shipping Terms:

    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    IEC Standard: UPGM203 German Standard: HM2471
    Flame Resistance: V-0 PTI Proof Tracking Index PTI: ≥600 V
    Toxicant(Emission Halogen Etc.): Low The Anti Microbial Properties Of Bacteria: Good

    Hologen free GPO-3 fiberglass Sheet / RoHS Reach certified upgm203


    Product Introduction:

    RoHS Certified GPO-3 fiberglass Sheet is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.



    RoHS Certified GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.



    Features:

    Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.



    Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.



    Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining



    Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃

    Low Smoke GPO3 Fiberglass Sheet Heat Resistance For Bus Bar Supports


    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good




    RoHS Certified GPO-3 fiberglass Sheet used in power ridid

    Low Smoke GPO3 Fiberglass Sheet Heat Resistance For Bus Bar Supports

    RoHS Certified GPO-3 fiberglass Sheet is used extensilvely in power rigid,Transmission and distribution includes two concepts, they are transmission and distribution .Transmission refers to the transmission of large amounts of electricity from power plants or power generation centers to the consumption area of electricity, or the transmission of power for each other between different power channels;
    Power distribution is the distribution method which distribution to users in the consumption power area ,it was serviced for user service directly.
    In the transmission and distribution which including the reactor, transformer, switch cabinet, circuit breaker, UPS uninterruptible power supply, laminated bus, etc.;Our upgm203 sheet are widely used in this field,we have accumulated rich experiences of material application and R&D.
