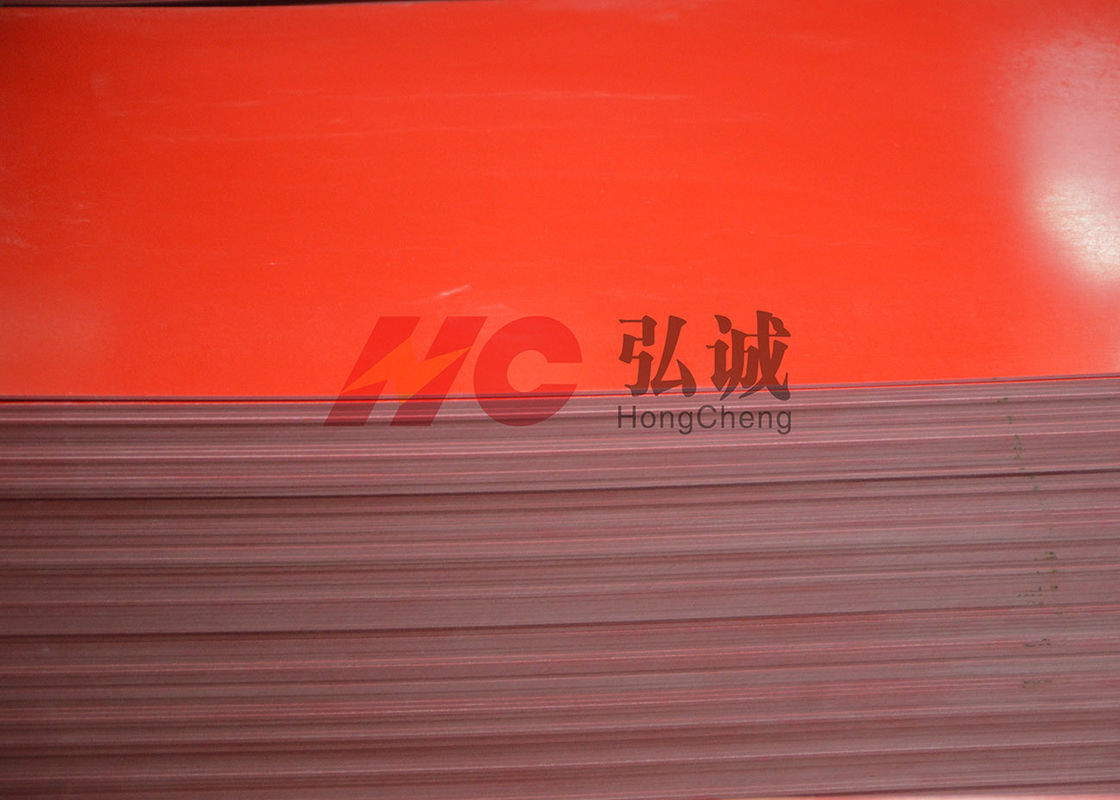

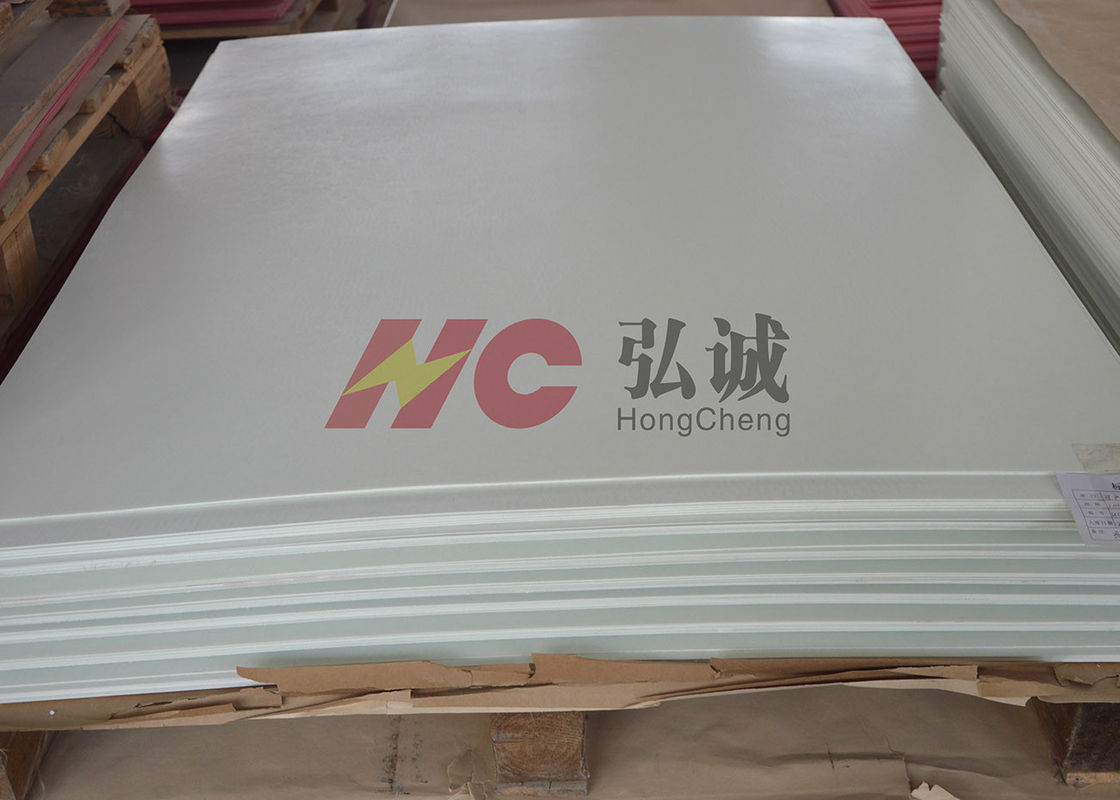

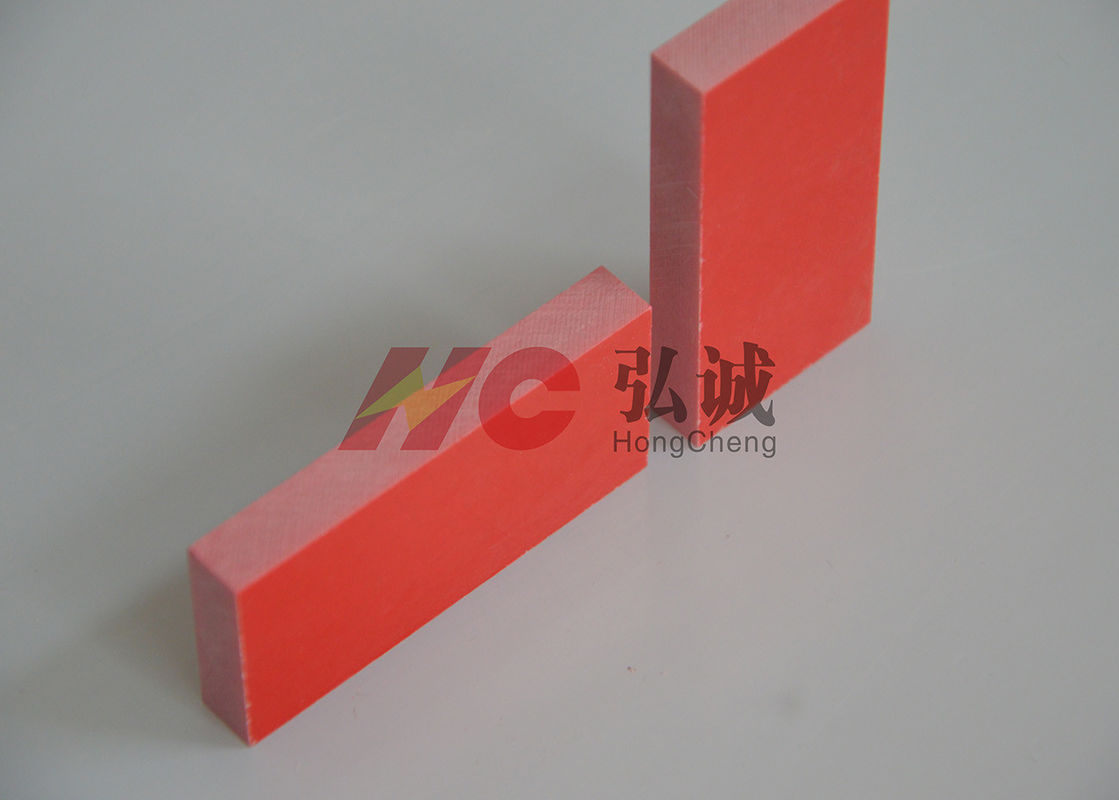

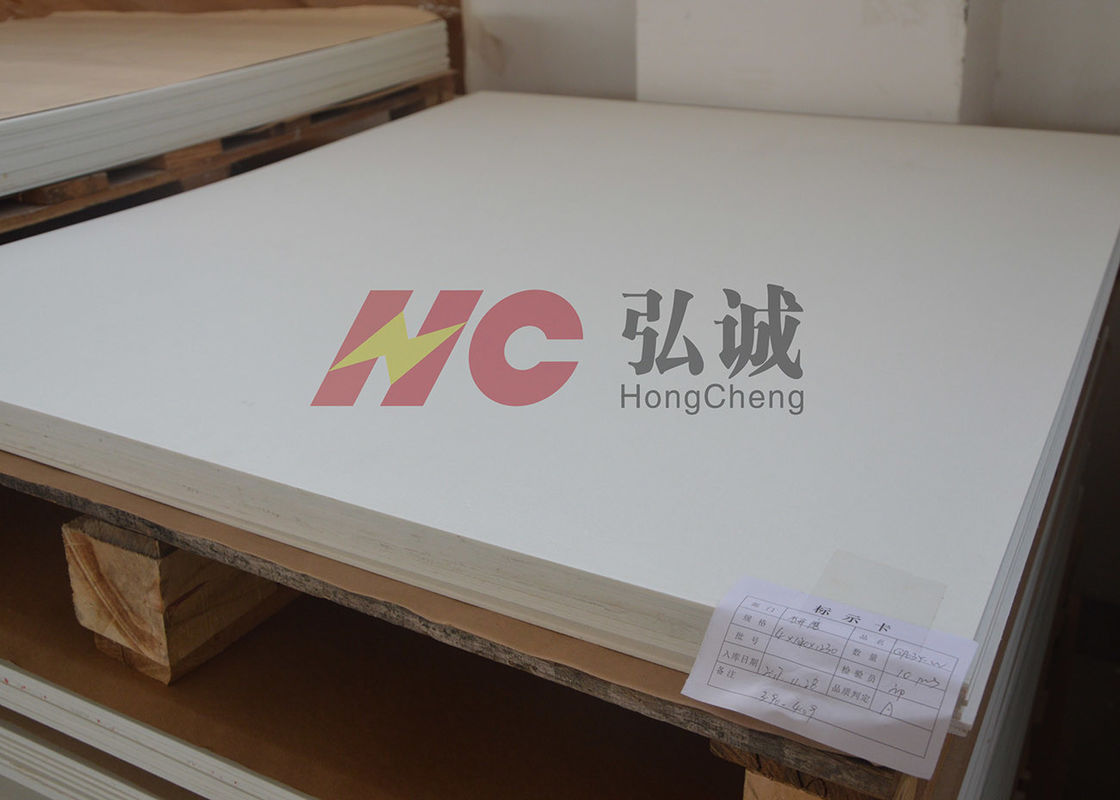

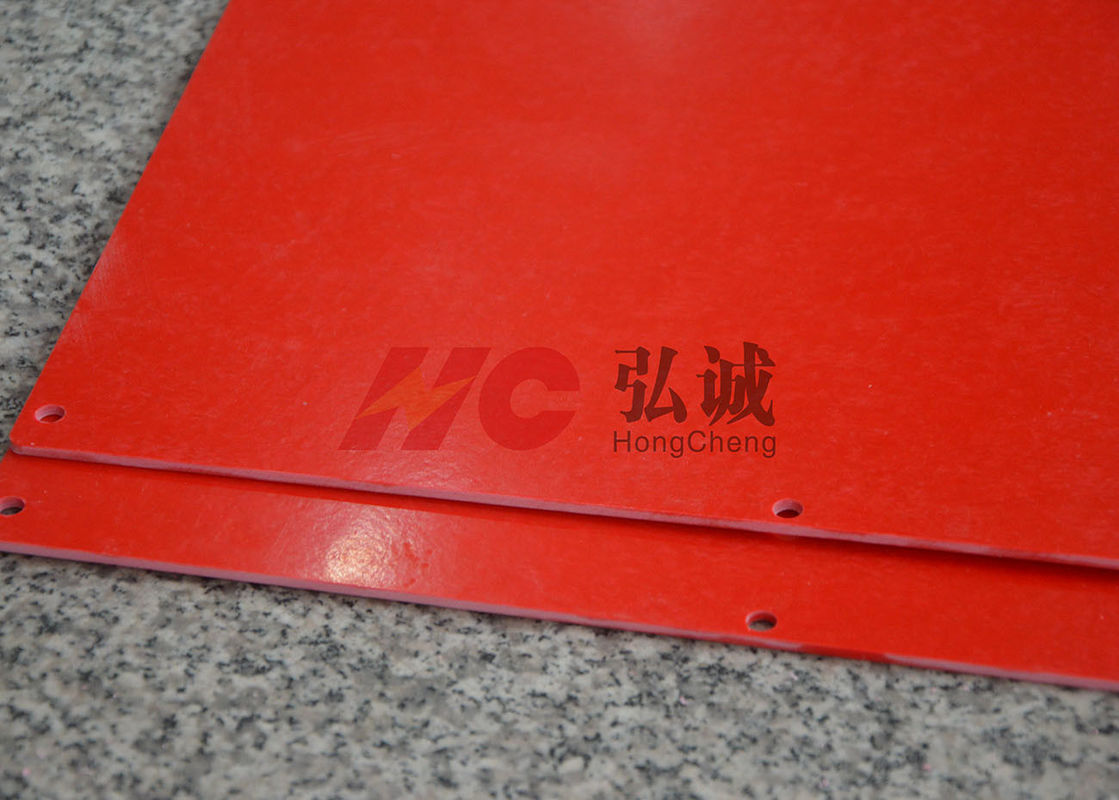

Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard

Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard

    • Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard
    • Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard
    • Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard
    • Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard
    • Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard
  • Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: GPO-3

    Payment & Shipping Terms:

    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    IEC Standard: UPGM203 German Standard: HM2471
    Flame Resistance: V-0 PTI Proof Tracking Index PTI: ≥600 V
    Toxicant(Emission Halogen Etc.): Low The Anti Microbial Properties Of Bacteria: Good

    Low water absorbtion GPO-3 fiberglass Sheet / Water resistance upgm203


    Product Introduction:
    Low water absorbtion GPO-3 fiberglass Sheet are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press,GPO3 sheet offer a superior combination of electrical and mechanical properties such as dielect ric strength ,flame resistance,arc and track resistance,high-flexural and high-impact strength.


     Feature:

    It has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.



    Application:

    it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.



    Thickness range :2mm-60mm



    Sheet Size:1000mm*1200mm



    Main Color:Red,White ,Brown,Yellow or Gray

    Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard


    Product Advantages:

    1.  Beard to draft the country standard,have earned six patents
    2.  Excellent Arc Resistance(Arc Resistance≥180 S)
    3.  Excellent Track Resistance(CTI≥600V)
    4.  Excellent Heat Resistance(Class F)
    5.  Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
    6.  Excellent Fire Retardant(UL 94 V-0 Grade)
    7.  Excellent Mechanical Strength and Automatic Machining
    8.  Low Smoke,Halogen Free Products(NF-F16-101/102)
    9.  RoHS,Reach Certified products

    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good




    Low water absorbtion GPO-3 fiberglass Sheet used in Power Battery

    Low Water Absorption GPO3 Fiberglass Sheet Water Resistant Upgm 203 IEC Standard

    products: Power battery
    Description: Power battery is the most widely used in energy storage systems ,the application of it is related to our new energy vehicles, new energy buses and so on.From the design and manufacture of power battery to the application of the installation, it has certain structural strength and high plane degree ,the flame retardant rating of insulating materials is V-0 grade. The commonly materials used in power battery are HC-GPO3/HC-FR4 etc.

    Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
    delivery detail: 5-7 working days
