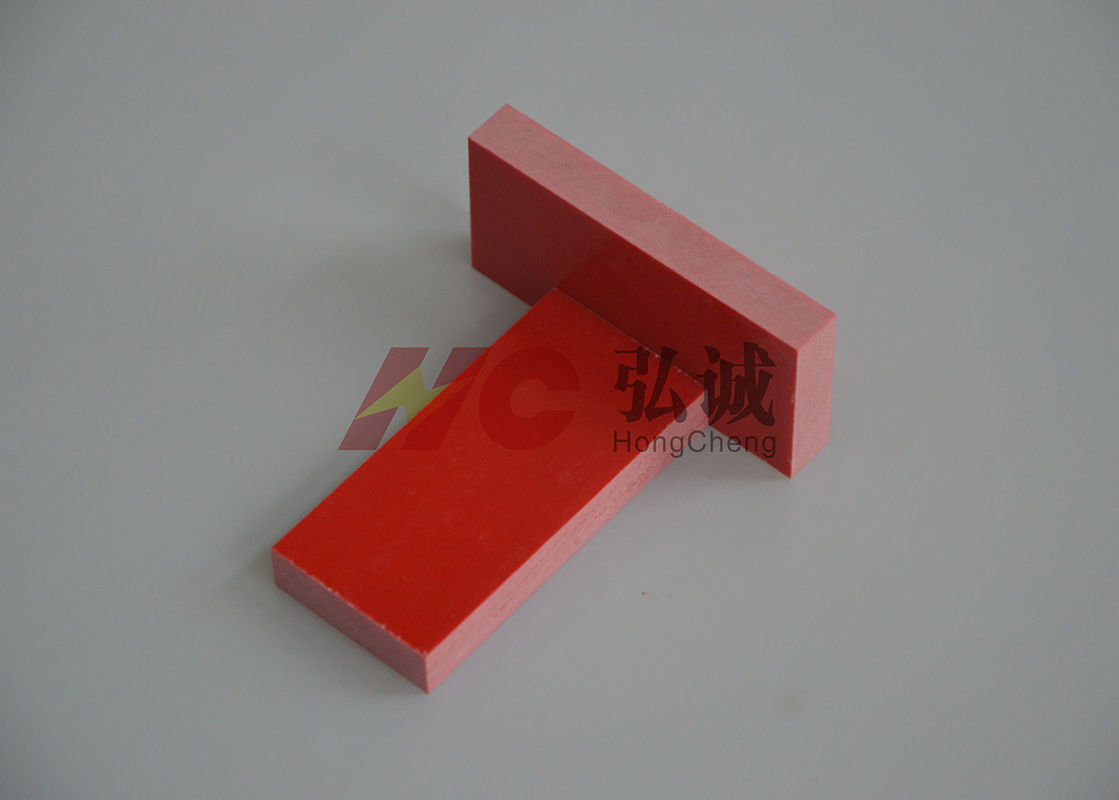

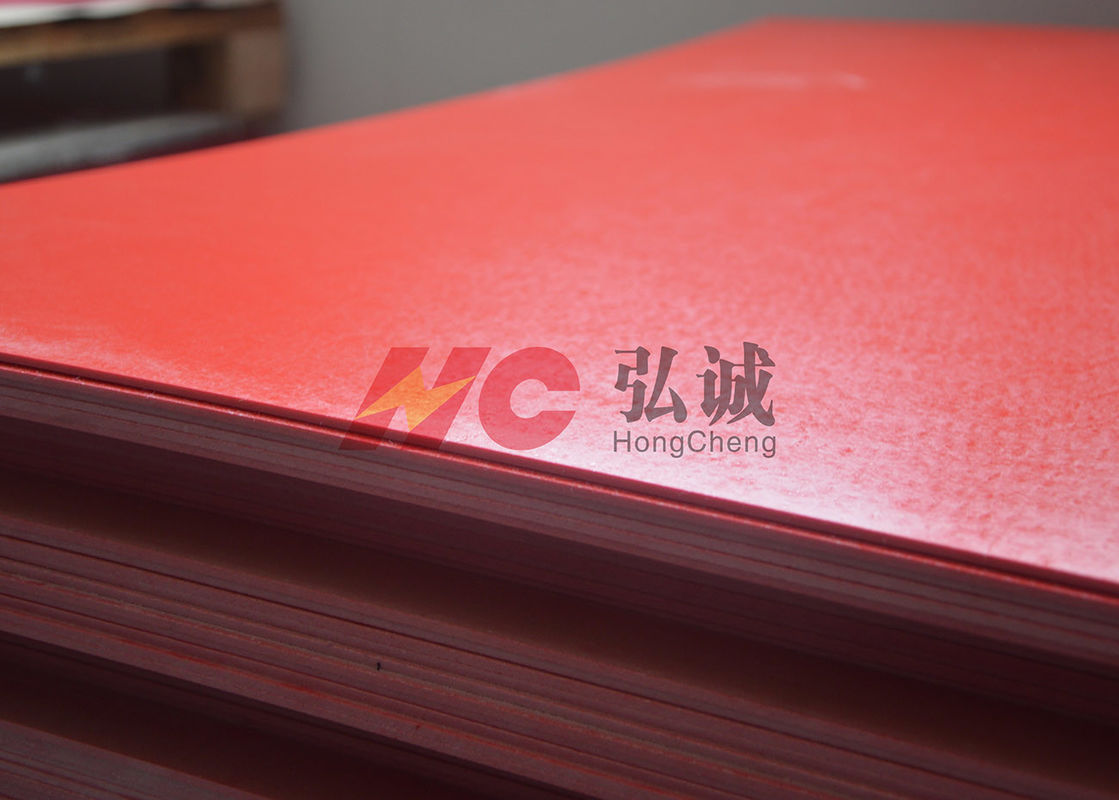

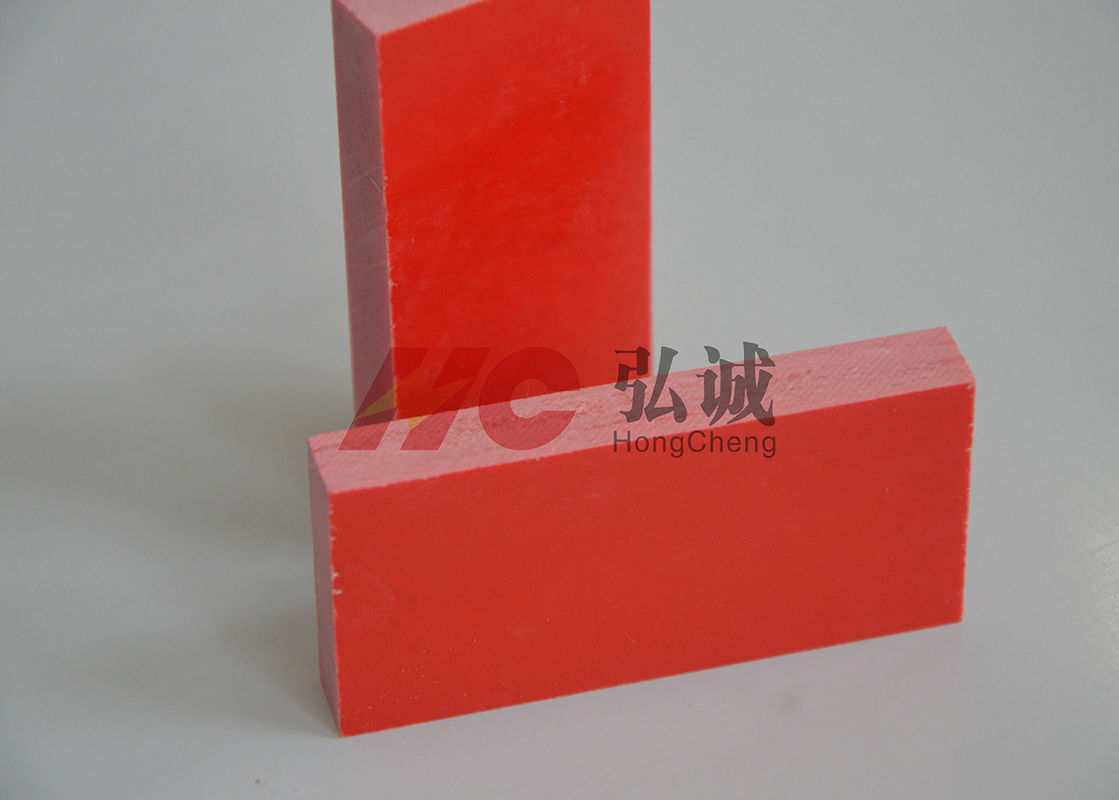

Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength

Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength

    • Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength
    • Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength
    • Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength
    • Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength
    • Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength
  • Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: GPO-3

    Payment & Shipping Terms:

    Packaging Details: Crate packing; plywood pallet;cartons
    Delivery Time: 3-5 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    IEC Standard: UPGM203 German Standard: HM2471
    Flame Resistance: V-0 PTI Proof Tracking Index PTI: ≥600 V
    Toxicant(Emission Halogen Etc.): Low The Anti Microbial Properties Of Bacteria: Good

    Excellent Flexural Strength GPO-3 fiberglass Sheet / High performance mechanical properties upgm203


    Product Introduction:
    Excellent Flexural Strength GPO-3 fiberglass Sheet is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.

    Features:
    Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.

    Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.

    Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining

    Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃.

    Application:
    GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.


    Hong Cheng GradeHC-GPO3
    IEC 893 / EN 60893 GradeUP GM 203
    DIN 7735 GradeHM 2471
    ANSI (NEMA) Grade NEMA LI-1GPO-3
    ItemsTest MethodUnitTypical Values
    Physical PropertiesColorVisual inspection----Red/White/Brown/Grey
    Specific GravityIEC 60893-2:2003g/cm31.95-2.05
    Water absorptionISO62:2008%≤0.5
    Mechanical propertiesTensile StrengthIEC 60893-2:2003Mpa≥130
    Compressive strengthIEC 60893-2:2003≥300
    Flexural StrengthIEC 60893-2:2003≥180
    Impact strengthIEC 60893-2:2003KJ/m2≥60
    Electrical propertiesVolume ResistivityIEC 60093:1980Ω·m≥ 1.0 x 1010
    Surface ResistivityIEC 60093:1980Ω≥ 1.0 x 1012
    Electric Strength ┴IEC 60893-2:2003kV/mm≥ 12
    Breakdown Voltage //IEC 60893-2:2003kV/25mm≥ 80
    Arc ResistanceIEC 61621:1997sec≥180
    PTI Proof Tracking Index PTIIEC 60893-2:2003---≥600
    Dielectric ConstantIEC 60893-2:2003---4.0-5.0
    tgδ Dissipation FactorIEC 60893-2:2003---≤0.03
    Thermal propertiesCoefficient of Thermal ExpansionASTME 228-111/K≤2x10-5
    Temperature IndexIEC 60085:2004155
    Flame Resistance performanceOxygen IndexISO 4589-2:1996%O2≥ 30
    Flame ResistanceIEC 60893-2:2003---V-0
    Toxicant(Emission halogen etc.)E662---Low
    Other propertiesThe anti microbial properties of bacteriaG21-G22---good




    Excellent Flexural Strength GPO-3 fiberglass Sheet  used in Wind Driven Generator
    Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength

    Application:Photovoltaic system
    Description:Photovoltaic system consists of main parts of photovoltaic modules, combiner box , inverter cabinets, distribution cabinets, transformers, power grid ,which in addition to transformer and power transmission and distribution are introduced. for the convergence of inverter cabinet/power distribution cabinet/combiner box are very close to the requirement of switch cabinet,HC-GPO3/HC-FR4/HC-GPO3 shapes are used to support,bearing,isolation.The insulation material can be used in the photovoltaic module for pv backboard, and has a strong weather resistance requirement for the backplane ,our research and development team have done a lot of research on it.
    Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.
    Main famous cooperative enterprises:Sungrow power supply Co.,Ltd,ABB,TBEA Co.,Ltd.

    Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
    delivery detail: 5-7 working days
    Crate packing
    Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength
    Pallet Packing
    Red Laminate Sheet / GPO3 Fiberglass Sheet Excellent Flexural Strength
