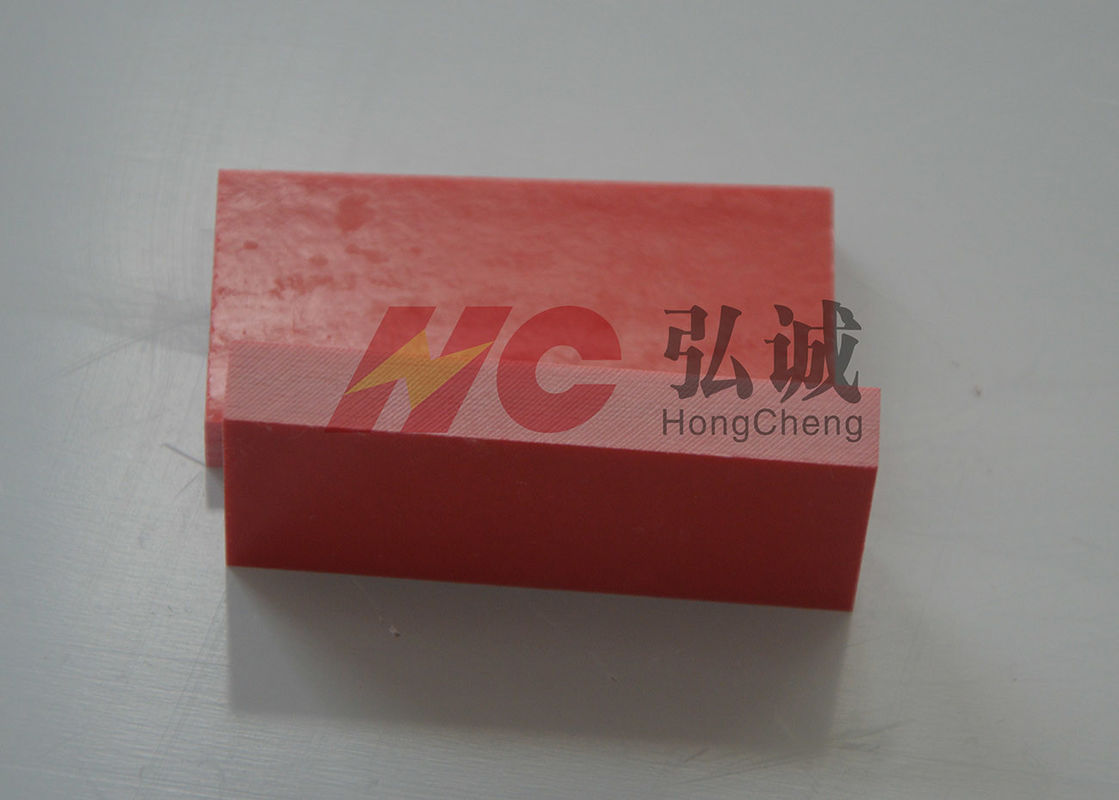

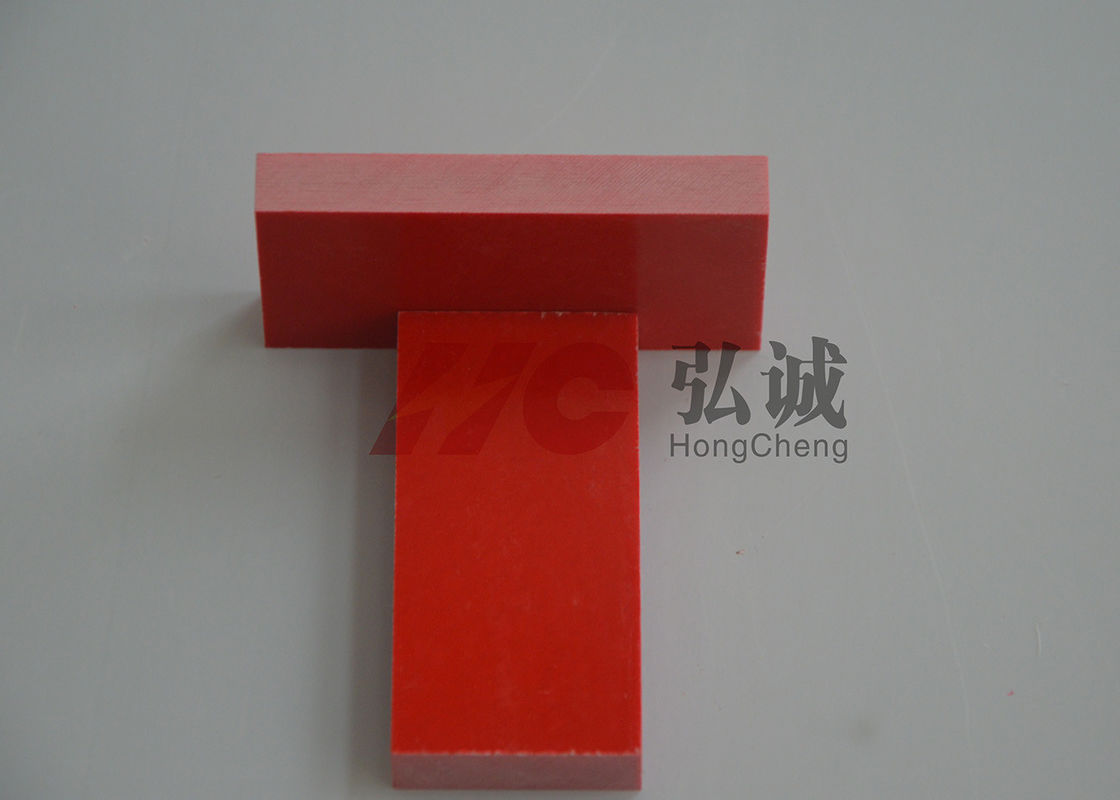

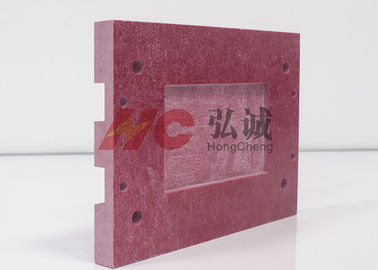

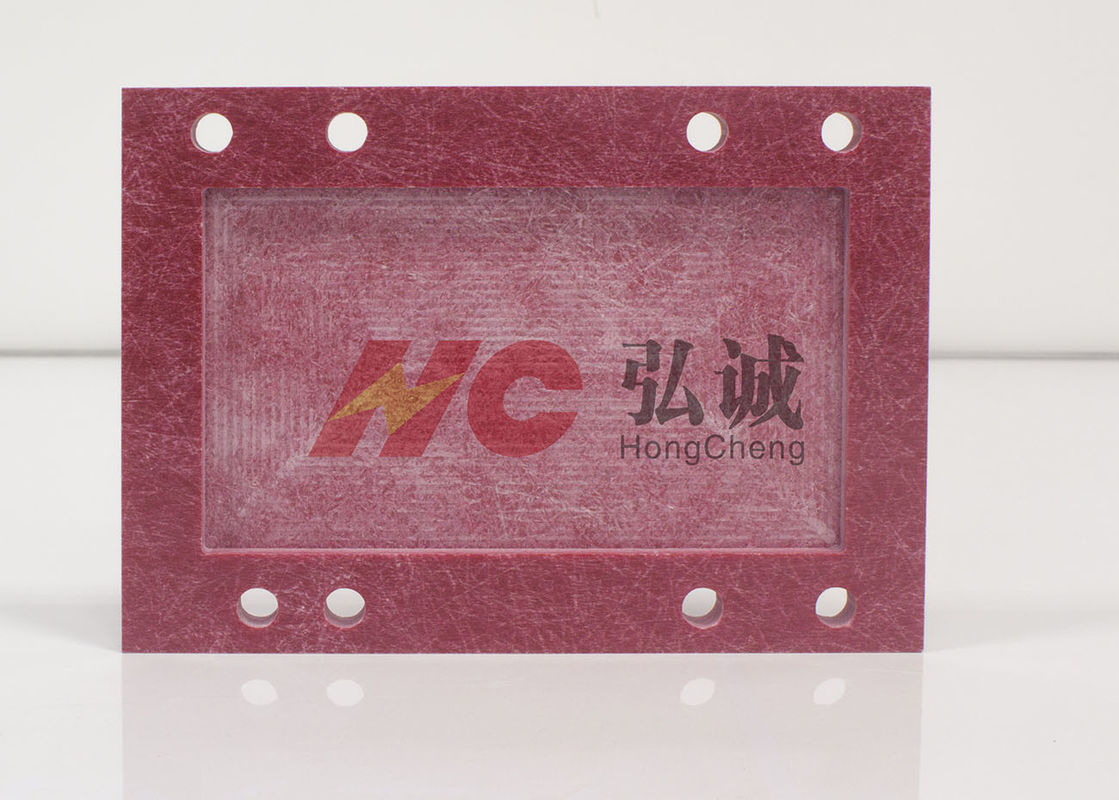

Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover

Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover

    • Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover
    • Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover
    • Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover
    • Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover
  • Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: GPO-3

    Payment & Shipping Terms:

    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    IEC Standard: UPGM203 German Standard: HM2471
    Flame Resistance: V-0 PTI Proof Tracking Index PTI: ≥600 V
    Toxicant(Emission Halogen Etc.): Low The Anti Microbial Properties Of Bacteria: Good

    GPO-3 fiberglass Sheet Specified for transformer's top-cover and bottom cover


    Product Introduction:
    GPO-3 sheet or related products are consists of non-alkali glass mat impregnated and boned with an unsaturated polyester resin ,and laminated under high temperature and press,GPO3 sheet offer a superior combination of electrical and mechanical properties such as dielect ric strength ,flame resistance,arc and track resistance,high-flexural and high-impact strength.
    our laminates also have superior consistency in thickness, punchability and property control. Add a high degree of quality and cost-ffectiveness.
    These sheets are fiberglass reinforced thermoset polyester,They will not melt under heat and have excellent overall electrical properties .all grades are UL Recognized.

    Features:
    Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.

    Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.

    Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining

    Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃
    Application:
    GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.
    Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover


    Product Advantages:

    1.  Beard to draft the country standard,have earned six patents
    2.  Excellent Arc Resistance(Arc Resistance≥180 S)
    3.  Excellent Track Resistance(CTI≥600V)
    4.  Excellent Heat Resistance(Class F)
    5.  Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
    6.  Excellent Fire Retardant(UL 94 V-0 Grade)
    7.  Excellent Mechanical Strength and Automatic Machining
    8.  Low Smoke,Halogen Free Products(NF-F16-101/102)
    9.  RoHS,Reach Certified products

    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 --- Low
    Other properties The anti microbial properties of bacteria G21-G22 --- good




    GPO-3 fiberglass Sheet Specified for transformer's top-cover and bottom cover
    Red GPO3 Fiberglass Sheet Applied Transformer Top - Cover And Bottom Cover

    products: Main transformer (rise), Auxiliary transformer (lower)
    Description: Main transformer is a kind of total step-down transformer used in transformer station.its mainly function is to adjust the required level of power.
    Auxiliary transformer is used as a device which powers the the transformer station.It can keep the lights on,executive the high and low switch.executive electric switching operation.supply power for instrumentation and control system.Auxiliary transformer also supply power for city district and wild wellsit.
    Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
