Rail Traffic Gpo3 Fiberglass Datasheet Excellent Proof Tracking Resistance
GPO-3 fiberglass Sheet Specified for Rail traffic / upgm203 Specified for Rail traffic
Product Introduction:
GPO-3 fiberglass Sheet Specified for Rail traffic is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.
Feature:
It has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.
Application:

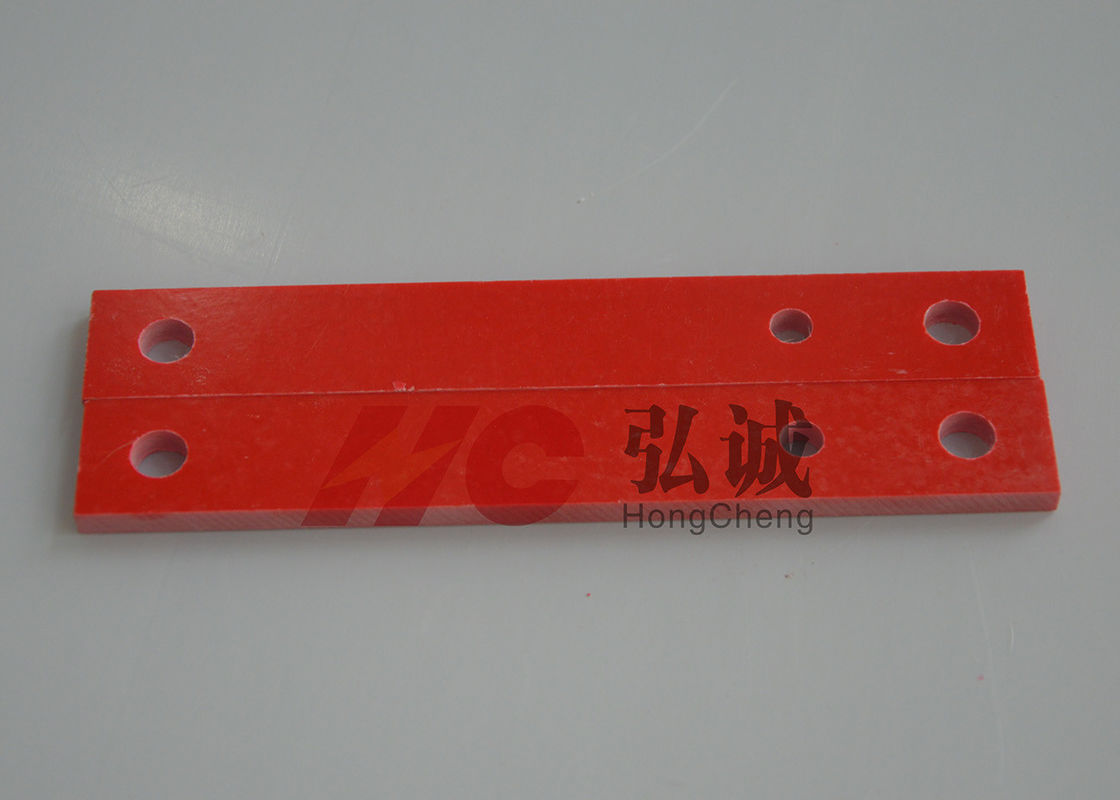

it is applicable for making insulation structure components or parts in F-class electric motors,transformer,switchgear,circuit breakers and electrical equipments. UPGM can be moulded into all kinds of structure parts or profiles as per customer's special requirement.
Thickness range :2mm-60mm
Sheet Size:1000mm*1200mm
Main Color:Red,White ,Brown,Yellow or Gray
| Hong Cheng Grade | HC-GPO3 | |||
| IEC 893 / EN 60893 Grade | UP GM 203 | |||
| DIN 7735 Grade | HM 2471 | |||
| ANSI (NEMA) Grade NEMA LI-1 | GPO-3 | |||
| Items | Test Method | Unit | Typical Values | |

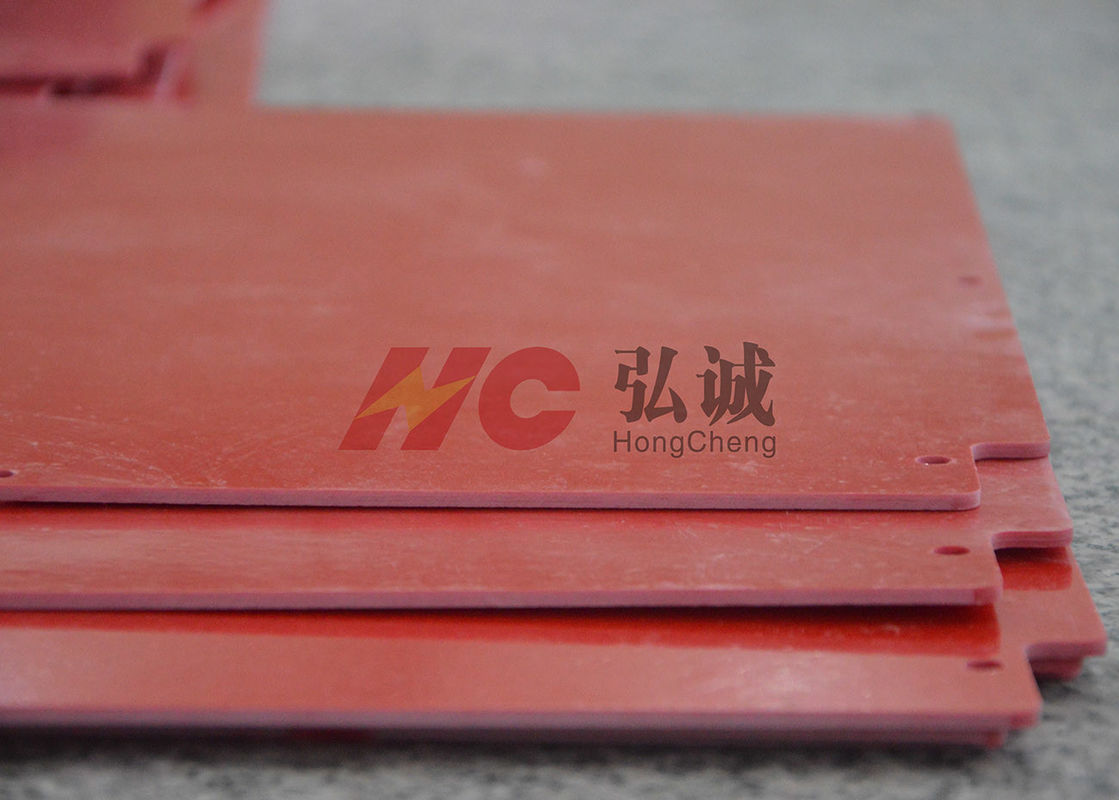

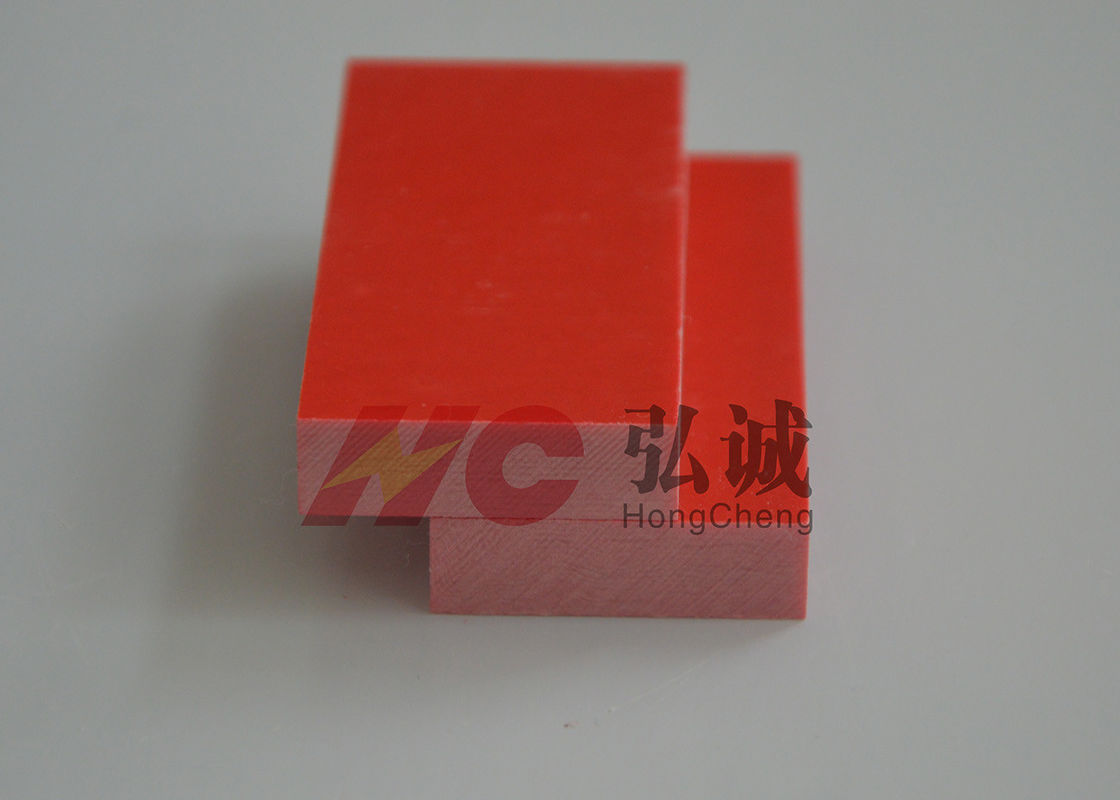

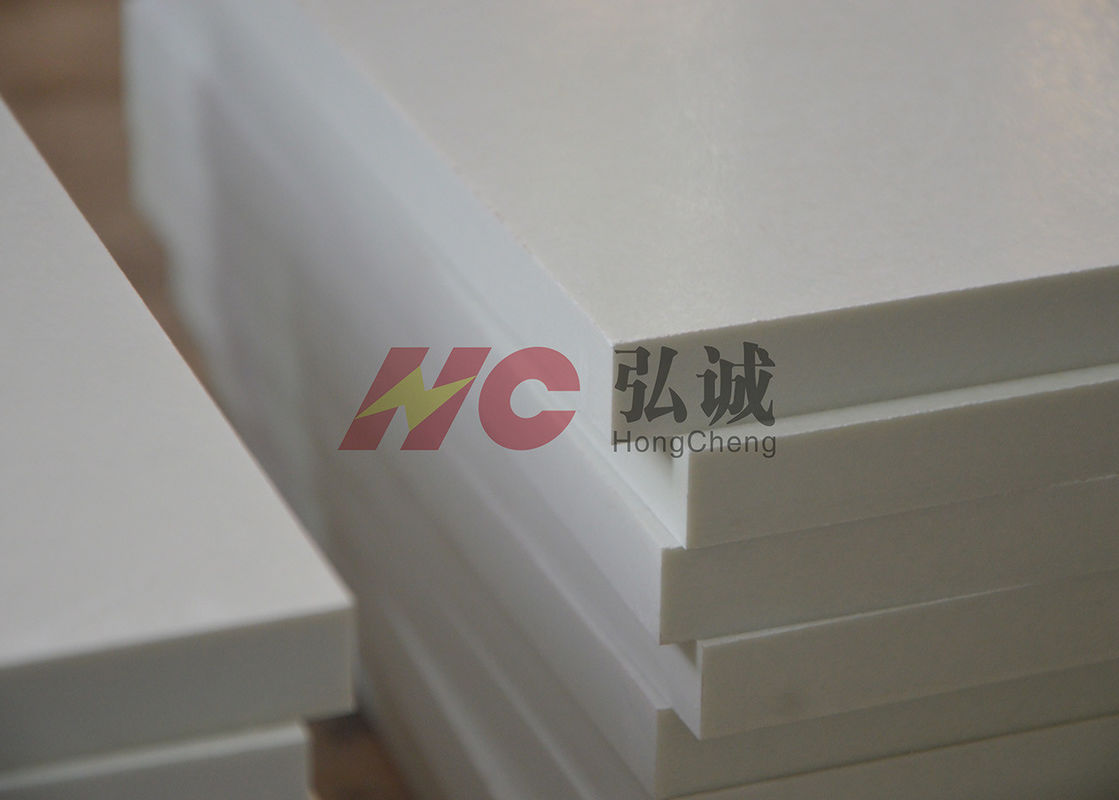

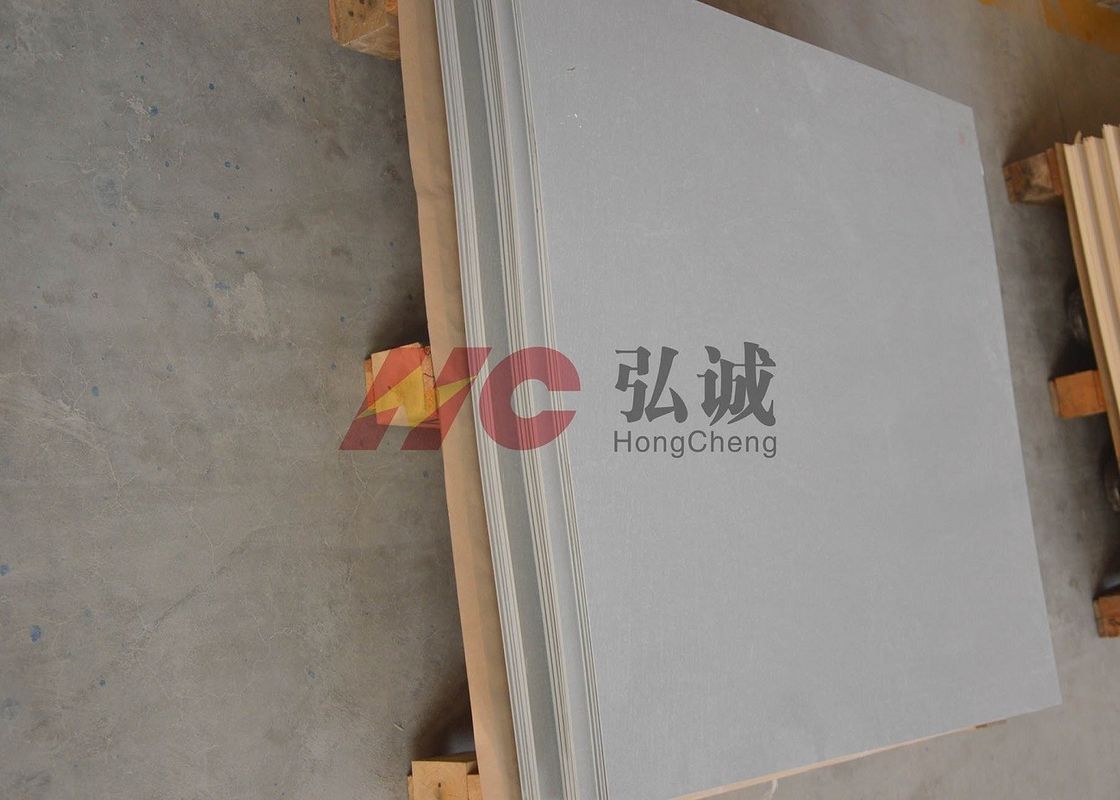

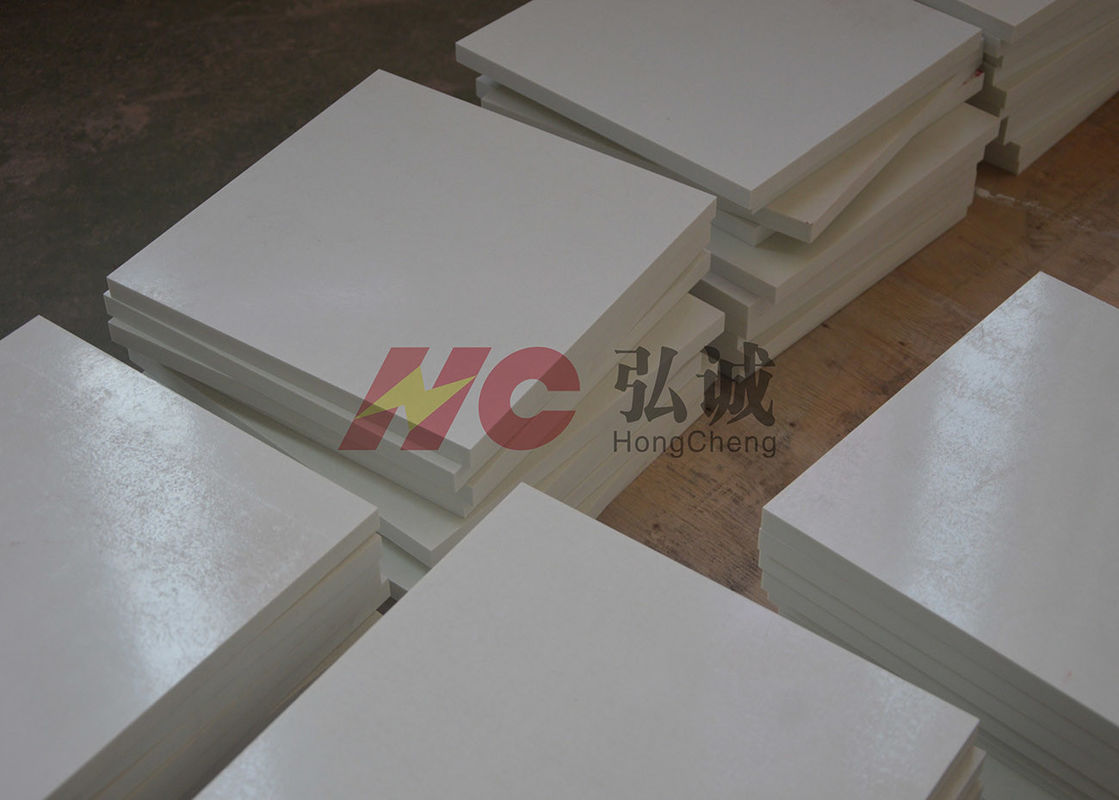

| Physical Properties | Color | Visual inspection | ---- | Red/White/Brown/Grey |
| Specific Gravity | IEC 60893-2:2003 | g/cm3 | 1.95-2.05 | |
| Water absorption | ISO62:2008 | % | ≤0.5 | |
| Mechanical properties | Tensile Strength | IEC 60893-2:2003 | Mpa | ≥130 |
| Compressive strength | IEC 60893-2:2003 | ≥300 | ||
| Flexural Strength | IEC 60893-2:2003 | ≥180 | ||
| Impact strength | IEC 60893-2:2003 | KJ/m2 | ≥60 | |
| Electrical properties | Volume Resistivity | IEC 60093:1980 | Ω·m | ≥ 1.0 x 1010 |
| Surface Resistivity | IEC 60093:1980 | Ω | ≥ 1.0 x 1012 | |
| Electric Strength ┴ | IEC 60893-2:2003 | kV/mm | ≥ 12 | |
| Breakdown Voltage // | IEC 60893-2:2003 | kV/25mm | ≥ 80 | |
| Arc Resistance | IEC 61621:1997 | sec | ≥180 | |
| PTI Proof Tracking Index PTI | IEC 60893-2:2003 | --- | ≥600 | |
| Dielectric Constant | IEC 60893-2:2003 | --- | 4.0-5.0 | |
| tgδ Dissipation Factor | IEC 60893-2:2003 | --- | ≤0.03 | |
| Thermal properties | Coefficient of Thermal Expansion | ASTME 228-11 | 1/K | ≤2x10-5 |
| Temperature Index | IEC 60085:2004 | ℃ | 155 | |
| Flame Resistance performance | Oxygen Index | ISO 4589-2:1996 | %O2 | ≥ 30 |
| Flame Resistance | IEC 60893-2:2003 | --- | V-0 | |
| Toxicant(Emission halogen etc.) | E662 | --- | Low | |
| Other properties | The anti microbial properties of bacteria | G21-G22 | --- | good |
| products: | Traction motor |
| Description: | Traction motor are divided into:Traction motor,Traction generator,Auxiliary motor which are mainly used in railway electric locomotive,Industrial and mining electric locomotive,Electric power transmission diesel locomotive and so on. GPO-3 sheet,FR-4 sheet is mainly used as insulating structurs in motor,movable cover plate,slot wedge which will greatly improve the safety and stability of motor ,and simplify the structure ,minimize the the volume and weight.It is more applicable to satisfy the commends of the space and weight. GPO-3 and FR-4 can promote the power output ,enhanced overload capacity,reduce noise,extent the rang of speed,save the power 20%-30%. Main famous cooperative enterprises:CRRC Zhuzhou electric motor Co.,Ltd and its subordinate processors,Alstom Equipment Co. Ltd |
