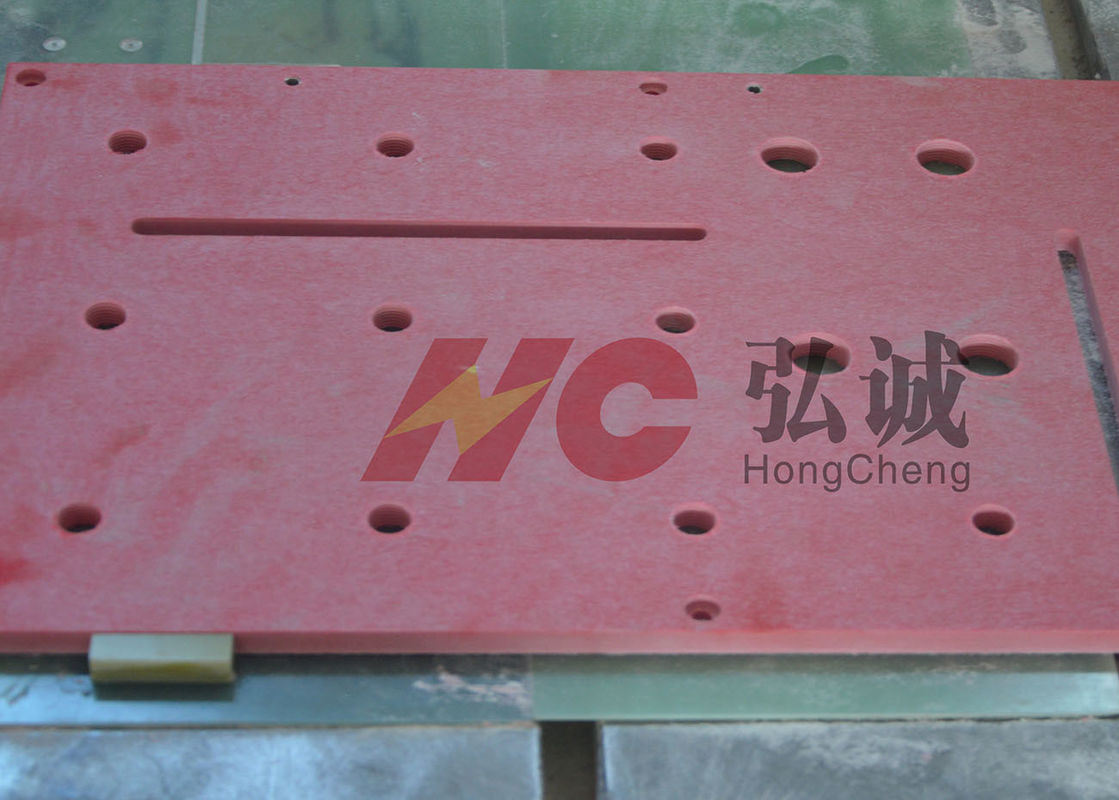

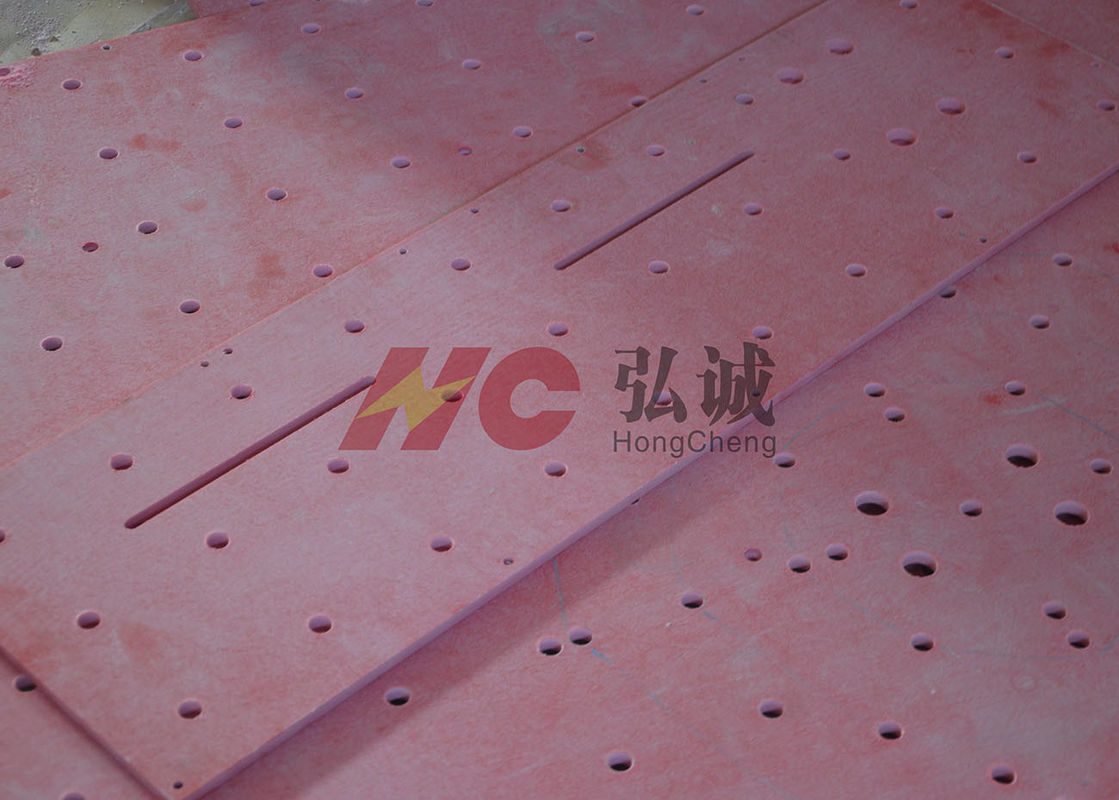

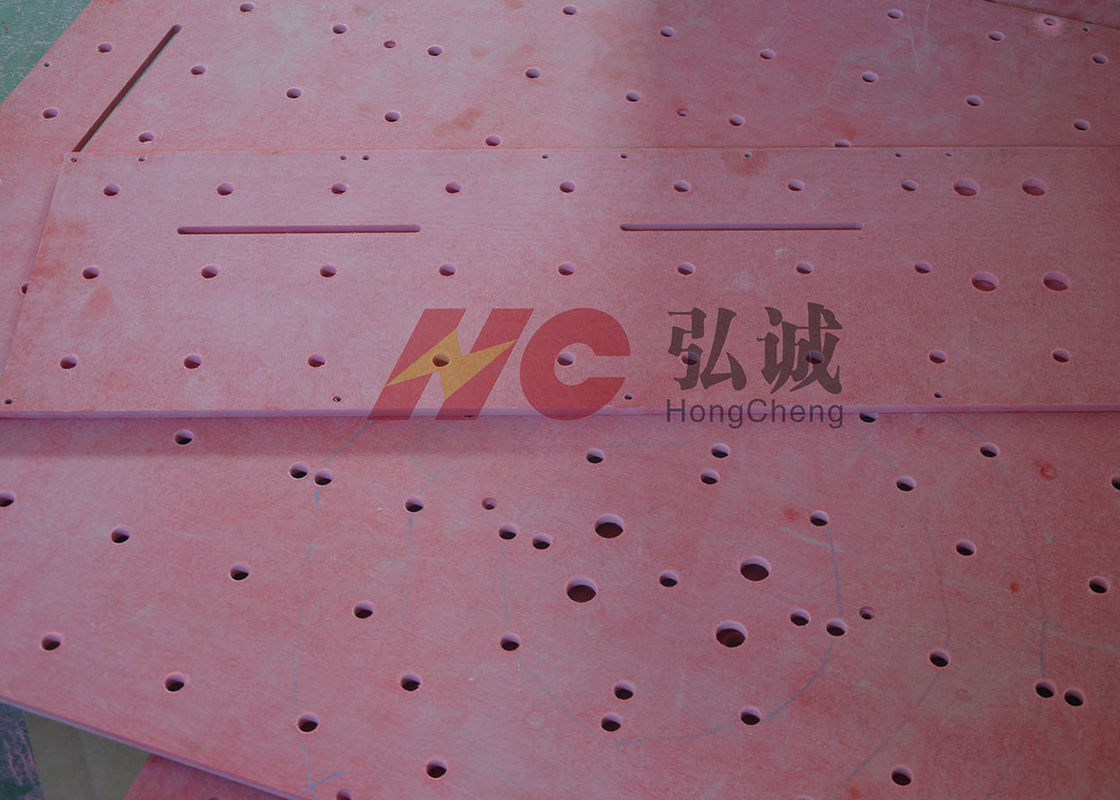

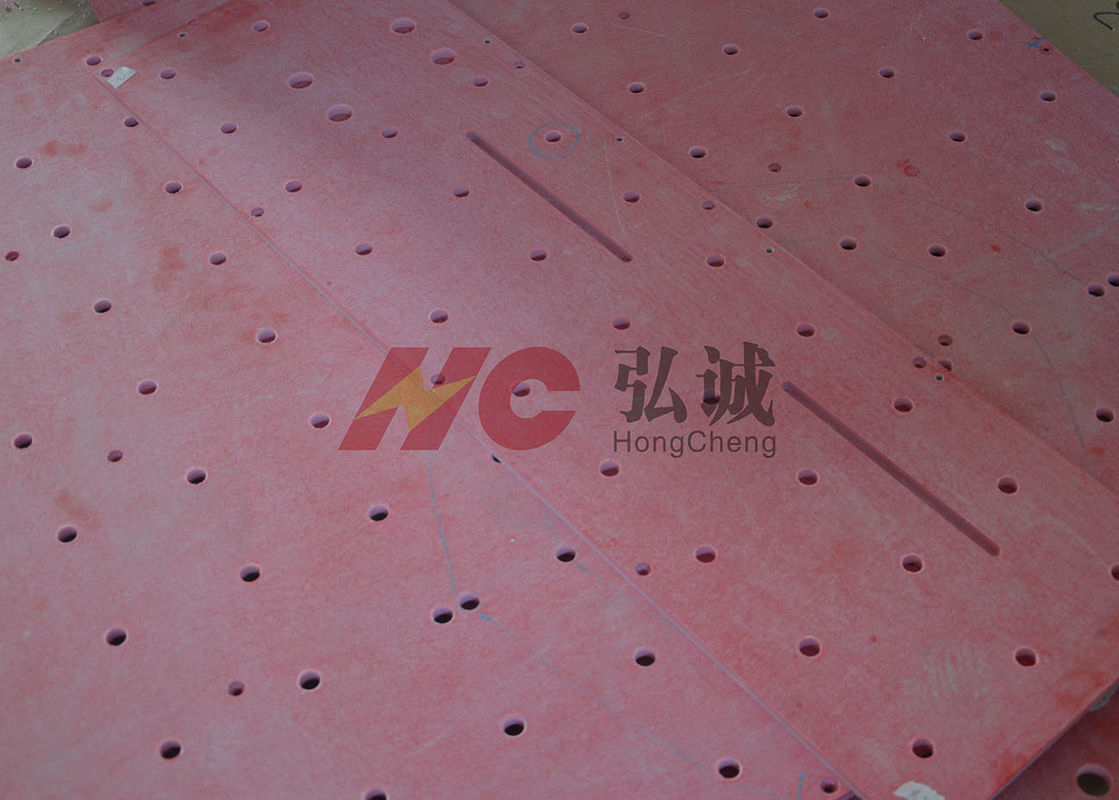

No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle

    • No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle
    • No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle
    • No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle
    • No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle
  • No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: GPO-3

    Payment & Shipping Terms:

    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    IEC Standard: UPGM203 German Standard: HM2471
    Flame Resistance: V-0 PTI Proof Tracking Index PTI: ≥600 V
    Toxicant(Emission Halogen Etc.): Low The Anti Microbial Properties Of Bacteria: Good

    GPO-3 fiberglass Sheet Specified for Terminal baffle/ upgm203 Specified for Terminal baffle


    Product Introduction:
    GPO-3 fiberglass Sheet Specified for Terminal baffle is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.

    Features:
    Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.

    Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.

    Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining

    Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃

    Application:
    GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.
    No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle


    Product Advantages:

    1.  Beard to draft the country standard,have earned six patents
    2.  Excellent Arc Resistance(Arc Resistance≥180 S)
    3.  Excellent Track Resistance(CTI≥600V)
    4.  Excellent Heat Resistance(Class F)
    5.  Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
    6.  Excellent Fire Retardant(UL 94 V-0 Grade)
    7.  Excellent Mechanical Strength and Automatic Machining
    8.  Low Smoke,Halogen Free Products(NF-F16-101/102)
    9.  RoHS,Reach Certified products

    Hong Cheng GradeHC-GPO3
    IEC 893 / EN 60893 GradeUP GM 203
    DIN 7735 GradeHM 2471
    ANSI (NEMA) Grade NEMA LI-1GPO-3
    ItemsTest MethodUnitTypical Values
    Physical PropertiesColorVisual inspection----Red/White/Brown/Grey
    Specific GravityIEC 60893-2:2003g/cm31.95-2.05
    Water absorptionISO62:2008%≤0.5
    Mechanical propertiesTensile StrengthIEC 60893-2:2003Mpa≥130
    Compressive strengthIEC 60893-2:2003≥300
    Flexural StrengthIEC 60893-2:2003≥180
    Impact strengthIEC 60893-2:2003KJ/m2≥60
    Electrical propertiesVolume ResistivityIEC 60093:1980Ω·m≥ 1.0 x 1010
    Surface ResistivityIEC 60093:1980Ω≥ 1.0 x 1012
    Electric Strength ┴IEC 60893-2:2003kV/mm≥ 12
    Breakdown Voltage //IEC 60893-2:2003kV/25mm≥ 80
    Arc ResistanceIEC 61621:1997sec≥180
    PTI Proof Tracking Index PTIIEC 60893-2:2003---≥600
    Dielectric ConstantIEC 60893-2:2003---4.0-5.0
    tgδ Dissipation FactorIEC 60893-2:2003---≤0.03
    Thermal propertiesCoefficient of Thermal ExpansionASTME 228-111/K≤2x10-5
    Temperature IndexIEC 60085:2004155
    Flame Resistance performanceOxygen IndexISO 4589-2:1996%O2≥ 30
    Flame ResistanceIEC 60893-2:2003---V-0
    Toxicant(Emission halogen etc.)E662---Low
    Other propertiesThe anti microbial properties of bacteriaG21-G22---good




    No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle

    products:Thermal baffle board
    Description:Thermal baffle blocking the heat as much as possible within a certain temperature range, which requires a low thermal conductivity of it.Currently , our usual thermal baffle including HC-GPO3/HC-FR4 etc.




    Crate Packing:
    No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle
    Pallet Packing:
    No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle


    Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.
    No Toxic GPO3 Fiberglass Sheet / Electrical Insulation Sheet For Terminal Baffle
