GPO3 Fiberglass Resin Sheets HM2471 German Standard Specified For Inverter Cabinet

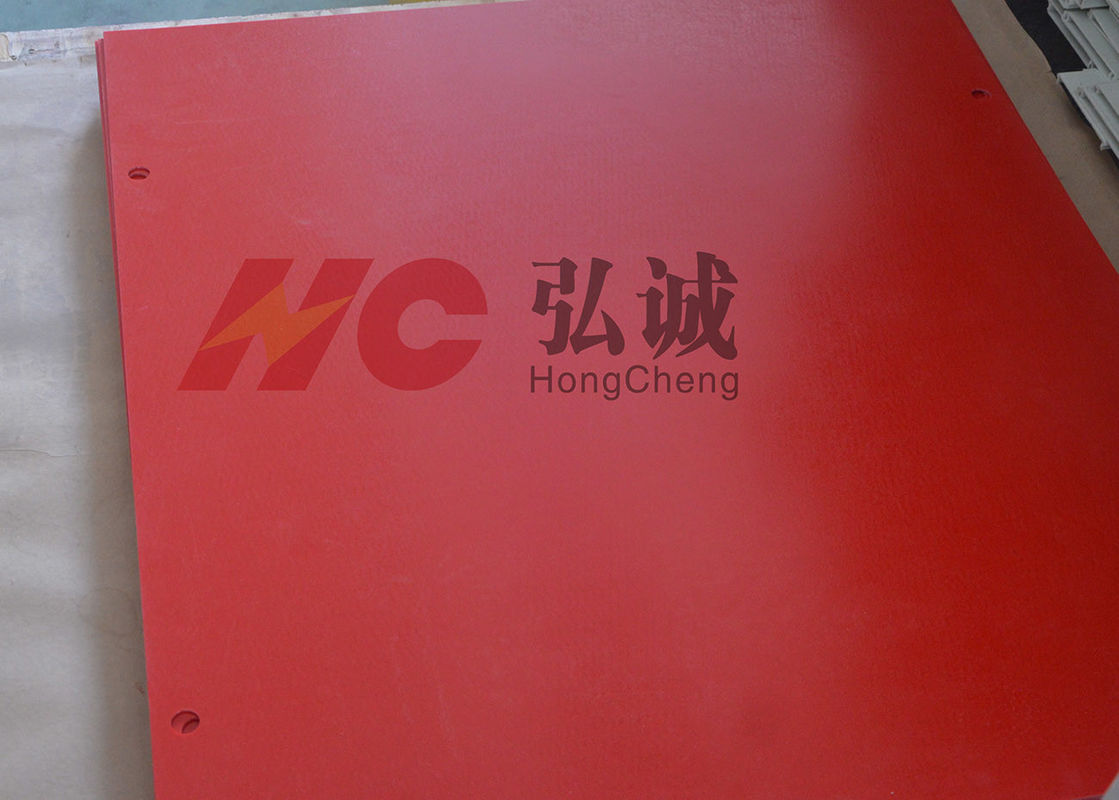

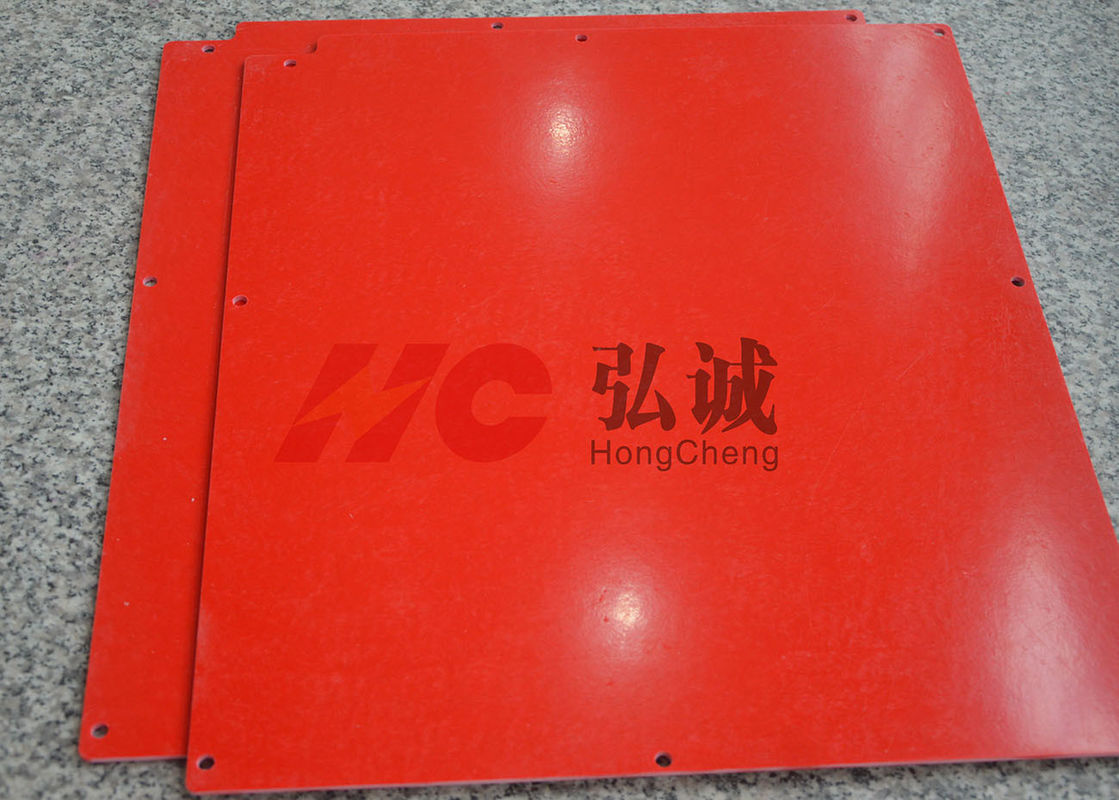

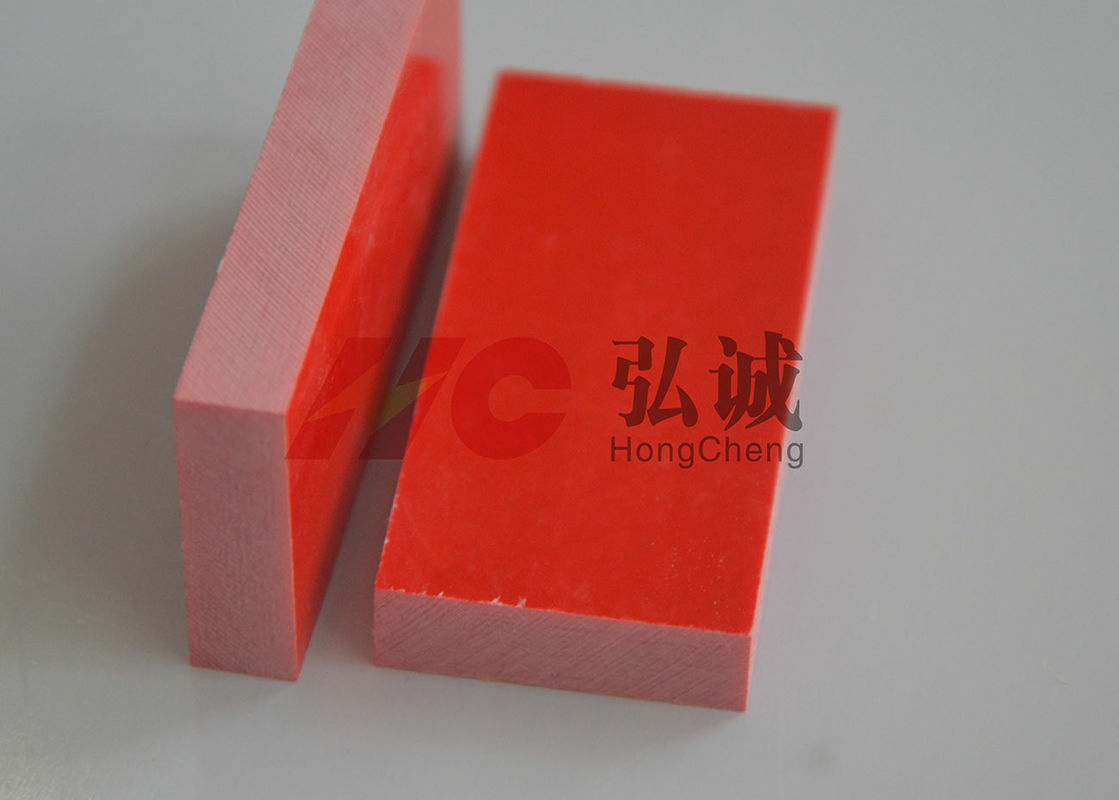

GPO-3 fiberglass Sheet Specified for Inverter cabinet/ upgm203 Specified for Inverter cabinet


Product Introduction:

GPO-3 fiberglass Sheet Specified for Inverter cabinet is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.



GPO-3 fiberglass Sheet Specified for Inverter cabinet have superior consistency in thickness, punchability and property control. Add a high degree of quality and cost-ffectiveness.

These sheets are fiberglass reinforced thermoset polyester,They will not melt under heat and have excellent overall electrical properties .all grades are UL Recognized.



Features:

Electrical Insulation :All grades of GPO3 sheet have inherently good dielectrics. They are engineered to maximize the specific properties required for a wide range of electrical applications.



Flame Resistance :GPO3 sheet are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.



Mechanical Strength :Our GPO3 sheet have stable mechanical strength wich won’t cracked when machining



Heat Resistance:Our GPO3 sheet have excellent property retention and dimensional stability at elevated temperatures. These laminates have UL temperature index ratings over 150℃

Application:

GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.

GPO3 Fiberglass Resin Sheets HM2471 German Standard Specified For Inverter Cabinet 0


Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
ANSI (NEMA) Grade NEMA LI-1 GPO-3
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
Compressive strength IEC 60893-2:2003 ≥300
Flexural Strength IEC 60893-2:2003 ≥180
Impact strength IEC 60893-2:2003 KJ/m2 ≥60
Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
Arc Resistance IEC 61621:1997 sec ≥180
PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Temperature Index IEC 60085:2004 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Flame Resistance IEC 60893-2:2003 --- V-0
Toxicant(Emission halogen etc.) E662 --- Low
Other properties The anti microbial properties of bacteria G21-G22 --- good




GPO3 Fiberglass Resin Sheets HM2471 German Standard Specified For Inverter Cabinet 1

products: Inverter Cabinet
Description: Inverter cabinet are used to convert DC power(Battery,Storage bottle)to AD power( Generally 50Hz 220V sinusoids or square wave),it consist of Inverter bridge,logic control parts,filter circuit.

Inverter Cabinet are divided into:Centralized inverter and String Inverter according to the applicable situation.

Centralized inverter technology is made of couples of parallel PV string connected to DC input of centralized inverter,the larger power use the three phase IGBT power module,the smaller power use the tield effect transistor and DSP conversion controller to improve the quality of electric.make the power output close to the Sine wave current.generally used for large photovoltaic power station (>10kW) system.

String Inverter is base on modularization.each photovoltaic group (1-5Kw) equiped with 1 Inverter,
Has maximum power peak tracking at DC side,Parallel connected at AC side.String Inverter has become the most popular inverter in the international market.

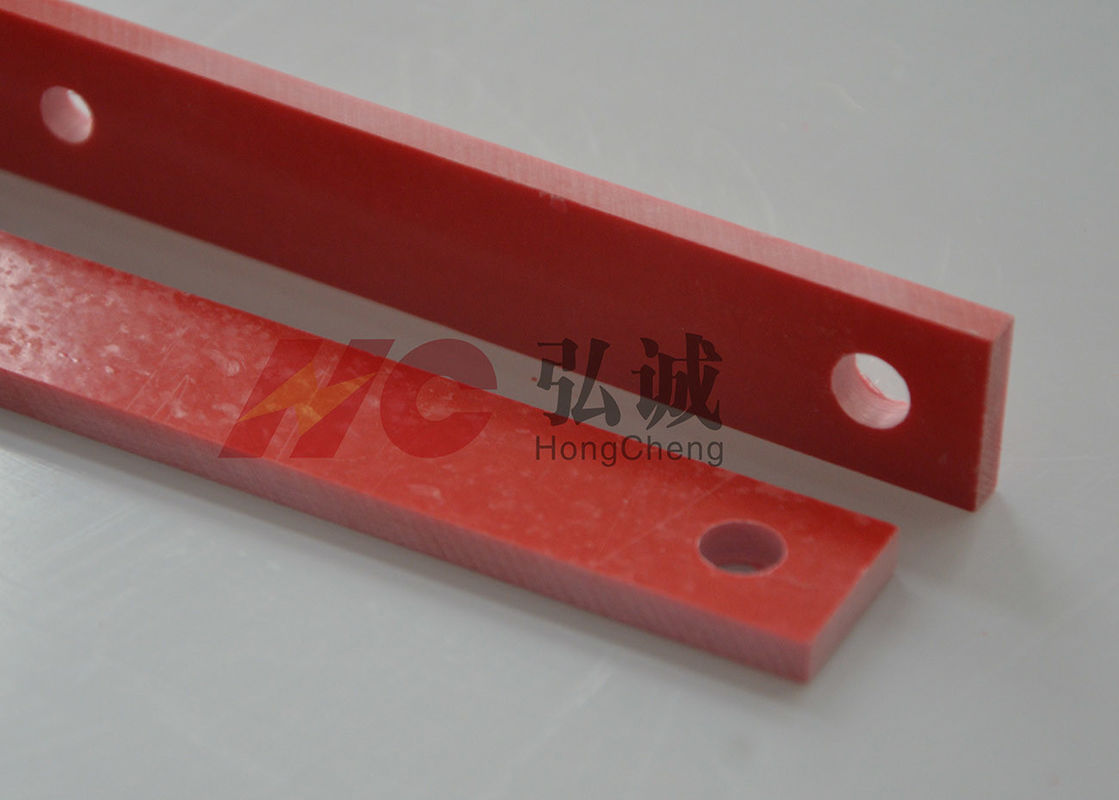

Our product is mainly used as Dc cabinet support glass fiber Angle, Reactor output copper bar fixed Angle, AC output fixed Angle, left AC cabinet insulating board 1,right AC cabinet insulating board ,AC contactor fixed barrier, epoxy spacer of sensor , epoxy sealing plate of Busbar, glass fiber for module supporting ,epoxy output board for filter, epoxy cover for module output, epoxy front air flue board, glass fiber module cover ,side glass fiber angle of module, insulating board, Copper platoon fixed plate for output module, sub plate of the fuse installation plate, insulation fender board, guard faceplate, epoxy board for filter output 2, the circular copper platoon stents , magnet ring support board, Fuse partition , Open copper platoon shield , DC cabinet threading plate.

Main famous cooperative enterprises:Sungrow power supply Co.,Ltd,ABB,TBEA Co.,Ltd.
