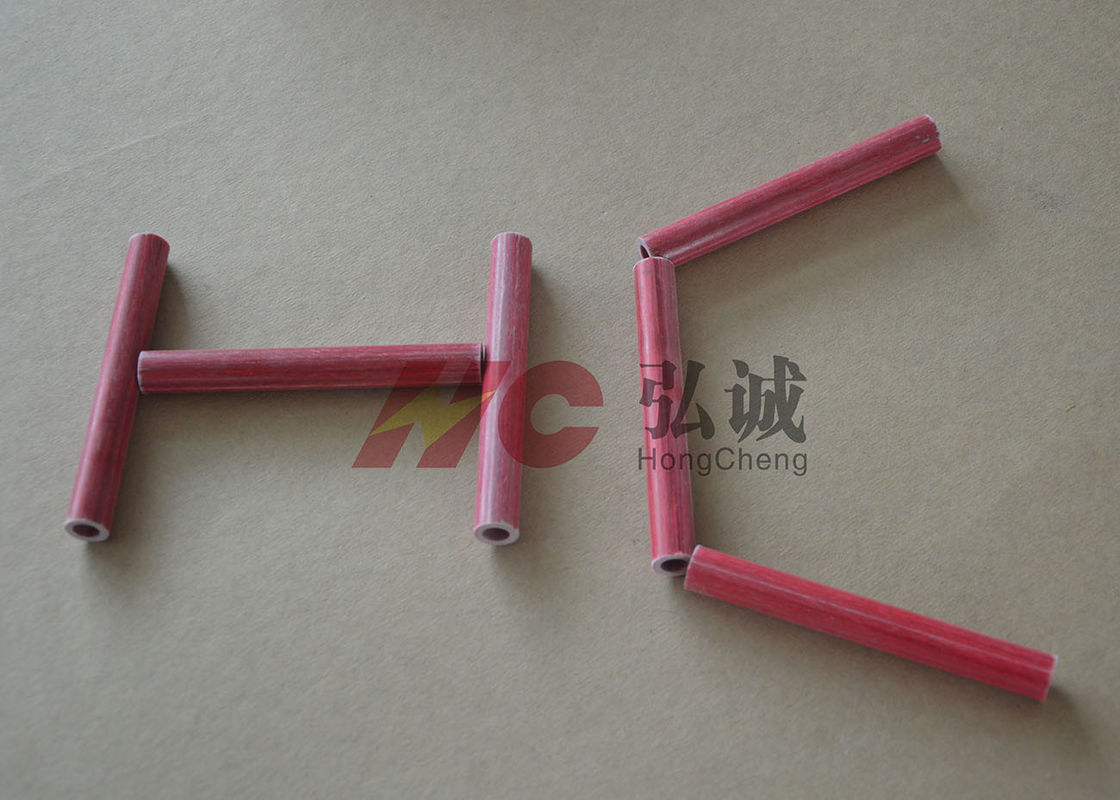

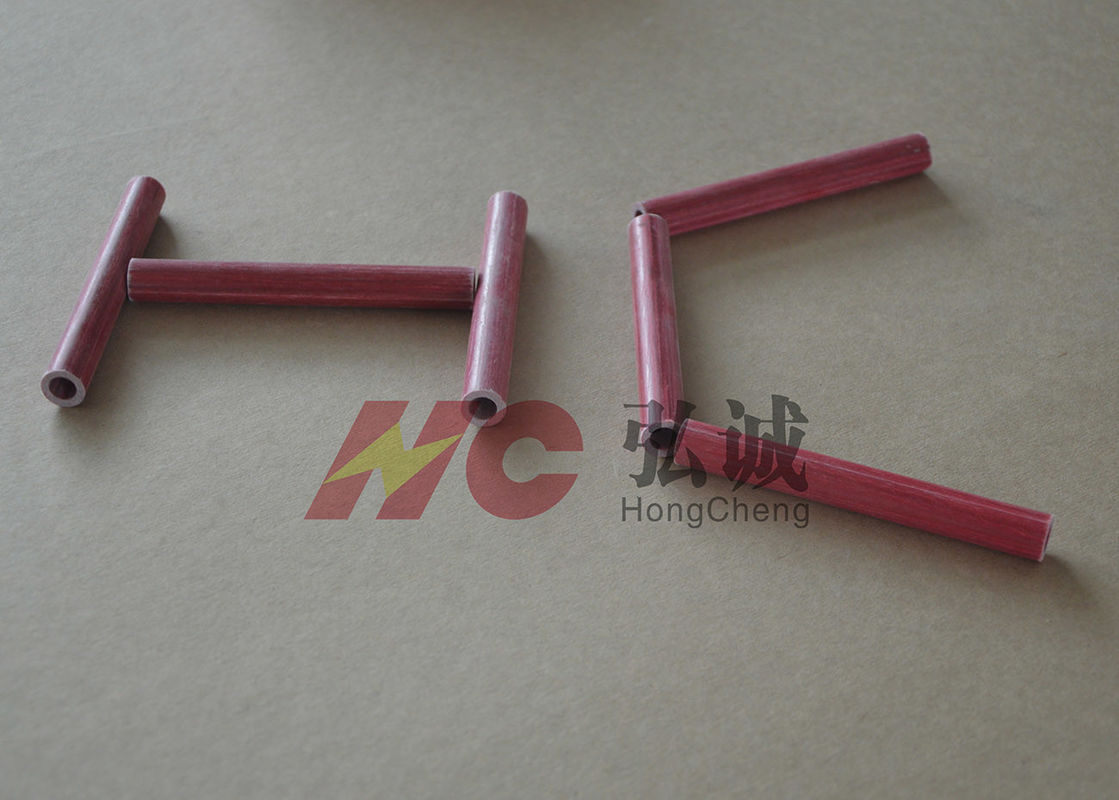

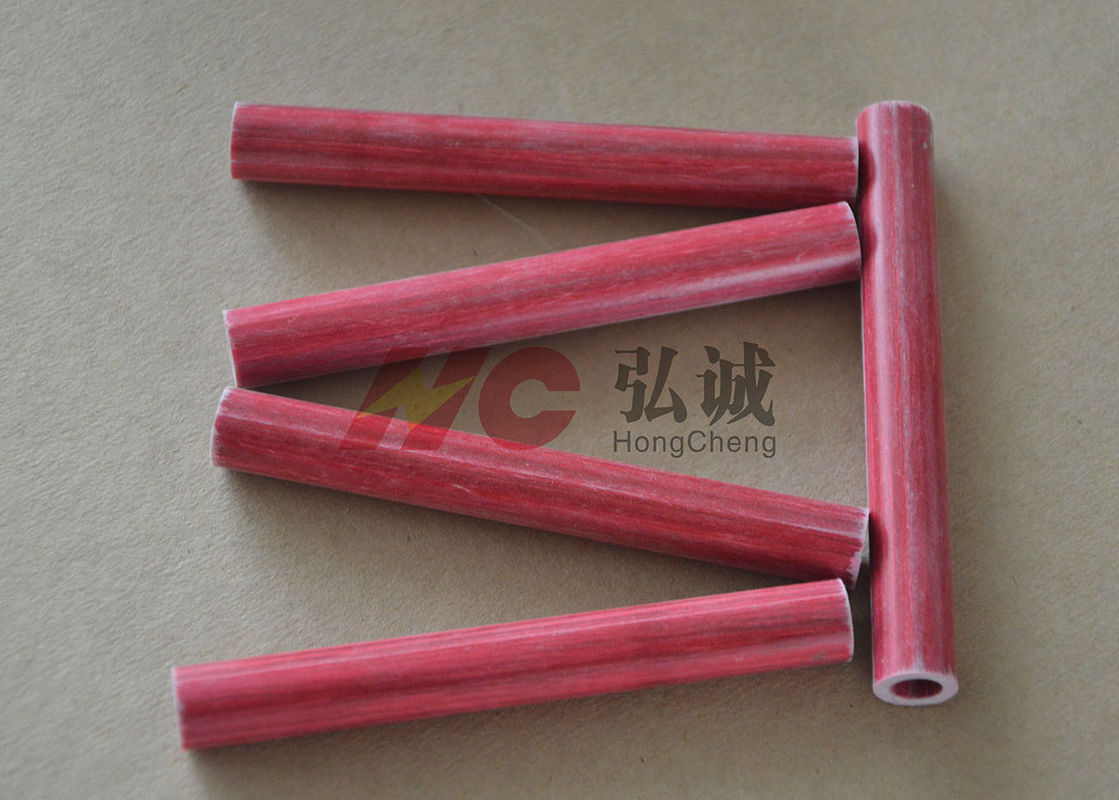

2.0g/Cm3 Density Pultruded Fiberglass Tube With High Mechanical Strength

    • 2.0g/Cm3 Density Pultruded Fiberglass Tube With High Mechanical Strength
    • 2.0g/Cm3 Density Pultruded Fiberglass Tube With High Mechanical Strength
    • 2.0g/Cm3 Density Pultruded Fiberglass Tube With High Mechanical Strength
  • 2.0g/Cm3 Density Pultruded Fiberglass Tube With High Mechanical Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: Rohs/Reach /SGS/UL
    Model Number: HC-XC-RT-R

    Payment & Shipping Terms:

    Packaging Details: crate packing/ carton/pallet
    Delivery Time: 5-8work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: Polyester Tube Product Color: Red
    Product Size: 2 Specifications Density: 2.0g/cm3
    Tensile Strength: ≥400Mpa Flexural Strength: ≥650Mpa

    Custom fiberglass tube with high mechanical strength / Multi specifications polyester tube of φ8-φ12


    Product Introduction:
    Multi specifications polyester tube of φ8-φ12 is pultrusion profile which made of e-class glass mat & unsaturated polyester and add the imported fire retardant and cementing compound.


    Materials:Epoxy resin,E-class glass mat,fire retardant and cementing compound.

    Feature:Meet the requirement of different colors and smooth appearance High arc resistance & mechanical strength & flame resistance,low water absorption,the insulation properties not changed by the time and environment

    Application:Transformer,reactor,large dry transformer, High voltage electrical equipment such as VFD,soft starter cabinet,SVG and reactive power compensation etc


    Product Advantage:
    Technical advantages, mold development and design capabilities, excellent supporting capacity.
    Excellent size, space stability, non cracking, non Explosive Edge
    Excellent Water Resistance,Excellent Voltage Resistance
    Available for humid environment and immerse into transformer oil.

    2.0g/Cm3 Density Pultruded Fiberglass Tube With High Mechanical Strength


    Hong Cheng GradeHC-XC
    ItemTest methodUnitValues
    Physical propertiescolor ----///
    densityIEC 60893-2 8.1g/cm31.85-2.00
    water absorptionIEC 60893-2 8.2%≤ 0.5
    Mechanical propertiesTensile strengthIEC 60893-2 5.7Mpa≥400
    Flexural Strength(perpendicular)IEC 60893-2 5.1≥650
    Compressive strengthparallelIEC 60893-2 5.3≥ 290
    perpendicular≥200
    Shearing strengthIEC 60893-2 5.6≥ 89.7
    Impact strength(Charpy)IEC 60893-2 5.5Kj/m2≥ 475
    Electrical propertiesVolume ResistivityIEC 60089Ω·m≥1.0 x 1012
    Surface ResistivityΩ≥ 1.0×1014
    Electric strength perpendicular to lamination (90℃ in oil)IEC 60893-2 6.1.2kV/mm≥ 10.0
    Breakdown Voltage parallel to laminationKV≥ 45
    Arc ResistanceIEC 61621:1997Sec.≥ 180
    Thermal propertiesCoefficient of Thermal ExpansionASTME 228-111/K≤2×10-5
    coefficient of heat conductionGB/T 10297-1998W/(m2×K)≤10.79




    Multi specifications polyester tube of φ8-φ12 used in electrical reactor/Transformer
    2.0g/Cm3 Density Pultruded Fiberglass Tube With High Mechanical Strength
    The electric reactor is also called the inductor ,after the electric reactor is energized, the magnetic field can be generated in a certain space range which plays a protective role in the power transmission and distribution.The transformer utilize the electromagnetic induction to change the voltage of the alternating current, and it acts as an energy conversion process.
    Main famous cooperative enterprises: Siemens,TBEA Co.,Ltd.
