Home ProductsGPO3 Fiberglass Sheet

Xiamen Hongcheng Insulating Material Co., Ltd.

High Tolerance Gpo3 Material Machined Parts Upgm203 CNC Machining Parts

    • High Tolerance Gpo3 Material Machined Parts Upgm203 CNC Machining Parts
    • High Tolerance Gpo3 Material Machined Parts Upgm203 CNC Machining Parts
    • High Tolerance Gpo3 Material Machined Parts Upgm203 CNC Machining Parts
    • High Tolerance Gpo3 Material Machined Parts Upgm203 CNC Machining Parts
  • High Tolerance Gpo3 Material Machined Parts Upgm203 CNC Machining Parts

    Product Details:

    Place of Origin: China Xiamen
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach/SGS
    Model Number: GPO3

    Payment & Shipping Terms:

    Minimum Order Quantity: 100 pieces
    Price: USD 3-3.8 per kg
    Packaging Details: pallet / carton / case
    Delivery Time: 1-3 work days
    Payment Terms: T/T
    Supply Ability: 100pcs per day
    Contact Now
    Detailed Product Description
    Toxicant(Emission Halogen Etc.): Low The Anti Microbial Properties Of Bacteria: Good
    Specific Gravity: 2g/cm3 Color: Red/White/Brown/Grey
    Water Absorption: ≤0.5% Compressive Strength: ≥300Mpa
    Flexural Strength: ≥180Mpa Impact Strength: ≥60KJ/m2

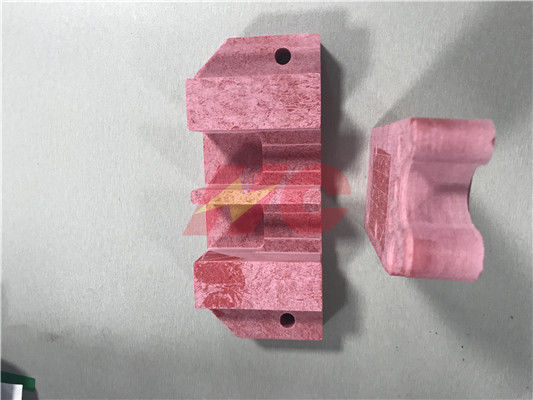

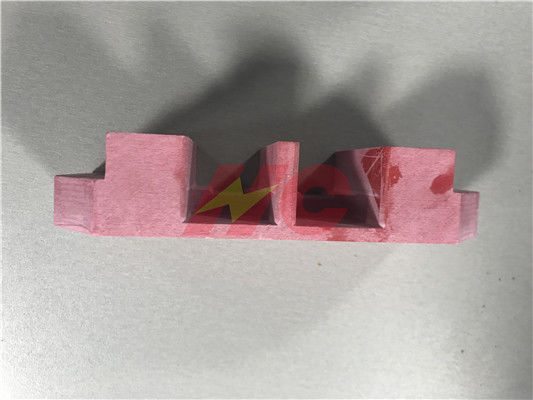

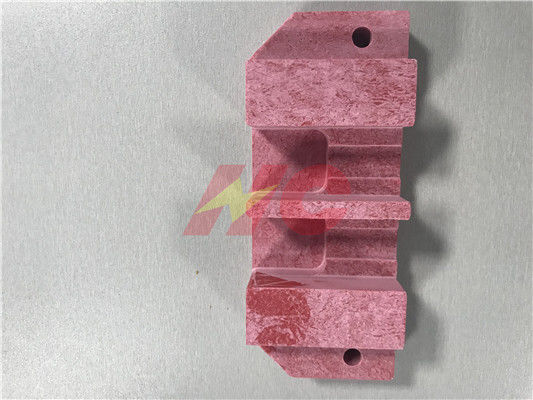

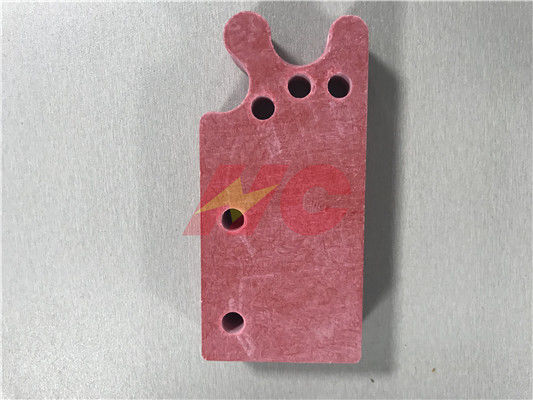

    Red GPO3 machined parts have high tolerance,upgm203 CNC machining parts


    Introduction:
    Red GPO3 machined parts is rigid laminated sheet made by heat pressing which composed of e-class glass-mat reinforced unsaturated polyester & inorganic filler binder.

    Feature:
    Excellent Arc Resistance(Arc Resistance ≥ 180 S

    Gained DIN5510 certification

    Gained EN45545 certification
    Excellent Track Resistance(CTI ≥ 600 V)
    Excellent Heat Resistance(Class F )
    Excellent Thermal Impact (Temp. Index: -273°C to +155°C)
    Excellent Fire Retardant(UL 94 V-0 Grade)
    Excellent Mechanical Strength & Automatic Machining
    Low Smoke, Halogen Free Products (NF F16-101/102 )
    RoHS,Reach Certified products

    Application:
    it is is used extensively in low & middle voltage electrical equipment as insulating structures such as circuit breaker, switchgear, transformer, DC motor, AC contactor,converter,inverter & explosion-proof apparatus etc. ; automotive industry etc field. In electrical Apparatus: making of phase & end barriers, contact terminal supports, terminal plate, insulating supports, bus bar supports and mounting panels in switchgear; arc-chute plate, arc extinguishing cover & cylinder in circuit breaker and signal panels in other types of electrical apparatus; and electric melting furnace insulations. In electrical motor: making of armature parts, cover plate,slot wedge, stator, gasket,shims,carbon brush etc.




    GPO-3 Laminates Sheet Technical Data Sheet

    Hong Cheng Grade HC-GPO3
    IEC 893 / EN 60893 Grade UP GM 203
    DIN 7735 Grade HM 2471
    ANSI (NEMA) Grade NEMA LI-1 GPO-3
    Items Test Method Unit Typical Values
    Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
    Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
    Water absorption ISO62:2008 % ≤0.5
    Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
    Compressive strength IEC 60893-2:2003 ≥300
    Flexural Strength IEC 60893-2:2003 ≥180
    Impact strength IEC 60893-2:2003 KJ/m2 ≥60
    Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
    Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
    Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
    Arc Resistance IEC 61621:1997 sec ≥180
    PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
    Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
    tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
    Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Temperature Index IEC 60085:2004 155
    Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Flame Resistance IEC 60893-2:2003 --- V-0
    Toxicant(Emission halogen etc.) E662 ---



    Low

    Other properties The anti microbial properties of bacteria G21-G22 ---



    good



    High Tolerance Gpo3 Material Machined Parts Upgm203 CNC Machining Parts

    Red GPO3 machined parts are widely used as the core insulating structural parts or components in the following fields:
    1) New energy, such as wind power, Photovoltaic generation and nuclear power,etc
    2) High-voltage electrical equipments,such as high-voltage VFD (Variable-frequency Drive), high-voltage soft start cabinet, high-voltage SVG and Reactive po wer c ompensa tion,etc.
    3) Large and medium generators,such as hydraulic generator and turbo-dynamo.
    4) Special electric motors, such as traction motors,metallurgical crane motors,rolling motors and the other motors in aviation, water transportation and mineral industry,etc.
    5) Dry type transformers
    6) UHVDC transmission.
    7) Rail transit
