Home ProductsGPO3 Fiberglass Sheet

0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized

0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized

    • 0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized
    • 0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized
    • 0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized
  • 0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized

    Product Details:

    Place of Origin: CHINA
    Brand Name: HC
    Certification: EN45545
    Model Number: GPO-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 100KG
    Price: 2.8-3.5USD/KG
    Packaging Details: CARTON AND PALLET
    Payment Terms: T/T, Western Union
    Supply Ability: 300TONS/MONTH
    Contact Now
    Detailed Product Description
    Color: Red And White Density: 1.85-2.0
    Size: 1000*1200mm Or 1230*2100mm Thickness: From 0.5mm-60mm
    CTI: 600 Arc Resistance: 184second
    Material: Fiberglass Mat And Polyester
    High Light:

    polyester sheets

    ,

    glass reinforced polyester sheet





    What is GPO-3 material?

    GPO-3 laminated sheet is the excellent insulation sheet which was made of fiberglass and polyester resin , the fiberglass was impregnated in polyester resin with the filler material and then press under the high temperature & pressure by machines . This material with very nice arc resistance , the arc resistance will reach more than 180 seconds ; as soon as we know , the arc resistance is very importance property on the electrical equipment ; if the arc resistance is not good enough , it will be very easy carbonization if the electrical equipment have the electric arc when the equipment is running; it also has very excellent fire resistance , low smoke and non-toxic. This material has passed EN45545 test and have the test reports from the third party . As we know , the rail traffic projects such as high-speed rail and metro requested mentioned properties , they required fire resistance , low smoke and non-toxic if breaking out of fire when high-speed rail or metro running . All of these good properties will save the lives of the people who are in the carriages . To avoid any mistake , the relevant project required EN45545 test report . It is very difficult to pass the test due to the high quality requirements .

    We also have the UL/RoHs/Reach etc. test report to meet more and more strict requirements from clients all over the world .



    What is the product feature of GPO-3 material?

    ve been recognized by UL ,RoHs,Reach and have the other certificates such as EN45525 from the third party which were very famous Accredited Testing Organization.

    a. It is the excellent insulation properties with CTI600 and mechanical property material

    b. It is excellent Electrical Performance material with the arc resistance more than 180 seconds

    c. It is the green product and recognized by latest RoHs and Reach.

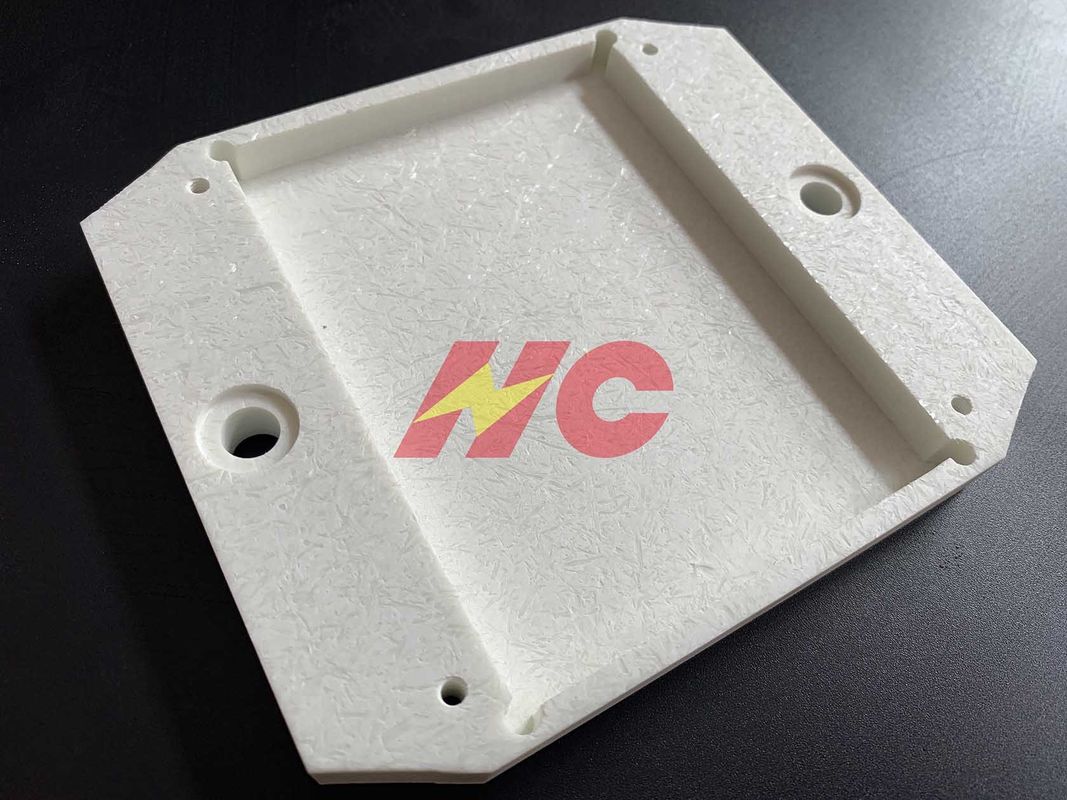

    d. It is the customized products can be machined as per client’s drawings .

    e. It has very excellent on temperature , the temperature index of this materials is from -270 to 155 degree centigrade , it can adjust to very low and high temperature when running.

    f. It has the advantage on low smoke material , it will save the lives when breaking out of fire when running in rail traffic .



    what is application of this material?

    GPO-3 laminated sheet and machined parts are application to rail traffic , such as metro , CRH train , high speed rail etc. because it has very excellent properties on electrical and mechanical , especilly the low smoke , non-poisonous and good fire resistance with EN45545 certificate and arc resistance .

    As we know , it is very important to rail traffic of the safety , Railway traffic is a highly intensive place for people , low smoke , non-poisonous and good fire resistance are top important performance to ensure safety running.

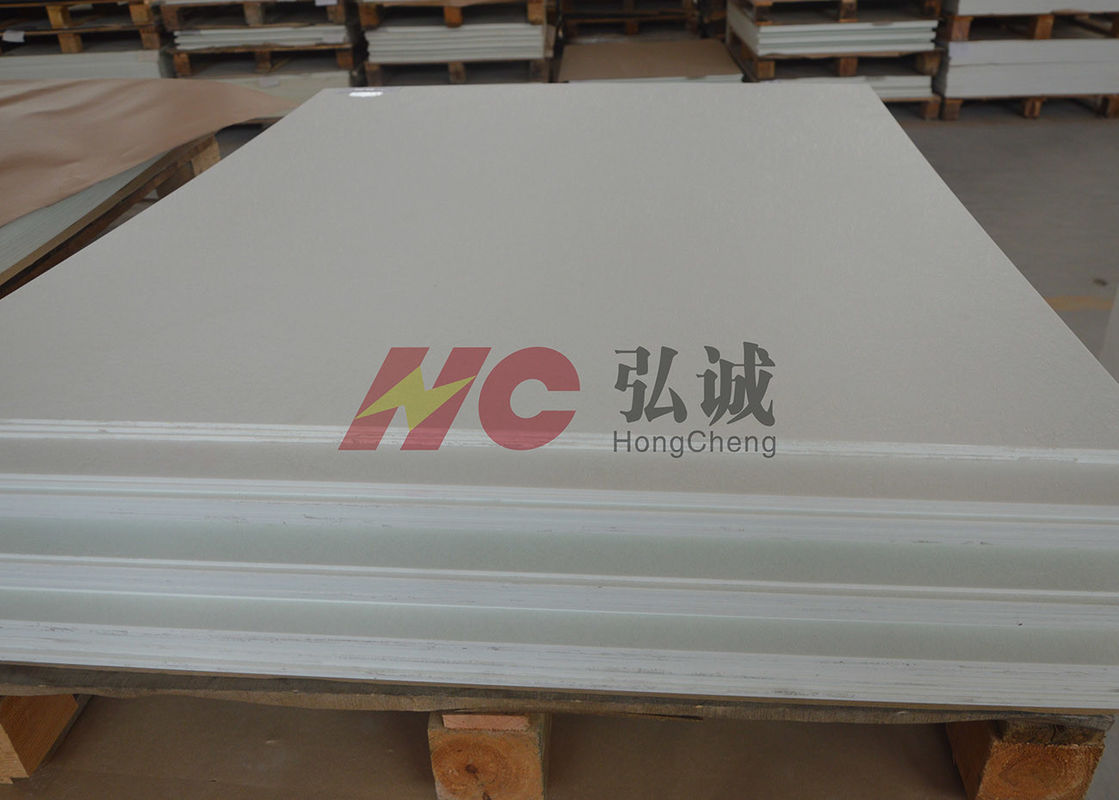

    0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized 0

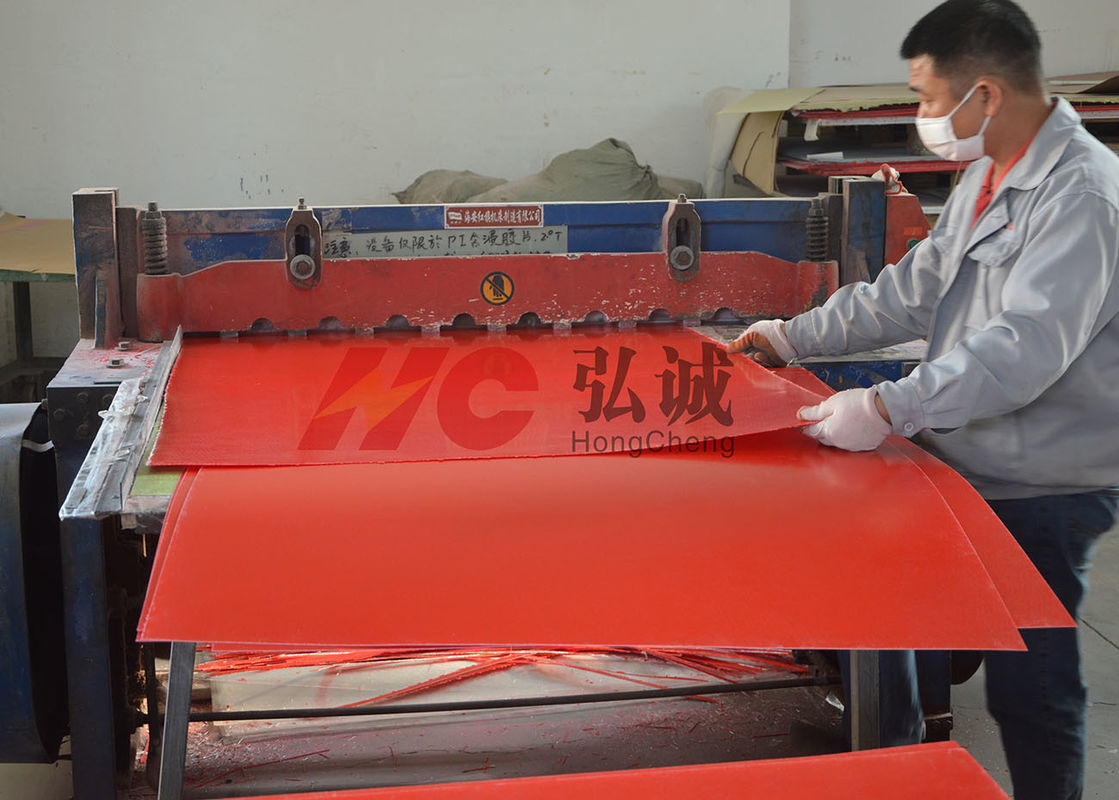

    Some photos of our company

    0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized 1

    0.5mm - 60mm Thick GPO-3 Laminate Sheet With UL And EN45545 Recognized 2
