insulation material unclad epoxy glass resin fiberglass FR4 sheet

insulation material unclad epoxy glass resin fiberglass FR4 sheet

    • insulation material unclad epoxy glass resin fiberglass FR4 sheet
    • insulation material unclad epoxy glass resin fiberglass FR4 sheet
    • insulation material unclad epoxy glass resin fiberglass FR4 sheet
    • insulation material unclad epoxy glass resin fiberglass FR4 sheet
  • insulation material unclad epoxy glass resin fiberglass FR4 sheet

    Product Details:

    Place of Origin: Xiamen ,China
    Certification: UL/ROHS/REACH/EN45545/SGS

    Payment & Shipping Terms:

    Minimum Order Quantity: 10PCS
    Price: 3-5USD/KG
    Packaging Details: PALLET OR CARTON
    Delivery Time: 5-7 DAYS
    Payment Terms: L/C, , T/T, Western Union
    Supply Ability: 300 TONS PER MONTH
    Contact Now
    Detailed Product Description
    Material: Epoxy Resin And Glass Fiber Cloth Color: Light Green And Yellow
    Thickness: 0.2-100mm CTI: 600
    Fire Resistance: UL94-V0

    Electrical insulation material laminate board fiberglass epoxy FR4

    Fiber glass epoxy FR4 sheet is a NEMA grade designation for glass-reinforced epoxy laminate material.
    Fiber glass epoxy FR4 sheet is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).
    "FR" stands for flame retardant, and denotes that the material complies with the standard UL94V-0.
    FR4 sheet is a popular and versatile high-pressure thermal plastic laminate grade with good strength to weight ratios.
    With near zero water absorption, fiber glass epoxy sheet is most commonly used as an electrical insulator possessing considerable mechanical strength. The material is known to retain its high mechanical values and electrical insulating
    qualities in both dry and humid conditions. These attributes, along with good fabrication characteristics, lend utility to this
    grade for a wide variety of electrical and mechanical applications.

    FR-4 with so many advantages as below :

    * High mechanical & electrical strength

    * Excellent rigidity & dimensional stability

    * Excellent dielectric properties

    * Low water absorption

    * Flame resistance ,UL94-V0

    * Tighter thickness tolerance

    * Flat and straight sheet

    * Smooth and clean surface.

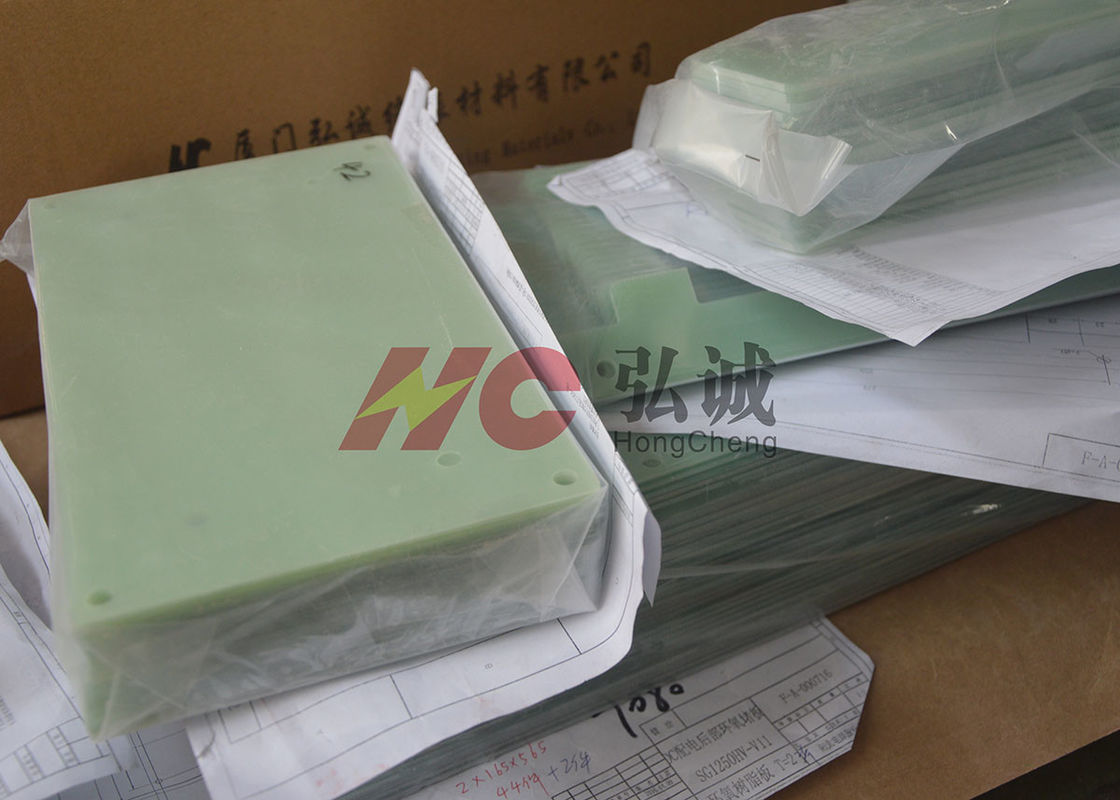

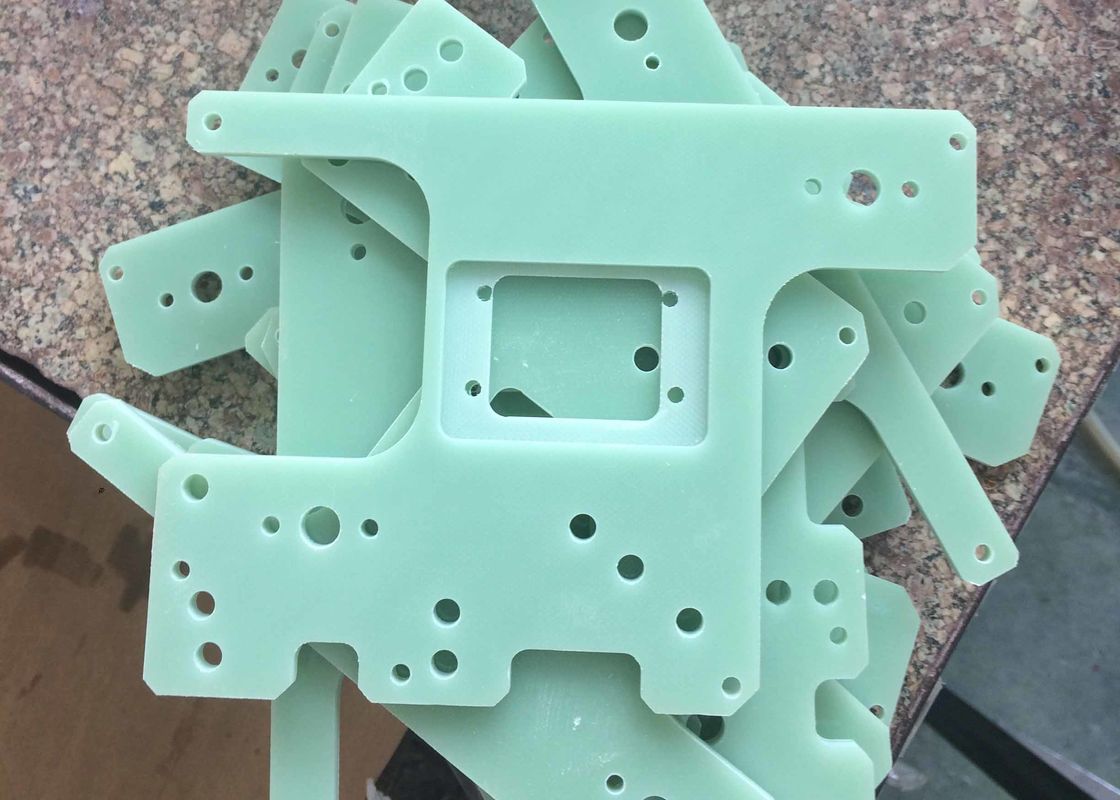

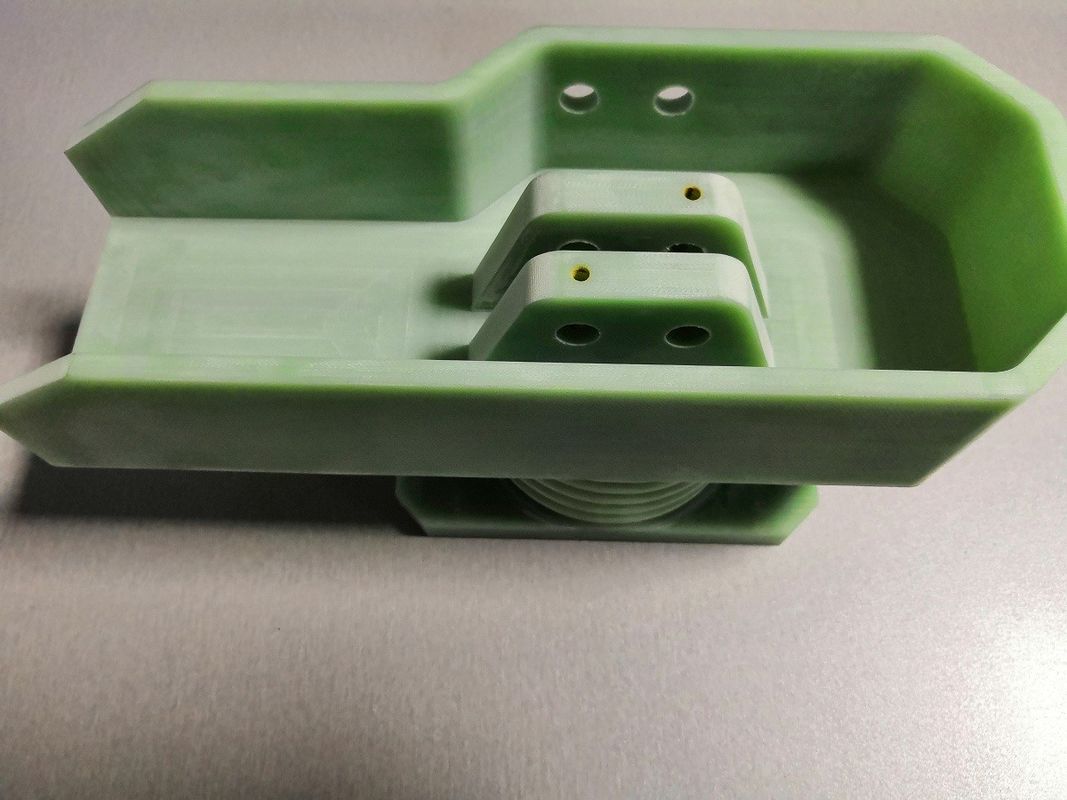

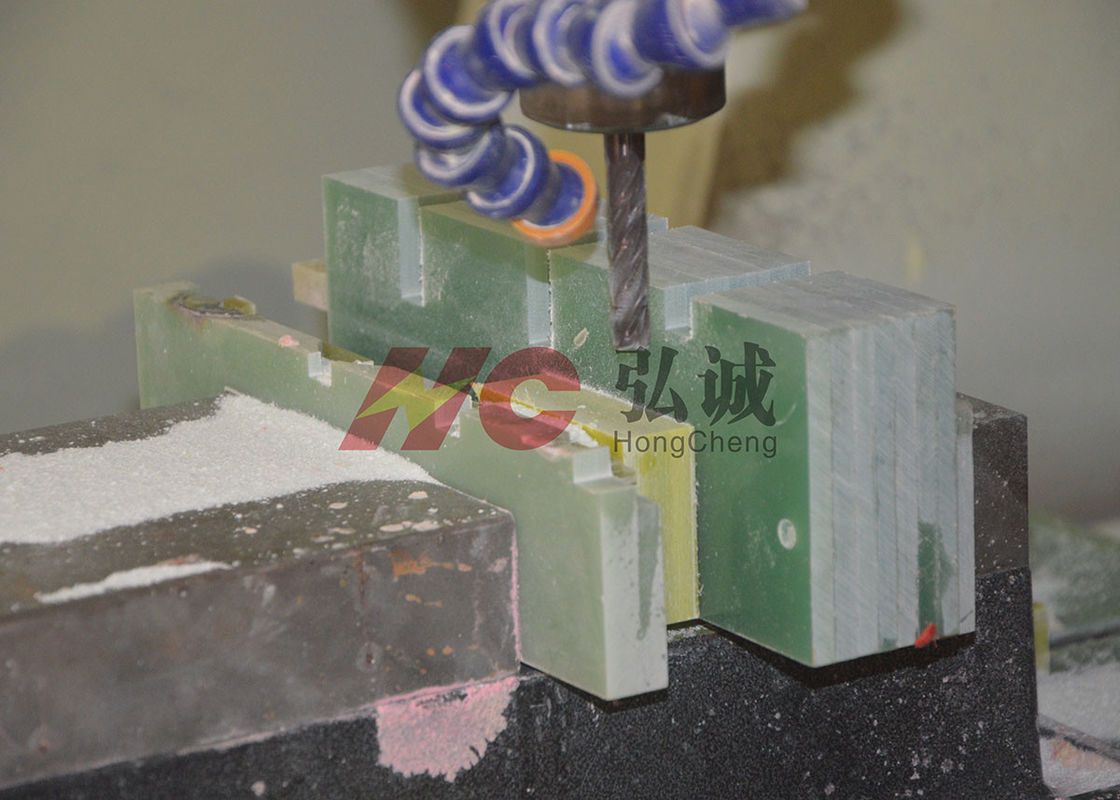

    * Easy to machine by CNC , such as drill holes or grinded .

    Hong Cheng Grade HC-FR-4
    IEC 893/EN 60893 Grade EPGC 202
    ANSI (NEMA) Grade NEMA LI-1 FR-4
    DIN 7735 Hgw2372.1
    JIS GRADE EL-GEF

    Item Test method Unit Typical Values
    Physical Properties Color Visual inspection Light green / yellow
    Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
    Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
    Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
    Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
    Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
    Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
    TensileStrength IEC 60893-2:2003 MPa ≥300
    //Bond Strength // IEC 60893-3-4:2003 N ≥8000
    Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
    Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
    Temperature Index IEC 60085:2004 155
    Toxicant Content E662 Low
    Others Acetone Resistance boiled Min 30(OK)



    Due to the High mechanical & electrical strength , this material have the widely application in every electrical equipments , such as below :

    Epoxy sheet FR-4 with the good properties on mechanical & electrical , this material is widely used high-end insulation parts processing, FPC (flexible printed circuit-board) reinforcement sheet, air gap , cover and base of transformer . planetary wheel, transformer insulation baffle, LV&MV voltage switch, precision test fixture, carbon film printing, electronic insulation parts, gasket,washer,various water sports equipment and blade-tool handle materials.

    If the color of epoxy sheet is yellow , it has the good property on ageing resistant , usually , it was used in out door electrical equipment . Out door with direct solar radiation , the normal material will be accelerated aging.
