Red UPGM 203 HM2471 Laminated Fiberglass Insulation Sheet

Minimum Order Quantity : 1000kg Packaging Details : Carton/Pallet/wooden box
Delivery Time : 5-15 work days Payment Terms : T/T, Western Union, L/C
Supply Ability : 500kg per day
Place of Origin: China Xiamen Brand Name: Hongcheng
Certification: UL(E344098)/RoHS 2.0 /Reach/SGS Model Number: UPGM203/GPO3/HM2471

Detail Information

German Standard: HM2471 Flame Resistance: V-0
Temperature Index: 155℃ Specific Gravity: 2g/cm3
Water Absorption: ≤0.5% Compressive Strength: ≥300Mpa
High Light:

UPGM 203 Fiberglass Insulation Sheet

,

Red Fiberglass Insulation Sheet

,

HM2471 Laminated Sheet

Product Description

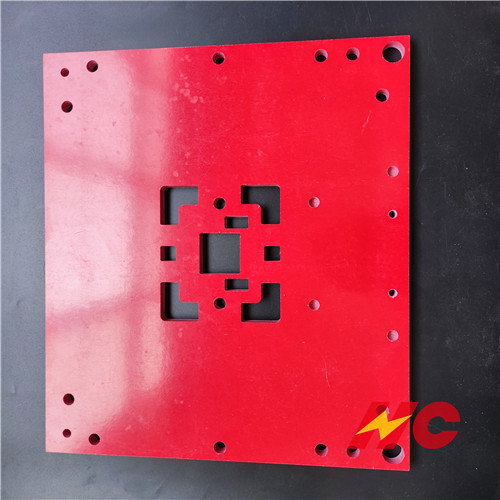

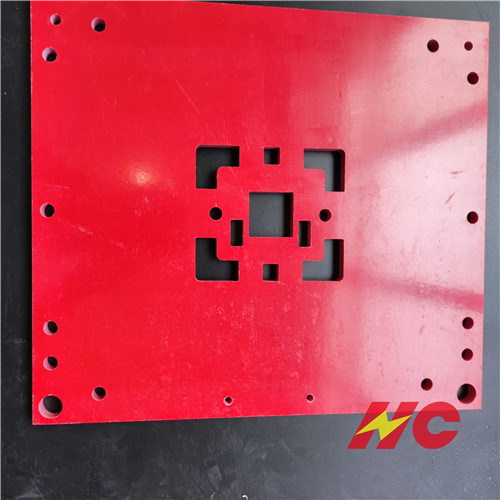

Red UPGM 203 Insulation laminated Sheet /HM2471 fiberglass mat laminated sheet high electrcal strength


Product Introduction:

GPO3 is a special laminated material based on unsaturated polyester resin in connection with a reinforcement of glass mats and relevant chemical agent. It is also know as UPGM203 according to IEC ,and Known as HM2471 according to German Standard .Primarily GPO3 have good mechanical and good electrical characteristics.





Feature:

upgm203 fiberglass Sheet has good machinability,high mechanical strength,good dielectric properties,excellent proof tracking resistance and arc resistance.



Application:

1. phase and end barriers,

2. insulating supports,

3. bus bar supports,

4. mounting panels in switch-gear,

5. switch cabinet,

6. motor,

7. frame breaker,

8. safety plate,

9. arcing plate,

10. slot wedge,

11. shifting cover spacer,

12. gasket,

13. cable clamp,


Thickness range :0.5mm-60mm



Sheet Size:1000mm*1200mm & 1230mm*2100mm


Hong Cheng Grade HC-GPO3
IEC 893 / EN 60893 Grade UP GM 203
DIN 7735 Grade HM 2471
ANSI (NEMA) Grade NEMA LI-1 GPO-3
Items Test Method Unit Typical Values
Physical Properties Color Visual inspection ---- Red/White/Brown/Grey
Specific Gravity IEC 60893-2:2003 g/cm3 1.95-2.05
Water absorption ISO62:2008 % ≤0.5
Mechanical properties Tensile Strength IEC 60893-2:2003 Mpa ≥130
Compressive strength IEC 60893-2:2003 ≥300
Flexural Strength IEC 60893-2:2003 ≥180
Impact strength IEC 60893-2:2003 KJ/m2 ≥60
Electrical properties Volume Resistivity IEC 60093:1980 Ω·m ≥ 1.0 x 1010
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0 x 1012
Electric Strength ┴ IEC 60893-2:2003 kV/mm ≥ 12
Breakdown Voltage // IEC 60893-2:2003 kV/25mm ≥ 80
Arc Resistance IEC 61621:1997 sec ≥180
PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
tgδ Dissipation Factor IEC 60893-2:2003 --- ≤0.03
Thermal properties Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
Temperature Index IEC 60085:2004 155
Flame Resistance performance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
Flame Resistance IEC 60893-2:2003 --- V-0
Toxicant(Emission halogen etc.) E662 --- Low
Other properties The anti microbial properties of bacteria G21-G22 --- good

 Red UPGM 203 HM2471 Laminated Fiberglass Insulation Sheet 0

Red upgm203 fiberglass Sheet  is used extensilvely  in power rigid,Transmission and distribution includes two concepts, they are transmission and distribution .Transmission refers to the transmission of large amounts of electricity from power plants or power generation centers to the consumption area of electricity, or the transmission of power for each other between different power channels;
Power distribution is the distribution method which distribution to users in the consumption power area ,it was serviced for user service directly.

In the transmission and distribution which including the reactor, transformer, switch cabinet, circuit breaker, UPS uninterruptible power supply, laminated bus, etc.;Our upgm203 sheet are widely used in this field,we have accumulated rich experiences of
