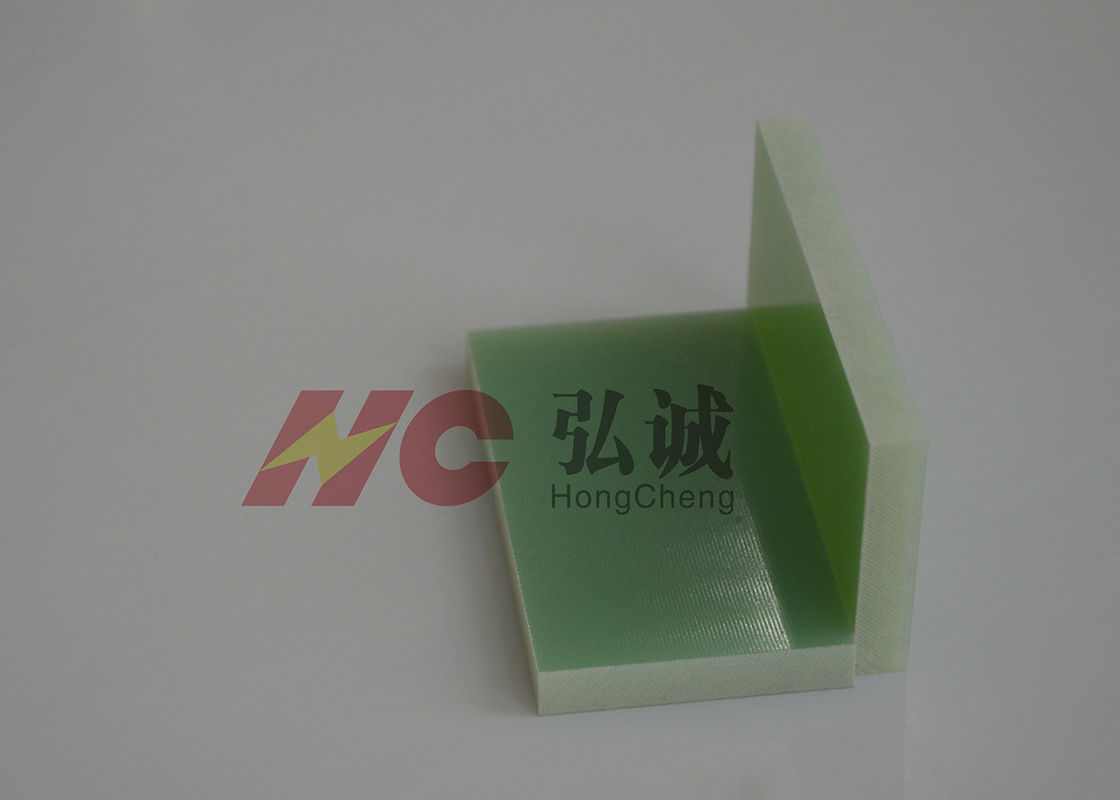

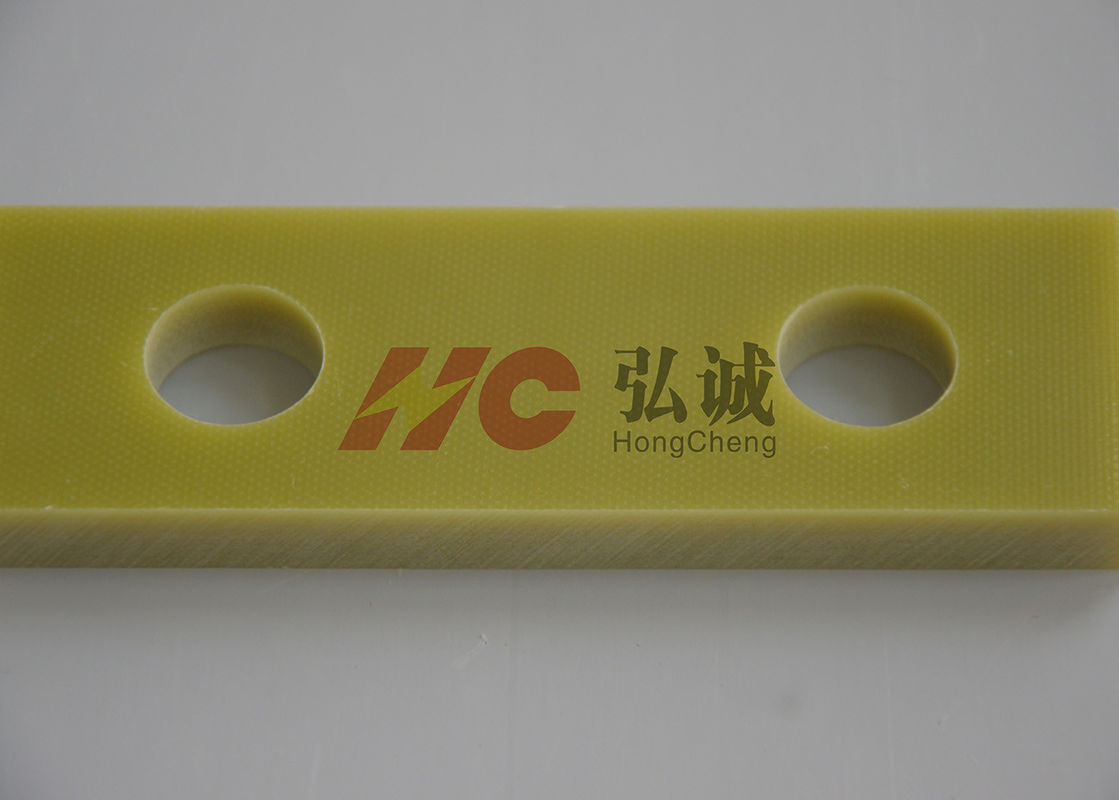

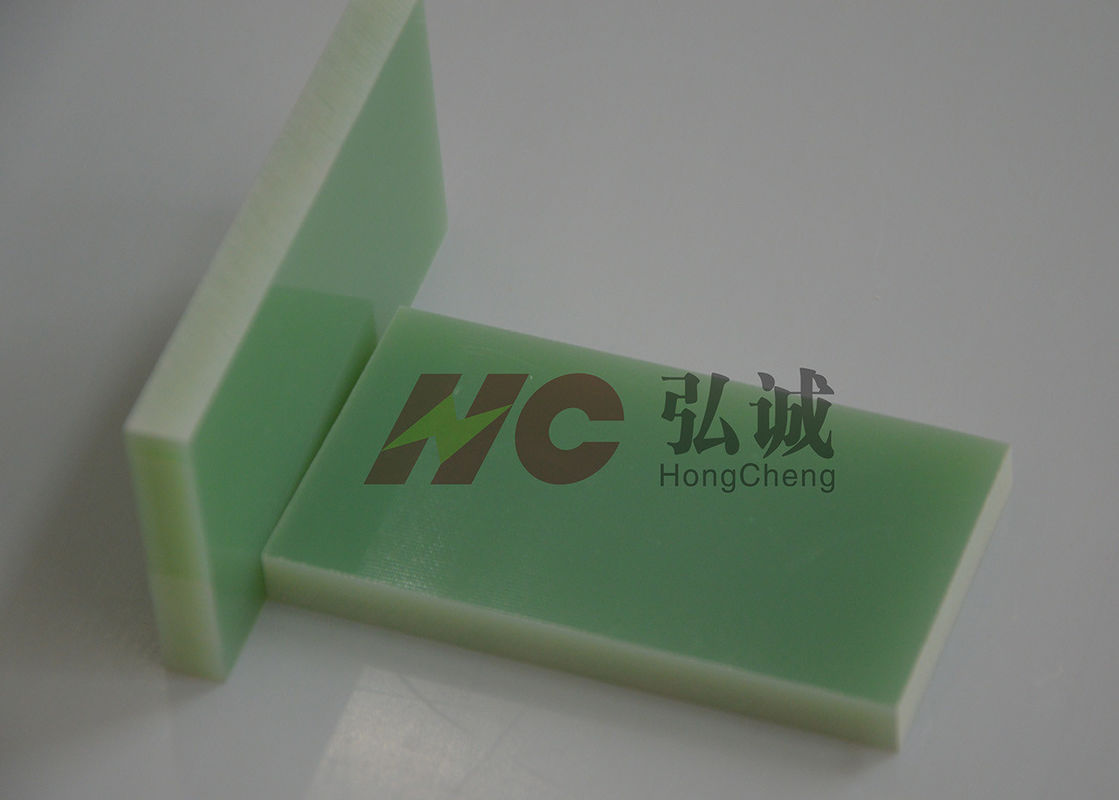

Low Smoke Fiberglass Laminate Sheet / Epoxy Glass Fibre Sheet For Rail Vehicles

Low Smoke Fiberglass Laminate Sheet / Epoxy Glass Fibre Sheet For Rail Vehicles

  • High Light

    fr4 epoxy glass sheet

    ,

    g10 fr4 sheet

  • Product Name:
    FR4 Epoxy Sheet
  • IEC Standard
    EPGC202
  • German Standard:
    Hgw2372.1
  • Product Thickness:
    0.2mm-120.0mm
  • Product Size:
    1020*1220;1220*2040;1220*2440
  • Place of Origin
    China
  • Brand Name
    Hongcheng
  • Certification
    SGS/UL/RoHS 2.0/Reach
  • Model Number
    FR 4 / EPGC202 / Hgw2372.1
  • Minimum Order Quantity
    Nogociation accepted
  • Packaging Details
    crate packing ,pallet,carton
  • Delivery Time
    5-8 work days
  • Payment Terms
    T/T

Low Smoke Fiberglass Laminate Sheet / Epoxy Glass Fibre Sheet For Rail Vehicles

high flame retardant & low smoke FR4 epoxy sheet/ low smoke EPGC202 sheet specified for rail vehicles


Product Introduction:

high flame retardant & low smoke FR4 epoxy sheet are made of woven glass cloth impregnated with epoxy thermosetting resin,laminated under high temperature and high pressure ,the woven glass cloth shall be alkali-free and treated by silane couple



Feature:

EPGC sheets(thermal class B-H),producer as per IEC60893-3-2,These sheets have excellent mechanical strength(the thermal state retension rate can reach over 50%)under medium temperature or the thermal state,as well as the stable electric properties(the insulation resistance after immersion reachers 10^12Ω)in high humidity condition .and also with higher voltage end urance /withstand voltage (over 35KV),parallel to laminated ,and they also have excellent flame retardant property.the sheets also passed the toxic and hazadous substance detection(RoHS Report)



Application:

high flame retardant & low smoke FR4 epoxy sheet used as the insulating structure parts in class B-h electric motors,electric equipments,which has flame resistance requirements or not,or other applications.



Thickness:0.2mm-120mm



Sheeet Size:1020*1220;1220*2040



UL certification:E344098

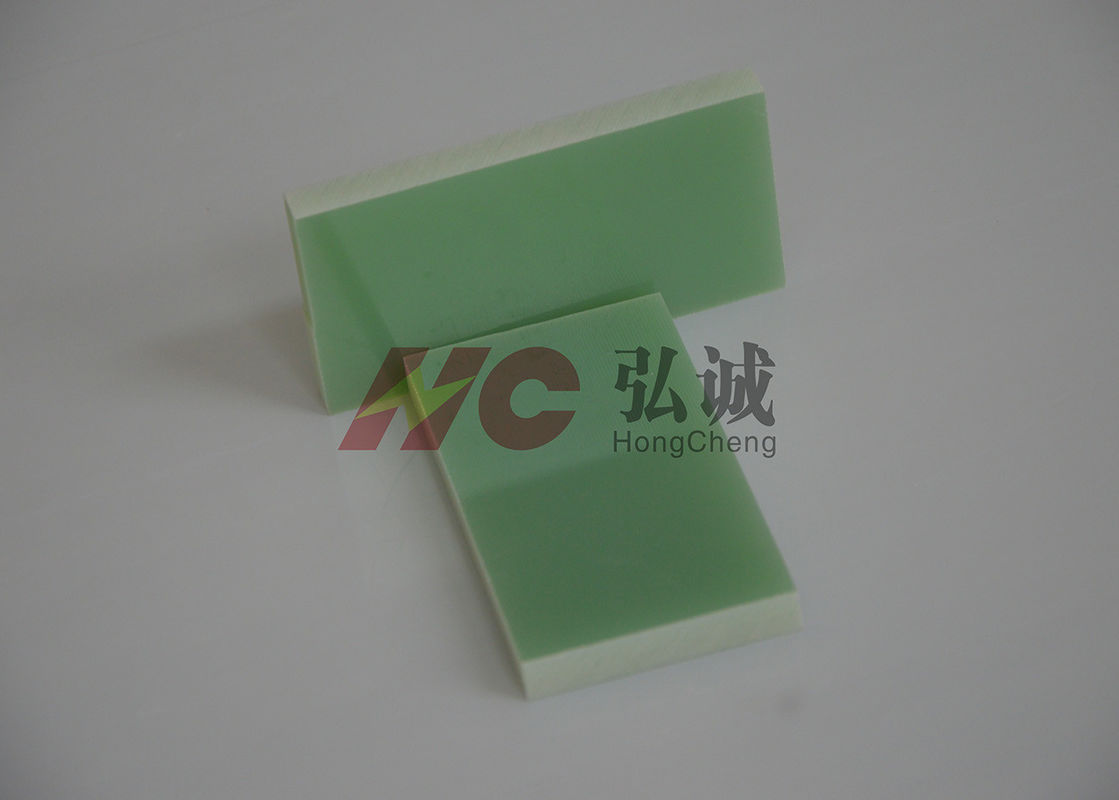

Low Smoke Fiberglass Laminate Sheet / Epoxy Glass Fibre Sheet For Rail Vehicles 0


Hong Cheng Grade HC-FR-4
IEC 893/EN 60893 Grade EPGC 202
ANSI (NEMA) Grade NEMA LI-1 FR-4
DIN 7735 Hgw2372.1
JIS GRADE EL-GEF

Item Test method Unit Typical Values
Physical Properties Color Visual inspection Light green / yellow
Specific Gravity IEC 60893-2:2003 g/cm3 1.90 - 2.15
Water absorption ISO 62:2008 % <0.3
Electrical Properties Electric strength ┴ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
Breakdown Voltage // IEC 60893-2:2003 KV ≥ 60
Volume Resistivity IEC 60093:1980 Ω.m ≥ 1.0×1012
Surface Resistivity IEC 60093:1980 Ω ≥ 1.0×1014
(1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
(1MHZ)Dissipation Factor IEC 60893-2:2003 0.04-0.05
Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
Insulation resistance after immersion 24Hrs in Water IEC 60893-2:2003 Ω ≥ 5×1010
Mechanical Properties Flexural Strength ┴ IEC 60893-2:2003 MPa ≥ 340
Charpy Impact strength // IEC 60893-2:2003 KJ/m2 ≥60
TensileStrength IEC 60893-2:2003 MPa ≥300
//Bond Strength // IEC 60893-3-4:2003 N ≥8000
Compressive Strength┴ IEC 60893-2:2003 MPa ≥ 350
Flame Resistance Properties Flame resistance IEC 60893-2:2003 V-0
Temperature Index IEC 60085:2004 155
Toxicant Content E662 Low
Others Acetone Resistance boiled Min 30(OK)




high flame retardant & low smoke FR4 epoxy sheet used in Industrial Equipment

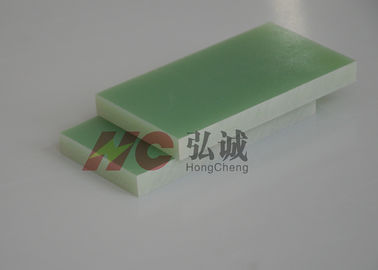

Low Smoke Fiberglass Laminate Sheet / Epoxy Glass Fibre Sheet For Rail Vehicles 1

The industrial equipments refer to machinery manufacturing equipment, electromechanical integrated equipment, medical equipment, household appliance, central air conditioning compressor etc. The application of insulation material in industrial equipment is different, the emphasis is excellent mechanical performance ,easy to install, environmental protection and seal etc. The commonly materials used in it are HC-GPO3/HC-FR4
