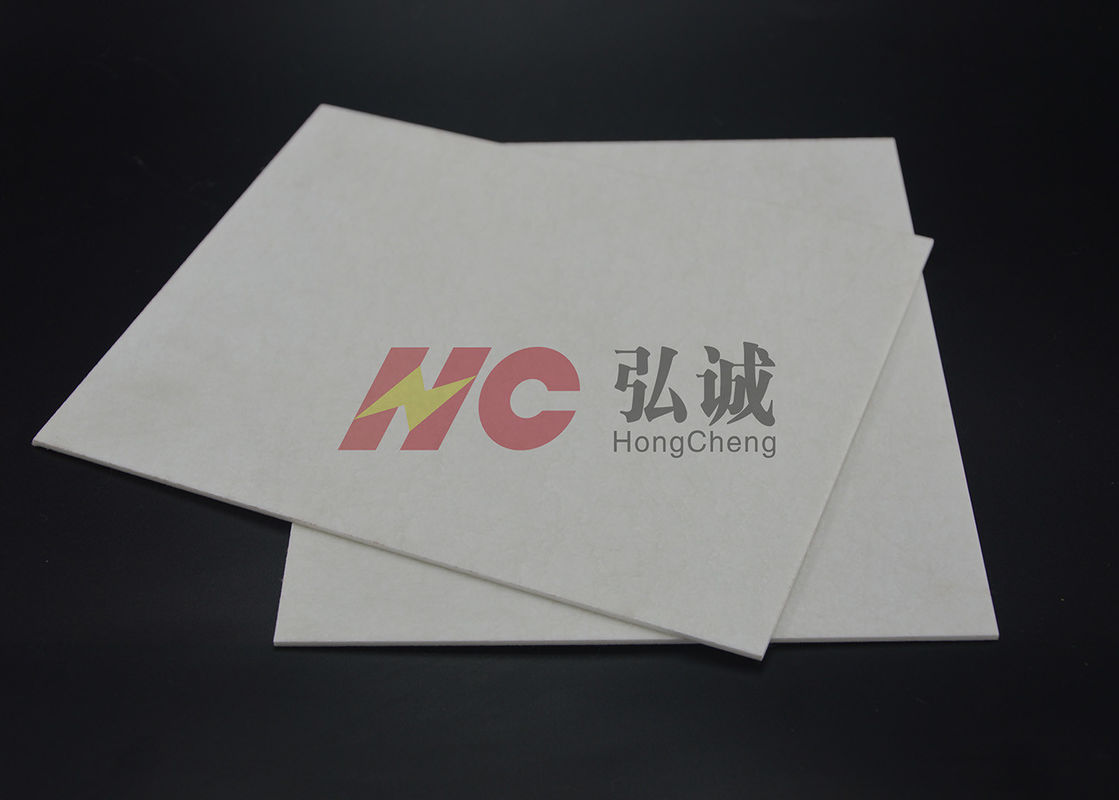

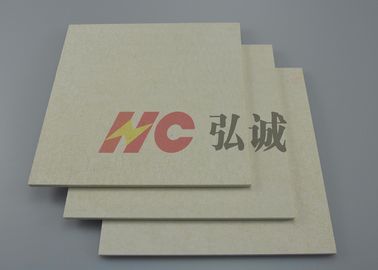

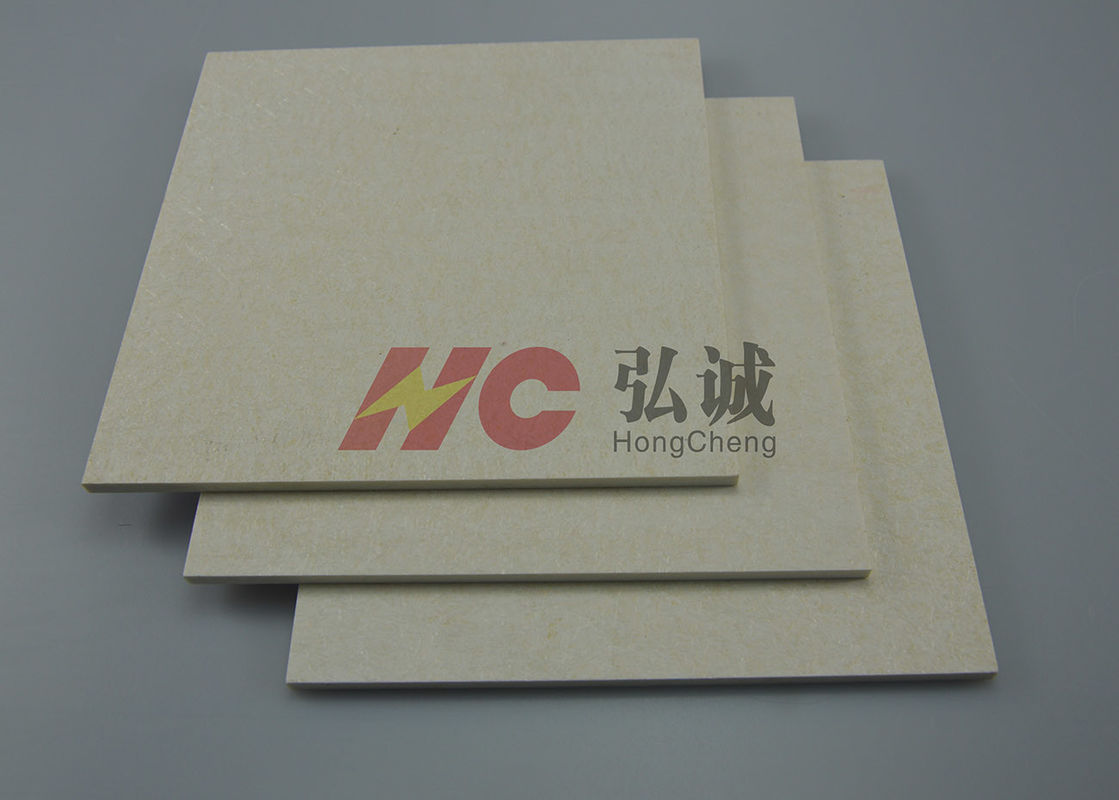

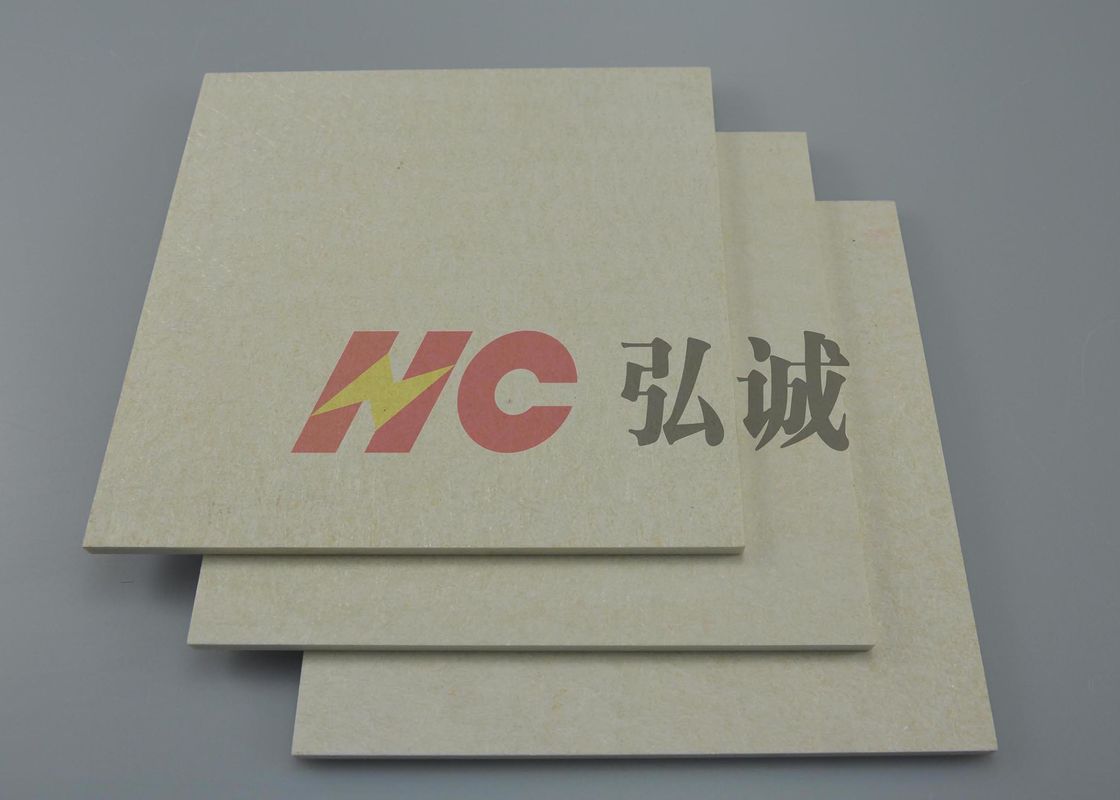

UPGM205 Unsaturated Polyester Sheet Excellent Fire Resistance 0.5mm - 80.0mm Thickness

    • UPGM205 Unsaturated Polyester Sheet Excellent Fire Resistance 0.5mm - 80.0mm Thickness
    • UPGM205 Unsaturated Polyester Sheet Excellent Fire Resistance 0.5mm - 80.0mm Thickness
    • UPGM205 Unsaturated Polyester Sheet Excellent Fire Resistance 0.5mm - 80.0mm Thickness
  • UPGM205 Unsaturated Polyester Sheet Excellent Fire Resistance 0.5mm - 80.0mm Thickness

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach
    Model Number: UPGM205

    Payment & Shipping Terms:

    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: UPGM205 Sheet IEC Standard: UPGM205
    Product Color: White Thickness: 0.5mm-80.0mm
    Product Size: 1000*1200

    UPGM205,Unsaturated polyester,Polyester sheet(H-class),upgm205



    Product Description:

    UPGM205 sheet is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.Compared with GPO-3 in the tensile strength and the full strength to do the corresponding upgrade .



    Product Advantages:

    1. More Excellent Mechanical Strength than GPO-3 Sheet(Under high temperature, the tensile strength and bending strength are better.)
    2. Excellent Arc Resistance(Arc Resistance≥180 S)
    3. Excellent Track Resistance(CTI≥600V)
    4. Excellent Heat Resistance(Class F)
    5. Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
    6. Excellent Fire Retardant(UL 94 V-0 Grade)
    7. Low Smoke,Halogen Free Products(NF-F16-101/102)
    8. RoHS,Reach Certified products

    Product Applications:



    UPGM205 sheet is used extensively in low & middle voltage electrical epuipment as insulating structures ,such as circuit breaker ,switchear,transformer,converter,inverter & explosion-proof apparatus etc.in electrical apparatus:making of phase & end barriers,contact terminal supports,terminal plate,insulating supports,bus bar supports and mounting panels in switchgear;and signal panels in other types of electrical apparatus;and electric melting furnace insulations.

    UPGM205 Unsaturated Polyester Sheet Excellent Fire Resistance 0.5mm - 80.0mm Thickness


    Hong Cheng Grade HC-FR-5
    IEC 893/EN 60893 Grade EPGC 204
    ANSI (NEMA) Grade NEMA LI-1 FR-5
    DIN 7735 Hgw2372.4
    JIS GRADE EL-GEHF

    Item Test method Unit Typical values
    Physical properties color Visual inspection White
    Specific gravity IEC 60893-2:2003 g/cmP3P 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical properties Electric strength⊥ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    breakdown voltage∥ IEC 60893-2:2003 KV ≥ 60
    Volume resistivity IEC 60093:1980 Ω.m ≥ 1.0×10P12
    Surface resistivity IEC 60093:1980 Ω ≥ 1.0×10P14
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation factor IEC 60893-2:2003 0.04-0.05
    PTI Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    24H IEC 60893-2:2003 Ω ≥ 5×10P10P
    Insulation resistance after immersion 24Hre in water
    Mechanical properties Flexural strength⊥ IEC 60893-3-4:2003 MPa ≥ 340
    Charpy Impact strength∥ IEC 60893-2:2003 KJ/mP2P ≥60
    Tensile Strength IEC 6089-2:2003 MPa ≥300
    Bond strength IEC 60893-3-4:2003 N ≥8000
    Compressive strength ⊥ IEC 60893-2:2003 MPa ≥ 350
    Flame resistance properties Flame resistance IEC 60893-2:2003 V-0
    Temperature index IEC 60085:2004 180
    Toxicant content E662 Low
    Other Acetone resistance Boiled Min 30(OK)

    UPGM205 Unsaturated polyester used in Reactive Power Compensator Cabinet

    UPGM205 Unsaturated Polyester Sheet Excellent Fire Resistance 0.5mm - 80.0mm Thickness

    Reactive power compensation cabinet can improve the power factor of power grid in power supply system, reduce the loss of power supply transformer and transmission line, improve power supply efficiency and improve power supply environment.Therefore, reactive power compensation device is a very important position in power supply system.The insulation material can support, carry heavy, insulate function,it has requirements of certain mechanical strength and electrical performance.
