|Place of Origin:||China Xiamen|
|Certification:||UL（E344098）/RoHS 2.0 /Reach /DIN5510|
|Minimum Order Quantity:||20 pcs|
|Price:||USD 3-5 per kg|
|Packaging Details:||pallet / carton|
|Product Name:||UPGM203 Sheet||Product Color:||Red Grinded|
|Water Absorption:||≤0.5%||Tensile Strength:||≥130Mpa|
|Compressive Strength:||≥300Mpa||Surface Resistivity:||≥ 1.0 X 1012Ω|

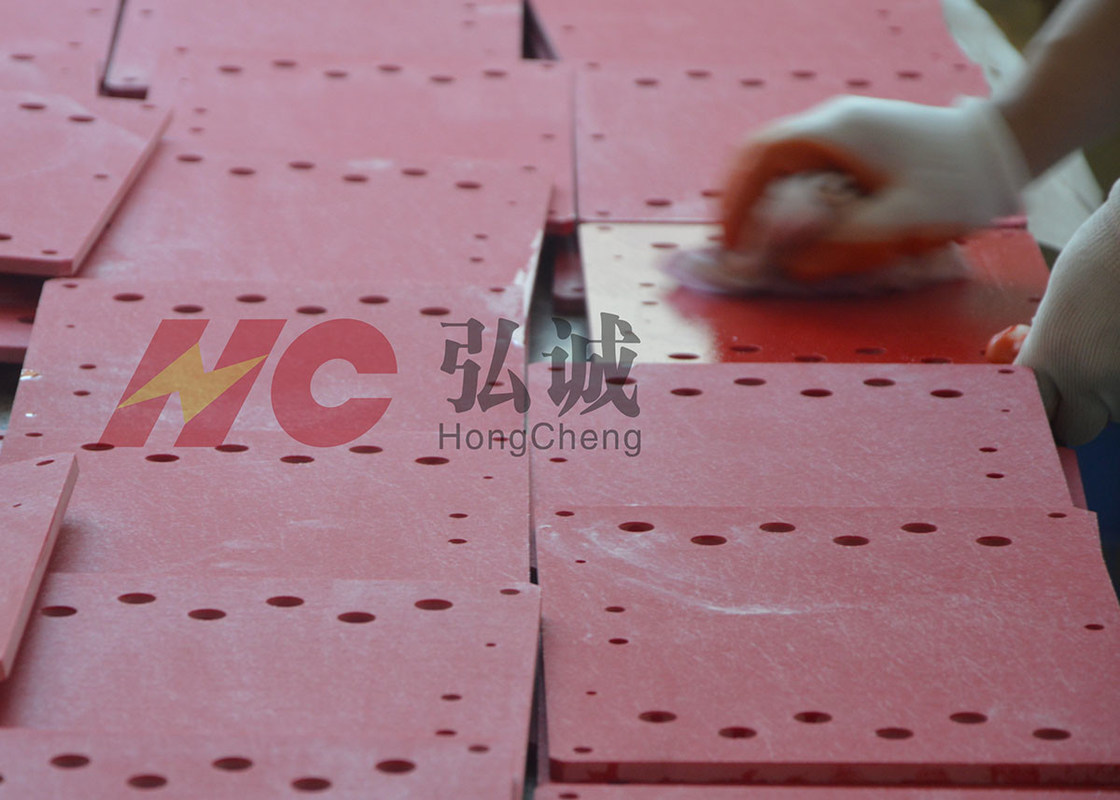

Top Factry red grinded UPGM203 insulating sheet with rosh reach,high compressive strength
Red grinded UPGM203 insulating sheet is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.
Excellent Arc Resistance(Arc Resistance≥180 S)
Excellent Track Resistance(CTI≥600V)
Excellent Heat Resistance(Class F)
Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
Excellent Fire Retardant(UL 94 V-0 Grade)
Low Smoke,Halogen Free Products(NF-F16-101/102)
RoHS,Reach Certified products
GPO-3 fiberglass Sheet are widely used in high-voltage appliance insulators, bus bar supports, and barriers and mounting panels in switch gear, as well as other types of electrical applications.
Top Factry red grinded UPGM203 insulating sheet used in Switch cabinet
Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
delivery detail: 5-7 working days
