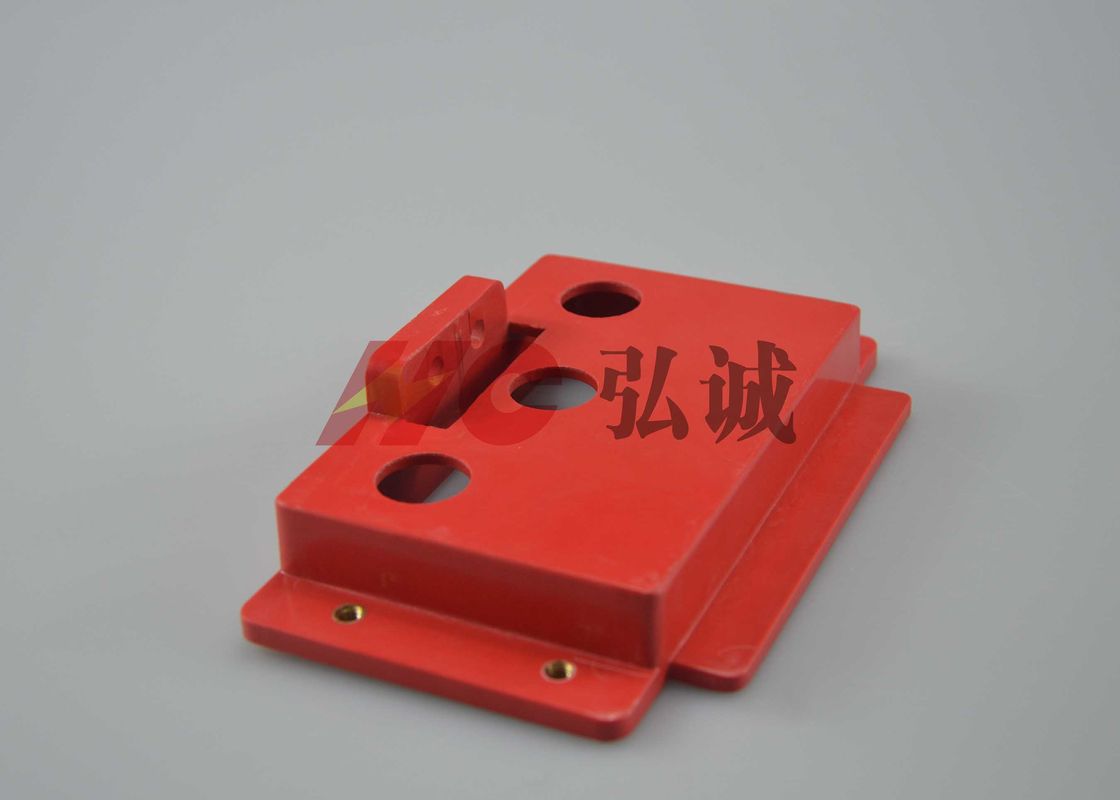

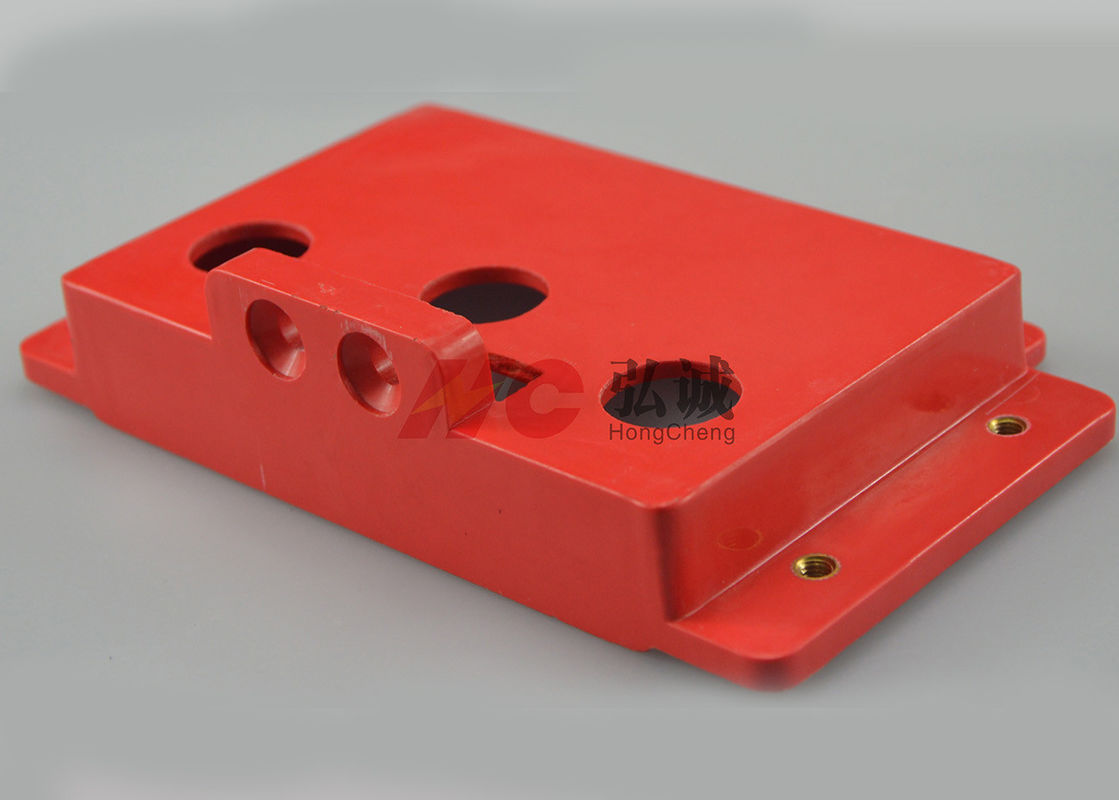

Multi Color SMC / BMC Mould Parts , DMC Mould Parts 12KV Voltage Withstand
-
High Light
smc mould parts
,bmc mould parts
-
Product NameSMC/BMC/DMC Mould Parts
-
Product ColorRed/White/Gray/ Yellow
-
Tensile Strength650Mpa
-
Voltage Withstand12KV
-
Torgue Strength12（FT LBS）
-
Srew6mm/8mm/10mm
-
Place of OriginXiamen China
-
Brand NameHongcheng
-
Model NumberDMC / BMC / SMC
Multi Color SMC / BMC Mould Parts , DMC Mould Parts 12KV Voltage Withstand
SMC/BMC/DMC mould parts / Customization SMC/BMC/DMC mould parts / mould insulation support
Product Name: | SMC/DMC/BMC molded parts |
Product Color: | White/Red |
Product Size: | Customized according to customer drawing |
Product Feature:
Compared to similar methods, SMC benefits from a very high volume production ability, excellent part reproducibility, it is cost effective as low labor requirements per production level is very good and industry scrap is reduced substantially.
Weight reduction, due to lower dimensional requirements and because of the ability to consolidate many parts into one, is also advantageous.
The level of flexibility also exceeds many counterpart processes.
Product Description:
SMC/DMC/BMC molded partsis made of glass fibre which is Immersion in unsaturated polyester and Vinyl resin,It is a thermosetting material which is made by heat pressing.
| Hong Cheng Grade | HC-DMC/BMC | |||
| Item | Test method | Unit | Values | |
| Physical Properties | Density | ASTM D792 | g/cm3 | 1.80 - 1.95 |
| Water absorption | ASTM D570 | % | ≤0.3 | |
| Molding shrinkage | ASTM D955 | % | ≤0.1 | |
| Temperature of deflection under load | ASTM D648 | ℃ | ≥240 | |
| Mechanical Properties | Izod impact strength(notched) | ASTM D256 | Jcm | ≥7.8 |
| Flexural Strength | ASTM D790 | MPa | ≥160 | |
| Tensile Strength | ASTM D638 | MPa | ≥60 | |
| Compressive Strength | ASTM D695 | MPa | ≥100 | |
| Electrical Properties | Electric strength ( in transformer oil 90℃) | ASTM D149 | MV/m | ≥13 |
| Arc resistance | ASTM D495 | s | ≥180 | |
| Flammability | Flammability | UL94 | class | V-0 |
SMC/BMC/DMC mould parts used in The molded case circuit breaker
The molded case circuit breaker is also called a device breaker ,all parts are sealed in plastic shell, the touch head, arc-suppression , release devices and operating mechanism are assembled in a plastic casing through modularization.Generally, maintenance is not considered ,it suitable for branch protection switch ,overcurrent tripping device has two types: thermally magnetic and electronic.The arc-suppression plate in the structure is mainly used for the thin plate and the arc resistance HC-GPO3 ,arc-suppression plate acts as a protective effects.
Main famous cooperative enterprises: ABB,Schneider(APC),Siemens,HUYU Group Co.,Ltd.Electrical Components & Automation Jiangsu Daqo Kfine Electric Co., Ltd.
