Xiamen Hongcheng Insulating Material Co., Ltd.

Stable Structure Customization Mould Product High Compressive Strength

    • Stable Structure Customization Mould Product High Compressive Strength
    • Stable Structure Customization Mould Product High Compressive Strength
    • Stable Structure Customization Mould Product High Compressive Strength
    • Stable Structure Customization Mould Product High Compressive Strength
  • Stable Structure Customization Mould Product High Compressive Strength

    Product Details:

    Place of Origin: Xiamen of China
    Brand Name: Hongcheng
    Model Number: DMC / BMC / SMC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 thousand
    Packaging Details: plywood crate packing,plywood pallet,cartons
    Delivery Time: 25-35 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: High Flexural Strength Mould Parts Product Color: Red/White/Gray
    Mould Life: 500 Thousand-1 Million Shipment: By Sea,air Or Express
    Molding Shrinkage: <0.1% Tensile Strength: ≥60Mpa

    High Compressive strength Mould parts with stable structure / mould parts Compressive strength up to 100Mpa

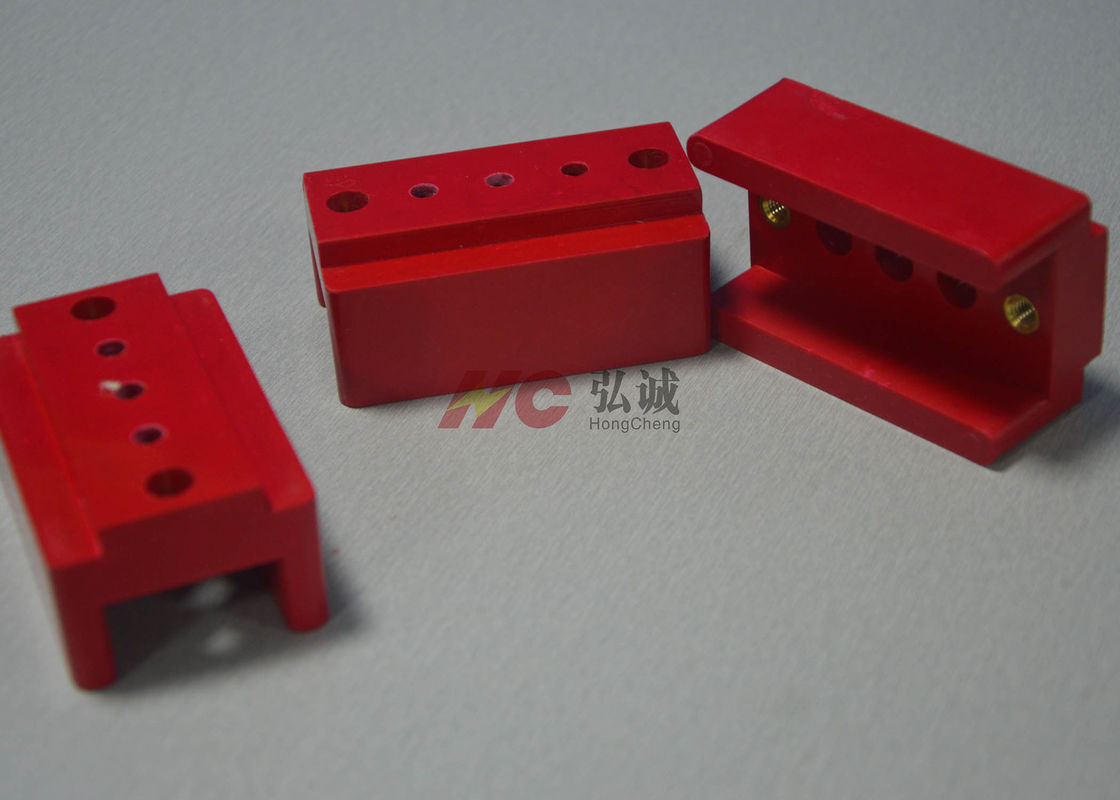

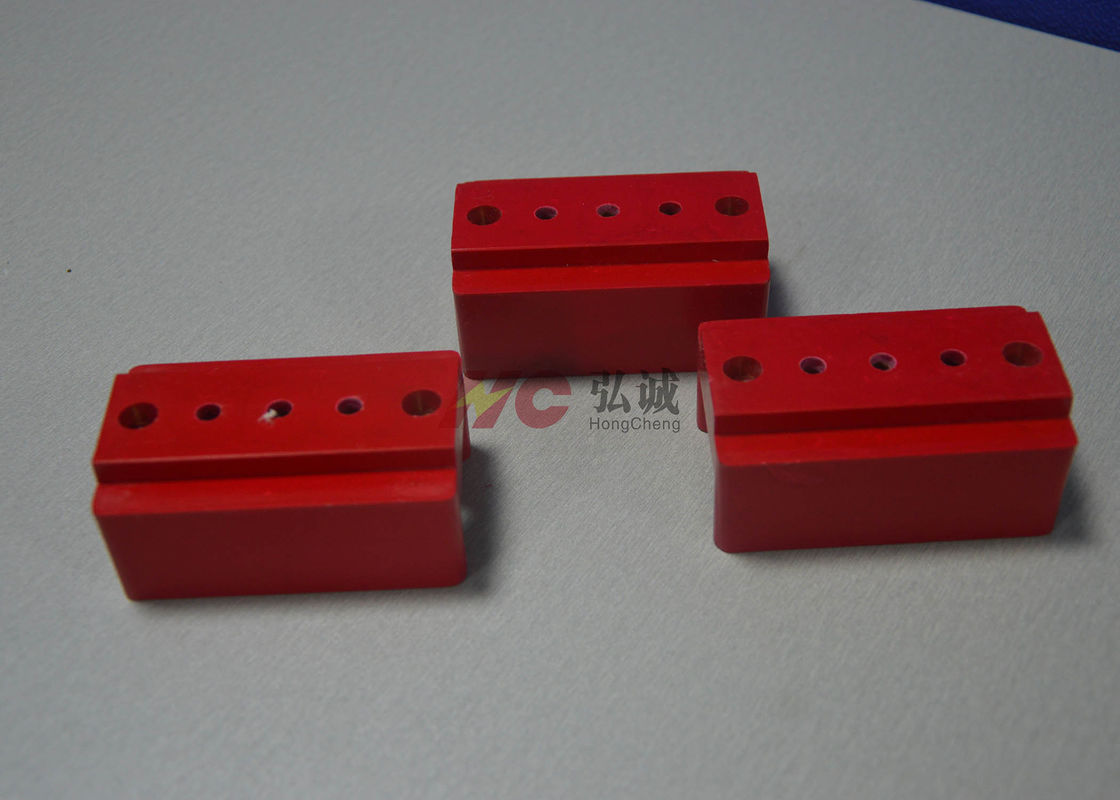

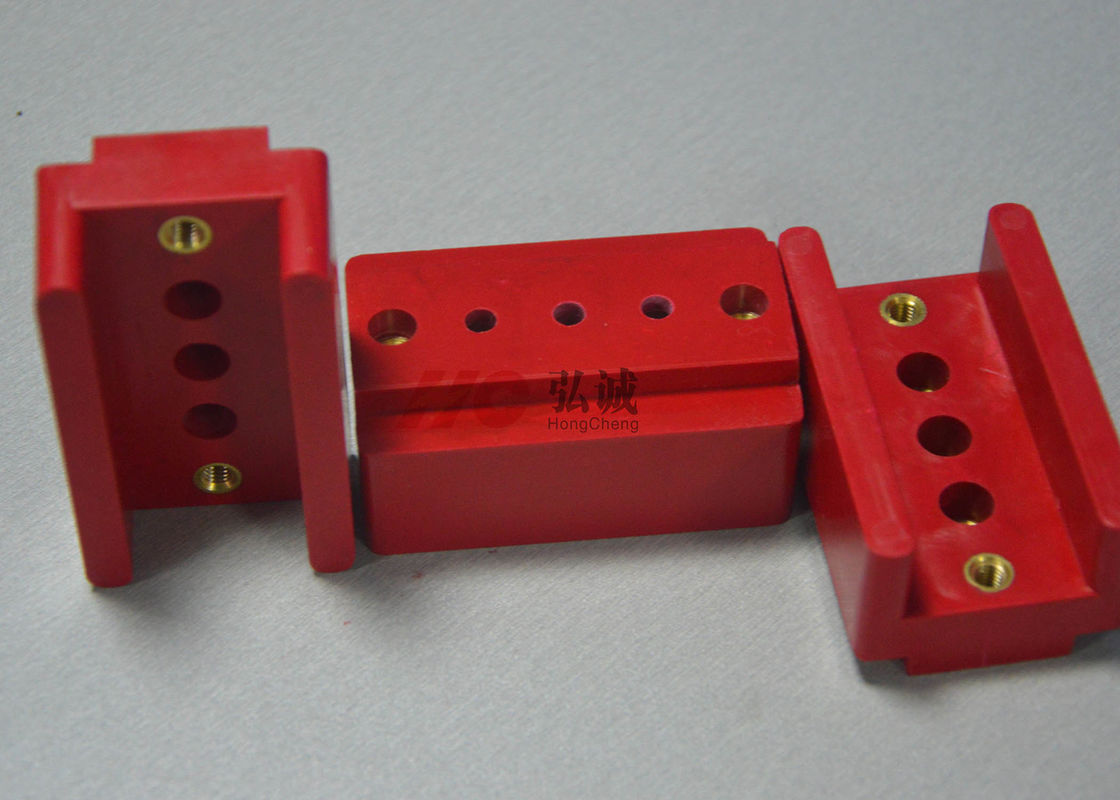

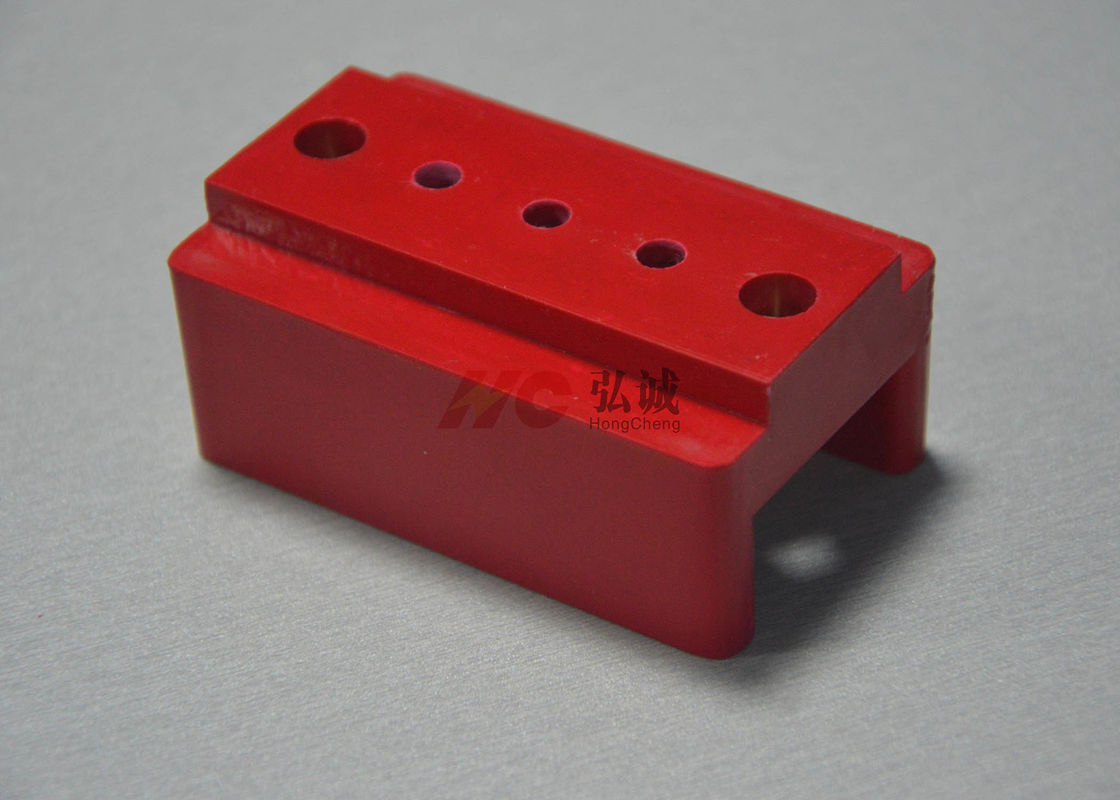

    Product Name:High Compressive strength Mould parts


    Product Description:

    High Compressive strength Mould parts made of glass fibre which is Immersion in unsaturated polyester and Vinyl resin,It is a thermosetting material which is made by heat pressing.


    Product Advantages:
    1. Compared to similar methods, SMC benefits from a very high volume production ability, excellent part reproducibility, it is cost effective as low labor requirements per production level is very good and industry scrap is reduced substantially.
    2. Weight reduction, due to lower dimensional requirements and because of the ability to consolidate many parts into one, is also advantageous.
    3. The level of flexibility also exceeds many counterpart processes.Stable Structure Customization Mould Product High Compressive Strength


    Hong Cheng Grade HC-DMC/BMC
    Item Test method Unit Values
    Physical Properties Density ASTM D792 g/cm3 1.80 - 1.95
    Water absorption ASTM D570 % ≤0.3
    Molding shrinkage ASTM D955 % ≤0.1
    Temperature of deflection under load ASTM D648 ≥240
    Mechanical Properties Izod impact strength(notched) ASTM D256 Jcm ≥7.8
    Flexural Strength ASTM D790 MPa ≥160
    Tensile Strength ASTM D638 MPa ≥60
    Compressive Strength ASTM D695 MPa ≥100
    Electrical Properties Electric strength ( in transformer oil 90℃) ASTM D149 MV/m ≥13
    Arc resistance ASTM D495 s ≥180
    Flammability Flammability UL94 class V-0
