|Place of Origin:||China|
|Model Number:||DMC / BMC / SMC|
|Minimum Order Quantity:||10 thousand|
|Packaging Details:||plywood crate packing,plywood pallet，cartons|
|Delivery Time:||25-35 working days|
|Product Name:||Customization BMC / DMC Mould Parts||Product Color:||Red/White/Gray|
|Mould Life:||500 Thousand-1 Million||Water Absorption:||＜0.3%|
|Molding Shrinkage:||＜0.1%||Temperature Of Deflection Under Load:||≥240℃|

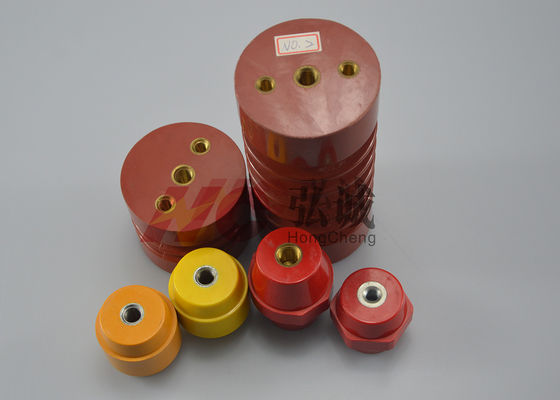

Multi specifications Insulator / Customization SMC Insulator
Customization SMC Insulator
Customized according to customer drawing
SMC Insulator is made of glass fibre which is Immersion in unsaturated polyester and Vinyl resin,It is a thermosetting material which is made by heat pressing.
Compared to similar methods, SMC benefits from a very high volume production ability, excellent part reproducibility, it is cost effective as low labor requirements per production level is very good and industry scrap is reduced substantially.
Weight reduction, due to lower dimensional requirements and because of the ability to consolidate many parts into one, is also advantageous.
The level of flexibility also exceeds many counterpart processes.
|Hong Cheng Grade||HC-DMC/BMC|
|Physical Properties||Density||ASTM D792||g/cm3||1.80 - 1.95|
|Water absorption||ASTM D570||%||≤0.3|
|Molding shrinkage||ASTM D955||%||≤0.1|
|Temperature of deflection under load||ASTM D648||℃||≥240|
|Mechanical Properties||Izod impact strength(notched)||ASTM D256||Jcm||≥7.8|
|Flexural Strength||ASTM D790||MPa||≥160|
|Tensile Strength||ASTM D638||MPa||≥60|
|Compressive Strength||ASTM D695||MPa||≥100|
|Electrical Properties||Electric strength ( in transformer oil 90℃)||ASTM D149||MV/m||≥13|
|Arc resistance||ASTM D495||s||≥180|
Our Factory Advantage:
With the professional materials background and non-metallic materials processing experiences ,Our company has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further processing of spare parts..
