Home ProductsCustomization Mould Product

High Tolerance Customized Mould Parts Product Excellent Part Reproducibility

High Tolerance Customized Mould Parts Product Excellent Part Reproducibility

    • High Tolerance Customized Mould Parts Product Excellent Part Reproducibility
    • High Tolerance Customized Mould Parts Product Excellent Part Reproducibility
    • High Tolerance Customized Mould Parts Product Excellent Part Reproducibility
    • High Tolerance Customized Mould Parts Product Excellent Part Reproducibility
  • High Tolerance Customized Mould Parts Product Excellent Part Reproducibility

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Model Number: SMC/BMC

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 thousand
    Packaging Details: plywood crate packing,plywood pallet,cartons
    Delivery Time: 35 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Shipment: By Sea,air Or Express Molding Shrinkage: ≤0.1%
    Temperature Of Deflection Under Load: ≥240℃ Color: White/red/yellow
    MOQ: 1000PCS Certification: DIN5510

    High tolerance Customization Mould Product have DIN5510 Certification,EN45545 certification



    Product Name: High tolerance Customization Mould Product

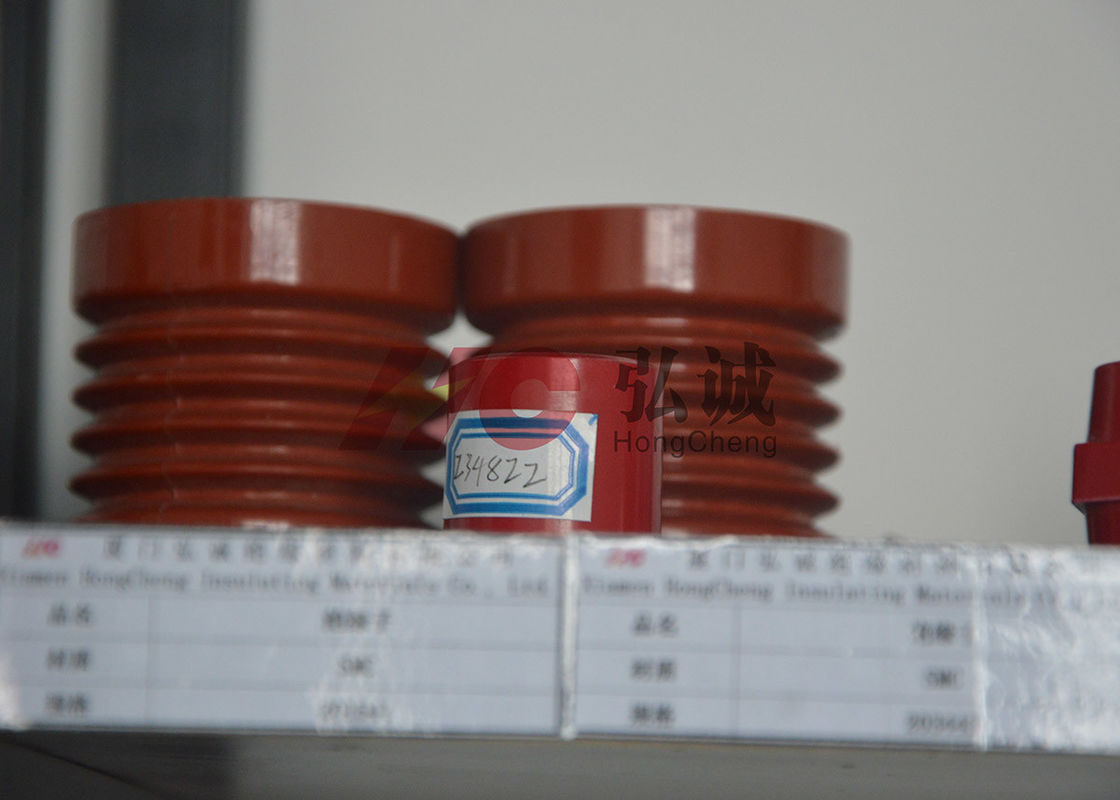

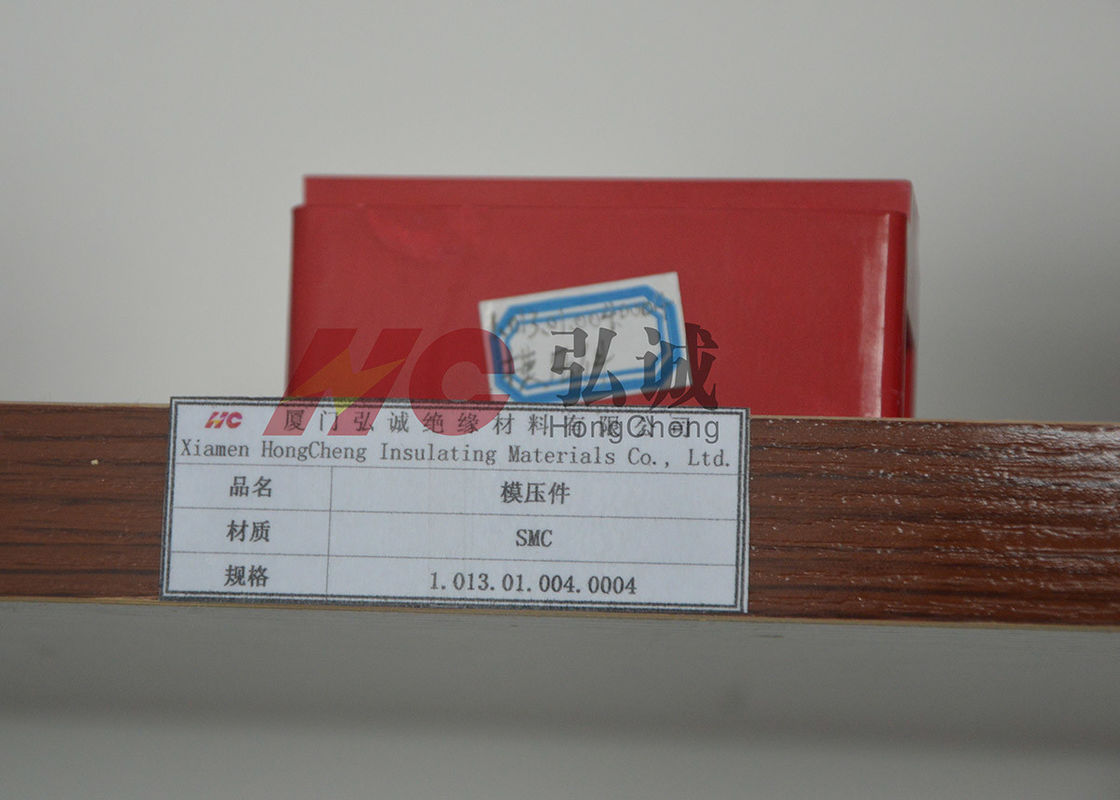

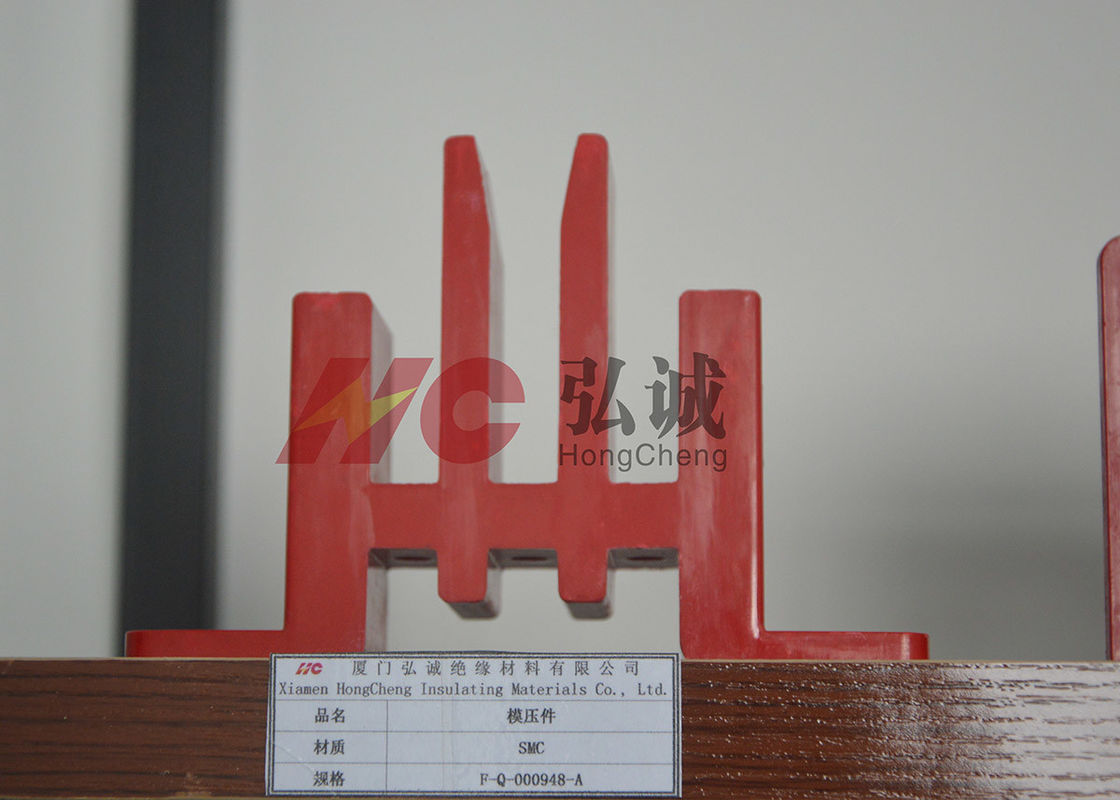

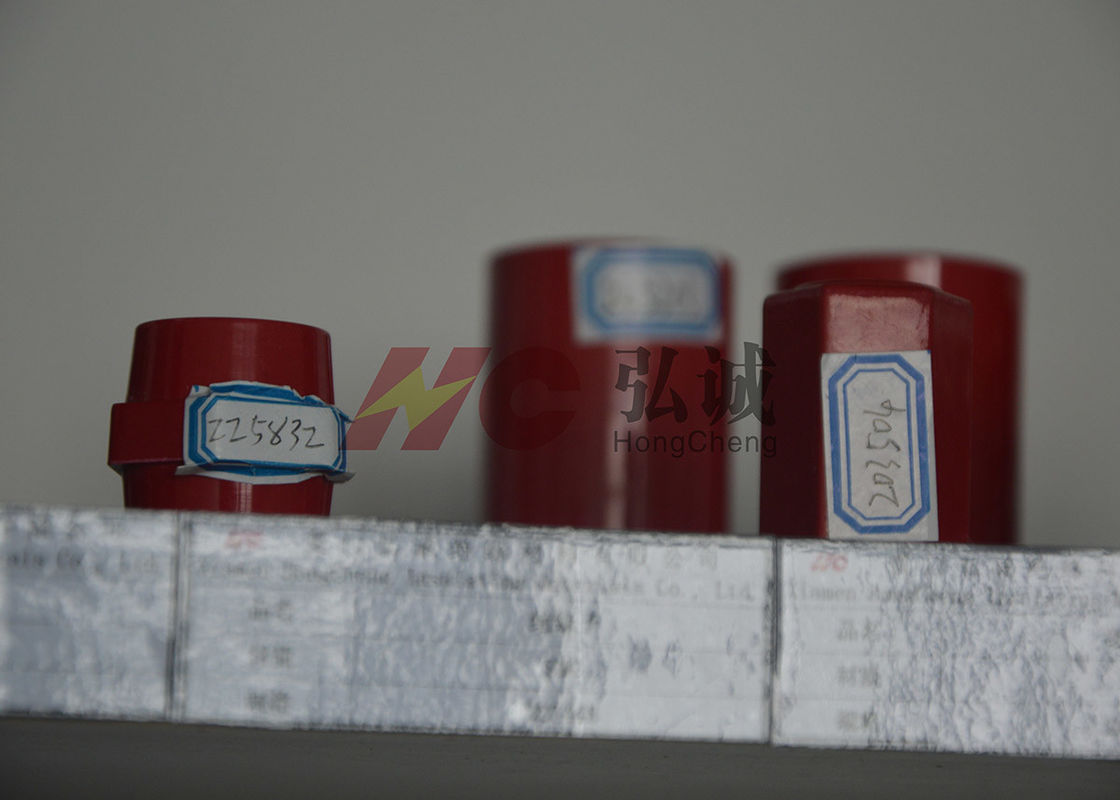

    Product Description: SMC/DMC/BMC molded partsis made of glass fibre which is Immersion in unsaturated polyester and Vinyl resin,It is a thermosetting material which is made by heat pressing.
    Product Advantages: 1. Compared to similar methods, SMC benefits from a very high volume production ability, excellent part reproducibility, it is cost effective as low labor requirements per production level is very good and industry scrap is reduced substantially.
    2. Weight reduction, due to lower dimensional requirements and because of the ability to consolidate many parts into one, is also advantageous.
    3. The level of flexibility also exceeds many counterpart processes.






    Hong Cheng Grade HC-DMC/BMC
    Item Test method Unit Values
    Physical Properties Density ASTM D792 g/cm3 1.80 - 1.95
    Water absorption ASTM D570 % ≤0.3
    Molding shrinkage ASTM D955 % ≤0.1
    Temperature of deflection under load ASTM D648 ≥240
    Mechanical Properties Izod impact strength(notched) ASTM D256 Jcm ≥7.8
    Flexural Strength ASTM D790 MPa ≥160
    Tensile Strength ASTM D638 MPa ≥60
    Compressive Strength ASTM D695 MPa ≥100
    Electrical Properties Electric strength ( in transformer oil 90℃) ASTM D149 MV/m ≥13
    Arc resistance ASTM D495 s ≥180
    Flammability Flammability UL94 class V-0




    High tolerance Customization Mould Product  Used in  automatic electrical couplings and hand plugs in the rail sector



    Our mould parts are widely used in the signal and power transmission in rail-bound vehicles. The electric couplings are generally supplied with automatic and semi-automatic centre buffer couplings. These allow the coupling and decoupling of two or more tractor units to a train without additional manpower.

    Through the development of standard types and with the aid of a modular system, era-contact is able to put together customer-specific solutions quickly, flexibly and cost-efficiently.

    Four models in different sizes are connected via standardized interfaces with the mechanical coupling and the vehicle.

    The couplings correspond to the usual railway standards in terms of mechanical, electrical, safety, environmental and fire protection requirements.

    High Tolerance Customized Mould Parts Product Excellent Part Reproducibility
