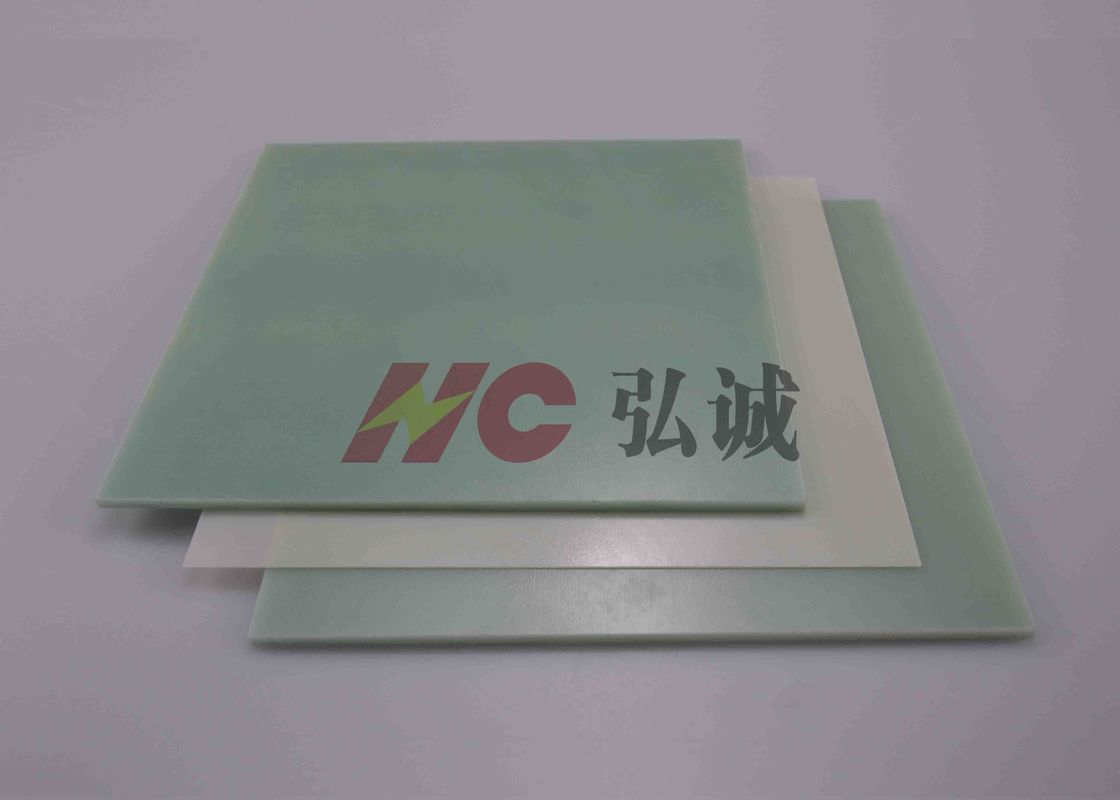

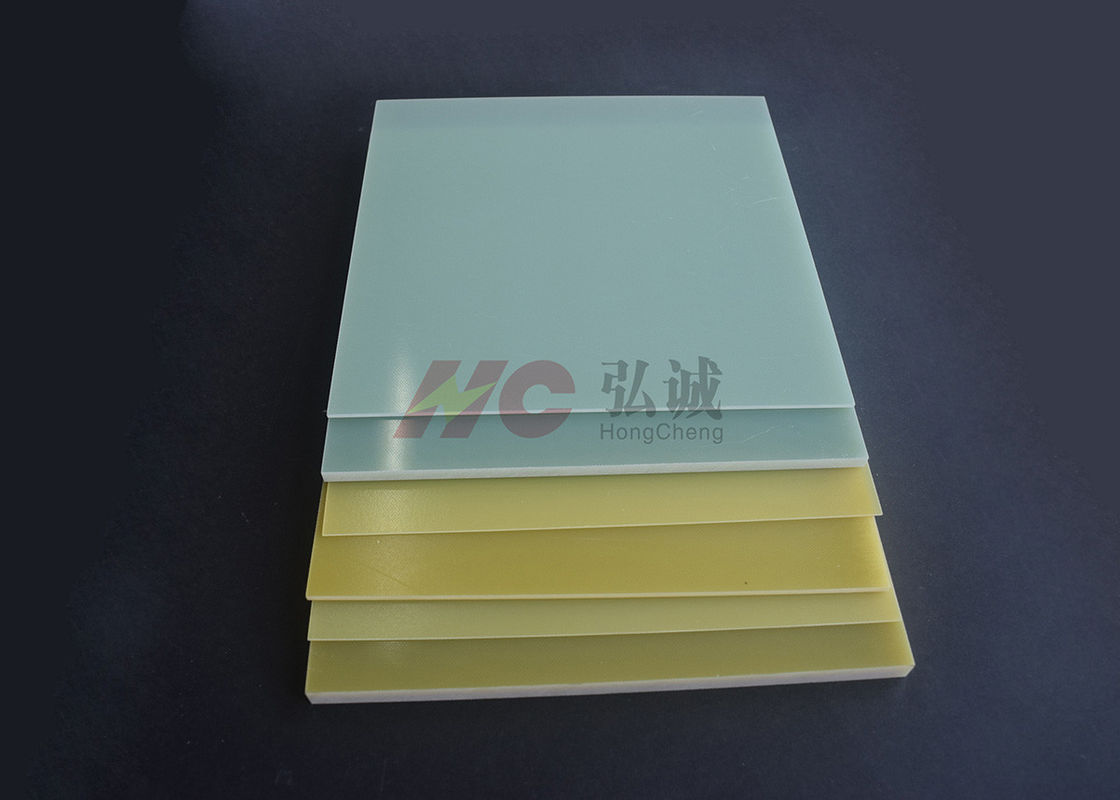

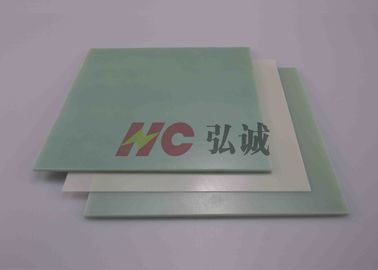

H - Class Epoxy Fiberglass Sheet With Compressive Strength And Flexural Strength

H - Class Epoxy Fiberglass Sheet With Compressive Strength And Flexural Strength

    • H - Class Epoxy Fiberglass Sheet With Compressive Strength And Flexural Strength
    • H - Class Epoxy Fiberglass Sheet With Compressive Strength And Flexural Strength
    • H - Class Epoxy Fiberglass Sheet With Compressive Strength And Flexural Strength
  • H - Class Epoxy Fiberglass Sheet With Compressive Strength And Flexural Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: SGS/RoHS/Reach/UL
    Model Number: EPGC204/ FR5

    Payment & Shipping Terms:

    Packaging Details: plywood pallet/cartons/ plywood crate pakcing
    Delivery Time: 1-3 work days
    Payment Terms: T/T
    Supply Ability: 300 pieces per day
    Contact Now
    Detailed Product Description
    Product Name: FR5 Product Color: White/Light Green
    Density: 2.1g/cm3 Heat Resistance: 180℃(Class H)
    Water Absorption: <0.3% Electric Strength⊥: ≥13KV
    Breakdown Voltage∥: >60KV

     FR5 epoxy sheet(H-class) with compressive strength and flexural strength / FR5 sheet with high strength


    Product Name: FR-5(H)epoxy sheet
    IEC Standard EPGC204
    NEMA Standard FR-5
    German Standard Hgw2372.4
    Product Color: White
    Product Thickness: 0.2mm-80.0mm
    Product Size:: 1020*1220;

    Product Description:

    FR-5 (H Class)white epoxy glass fiber cloth laminated sheet series are the high temperature resistant rigid plate insulating materials joint developed by ISOLA Taiwan and our company.



    Application:

    1. High-voltage motor and electrical equipment as insulating structure: high-tension switch cubible,transformer,frequency changer,Converter,DC motor,AC contactor

    2. Switch cubicle:bursting disk,lining plate,arc extinguishing chamber,arcing cylinder,arcing piece,flash barrier,wiring board,terminal plat insulating supports

    3. Strut member and bus bar supports


    Feature:

    1. High temperature resistance more than 180℃
    2. Excellent Fire Retardant(UL 94 V-0 Grade)
    3. Excellent Voltage Resistance(electric strength ≥16KV/mm)
    4. Excellent Water Resistance(Water absorption ≤0.2%)
    5. Excellent Heat Resistance(Class F)
    6. Excellent thermal impact resistance(Temp.Index:-273℃ to +180℃)
    7. Excellent mechanical processability &high degree of automation processing
    8. RoHS,Reach Certified products

    Hong Cheng Grade HC-FR-5
    IEC 893/EN 60893 Grade EPGC 204
    ANSI (NEMA) Grade NEMA LI-1 FR-5
    DIN 7735 Hgw2372.4
    JIS GRADE EL-GEHF

    Item Test method Unit Typical values
    Physical properties color Visual inspection White
    Specific gravity IEC 60893-2:2003 g/cmP3P 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical properties Electric strength⊥ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    breakdown voltage∥ IEC 60893-2:2003 KV ≥ 60
    Volume resistivity IEC 60093:1980 Ω.m ≥ 1.0×10P12
    Surface resistivity IEC 60093:1980 Ω ≥ 1.0×10P14
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation factor IEC 60893-2:2003 0.04-0.05
    PTI Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    24H IEC 60893-2:2003 Ω ≥ 5×10P10P
    Insulation resistance after immersion 24Hre in water
    Mechanical properties Flexural strength⊥ IEC 60893-3-4:2003 MPa ≥ 340
    Charpy Impact strength∥ IEC 60893-2:2003 KJ/mP2P ≥60
    Tensile Strength IEC 6089-2:2003 MPa ≥300
    Bond strength IEC 60893-3-4:2003 N ≥8000
    Compressive strength ⊥ IEC 60893-2:2003 MPa ≥ 350
    Flame resistance properties Flame resistance IEC 60893-2:2003 V-0
    Temperature index IEC 60085:2004 180
    Toxicant content E662 Low
    Other Acetone resistance Boiled Min 30(OK)

    Epoxy sheet are widely used in every kinds of switch cubicle such as bursting disk, arc extinguishing chamber, arcing cylinder, arcing piece, flash barrier, wiring board, terminal plate insulating supports; strut parts and bus bar supports in switchgear & transformer; the armature parts of electrical machine such as cover plate, slot wedge, stator , gasket , shims ,carbon brush etc. The epoxy glass fiber laminated sheet series are used much more extensively in consumer electronics, panel display and photovoltaic in recent years.

    H - Class Epoxy Fiberglass Sheet With Compressive Strength And Flexural Strength

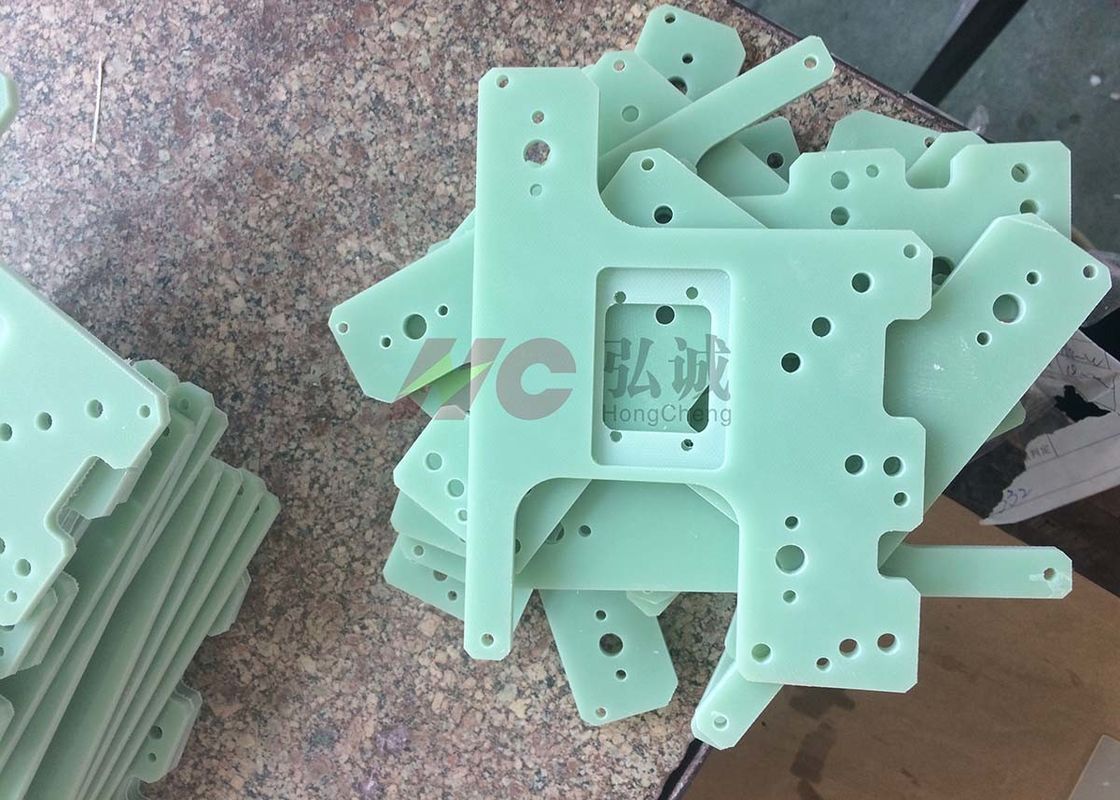

    Methods: CNC machining
    Application: Material thickness 0.5-100mm, machining tolerance according to the ISO 2768-M
    Advantages: 1.Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface;

    2.We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost.

    3.To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time .

    4.The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time.

    5.The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining.
