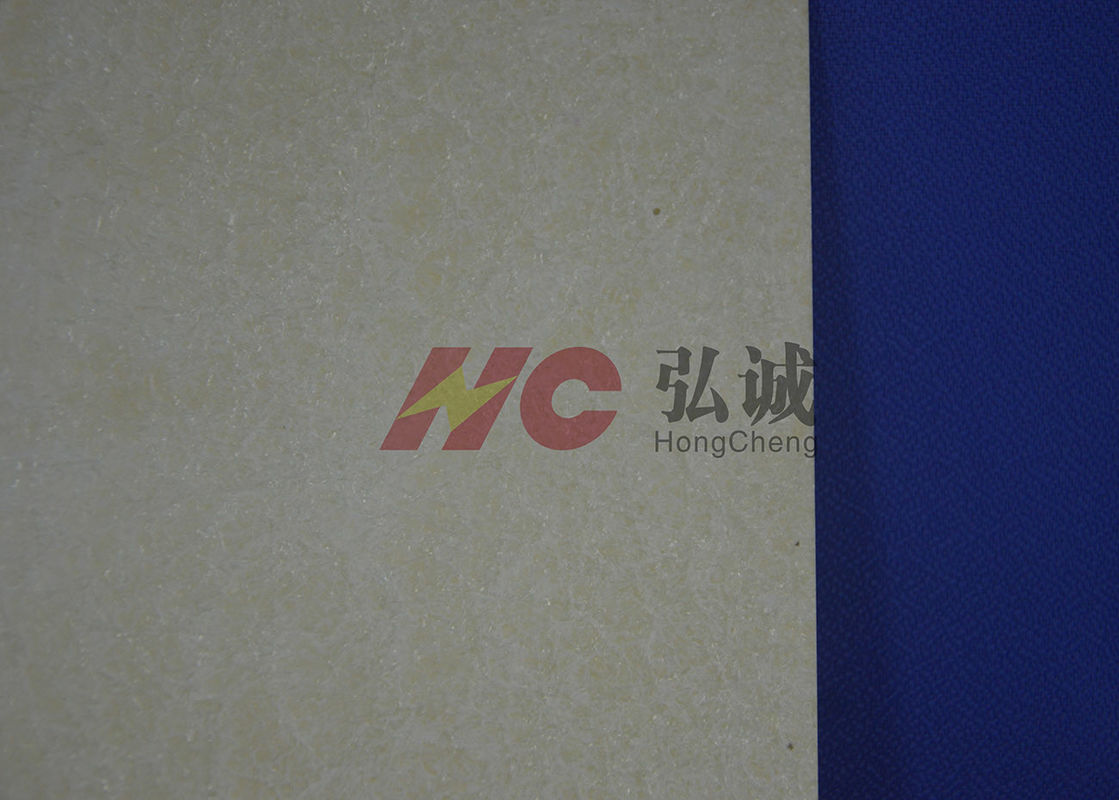

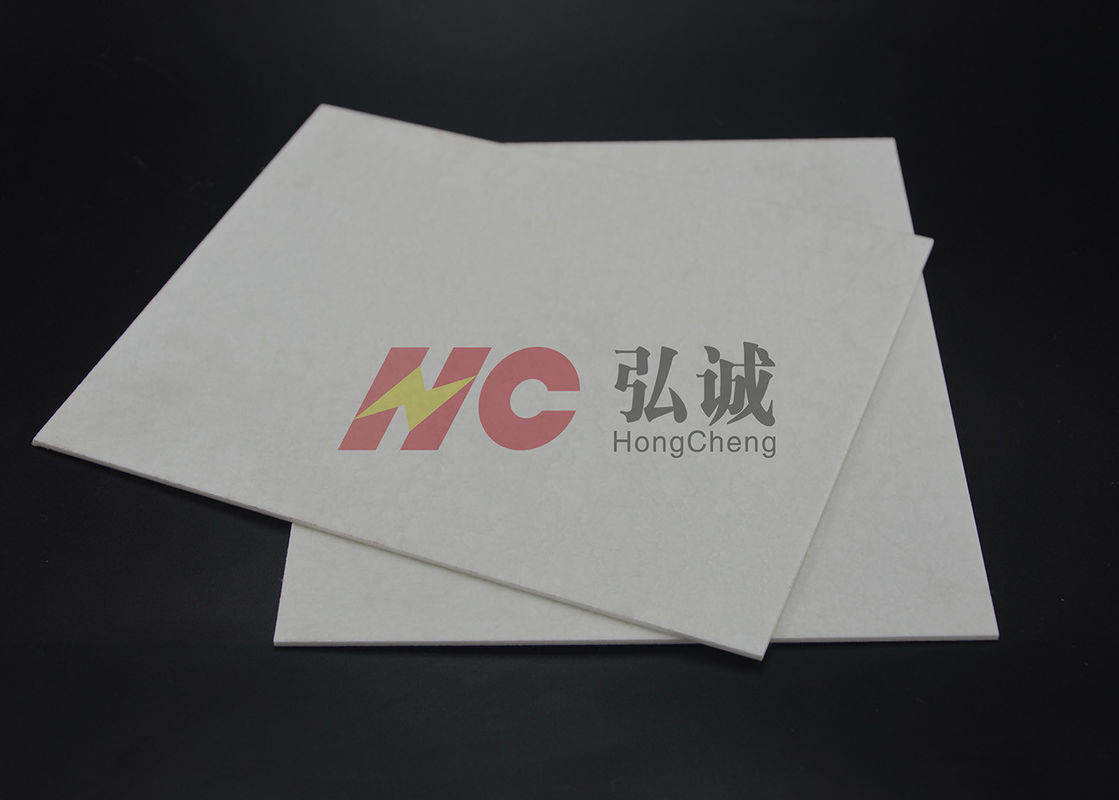

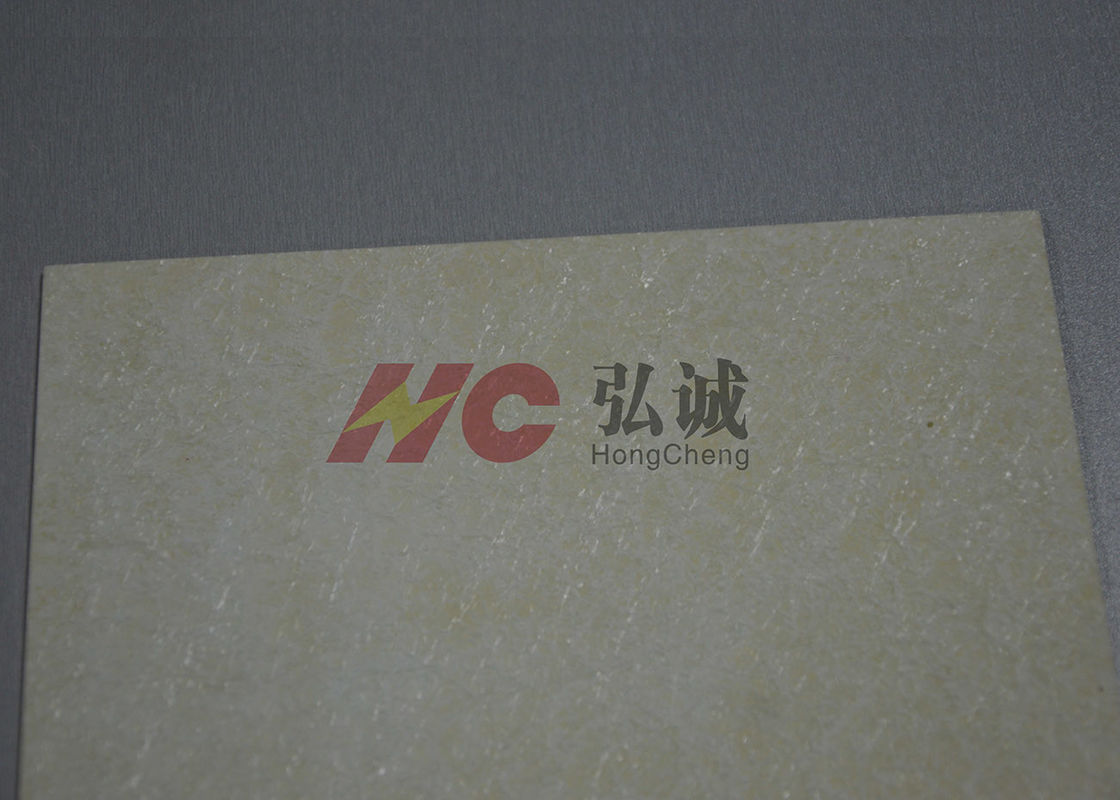

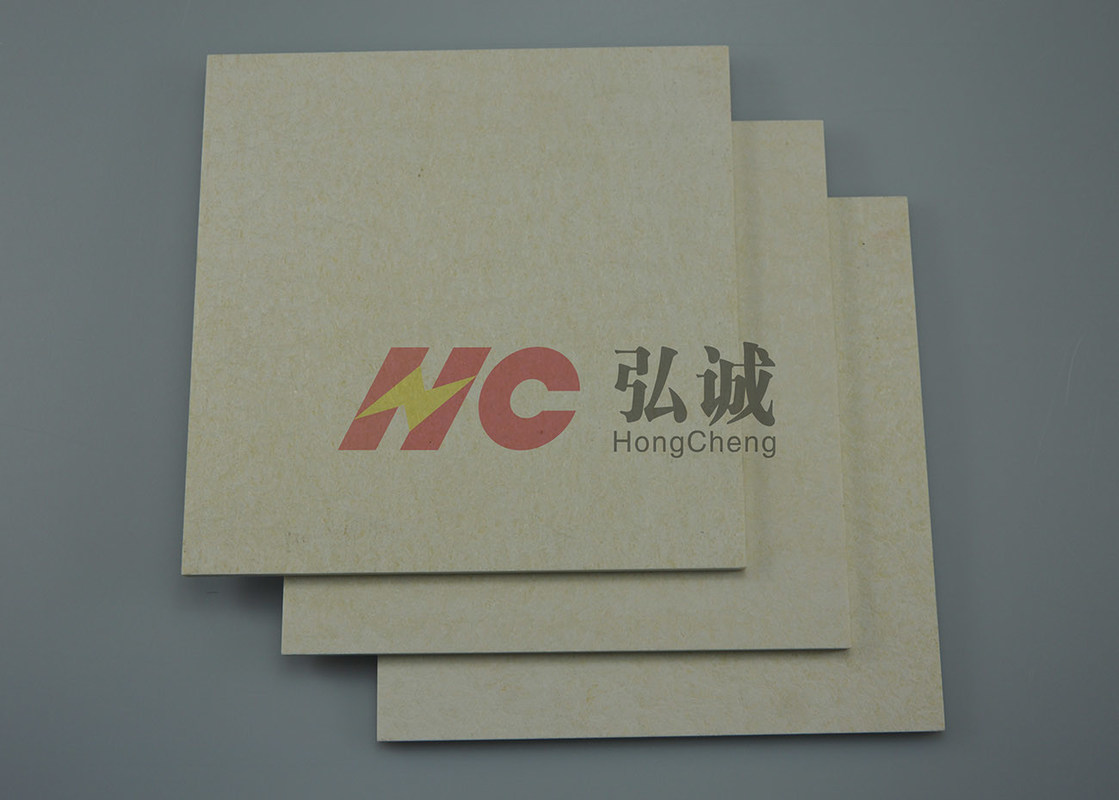

Halogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABB

    • Halogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABB
    • Halogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABB
    • Halogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABB
    • Halogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABB
  • Halogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABB

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach
    Model Number: UPGM205

    Payment & Shipping Terms:

    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: UPGM205 Sheet IEC Standard: UPGM205
    Product Color: White Thickness: 0.5mm-80.0mm
    Product Size: 1000*1200

    UPGM205 specified for ABB / upgm205 with high merchanical propertied


    Product Introduction:

    UPGM205 sheet is rigid laminated sheet made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.Compared with GPO-3 in the tensile strength and the full strength to do the corresponding upgrade .

    Product Advantages:

    More Excellent Mechanical Strength than GPO-3 Sheet(Under high temperature, the tensile strength and bending strength are better.)

    Excellent Arc Resistance(Arc Resistance≥180 S)

    Excellent Track Resistance(CTI≥600V)

    Excellent Heat Resistance(Class F)

    Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)

    Excellent Fire Retardant(UL 94 V-0 Grade)

    Low Smoke,Halogen Free Products(NF-F16-101/102)

    RoHS,Reach Certified products



    UPGM205 sheet is used extensively in low & middle voltage electrical epuipment as insulating structures ,such as circuit breaker ,switchear,transformer,converter,inverter & explosion-proof apparatus etc.in electrical apparatus:making of phase & end barriers,contact terminal supports,terminal plate,insulating supports,bus bar supports and mounting panels in switchgear;and signal panels in other types of electrical apparatus;and electric melting furnace insulations.




    Hong Cheng Grade HC-UPGM205
    IEC 893 / EN 60893 Grade UP GM 205
    Items Test method Unit Typical Values
    Physical Properties Color Visual inspection ---- White
    Specific Gravity IEC 60893-2:2003 g/cm3 1.90-2.10
    Water absorption ISO62:2008 % ≤0.5
    Mechanical Tensile Strength IEC 60893-2:2003 Mpa ≥180
    Properties Compressive Strength IEC 60893-2:2003 ≥400
      Flexural Strength IEC 60893-2:2003 ≥250
      Modulus of Elasticity IEC 60893-2:2003 ≥15000
      Impact Strength IEC 60893-2:2003 KJ/m2 ≥70
    Electrical Insulation resistanceImmersion in water after 24 hrs IEC 60893-2:2003 Ω ≥1.0 x 109
    Properties Electric Strength - ┴ IEC 60893-2:2003 kV/mm ≥ 12
      Breakdown Voltage- // IEC 60893-2:2003 kV/25mm ≥ 80
      Arc resistance IEC 61621:1997 sec ≥180
      PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
      CTIComparative Tracking Index IEC 60893-2:2003 --- ≥600
      Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
      tgδ Dielectric Factor IEC 60893-2:2003 --- ≤0.05
    Thermal Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Properties Temp. Index IEC 60085:2004 155
    Flame Resistance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Properties Flame Resistance IEC 60893-2:2003 --- V-0(≥3.2mm)
      Toxicant (Emission halogen etc.) E662 --- Low
      Smoke index NF F 16-101 --- F1
    Other Halogen(Cl,Br) BS EN 14582:2007 mg/kg N.D.
    The anti microbial properties of bacteria G21-G22   Good

    Halogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABBHalogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABBHalogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABBHalogen Free UPGM 205 Insulation Sheet High Mechanical Properties For ABB

    Processing Advantages:

    Advantages: 1.Proficient in advanced programming software, such as: Mcam9.1, UG software programming , to meet the requirements of machining on complex surface;

    2.We have a senior R&D engineers team and the team have the ability in designing the fixture independently to meet production requirements of high quality , high yield and lower cost.

    3.To meet the customers’ requirements , company owned dozens of high-precision CNC equipments to short the delivery time .

    4.The company have dozens of No.850&No.650 CNC machining center (with tool storage) , these machines can be used to complete multistep processes of complex parts at one-time.

    5.The company owned several Large gantry CNC machines in 1000*1200mm , large panel parts can be completed at one-time by high-precision processing and avoid deviation from machining.

    Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.This provides an stability guarantee of material for further
