    Product Name: UPGM205 Sheet IEC Standard: UPGM205
    Product Color: White Thickness: 0.5mm-80.0mm
    Product Size: 1000*1200

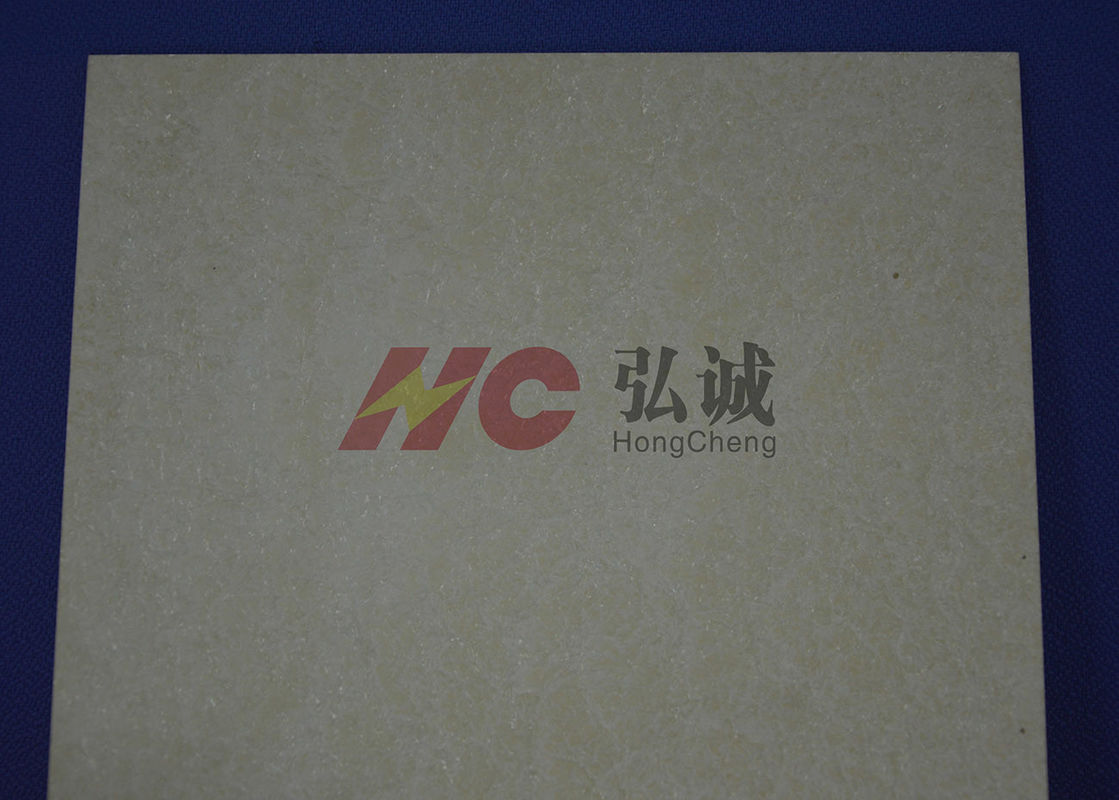

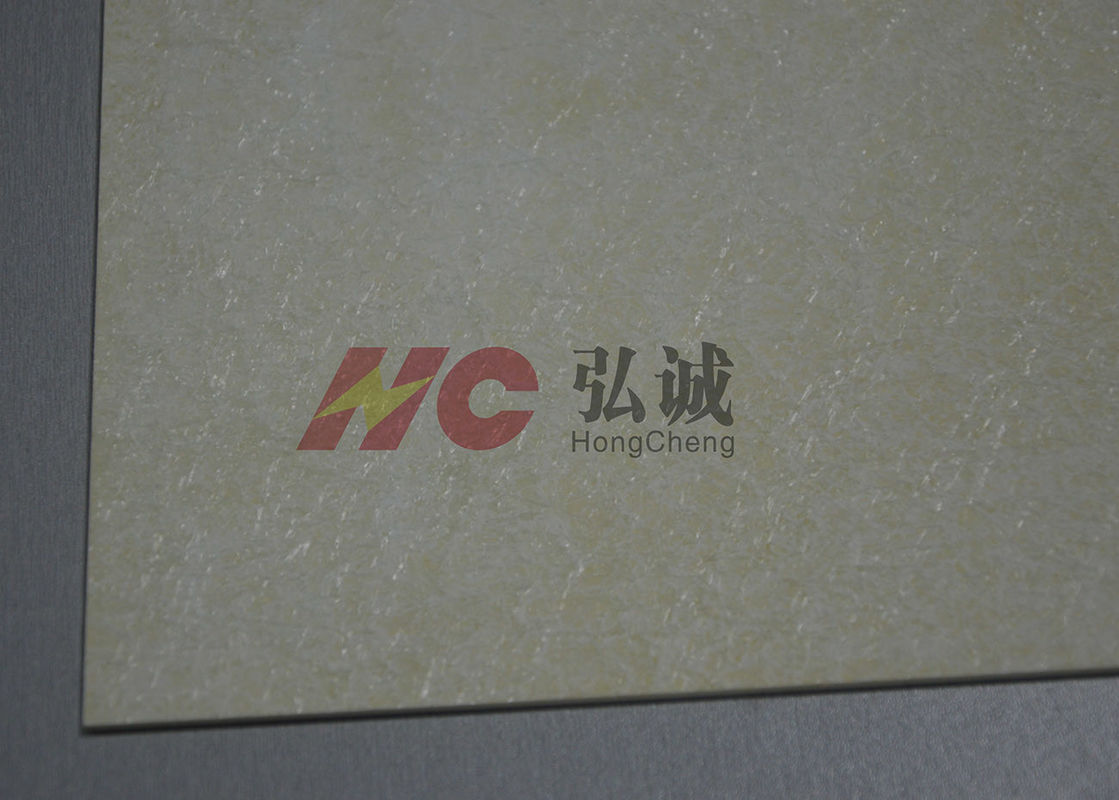

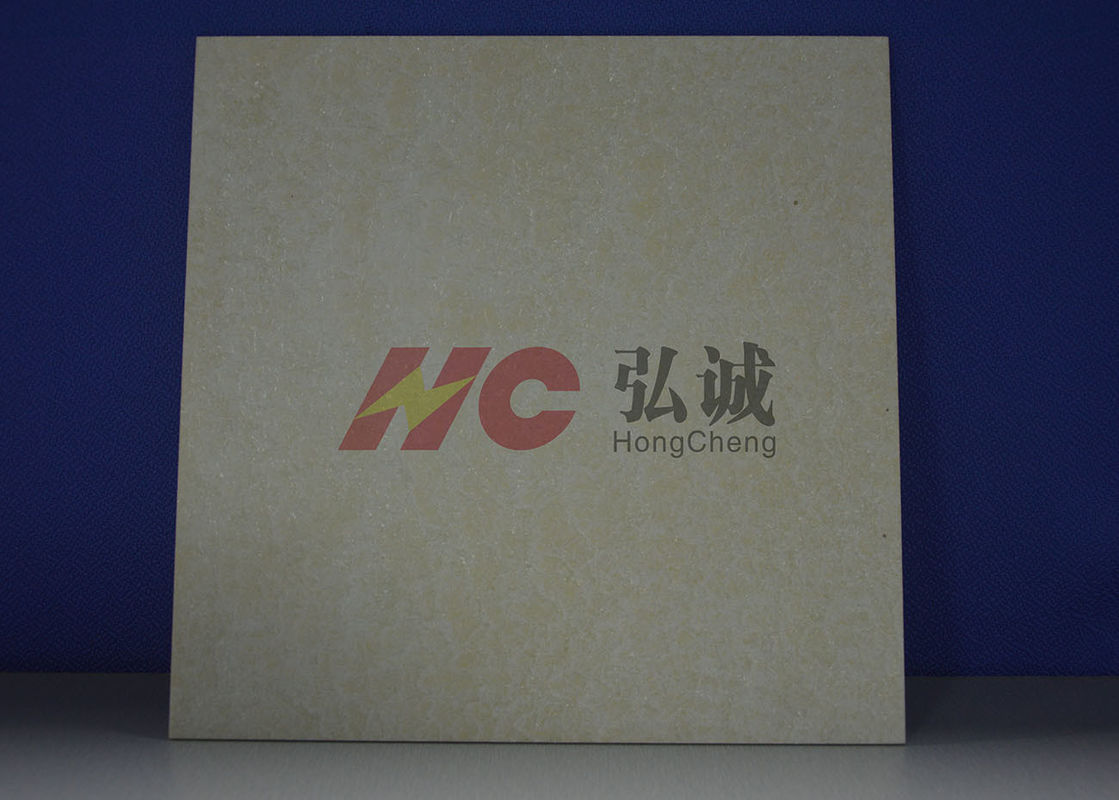

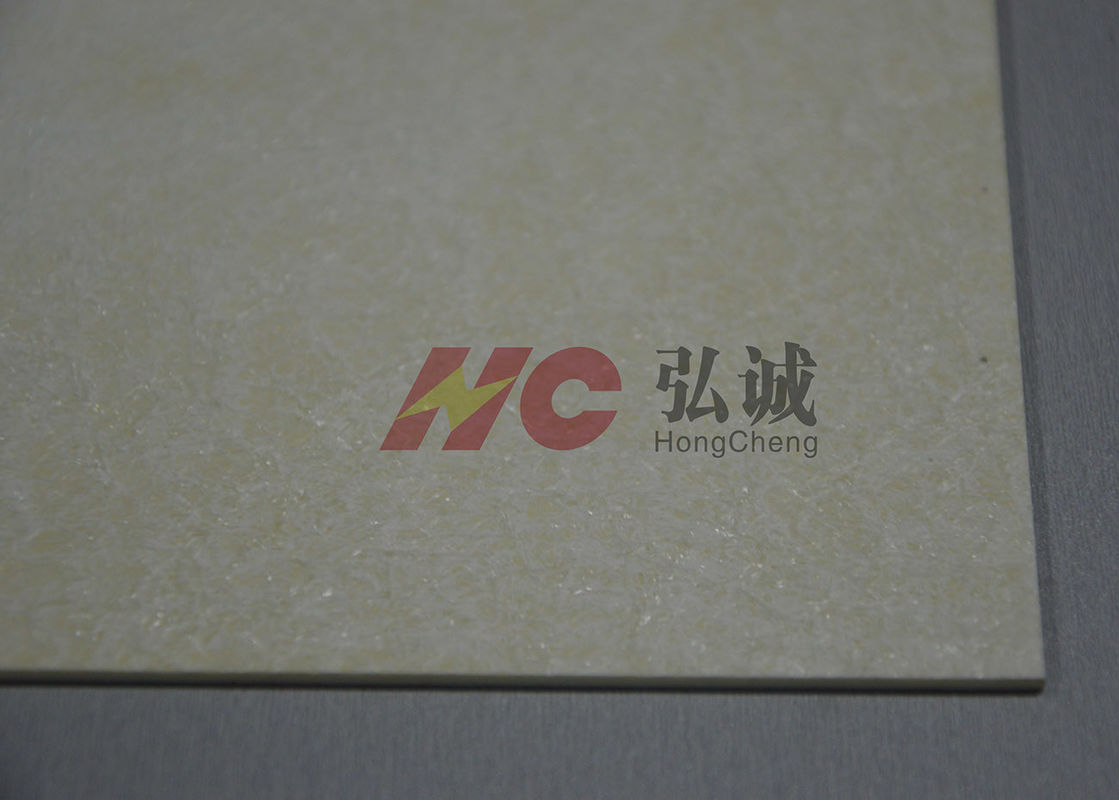

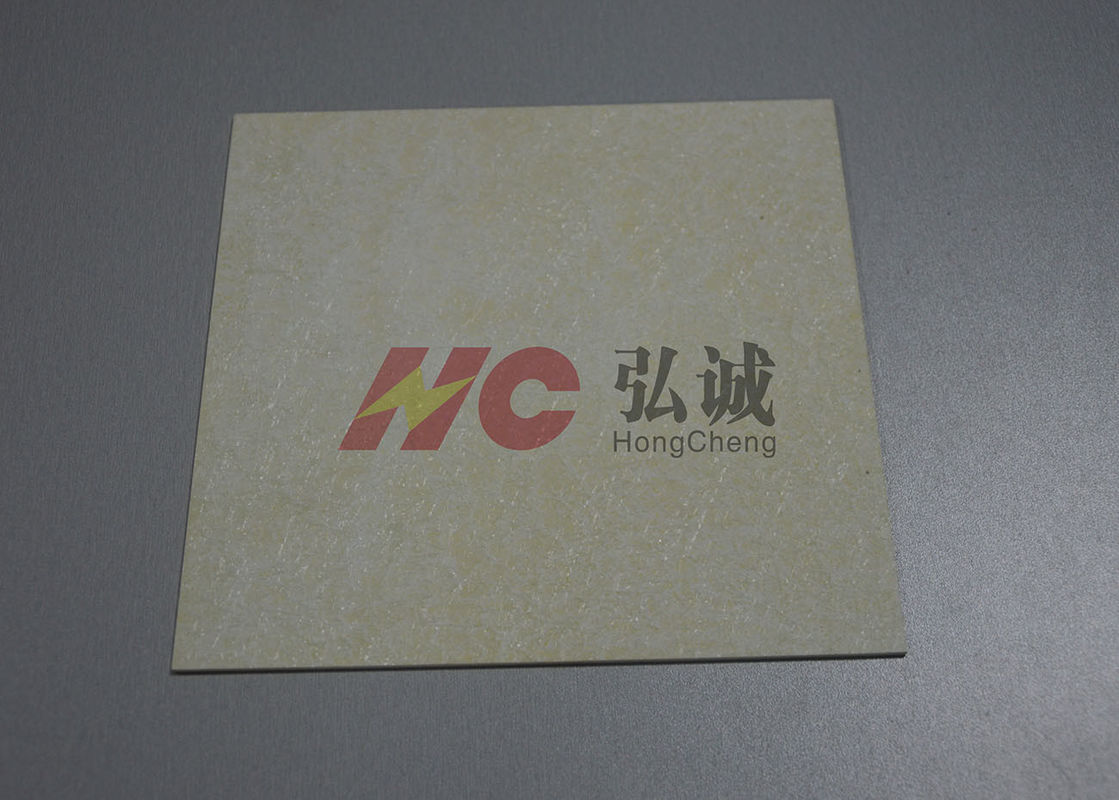

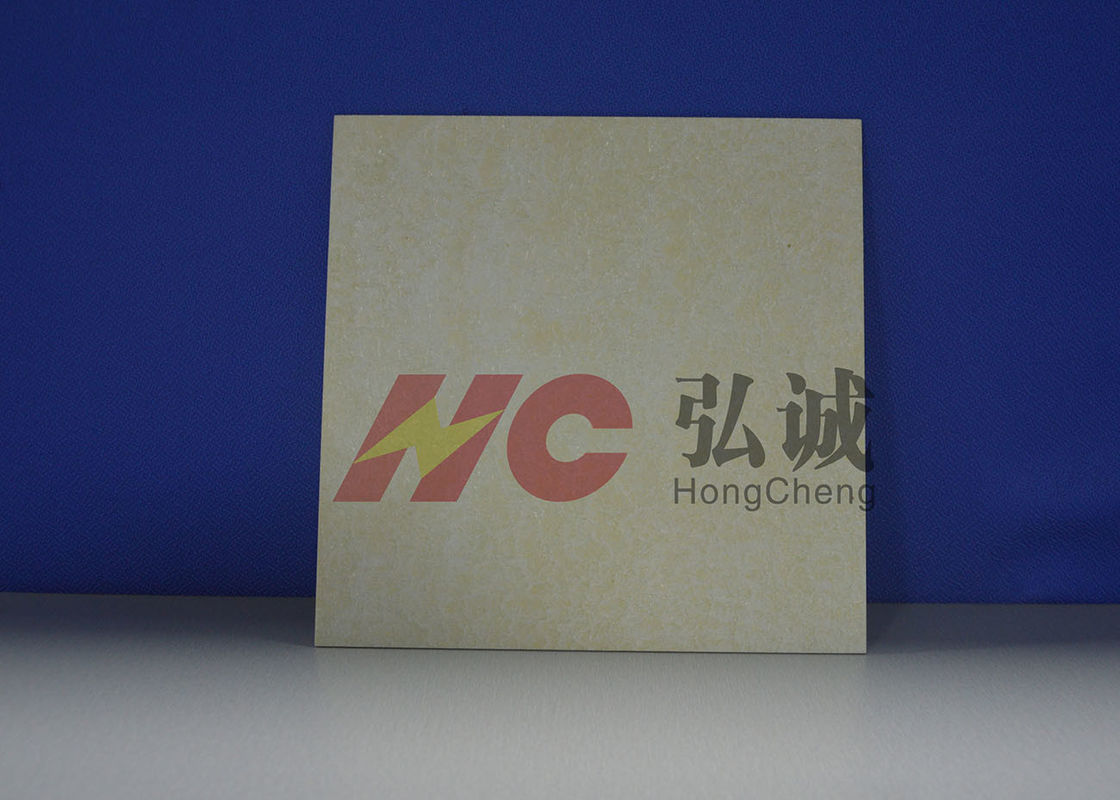

    UPGM205 mechanical reinforced sheet / upgm205 tensile strength reinforced sheet


    Product Introduction:

    UPGM205 mechanical reinforced sheet is made of heat pressing which composed of e-class glass-mat reinforced unsaturated polyester and inorganic filler binder.Compared with GPO-3 in the tensile strength and the full strength to do the corresponding upgrade .



    UPGM205 mechanical reinforced sheet is used extensively in low & middle voltage electrical epuipment as insulating structures ,such as circuit breaker ,switchear,transformer,converter,inverter & explosion-proof apparatus etc.in electrical apparatus:making of phase & end barriers,contact terminal supports,terminal plate,insulating supports,bus bar supports and mounting panels in switchgear;and signal panels in other types of electrical apparatus;and electric melting furnace insulations.


    Product Advantages:

    1. More Excellent Mechanical Strength than GPO-3 Sheet(Under high temperature, the tensile strength and bending strength are better.)
    2. Excellent Arc Resistance(Arc Resistance≥180 S)
    3. Excellent Track Resistance(CTI≥600V)
    4. Excellent Heat Resistance(Class F)
    5. Excellent Thermal Impact(Temp. Index: -273℃ to +155℃)
    6. Excellent Fire Retardant(UL 94 V-0 Grade)
    7. Low Smoke,Halogen Free Products(NF-F16-101/102)
    8. RoHS,Reach Certified products

    Hong Cheng Grade HC-UPGM205
    IEC 893 / EN 60893 Grade UP GM 205
    Items Test method Unit Typical Values
    Physical Properties Color Visual inspection ---- White
    Specific Gravity IEC 60893-2:2003 g/cm3 1.90-2.10
    Water absorption ISO62:2008 % ≤0.5
    Mechanical Tensile Strength IEC 60893-2:2003 Mpa ≥180
    Properties Compressive Strength IEC 60893-2:2003 ≥400
      Flexural Strength IEC 60893-2:2003 ≥250
      Modulus of Elasticity IEC 60893-2:2003 ≥15000
      Impact Strength IEC 60893-2:2003 KJ/m2 ≥70
    Electrical Insulation resistanceImmersion in water after 24 hrs IEC 60893-2:2003 Ω ≥1.0 x 109
    Properties Electric Strength - ┴ IEC 60893-2:2003 kV/mm ≥ 12
      Breakdown Voltage- // IEC 60893-2:2003 kV/25mm ≥ 80
      Arc resistance IEC 61621:1997 sec ≥180
      PTI Proof Tracking Index PTI IEC 60893-2:2003 --- ≥600
      CTIComparative Tracking Index IEC 60893-2:2003 --- ≥600
      Dielectric Constant IEC 60893-2:2003 --- 4.0-5.0
      tgδ Dielectric Factor IEC 60893-2:2003 --- ≤0.05
    Thermal Coefficient of Thermal Expansion ASTME 228-11 1/K ≤2x10-5
    Properties Temp. Index IEC 60085:2004 155
    Flame Resistance Oxygen Index ISO 4589-2:1996 %O2 ≥ 30
    Properties Flame Resistance IEC 60893-2:2003 --- V-0(≥3.2mm)
      Toxicant (Emission halogen etc.) E662 --- Low
      Smoke index NF F 16-101 --- F1
    Other Halogen(Cl,Br) BS EN 14582:2007 mg/kg N.D.
    The anti microbial properties of bacteria G21-G22   Good

    UPGM205 mechanical reinforced sheet used in Switch cabinet

    White UPGM205 Mechanical Reinforcement Sheet High Tensile Strength SheetWhite UPGM205 Mechanical Reinforcement Sheet High Tensile Strength SheetWhite UPGM205 Mechanical Reinforcement Sheet High Tensile Strength SheetWhite UPGM205 Mechanical Reinforcement Sheet High Tensile Strength SheetWhite UPGM205 Mechanical Reinforcement Sheet High Tensile Strength SheetWhite UPGM205 Mechanical Reinforcement Sheet High Tensile Strength Sheet


    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.
