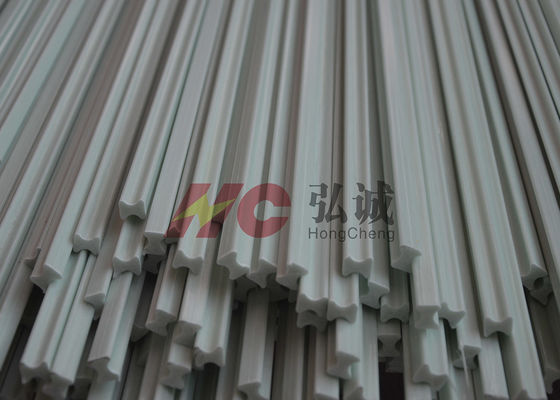

H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance

    • H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance
    • H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance
    • H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance
    • H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance
  • H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: Insulation Dog Bone Product Color: Red/Gray/White
    Product Size: 12 Kinds Of Specifications Compressive Strength: ≥290Mpa
    Shearing Strength: ≥ 89.7 Impact Strength(Charpy): >475Mpa

    H-class Dog bone with 180℃ Heat resistance / Insulation dog bone with Teminal index up to 180℃

    Product Description:

    GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Feature:

    Non-cracking,space stability

    Heat resistant:H class,heat resisitance up to 180℃

    Compressive strength:Cross ≥ 80MPa which is higher than most other manufacturer

    bending strength: which is up to 380 Mpa

    bonding strength:non cracking in foil and wire wound



    Application:

    transformer ,reactor,large dry transformer

    H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance


    Diagram:

     H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance


    Specification sheet:

    Product Name Item No. Size
    Dogbone HC-XC-D-W 6*8
    HC-XC-D-W 8*8
    HC-XC-D-W 8*10
    HC-XC-D-W 8*12
    HC-XC-D-W 10*10
    HC-XC-D-W 10*12
    HC-XC-D-W 10*13
    HC-XC-D-W 10*16
    HC-XC-D-W 10*19
    HC-XC-D-W 10*20
    HC-XC-D-W 13*16
    HC-XC-D-W 16*24

    H-class Dog bone with 180℃ Heat resistance used in switch cabinet

    H - Class Insulation Dog Bone Non - Cracking With 180℃ Heat Resistance

    Switch cabinet is an electrical device , the exterior lines of switch cabinet enter in main control switch in the cabinet first, then enter the control switch, each branch is set according to its need.The main function of the switch cabinet is make the opening&closing ,control&protect electric equipment in the process of power generation, power transmission, distribution and power conversion.The components in the switch cabinet consist of circuit breaker, isolating switch, load switch, operating mechanism, transformer and protective device of insulation component.The insulation components in switch cabinet are supporting, bearing and isolating ,so the insulation materials are required to be: higher electrical strength, higher mechanical strength, stronger arc resistance and so on. The commonly materials used in switch cabinet are UPGM203 laminated sheet
    Our products are mainly used as making of phase & end barriers,contact terminal support,terminal plate,insulating supports,bus bar supports and mounting panels.
    Main famous cooperative enterprises: ABB,Henan Pinggao Electric Co.,Ltd,TBEA Co.,Ltd,XJ ELECTRIC Co.,Ltd,Daqo Group Co.,Ltd.


    Our company is located in Xiang’an manufacture base of Xiamen Special Economic Zone.It is a national hi-tech enterprise with the ability to R&D,production,sale and further processing,we has became the solver of electric insulation technology project .We have more than one hundred machines including CNC and Digital controlled lathe.every kinds of Bending machine,Punching machine,have establish the completely production chain of design and precision further processing .We are the only modernization company in the country which is totally operated by Numerical control in respect of material production and the process for non-metallic insulating spare parts.All of the products have gained the UL certification of the USA,The French national standard certification,CEMT,RoHS,Reach and many national& international authoritative organization certification.
