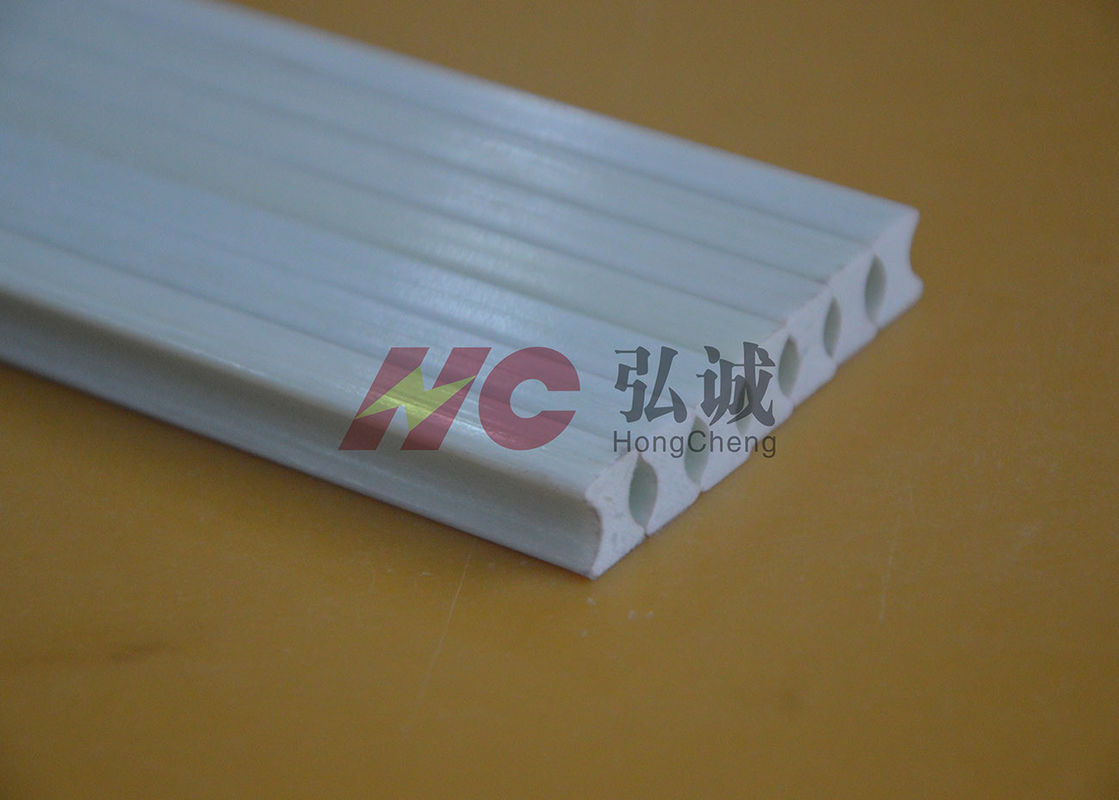

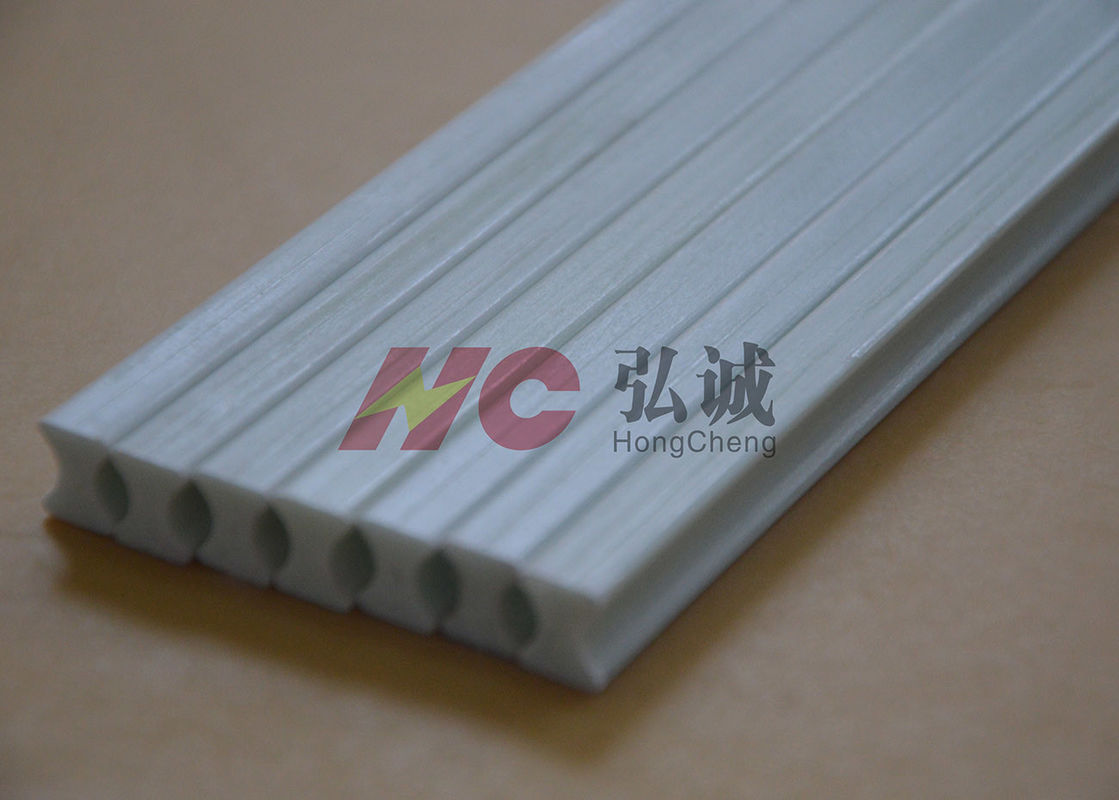

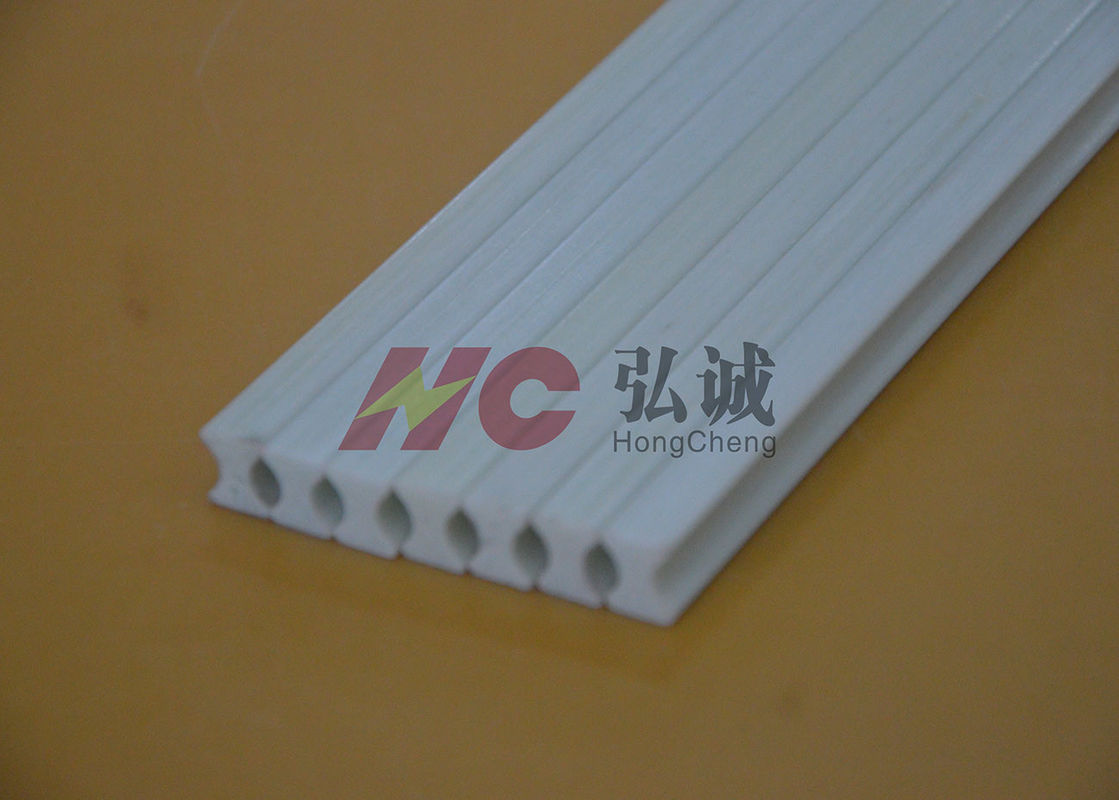

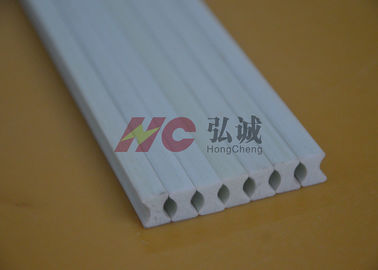

Custom Insulation Dog Bone Multi Specifications And High Compressive Strength

    • Custom Insulation Dog Bone Multi Specifications And High Compressive Strength
    • Custom Insulation Dog Bone Multi Specifications And High Compressive Strength
    • Custom Insulation Dog Bone Multi Specifications And High Compressive Strength
    • Custom Insulation Dog Bone Multi Specifications And High Compressive Strength
  • Custom Insulation Dog Bone Multi Specifications And High Compressive Strength

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: UL(E344098)/RoHS 2.0 /Reach

    Payment & Shipping Terms:

    Price: EXW , FCA , FOB
    Packaging Details: crate packing,plywood pallet , plastic pallet ,carton
    Delivery Time: 5-7 working days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name: Insulation Dog Bone Product Color: Red/Gray/White
    Product Size: 12 Kinds Of Specifications Flexural Strength: >650Mpa
    Compressive Strength: >290Mpa Shearing Strength: ≥ 89.7

    Multi specifications Dog bone / Custom Insulation dog bone


    Product Description:



    GPO-3 Dog bone/I-shaped Bracing is pultruded by composed of e-class glass-fiber and/or glass-mat reinforced unsaturated polyester and inorganic filler binder.



    Product Advantages:



    Products with high strength, better than foreign products, not cracking, non Explosive Edge

    Excellent size, space stability

    Heat resistant H class(TI ≥ 180°C)

    Heat resistant C class(TI ≥ 200°C)

    Excellent compressive strength(Cross ≥ 80MPa)

    Excellent bending strength(≥ 380MPa)

    Excellent bonding strength (non cracking in foil and wire wound)



    GPO-3 Profile Shapes & Bracing Series has space stability and high degree of automation processing,it is used extensively in equipments of power controller& power transmits as cable bridge & angle insulation; insulating channel of bus duct &fuse;insulating support of inverter converter etc. GPO-3 bracing series is our company special for the transformer ,reactor,large dry transformer,etc research and development of the application characteristics of airway stay pultrusion products.with the advantage in the process of foil of wire wound around the stability of bracing structure and non-cracking

    Custom Insulation Dog Bone Multi Specifications And High Compressive Strength


    Diagram:

     Custom Insulation Dog Bone Multi Specifications And High Compressive Strength

    Specification sheet:

    Product Name Item No. Size
    Dogbone HC-XC-D-W 6*8
    HC-XC-D-W 8*8
    HC-XC-D-W 8*10
    HC-XC-D-W 8*12
    HC-XC-D-W 10*10
    HC-XC-D-W 10*12
    HC-XC-D-W 10*13
    HC-XC-D-W 10*16
    HC-XC-D-W 10*19
    HC-XC-D-W 10*20
    HC-XC-D-W 13*16
    HC-XC-D-W 16*24

    Multi specifications Dog bone used in UPS

    Custom Insulation Dog Bone Multi Specifications And High Compressive Strength

    UPS is the uninterrupted power supply which is connected to the host by the battery ,converts the direct current into the system equipment of the AC by module circuit of the main engine inverter. When the market input is normal,UPS supplies the AC to the load after voltage stabilization .At this time, UPS is an AC voltage regulator, and it also charges the battery inside the machine;
    When mains supply interruption (power outage), UPS use the battery's direct current energy to continue supply 220V alternating current to the load immediately through the inverter switching conversion method ,it makes the load keep working and protect the software and hardware from being damaged. UPS devices usually provide protection against voltage too high or too low .The flame retardant requirement for insulating materials is V0, high strength and temperature resistance , The commonly materials used in UPS is HC-GPO3
    UPS are divided into:prepared UPS ,Online UPS,On line interactive UPS,The working principle of UPS is use the AC to charge the battery.than use the battery to supply the power for inverter cabinet,in order to supply power automaticly when the AC fails.
    GPO-3 sheet,PC are mainly used as Protective cover sheet , the structures plate,battery box which will improve the safety and durability of UPS.
    Main famous cooperative enterprises:Kehua Group(China) Co.,Ltd,East Group Co.,Ltd,Emerson electric(China) Co.,Ltd,Schneider(APC)
