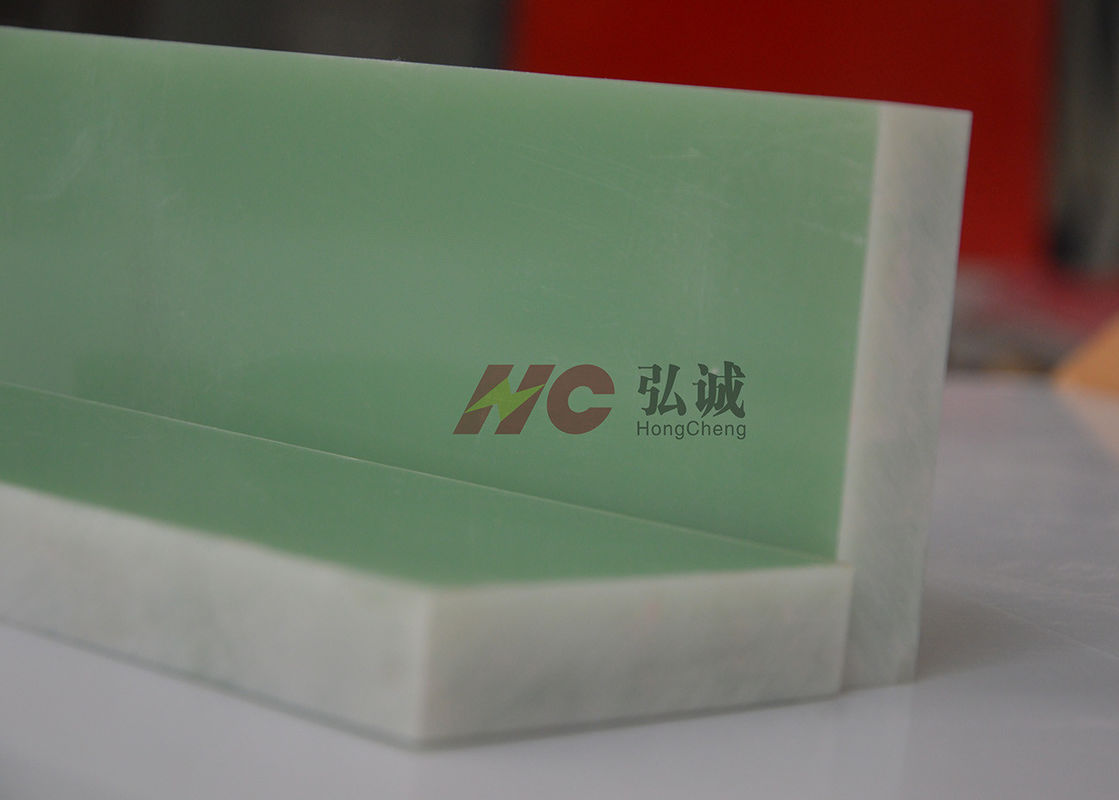

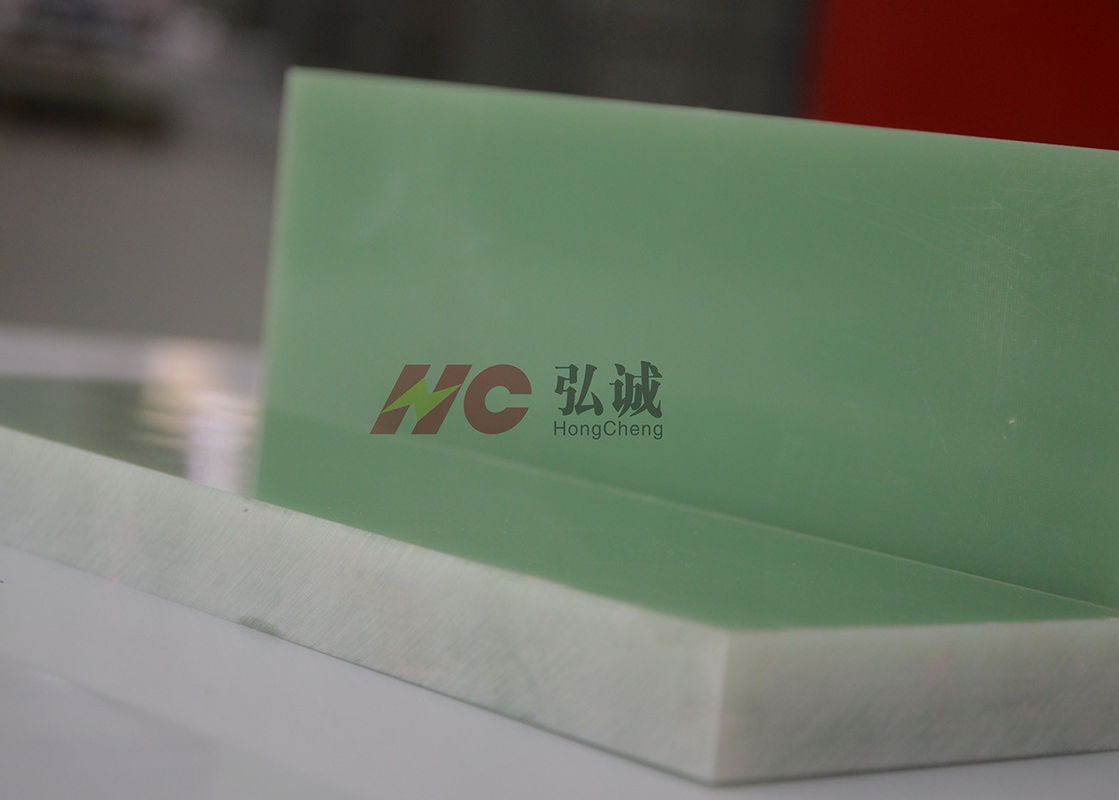

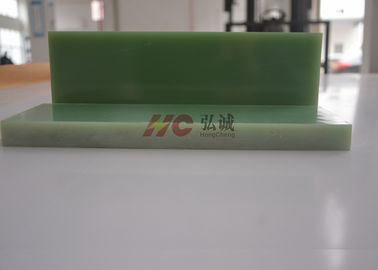

UL Certified FR5 Epoxy Fiberglass Sheet High Degree Automation Processing

    • UL Certified FR5 Epoxy Fiberglass Sheet High Degree Automation Processing
    • UL Certified FR5 Epoxy Fiberglass Sheet High Degree Automation Processing
    • UL Certified FR5 Epoxy Fiberglass Sheet High Degree Automation Processing
  • UL Certified FR5 Epoxy Fiberglass Sheet High Degree Automation Processing

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Certification: SGS/UL/RoHS 2.0/Reach
    Model Number: FR 5 / EPGC204 / Hgw2372.4

    Payment & Shipping Terms:

    Minimum Order Quantity: Nogociation accepted
    Packaging Details: crate packing ,pallet,carton
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Product Name:: FR5 H-class Epoxy Fiber Glass Sheet IEC Standard:: EPGC204
    German Standard:: Hgw2372.4 Product Thickness:: 1.0mm-40mm
    Product Size:: 1020*1220

    UL certified FR5 H-class epoxy sheet with High heat resistance / EPGC204 sheet UL certified


    Product Introduction:

    FR5 H-class epoxy sheet also known as EPGC204 under the IEC standard which were joint developed by ISOLA Twaiwan and our company,This is the high temperature resistant rigid plate insulating materials.



    Application:

    UL certified FR5 H-class epoxy sheet with High heat resistance are widely used in high voltage motor and electrical equipment as insulating structures,such as high-tension switch cubicle,transformer,frequency changer,converter,DC motor,AC contactor .automobile industry field.all kinds of switch cubicle such as bursting disk,lining pate,arc extinguishing chamber,arcing cylinder,arcing piece,flash barrier,wiring board,terminal plate insulating supports;strut member and bus bar supports in switchgear & transformer;the armature parts of electrical machine such as cover plate,slot wedge,stator,gasket,shims,carbon brush etc.





    Feature:

    • Heat resistance:High temperature resistance more than 180℃(the gradeof heat resistance is class H)
    • Voltage resistance: the voltage resistance of FR5 up to 16KV/mm
    • Fire retardant: FR5 Epoxy sheets are UL-rated V-0. They belongs to halogen-free system that generates very low smoke and smoke toxicity in a fire situation.
    • Mechanical strength:FR5 Epoxy sheet have stable mechanical strength and high degree of automation processing.

    UL Certified FR5 Epoxy Fiberglass Sheet High Degree Automation Processing


    Hong Cheng Grade HC-FR-5
    IEC 893/EN 60893 Grade EPGC 204
    ANSI (NEMA) Grade NEMA LI-1 FR-5
    DIN 7735 Hgw2372.4
    JIS GRADE EL-GEHF

    Item Test method Unit Typical values
    Physical properties color Visual inspection White
    Specific gravity IEC 60893-2:2003 g/cmP3P 1.90 - 2.15
    Water absorption ISO 62:2008 % <0.3
    Electrical properties Electric strength⊥ IEC 60893-2:2003 KV/mm ≥ 14(3.0mm)
    breakdown voltage∥ IEC 60893-2:2003 KV ≥ 60
    Volume resistivity IEC 60093:1980 Ω.m ≥ 1.0×10P12
    Surface resistivity IEC 60093:1980 Ω ≥ 1.0×10P14
    (1 MHZ) Dielectric constant IEC 60893-2:2003 4.0-5.5
    (1MHZ)Dissipation factor IEC 60893-2:2003 0.04-0.05
    PTI Proof Tracking Index PTI IEC 60893-2:2003 V ≥ 200
    24H IEC 60893-2:2003 Ω ≥ 5×10P10P
    Insulation resistance after immersion 24Hre in water
    Mechanical properties Flexural strength⊥ IEC 60893-3-4:2003 MPa ≥ 340
    Charpy Impact strength∥ IEC 60893-2:2003 KJ/mP2P ≥60
    Tensile Strength IEC 6089-2:2003 MPa ≥300
    Bond strength IEC 60893-3-4:2003 N ≥8000
    Compressive strength ⊥ IEC 60893-2:2003 MPa ≥ 350
    Flame resistance properties Flame resistance IEC 60893-2:2003 V-0
    Temperature index IEC 60085:2004 180
    Toxicant content E662 Low
    Other Acetone resistance Boiled Min 30(OK)

    UL certified FR5 H-class epoxy sheet with High heat resistance used in rail traffic

    UL Certified FR5 Epoxy Fiberglass Sheet High Degree Automation Processing

    There are many modules for the use of insulation materials in rail transit, modules of motor and traction motor, module equipment and interior decoration.On safety performance for this kind of civil transport have quite high demand, need fire report, flame retardant grade should be V0, heat resistance grade should be above F, even C grade requirement of heat resistance, besides the material itself needs certain mechanical strength and electrical strength. The commonly used materials in rail traffic are HC-GPO3/HC-FR4/HC-FR5 etc.
    Epoxy pultruded tube has high mechanical strength and automatic machining, has high electrical property,excellent Fire Retardant,is widely used as insulating bracket, insulatingspacer, left bracket , right bracket,baseboard,connection rod,lead fixation column in the field of rail transportation.
    Main famous cooperative enterprises:CRRC ZhuZhou Electric Co.,Ltd, Alstom Equipment Co. Ltd


    Packing detail:plywood crate packing;plywood pallet;plastic pallet;Exports standard cartons for products
    delivery detail: 5-7 working days
