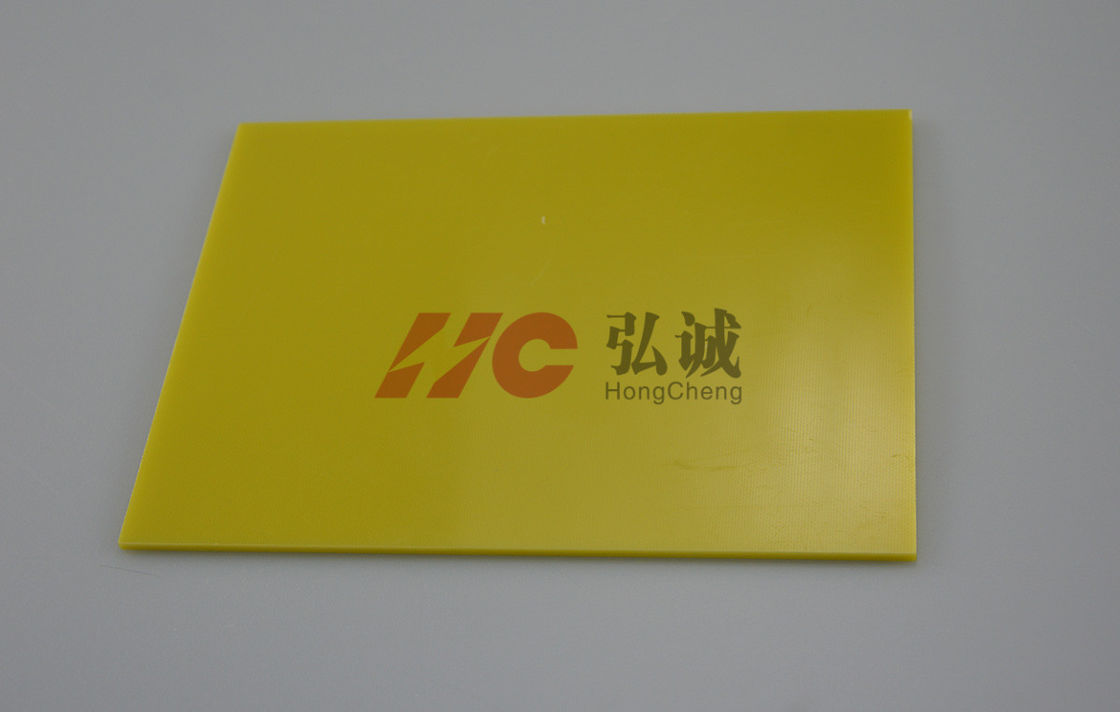

Low Smoke EPGC 201 3240 Epoxy Sheet High Mechanical Properties With Low Density

    • Low Smoke EPGC 201 3240 Epoxy Sheet High Mechanical Properties With Low Density
    • Low Smoke EPGC 201 3240 Epoxy Sheet High Mechanical Properties With Low Density
    • Low Smoke EPGC 201 3240 Epoxy Sheet High Mechanical Properties With Low Density
  • Low Smoke EPGC 201 3240 Epoxy Sheet High Mechanical Properties With Low Density

    Product Details:

    Place of Origin: China
    Brand Name: Hongcheng
    Model Number: 3240/EPGC201/HGW2372

    Payment & Shipping Terms:

    Packaging Details: crate packing,pallet,cartons
    Delivery Time: 5-8 work days
    Payment Terms: T/T
    Contact Now
    Detailed Product Description
    Production Name: 3240 Epoxy Sheet Thickness:: 0.4-50.0
    Product Size:: 1020*1220,1220*2040 Temperature Index: 155℃
    Density: 2.1g/cm3 Water Absorption: <0.8%

    Low cost EPGC201 with low density & high mechanical properties / 3240 Epoxy sheet


    Low smoke EPGC201 is a rigid plate-like insulating material which is made of composed imported alkali-free glass fiber cloth ,impregnated with imported unmixed epoxy resin ,added the imported fire retardant and cementing compound under high temperature and high pressure.



    Low cost EPGC201 with low density & high mechanical properties are widely used in many fields which can be applied to moulded case circuit breaker,electrical machine,electrical equipment as parts of insulating structure in transformer and other electrical equipment.




    Product Advantage:



    Environment-Friendly:Halogen free,low smoke&green product

    Voltage resistance:electric strength ≥16KV/m

    Heat resistance: Class F,heat resistance up to 155℃

    Mechanical properties:high degree of automation processing and high mechanical process-ability

    Certification:RoHS 2.0,Reach Certified products




    Hong Cheng Grade HC-3240-Y
    IEC 60893/EN 60893 Grade EPGC 201
    Item Test method Unit Values
    Physical Properties Color   yellow
    density IEC 60893-2 8.1 g/cm3 1.9 - 2.1
    Water absorption IEC 60893-2 8.2 % <0.8
    Mechanical Properties Flexural Strength at rupture perpendicular to laminations IEC 60893-2 5.1 MPa ≥290
    Compressive Strength perpendicular to laminations IEC 60893-2 5.3 MPa ≥350
    Impact strength(Charpy)parallel to laminations IEC 60893-2 5.53 KJ/m2 ≥33
    Tensile Strength IEC 60893-2 5.7 MPa ≥220
    Electrical Properties Electric strength at90℃ in oil perpendicular to lamination IEC 60893-2 6.1.2 KV/mm ≥11.8(3.0mm)
    Breakdown Voltage at 90℃ in oil parallel to lamination IEC 60893-2 6.1.3 KV ≥30
    Permittivity (50HZ) IEC 60893-2 6.2 ≤5.5
    Dissipation factor(1MHZ) IEC 60893-2 6.2 ≤0.05
    Insulation resistance after immersion in water IEC 60893-2 6.3 Ω ≥1×108
    Proof tracking index IEC 60893-2 6.4 V ≥200
    Volume Resistivity IEC 60089 Ω.m ≥1.0×1011
    Surface Resistivity IEC 60089 Ω ≥1.0×1013
    Others Properties Temperature Index IEC 60893-2 7.1 155
    Flammability IEC 60893-2 7.2 HB
    Toxicant Content E662 Low
    Acetone Resistance boiled Min 30(OK)

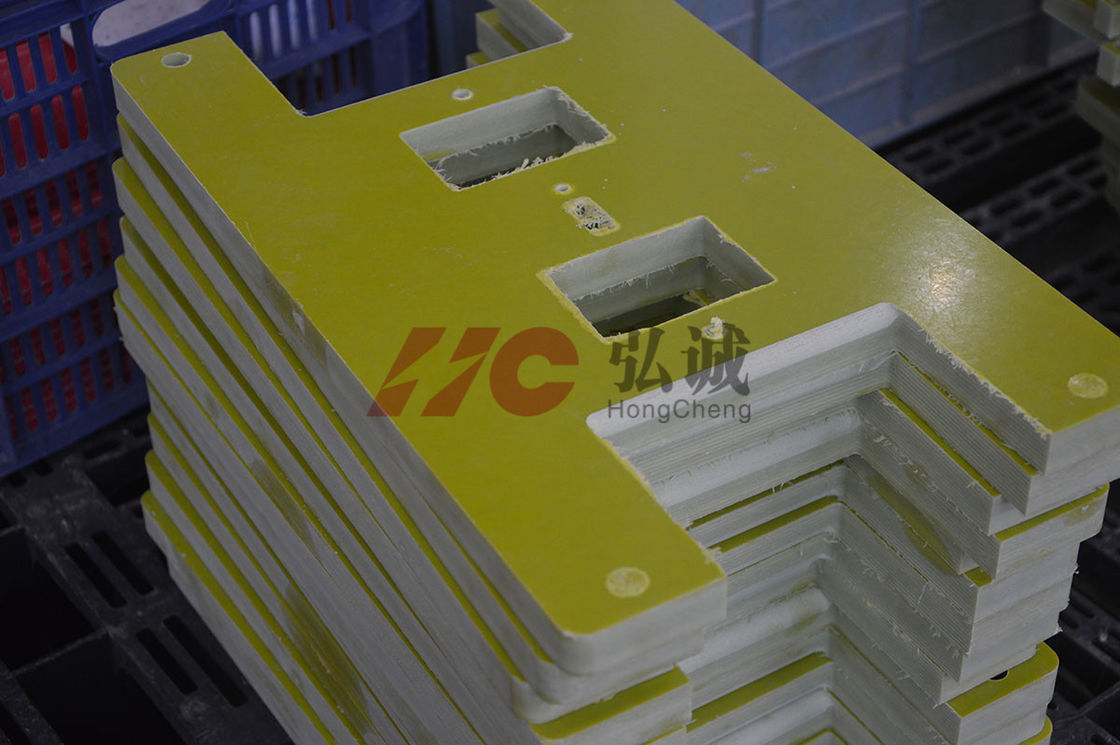

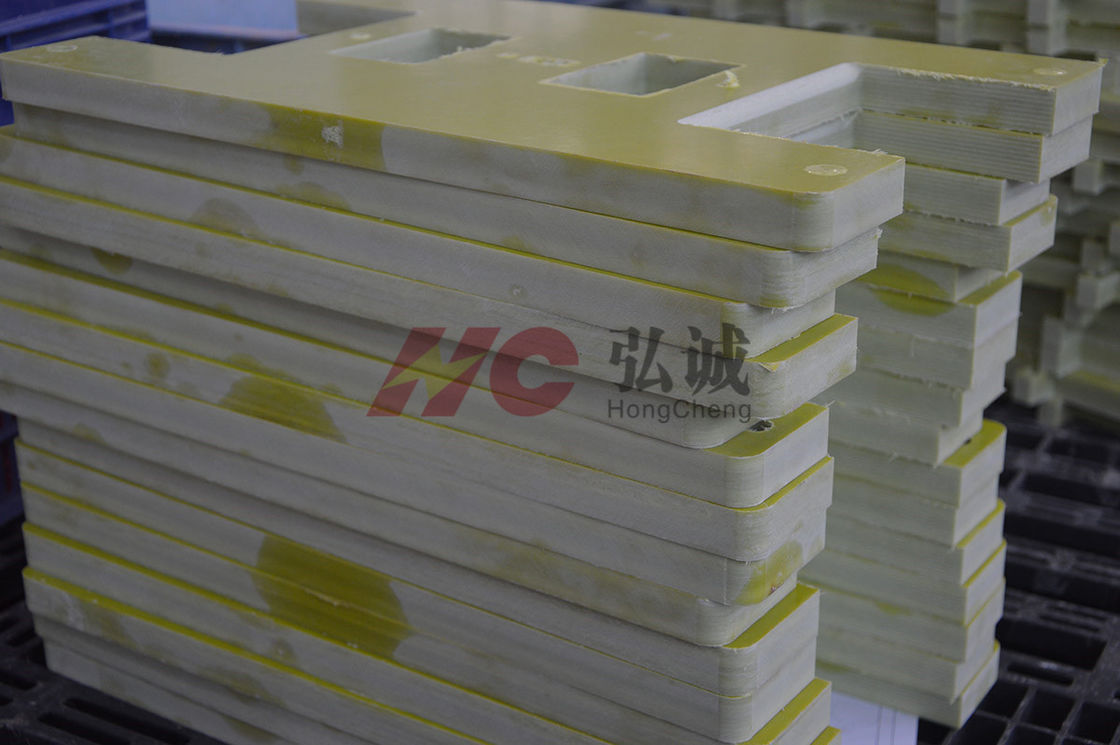

    Processing Advantage:

    Low Smoke EPGC 201 3240 Epoxy Sheet High Mechanical Properties With Low Density

    1.  Skilled at surface milling, drilling speed, flexible processing;
    2.  Strong versatility, it can be processed into various parts;
    3.  The advantage of low cost, high efficiency to meet the requirements of customer delivery.

    ISO9001 ISO14001 OHSAS18001 certification

    Low Smoke EPGC 201 3240 Epoxy Sheet High Mechanical Properties With Low Density
